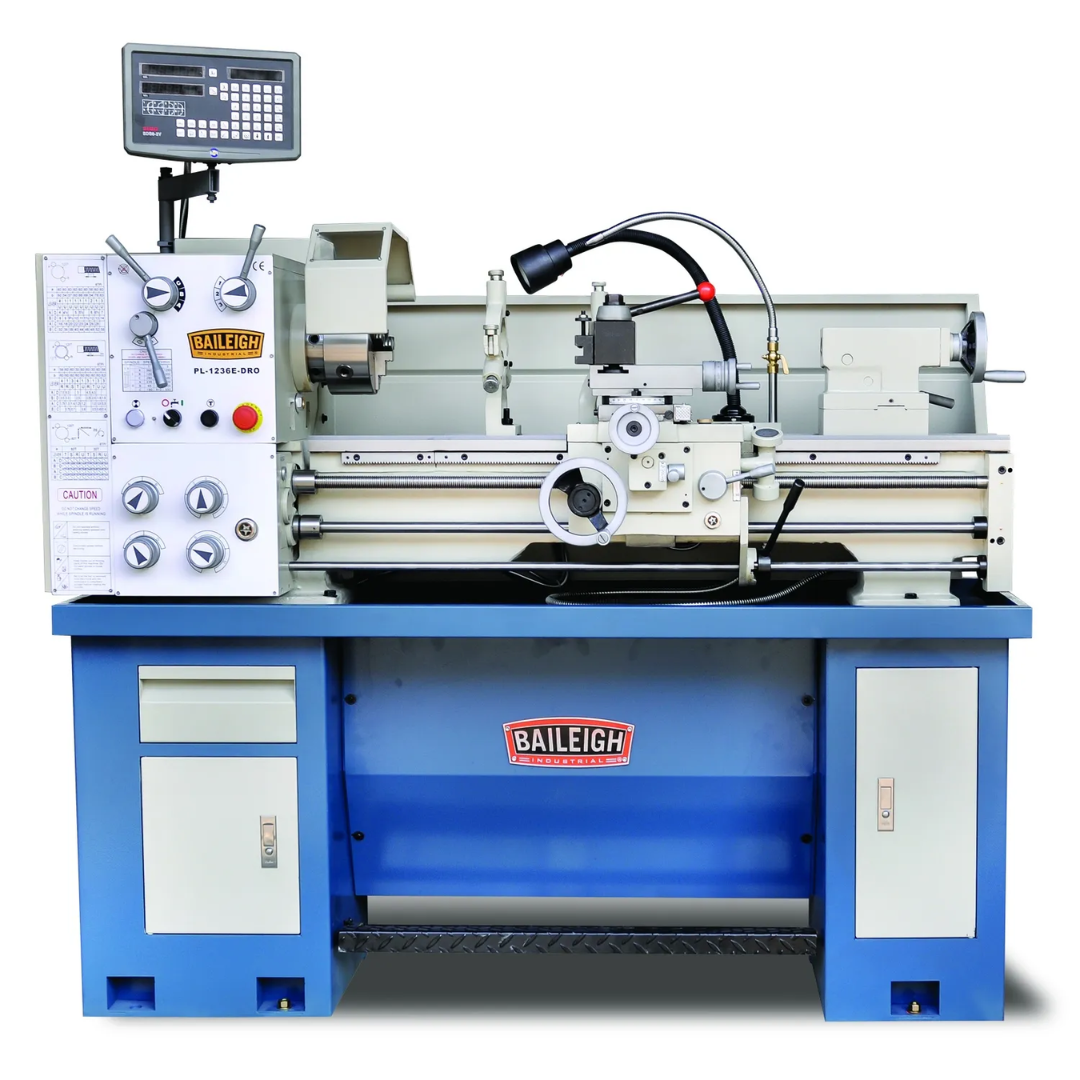

Baileigh 12"x36" Geared Head Metal Lathe, X/Y-Axis DRO (PL-1236E-DRO) 1016617 Applications
- General-purpose metal turning and machining operations.
- Maintenance and repair departments requiring precision component fabrication.
- Small to medium-sized fabrication and machine shops.
- Production of shafts, bushings, spacers, sleeves, and custom machined components.
- External and internal threading operations in both inch and metric formats.
- Educational, vocational, and technical training facilities.
- Prototype development and low-volume production work.
- Facing, boring, contouring, and finishing applications requiring repeatable accuracy.
The integrated X/Y-axis digital readout system makes this lathe an excellent choice for operators seeking faster setups, improved dimensional accuracy, and reduced measurement errors.
Baileigh 12"x36" Geared Head Metal Lathe, X/Y-Axis DRO (PL-1236E-DRO) 1016617 Specifications
| Model | PL-1236E-DRO-1.0 |
|---|---|
| Product Type | Geared Head Metal Lathe |
| Swing Over Bed | 12 in. |
| Distance Between Centers | 36 in. |
| Length of Gap | 6 in. |
| Horsepower | 2 HP |
| Input Power | 220V Single Phase |
| Motor Phase | Single Phase |
| Digital Readout | Yes (X and Y Axis DRO) |

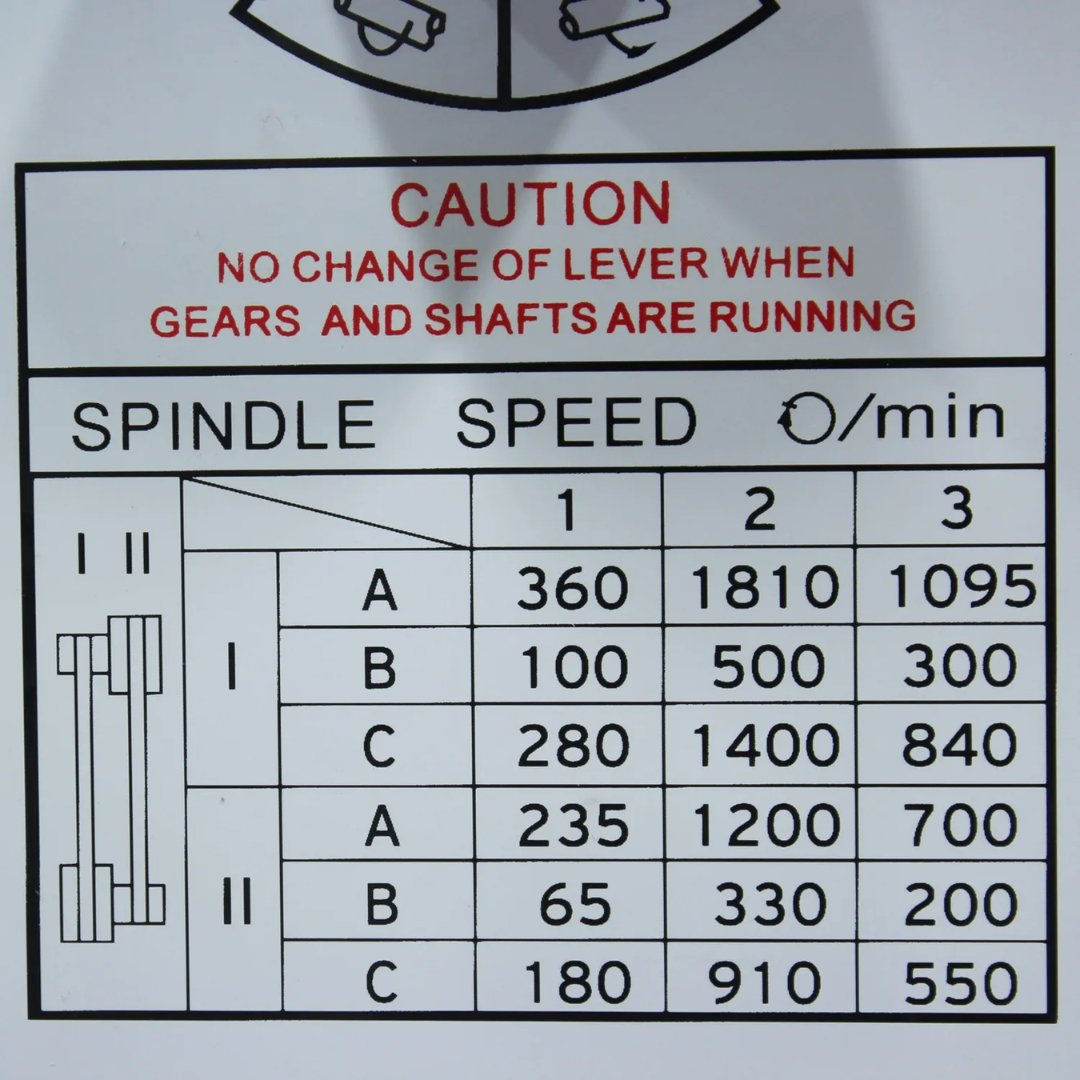

| Spindle Speed Range | 70 – 1400 RPM |
| Spindle Taper | MT3 |
| Spindle Travel | 4 in. |
| Spindle Bore | 1.50 in. |
| Leadscrew Thread Pitch | 8 TPI |
| Range of Inch Threads | 4 – 56 TPI |
| Range of Metric Threads | 0.4 – 7 mm |
| Range of Longitudinal Feeds | 0.002 – 0.0548 in./rev |
| Range of Cross Feeds | 0.007 – 0.0187 in./rev |
| Assembled Dimensions | 69 in. × 44 in. × 64 in. |
| Net Weight | 1,420 lbs. |
| Gross Weight | 1,420 lbs. |
| Warranty | 1 Year |
| UPC | 731325462715 |
Baileigh 12"x36" Geared Head Metal Lathe, X/Y-Axis DRO (PL-1236E-DRO) 1016617 Features & Performance

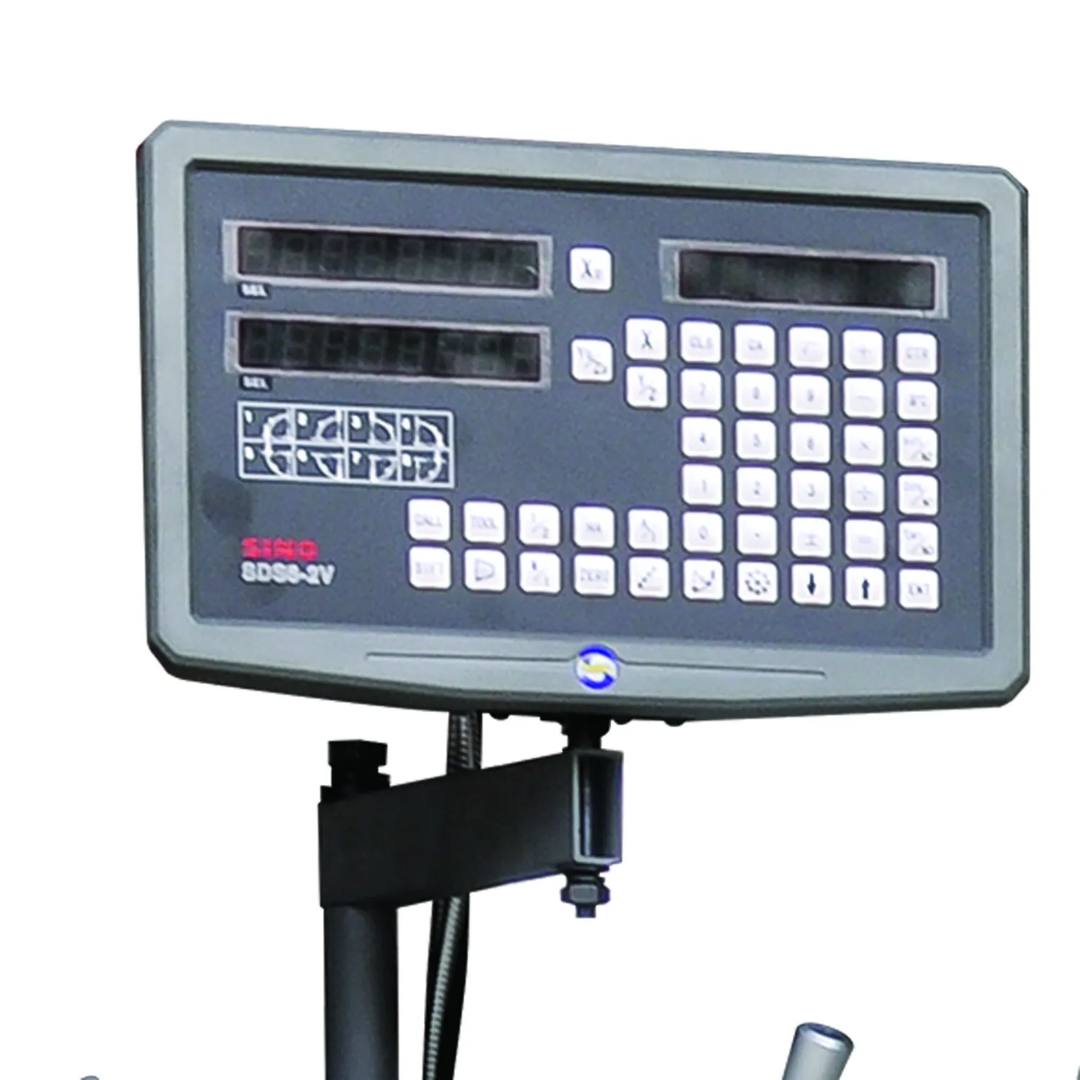

- Integrated X and Y-Axis Digital Readout System improves positioning accuracy, minimizes manual measurement errors, and enhances repeatable machining performance.
- 12" Swing Capacity allows operators to machine a wide range of workpiece diameters for diverse production and repair applications.
- 36" Between Centers provides ample working length for shafts, rods, and longer cylindrical components.
- Powerful 2 HP Motor delivers dependable cutting performance and consistent torque for demanding machining operations.
- 220V Single-Phase Power Requirement allows installation in many commercial shops without requiring 3-phase electrical service.

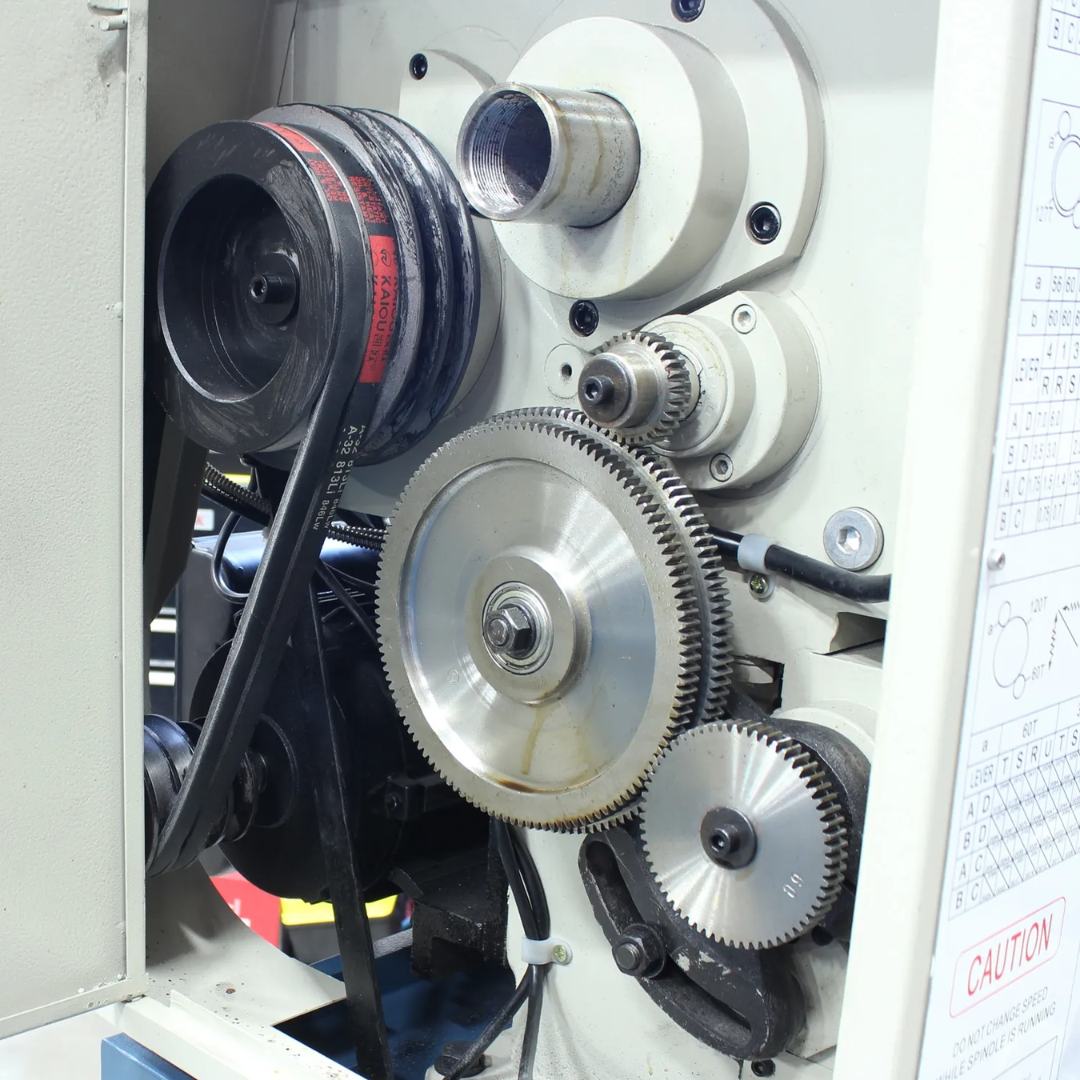

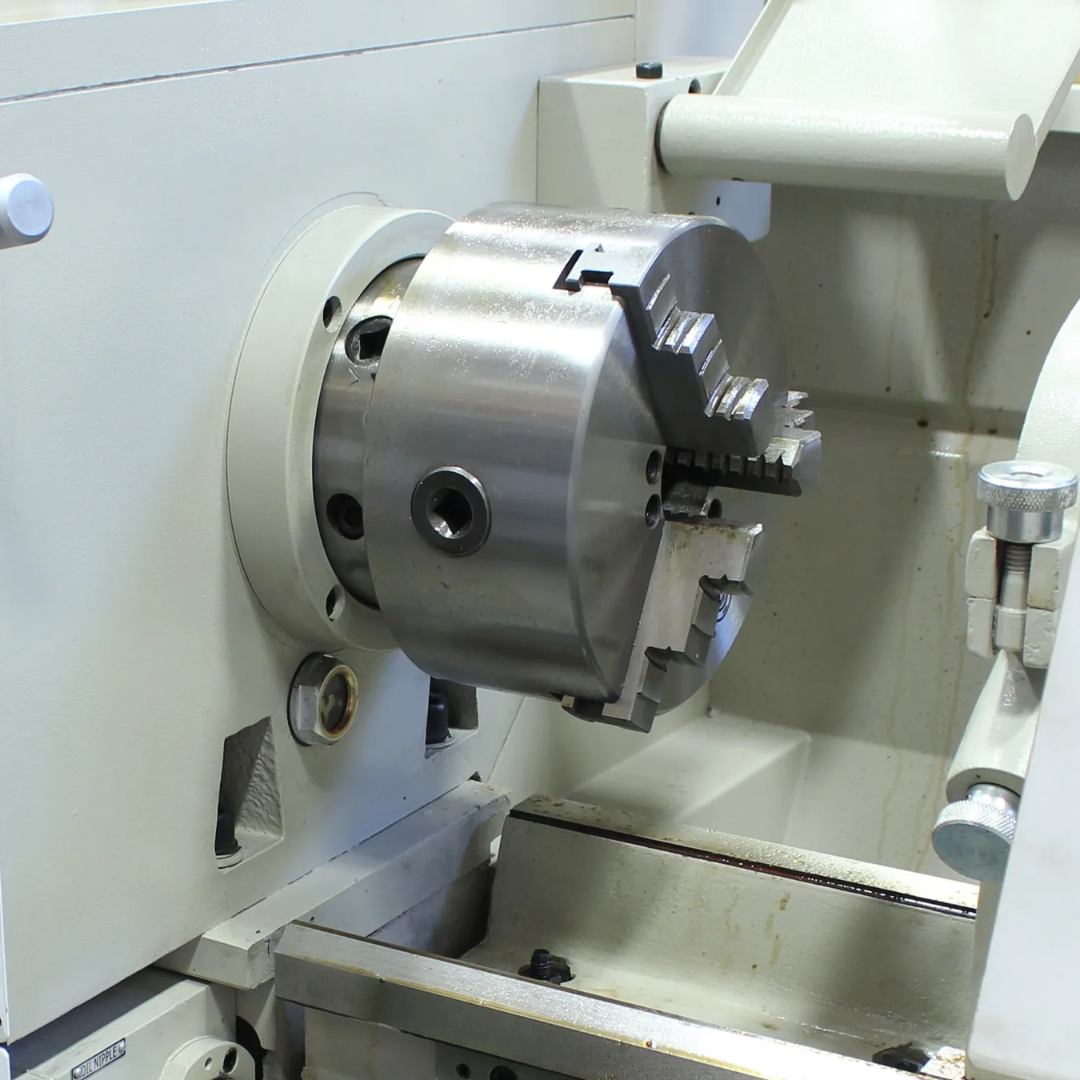

- Geared Head Drive System offers reliable power transmission and smooth spindle performance across a broad operating range.
- 70 to 1400 RPM Spindle Speed Range provides flexibility for roughing, finishing, threading, and precision turning tasks.
- 1.50" Spindle Bore accommodates larger diameter bar stock and expands machining capabilities.
- MT3 Spindle Taper supports commonly available tooling and accessories.
- Precision-Ground Bed Ways help maintain alignment accuracy while reducing wear over years of service.
- Rigid Cast-Iron Construction minimizes vibration, improves surface finish quality, and enhances machining stability.

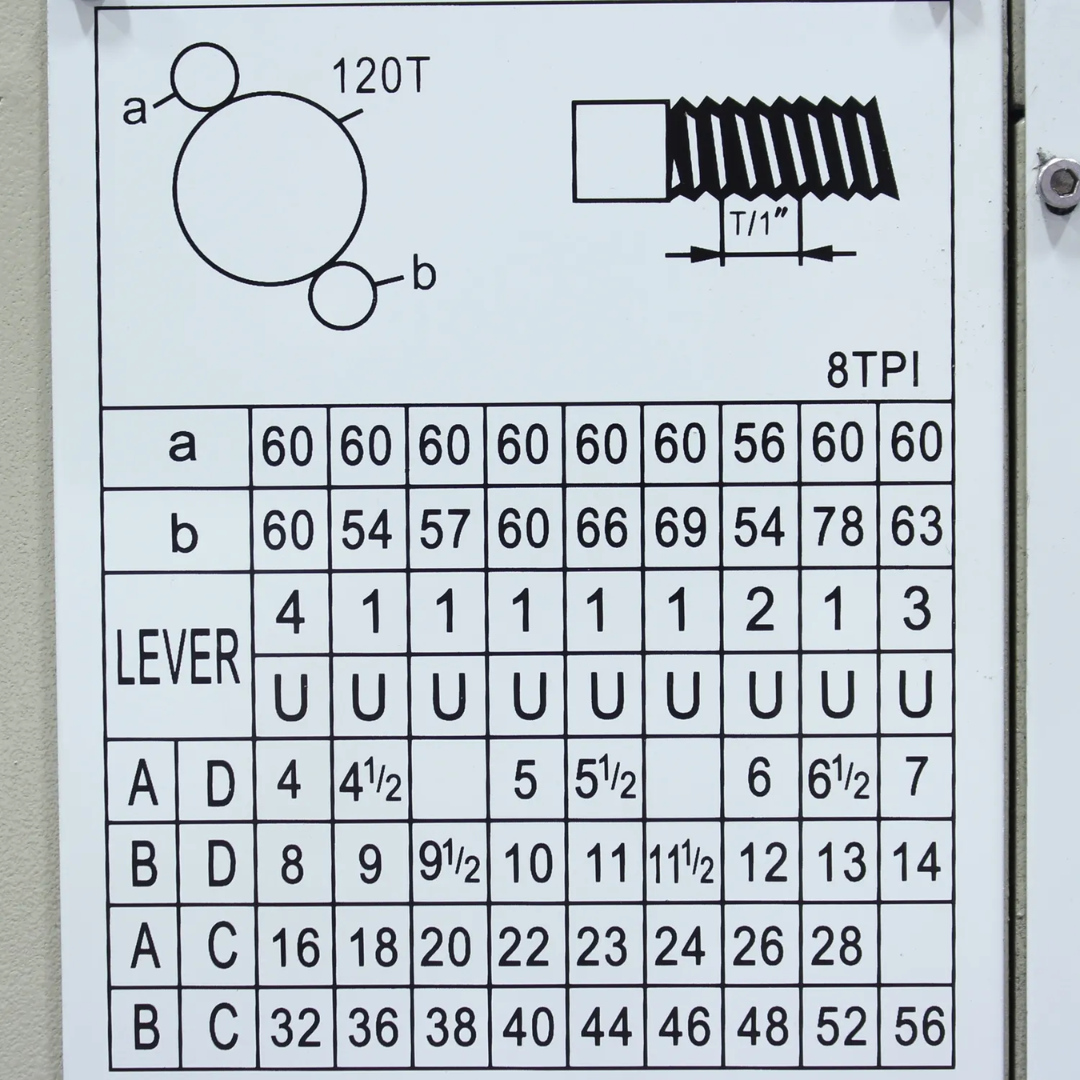

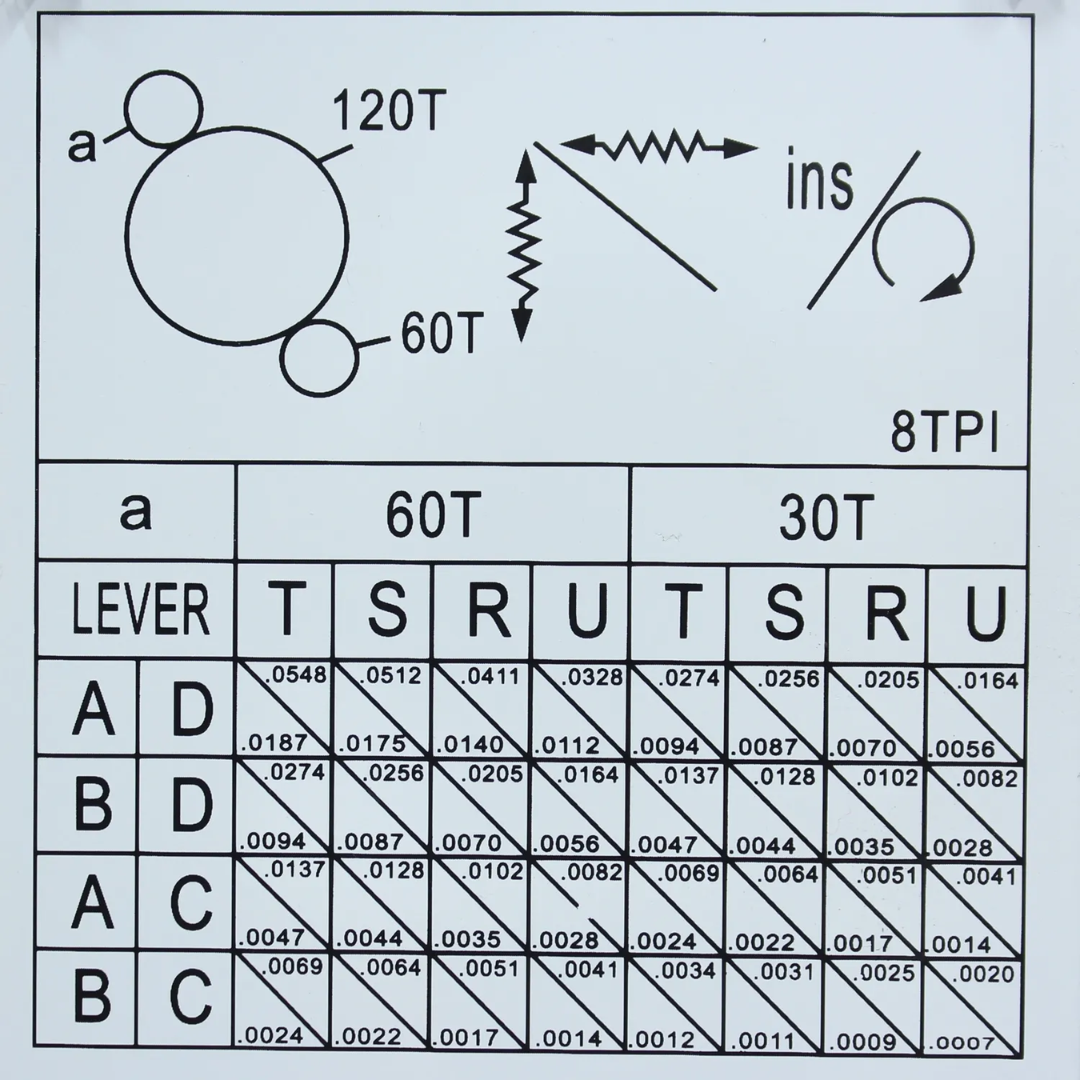

- Wide Threading Capability supports inch threading from 4–56 TPI and metric threading from 0.4–7 mm.
- Variable Feed Ranges enable controlled material removal rates for both rough machining and fine finishing operations.
- Industrial Weight Design with a 1,420 lb. machine weight provides exceptional rigidity and operational stability.
- Baileigh Support Network includes a 1-year warranty and lifetime technical support for long-term confidence and assistance.
Why Choose the Baileigh 12"x36" Geared Head Metal Lathe, X/Y-Axis DRO (PL-1236E-DRO) 1016617
- Factory-installed X/Y-axis DRO system for enhanced precision and repeatability.

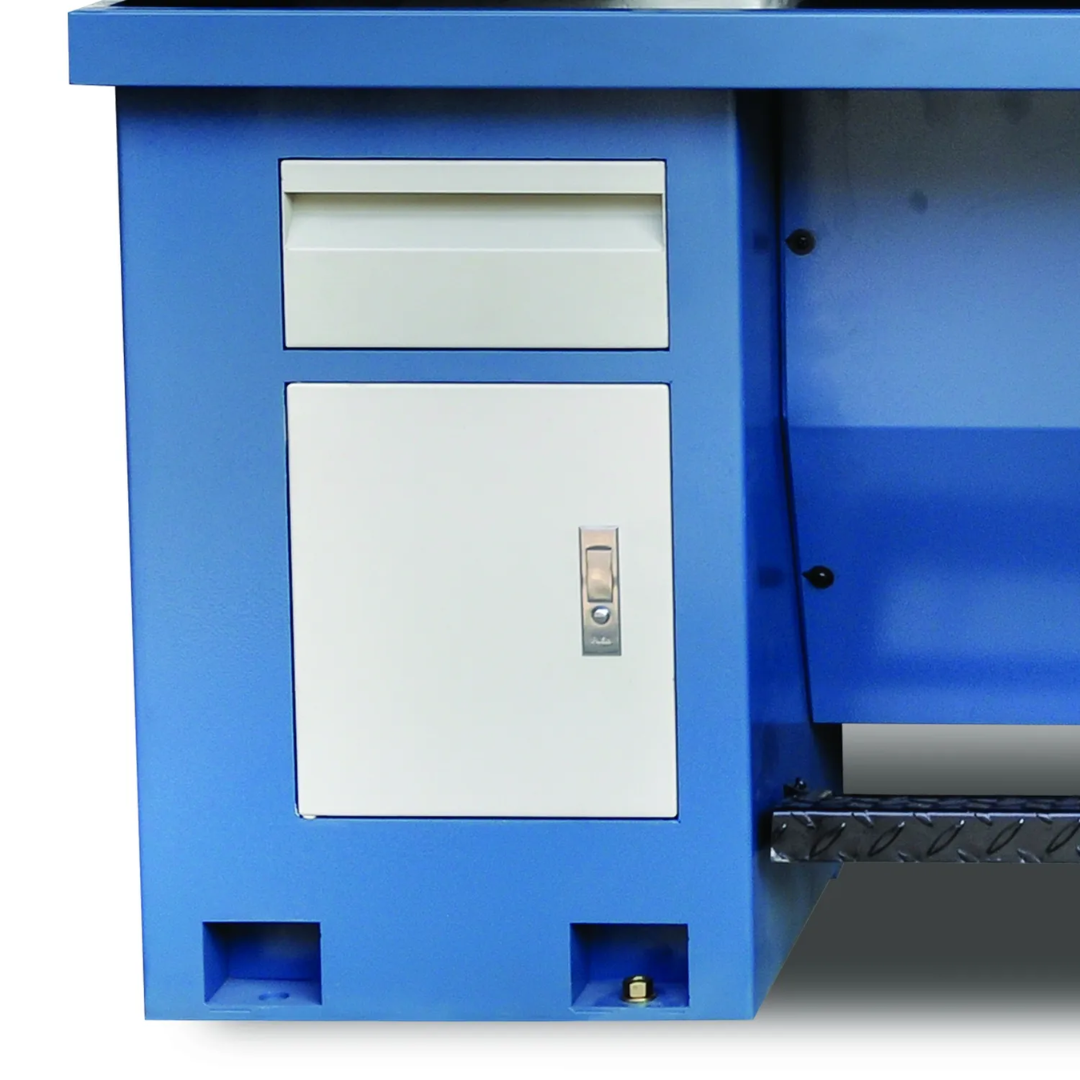

- Heavy-duty cast-iron construction designed for industrial durability.
- 12" swing over bed and 36" between centers provide excellent machining versatility.
- 2 HP motor with geared head drive delivers dependable torque and smooth operation.
- 70–1400 RPM spindle speed range supports a broad spectrum of metalworking tasks.
- Threading capabilities for both inch and metric applications.
- Operates on practical 220V single-phase power commonly found in workshops.
- Ideal for fabrication shops, maintenance facilities, training centers, and machine repair operations.
The Baileigh 12"x36" Geared Head Metal Lathe, X/Y-Axis DRO (PL-1236E-DRO) 1016617 combines industrial-grade construction, precision digital readout technology, and versatile machining capabilities into one dependable platform, making it an outstanding choice for professionals who require accuracy, reliability, and long-term performance.
