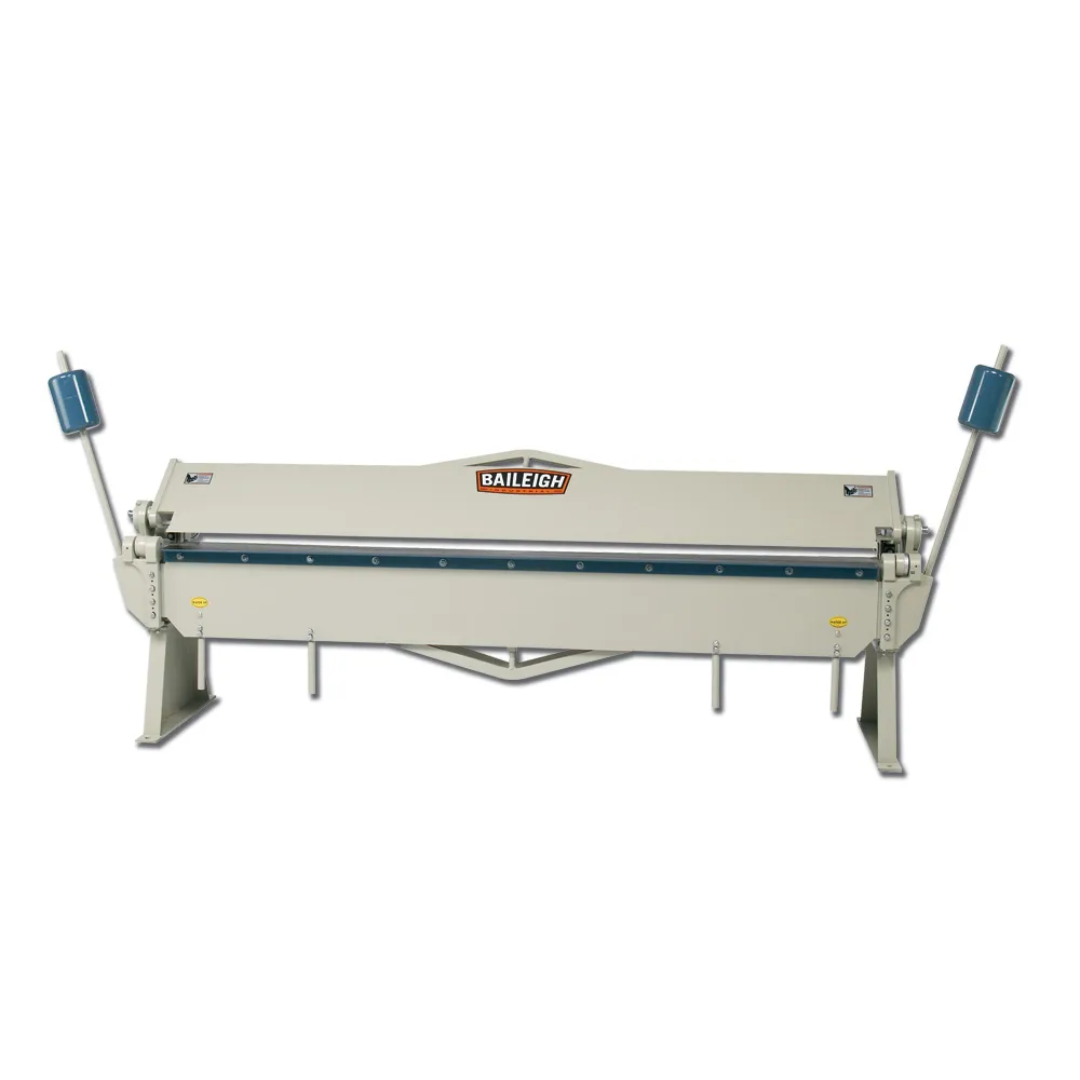

Baileigh 120-Inch Sheet Metal Hand Brake, 14G Mild Steel (HB-12014) 1004638 Applications
- HVAC ductwork fabrication and large sheet metal transitions.
- Architectural sheet metal and commercial roofing components.
- Metal building trim, flashing, fascia, and soffit fabrication.
- General fabrication shops producing long sheet metal panels.
- Agricultural equipment and industrial enclosure manufacturing.
- Maintenance departments requiring accurate manual sheet metal bending.
The Baileigh 120-Inch Sheet Metal Hand Brake, 14G Mild Steel (HB-12014) 1004638 is an ideal solution for professionals who need dependable manual bending performance across long sheet metal panels while maintaining exceptional accuracy and repeatability.
Baileigh 120-Inch Sheet Metal Hand Brake, 14G Mild Steel (HB-12014) 1004638 Specifications
| Model | HB-12014 |
|---|---|
| Part Number | 1004638 |
| Machine Type | Manual Straight Sheet Metal Brake |
| Working Width | 120 in. (10 ft.) |
| Bending Capacity | 120 in. |
| Mild Steel Capacity | 14 Gauge |
| Stainless Steel Capacity | 18 Gauge |
| Maximum Bend Angle | 135° |
| Operation | Manual |
| Top Beam | Adjustable Depth |
| Clamping Surface | Precision Ground with Adjustable Clamping Pressure |
| Counterbalance System | Dual Counterweights |
| Repeatability | Standard Stop Rod Included |
| Frame Construction | Heavy Fully Welded Steel Frame |
| Net Weight | 3,400 lbs. |
| Gross Weight | 3,400 lbs. |
| Warranty | 1 Year Parts Warranty |
Baileigh 120-Inch Sheet Metal Hand Brake, 14G Mild Steel (HB-12014) 1004638 Performance & Construction
- Massive 120-inch working width allows accurate bending of full-length 10-foot sheet metal panels for industrial fabrication and HVAC production.
- 14 gauge mild steel capacity provides the strength needed for demanding fabrication, construction, and manufacturing applications.
- Also bends 18 gauge stainless steel for shops working with corrosion-resistant materials and architectural metal products.
- Maximum 135° bend angle provides flexibility for forming channels, flanges, boxes, and numerous custom sheet metal profiles.
- Heavy fully welded steel frame resists flexing under load to maintain precise bends and long-term structural integrity.

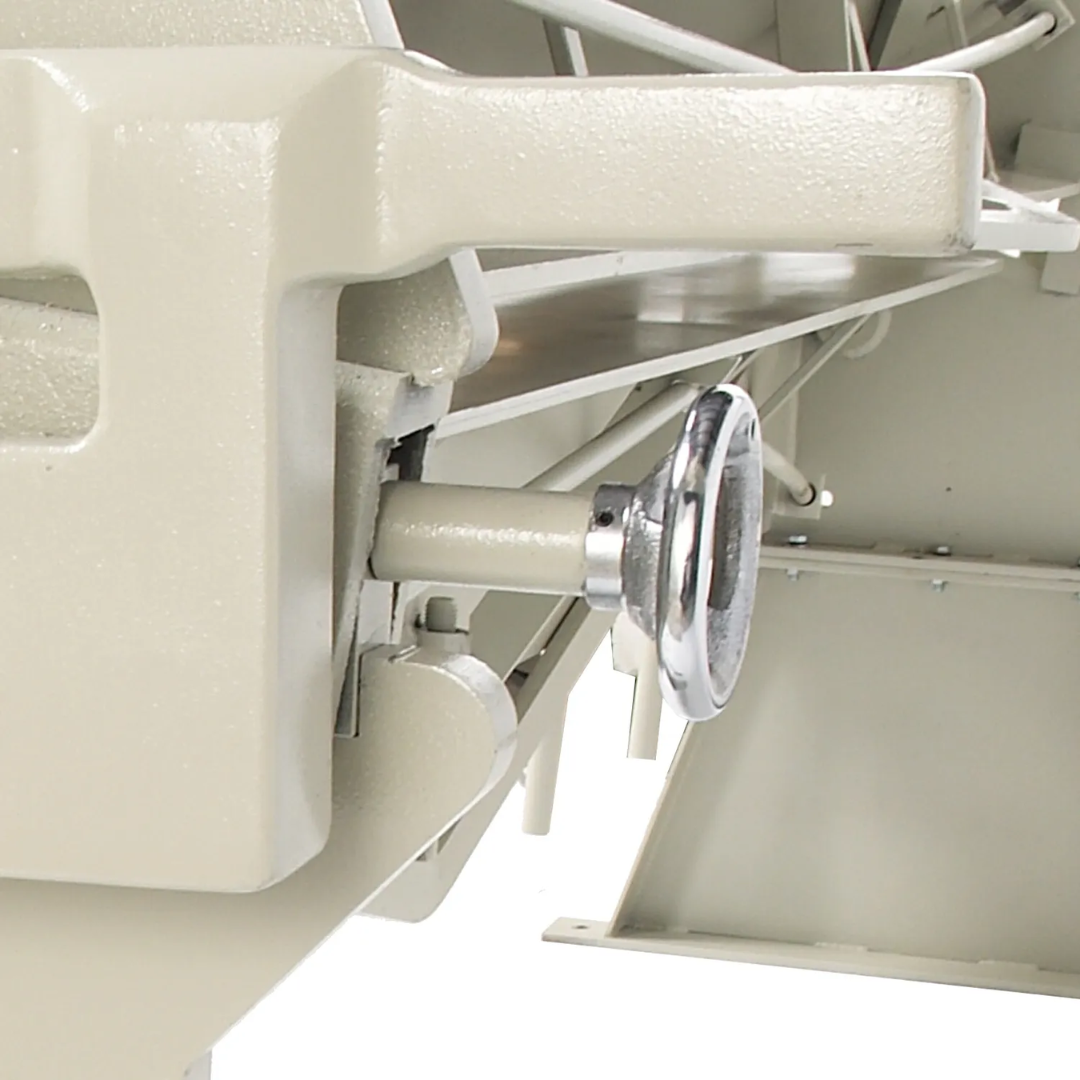

- Precision-ground clamping surfaces deliver uniform material holding while adjustable clamping pressure improves bend consistency.
- Adjustable top beam depth allows operators to optimize tooling setup for different material thicknesses and bending applications.

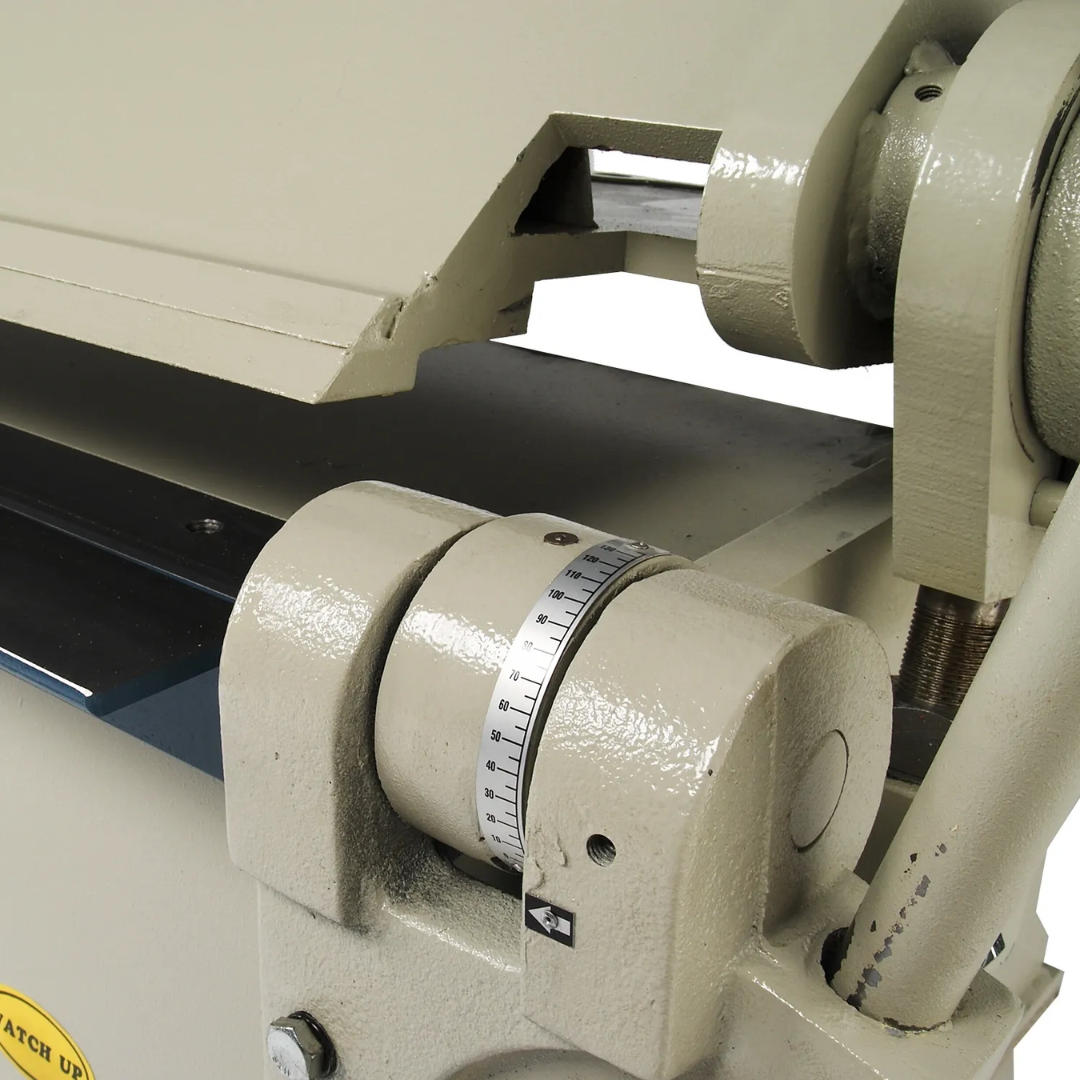

- Dual counterweight system significantly reduces operator effort while improving control during full-capacity bending operations.

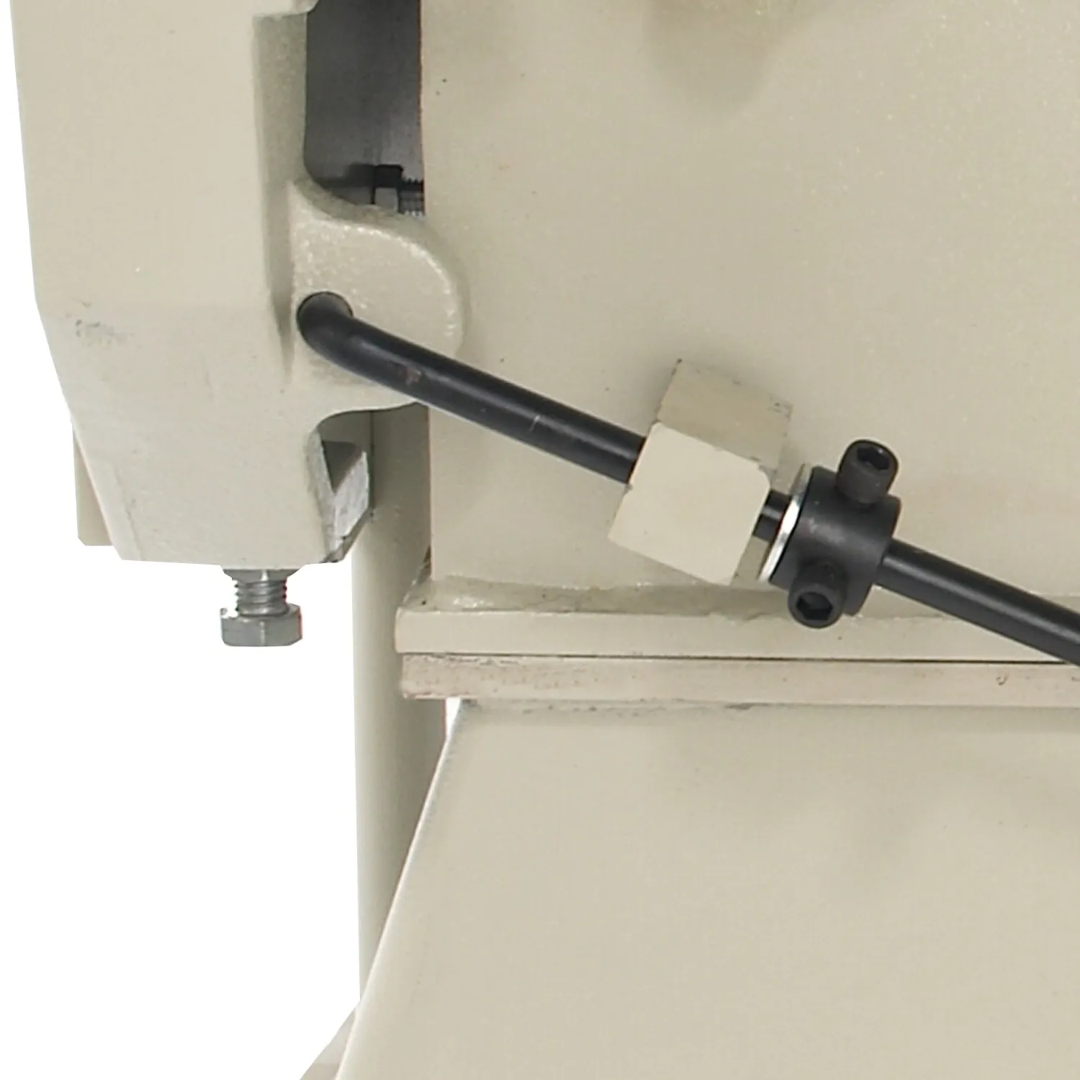

- Standard stop rod enables repeatable bends for production work and improves overall fabrication efficiency.
- Manual operation eliminates the need for hydraulic systems or electrical power, reducing maintenance while providing dependable everyday performance.
- Designed for professional fabrication environments requiring consistent bend quality across large sheet metal workpieces.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for long-term reliability and confidence.
Why Choose the Baileigh 120-Inch Sheet Metal Hand Brake, 14G Mild Steel (HB-12014) 1004638
- Large 120-inch working width accommodates oversized sheet metal panels.
- Bends up to 14 gauge mild steel and 18 gauge stainless steel with professional accuracy.
- Heavy-duty welded steel construction ensures industrial durability and long service life.
- Precision-ground clamping system improves bend quality and repeatability.
- Adjustable top beam and stop rod simplify setup for production work.
- Dual counterweights reduce operator effort during heavy bending operations.
- Reliable manual design requires no electrical or hydraulic power.
- Ideal for HVAC fabrication, roofing, architectural metalwork, manufacturing, and industrial sheet metal production.
- Supported by Baileigh's 1-year warranty and lifetime technical assistance.
The Baileigh 120-Inch Sheet Metal Hand Brake, 14G Mild Steel (HB-12014) 1004638 delivers exceptional manual bending performance for professionals who demand precision, durability, and consistent results across long sheet metal panels. Combining industrial-strength construction with precision adjustment features, this heavy-duty straight brake is built to handle years of dependable service in demanding fabrication environments.
