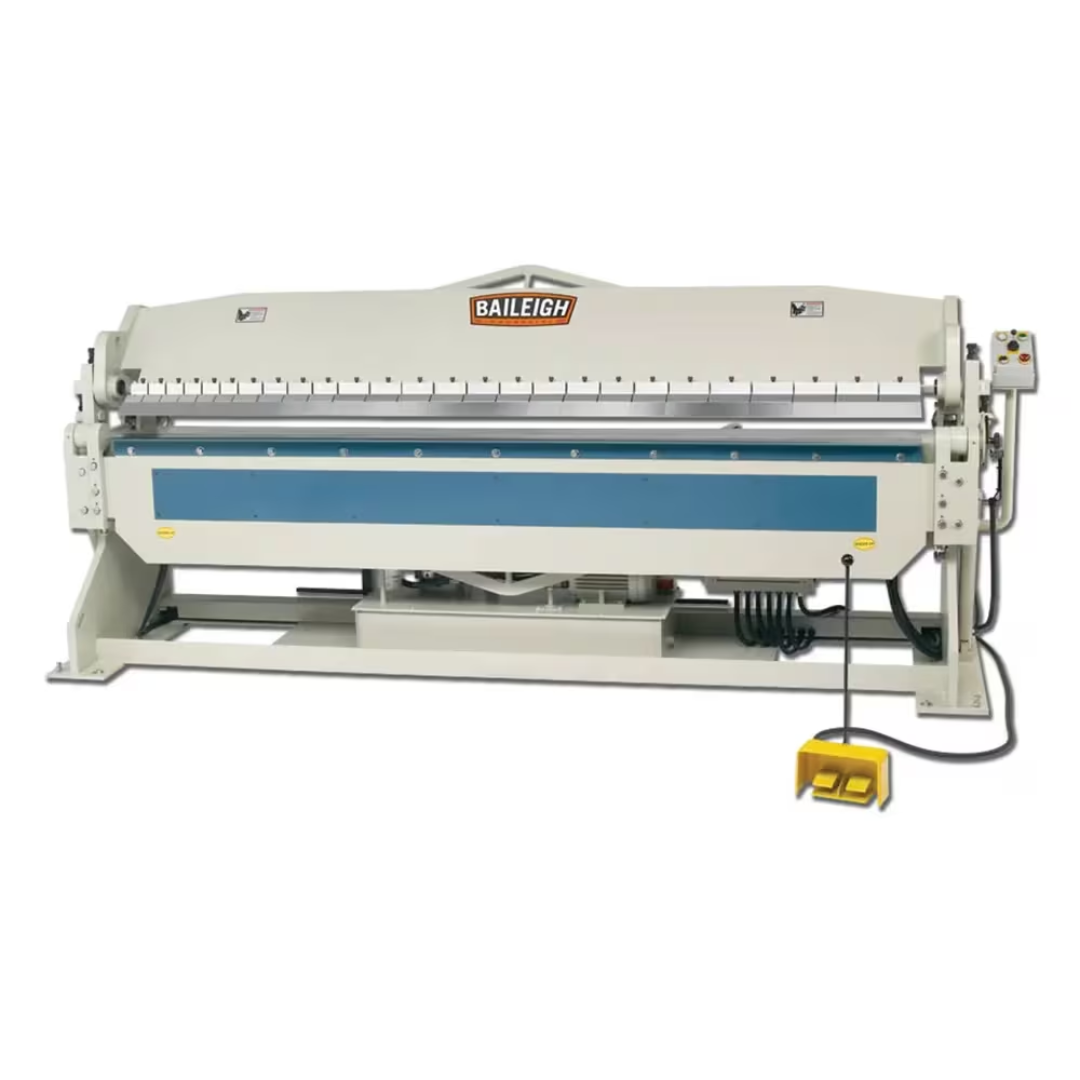

Baileigh 120-Inch Hydraulic Box & Pan Brake (BB-12010H) Applications
- Industrial sheet metal fabrication.
- HVAC ductwork and air handling equipment manufacturing.
- Electrical enclosure and control cabinet production.
- Architectural sheet metal fabrication.
- Commercial and industrial roofing and flashing fabrication.
- Large boxes, pans, trays, channels, and custom enclosures.
- Production facilities requiring repeatable hydraulic bending of heavy-gauge materials.
Designed for fabricators who need reliable hydraulic bending power, long working lengths, and consistent precision when forming large sheet metal components.
Baileigh 120-Inch Hydraulic Box & Pan Brake (BB-12010H) Specifications
| Model | BB-12010H |
|---|---|
| Product Number | 1020998 |
| Operation | Hydraulic |
| Working Width | 120 in. (10 ft.) |
| Material Capacity | 10 Gauge Mild Steel |
| Maximum Bend Angle | 135° |
| Maximum Box Depth | 6 in. |
| Motor | 2 HP Hydraulic Motor |
| Power Requirement | 220V Three Phase |
| Finger Configuration | 26 Hardened Fingers (6 × 3", 4 × 4", 10 × 5", 6 × 6") |
| Frame Construction | Electro-Welded Heavy Steel Frame with Truss Rod Reinforcement |
| Control Method | Foot Pedal and Console Controls with Programmable Auto-Stop |
| Hydraulic System | Industrial Hydraulic Clamp and Bend System with Adjustable Speed & Pressure |
| Net Weight | 7,700 lb |
| Gross Weight | 7,700 lb |
| Warranty | 1 Year Parts Warranty |
| UPC | 19907771593 |
Baileigh 120-Inch Hydraulic Box & Pan Brake (BB-12010H) Performance & Construction
- Industrial hydraulic bending system provides smooth, consistent clamping and forming pressure for accurate bends across the full 120-inch working width.
- 120-inch (10-foot) bending capacity easily accommodates oversized sheet metal panels for HVAC ductwork, architectural fabrication, cabinets, and industrial enclosures.
- 10-gauge mild steel capacity delivers the strength required for demanding fabrication applications while maintaining exceptional bend quality.
- Electro-welded heavy-duty steel frame with truss rod reinforcement minimizes frame deflection during heavy bending operations to maintain precision throughout the machine's full working length.
- Industrial hydraulic clamp and bending system ensures uniform forming pressure while adjustable hydraulic speed and pressure settings allow optimization for different materials and production requirements.
- 26 removable hardened fingers provide outstanding flexibility for creating boxes, pans, trays, channels, and custom sheet metal configurations with minimal setup time.
- Maximum 6-inch box depth enables fabrication of deep enclosures, pans, and formed components for commercial and industrial applications.
- 135-degree maximum bend angle supports a wide range of standard bends, acute angles, hems, and specialty forming operations.
- Foot pedal and console controls with programmable auto-stop improve operator efficiency, simplify repetitive bending operations, and help maintain consistent production quality.
- Heavy-duty 7,700-pound construction provides excellent rigidity, minimizes vibration, and delivers dependable long-term performance in demanding fabrication environments.
Baileigh 120-Inch Hydraulic Box & Pan Brake (BB-12010H) Features & Benefits
- 120-inch (10-foot) hydraulic forming capacity for oversized sheet metal projects.
- Handles up to 10-gauge mild steel.
- Powered by a hydraulic system operating on 220V three-phase electrical service.
- Includes 26 removable hardened fingers for versatile box and pan fabrication.
- Maximum 6-inch box depth accommodates deep formed components.
- Heavy electro-welded steel frame with truss rod reinforcement resists deformation.
- Adjustable hydraulic speed and pressure optimize forming performance.
- Foot pedal and console controls improve productivity and operator convenience.
- Programmable auto-stop enhances repeatability during production work.
- Backed by Baileigh's 1-Year Parts Warranty and Lifetime Technical Support.
Why Choose the Baileigh 120-Inch Hydraulic Box & Pan Brake (BB-12010H)
- Large 10-foot working width supports oversized fabrication projects.
- Hydraulic operation delivers smooth, repeatable bending performance.
- Rigid welded construction maintains accuracy under heavy loads.
- 26 hardened fingers provide exceptional flexibility for complex box and pan fabrication.
- Programmable controls improve efficiency for repetitive production work.
- Ideal for HVAC manufacturers, fabrication shops, and industrial sheet metal production.
The Baileigh 120-Inch Hydraulic Box & Pan Brake (BB-12010H) combines industrial hydraulic power, heavy-duty welded construction, and versatile segmented finger tooling into a dependable large-format sheet metal forming solution. Designed for demanding production environments, it delivers the precision, durability, and repeatability professionals need when manufacturing boxes, pans, channels, ductwork, and custom fabricated components.
