Baileigh 12.5-Inch Manual Cold Saw, 2.5 HP, 220V 1Ph (CS-315EU) 1002450 Applications
- Metal fabrication and welding shops.
- Industrial maintenance and repair departments.
- Structural steel and metal processing operations.
- Pipe, tubing, and bar stock cutting applications.
- Precision miter cutting for frames, supports, and assemblies.
- Manufacturing facilities requiring repeatable production cuts.
- Tool rooms and prototype fabrication environments.
- General-purpose metal cutting with burr-free, accurate results.
Designed for shops that require accurate, cool-running cuts with excellent surface finish quality and minimal material distortion.
Baileigh 12.5-Inch Manual Cold Saw, 2.5 HP, 220V 1Ph (CS-315EU) 1002450 Specifications
| Model | CS-315EU |
|---|---|
| Product Type | Manual Cold Saw |
| Blade Diameter | 12.5 in. (315 mm) |
| Motor Power | 2.5 HP |
| Input Power | 220V Single Phase |
| Blade Speed | 52 RPM |
| Round Tube Capacity | 3.5 in. OD |
| Miter Angle Range | 45° Right / 45° Left |
| Vise Type | European-Style Vise with Taper Lock and Serrated Jaws |
| Coolant System | Integrated Coolant Pump |
| Construction | Cast-Iron Base with Molded Steel Stand |
| Net Weight | 405 lbs. |
| Gross Weight | 405 lbs. |
| Warranty | 1 Year |
| UPC | 731325402049 |
Baileigh 12.5-Inch Manual Cold Saw, 2.5 HP, 220V 1Ph (CS-315EU) 1002450 Features & Performance
- Industrial 2.5 HP Motor provides dependable cutting power for tubing, pipe, bar stock, and solid materials.
- 12.5" Cold Saw Blade Capacity accepts industry-standard 315 mm blades for precision metal cutting applications.
- 52 RPM Blade Speed delivers optimal cold-cutting performance while producing clean edges and minimizing heat generation.
- 3.5" Round Tube Capacity allows efficient processing of larger diameter tubing and pipe materials.

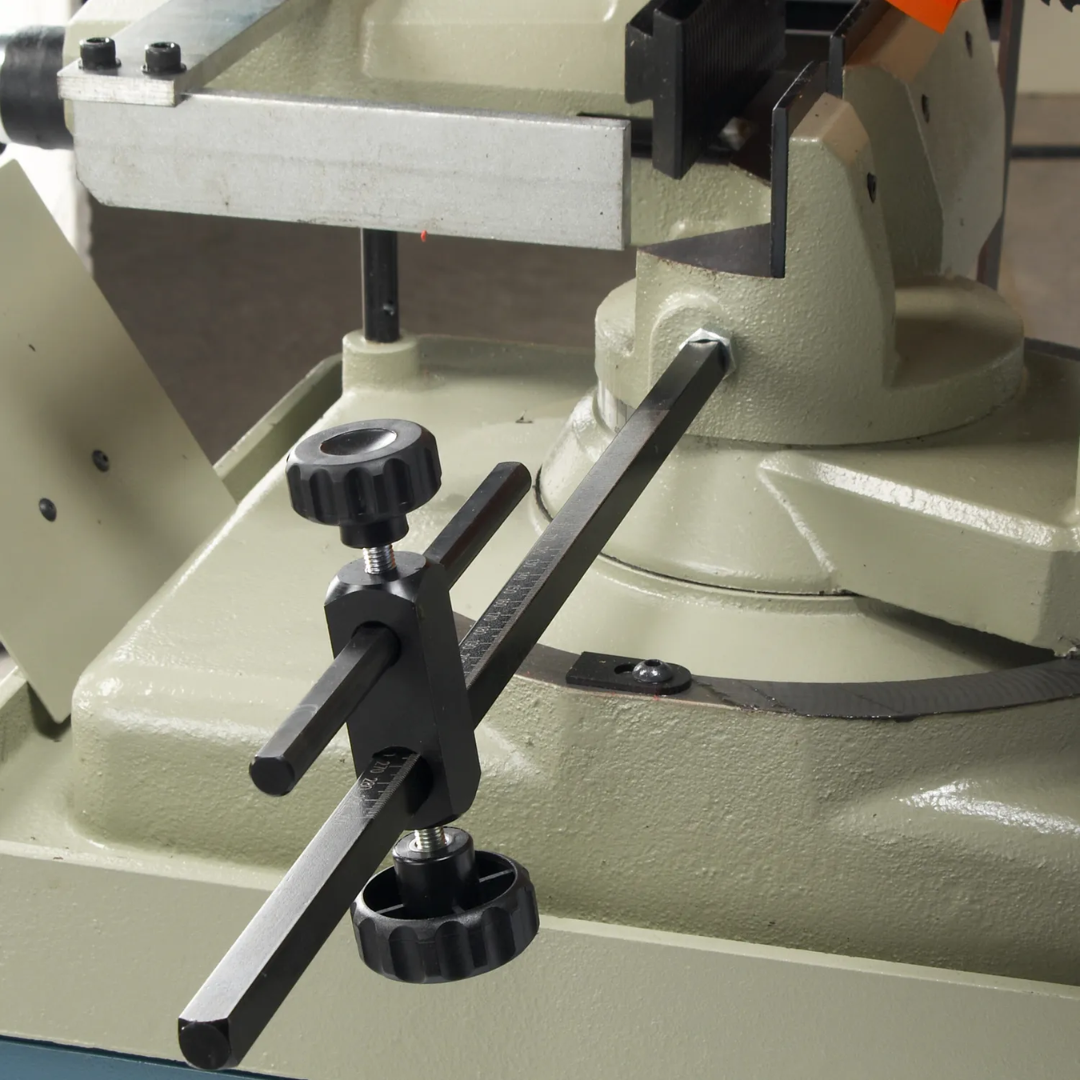

- 45° Left and Right Mitering Capability enables accurate angled cuts for fabrication, framing, and assembly work.

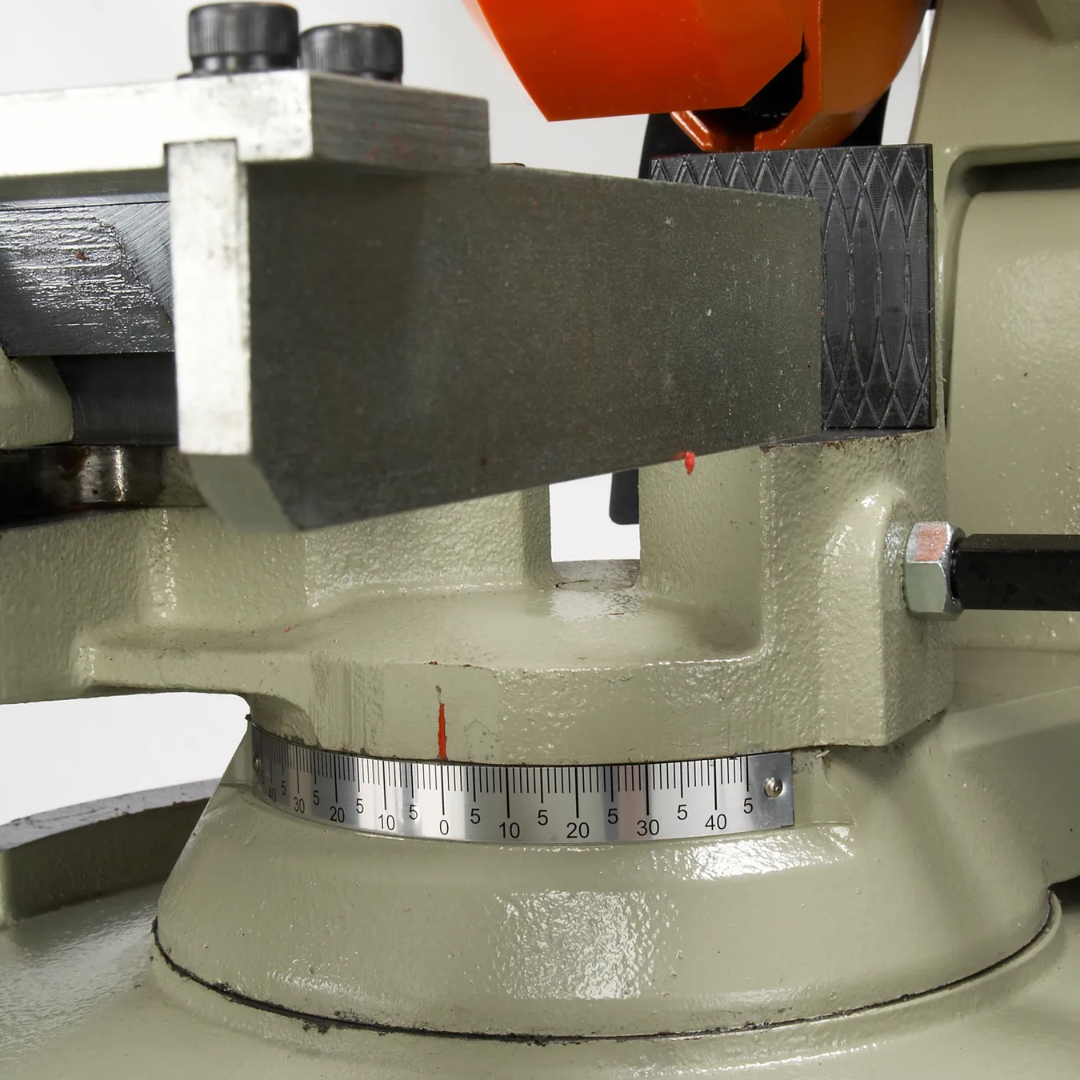

- European-Style Precision Vise features serrated jaws and a taper-lock clamping mechanism that securely holds material during cutting operations.

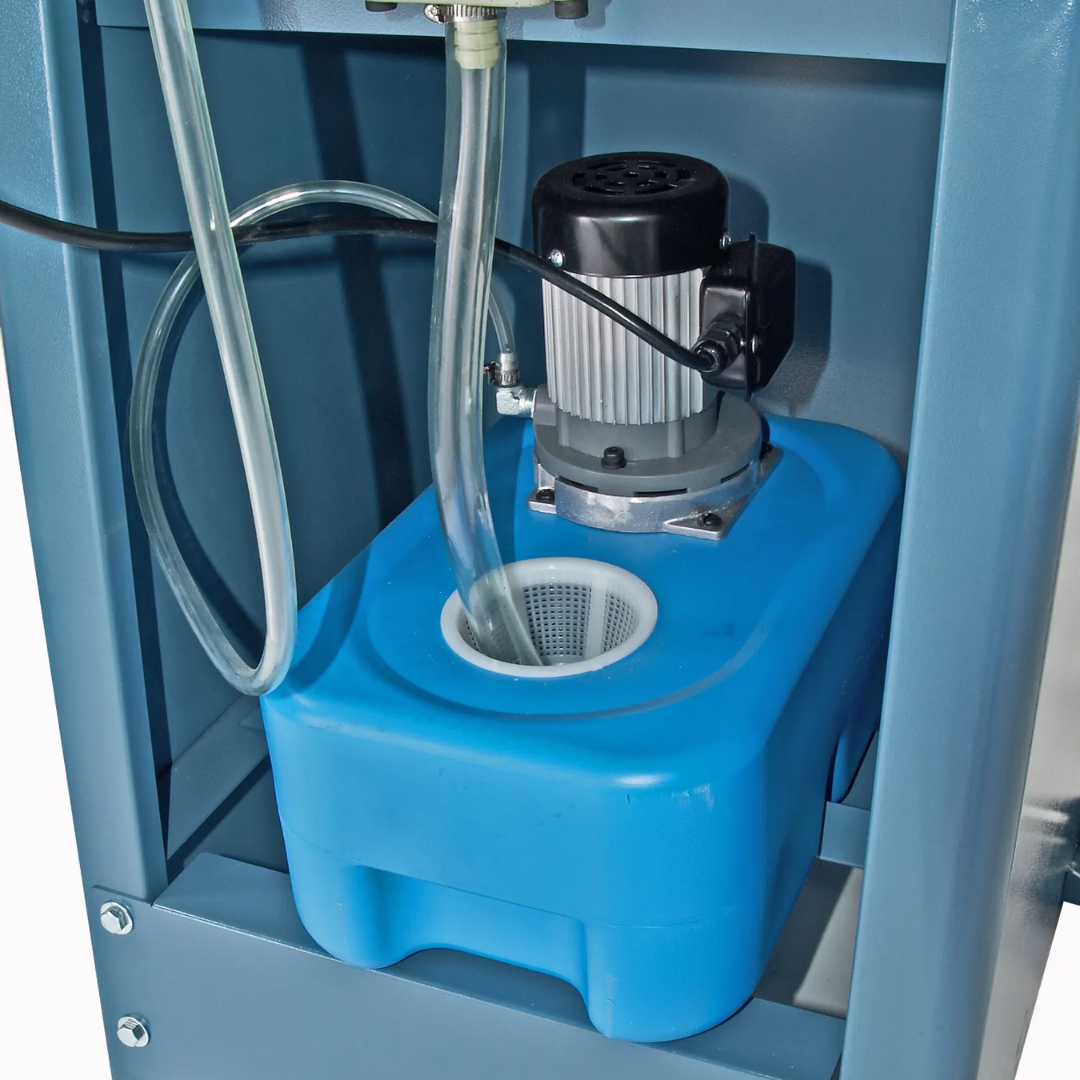

- Integrated Coolant Delivery System continuously lubricates the blade, reduces cutting temperatures, improves chip evacuation, and extends blade life.
- Rigid Cast-Iron Base Construction minimizes vibration during operation and helps maintain cut accuracy.
- Molded Steel Stand provides a stable platform capable of supporting demanding daily shop use.
- Chatter-Free Cutting Performance helps produce smooth, professional-quality cut surfaces with reduced secondary finishing requirements.
- Single-Phase 220V Power Requirement allows installation in many fabrication shops without requiring industrial 3-phase electrical service.
- Production-Ready Design combines durability, precision, and ease of operation for continuous shop use.
- Baileigh Technical Support includes a 1-year warranty and lifetime technical assistance for long-term ownership confidence.
Why Choose the Baileigh 12.5-Inch Manual Cold Saw, 2.5 HP, 220V 1Ph (CS-315EU) 1002450
- Powerful 2.5 HP motor delivers consistent industrial cutting performance.
- 12.5" blade capacity supports a wide range of metalworking applications.
- 45° left and right mitering capability increases fabrication flexibility.
- Precision European-style vise improves cut accuracy and repeatability.
- Integrated coolant system helps extend blade life and improve finish quality.
- Heavy cast-iron construction minimizes vibration and enhances durability.
- 3.5" round tube capacity accommodates common fabrication materials.
- Operates on practical 220V single-phase power.
The Baileigh 12.5-Inch Manual Cold Saw, 2.5 HP, 220V 1Ph (CS-315EU) 1002450 combines industrial-grade construction, precision workholding, coolant-assisted cutting, and versatile mitering capability to deliver reliable, accurate, and efficient metal cutting performance for professional fabrication environments.
