Baileigh 100-Ton Pneumatic H-Frame Shop Press (HSP-100A) 1004759 Applications
- Automotive repair and heavy equipment maintenance facilities.
- Bearing installation, removal, and replacement operations.
- Straightening bent shafts, axles, and metal components.
- Industrial fabrication and metalworking shops.
- Press-fit assembly and disassembly of mechanical components.
- Bending, forming, and shaping steel and fabricated parts.
- Agricultural equipment repair and maintenance departments.
- Manufacturing facilities requiring high-tonnage pressing capabilities.
Ideal for shops that require maximum pressing power, flexible work positioning, and dependable performance for daily industrial use.
Baileigh 100-Ton Pneumatic H-Frame Shop Press (HSP-100A) 1004759 Specifications
| Model Number | HSP-100A |
|---|---|
| Product Number | 1004759 |
| Product Type | Pneumatic H-Frame Shop Press |
| Press Capacity | 100 Tons |
| Input Power | Pneumatic |
| Working Width | 31" |
| Stroke Length | 11.8" (12" Rated Stroke) |
| Cylinder Travel | 6.5" Left-to-Right Adjustment |
| Frame Construction | Fully Welded Heavy-Duty Steel H-Frame |
| Pressure Gauge | Included |
| Control Method | Foot Pedal and Manual Lever |
| Included Accessories | V-Blocks |
| Gross Weight | 1,620 lbs |
| Net Weight | 1,620 lbs |
| Warranty | 1 Year |
| UPC | 731325407402 |
Baileigh 100-Ton Pneumatic H-Frame Shop Press (HSP-100A) 1004759 Performance & Construction
- Massive 100-ton pressing capacity provides the force needed for demanding industrial applications, heavy repairs, and fabrication work.

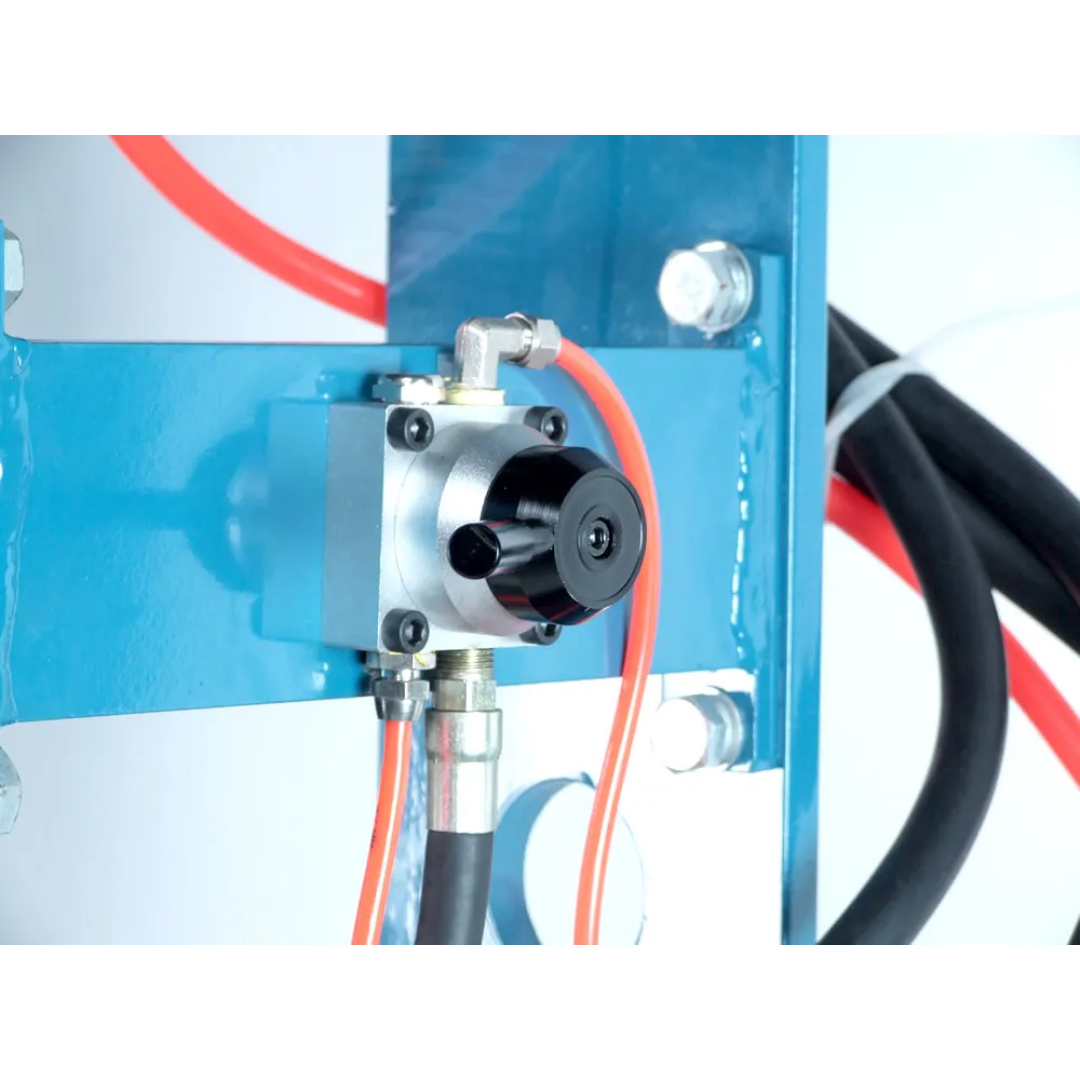

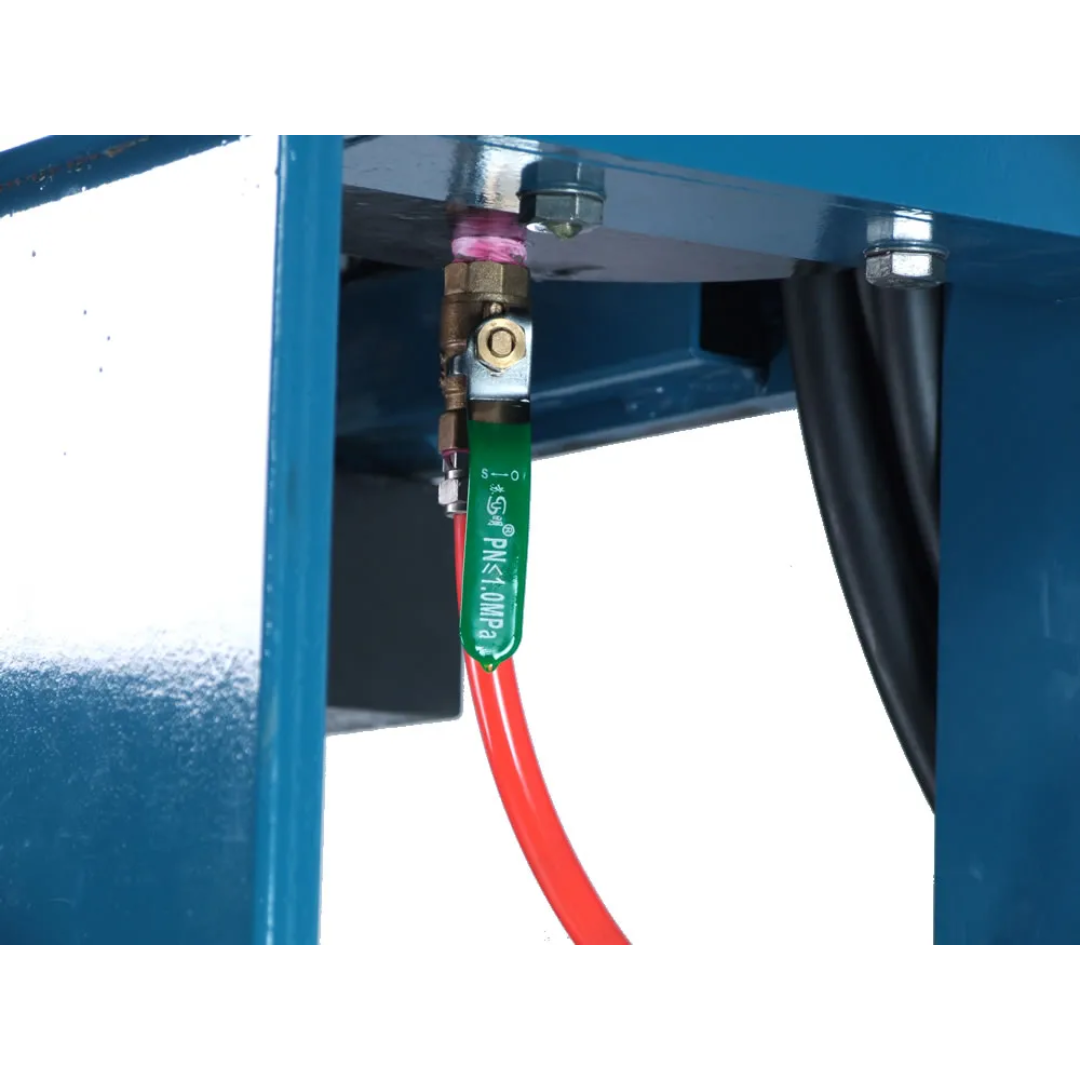

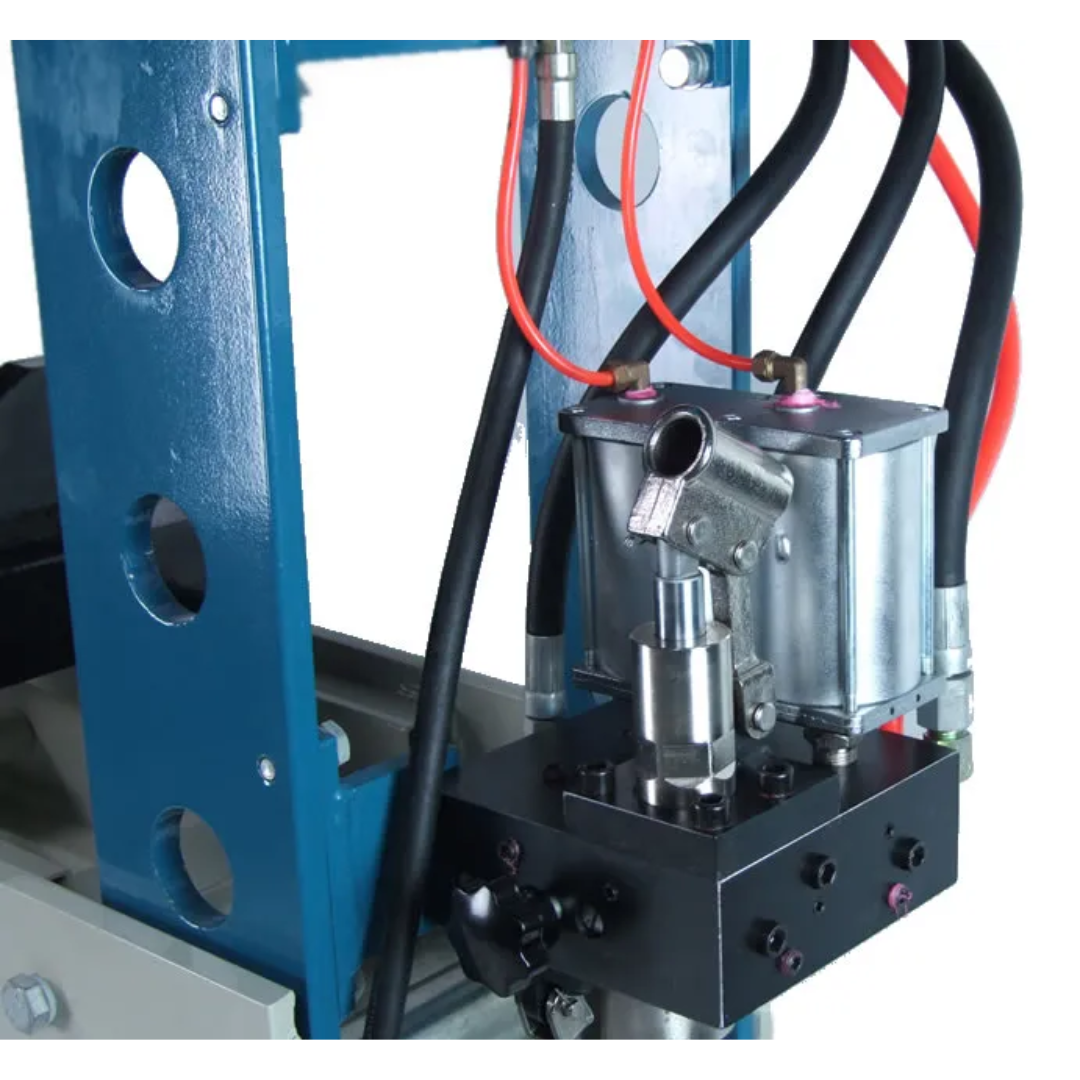

- Pneumatic-powered hydraulic operation reduces operator fatigue while increasing productivity and workflow efficiency.
- Fully welded steel H-frame construction delivers exceptional rigidity, durability, and long-term reliability under full load conditions.
- 31-inch working width accommodates a wide variety of workpieces and fabrication projects.
- 11.8-inch stroke length allows deep pressing operations and improved versatility across multiple applications.

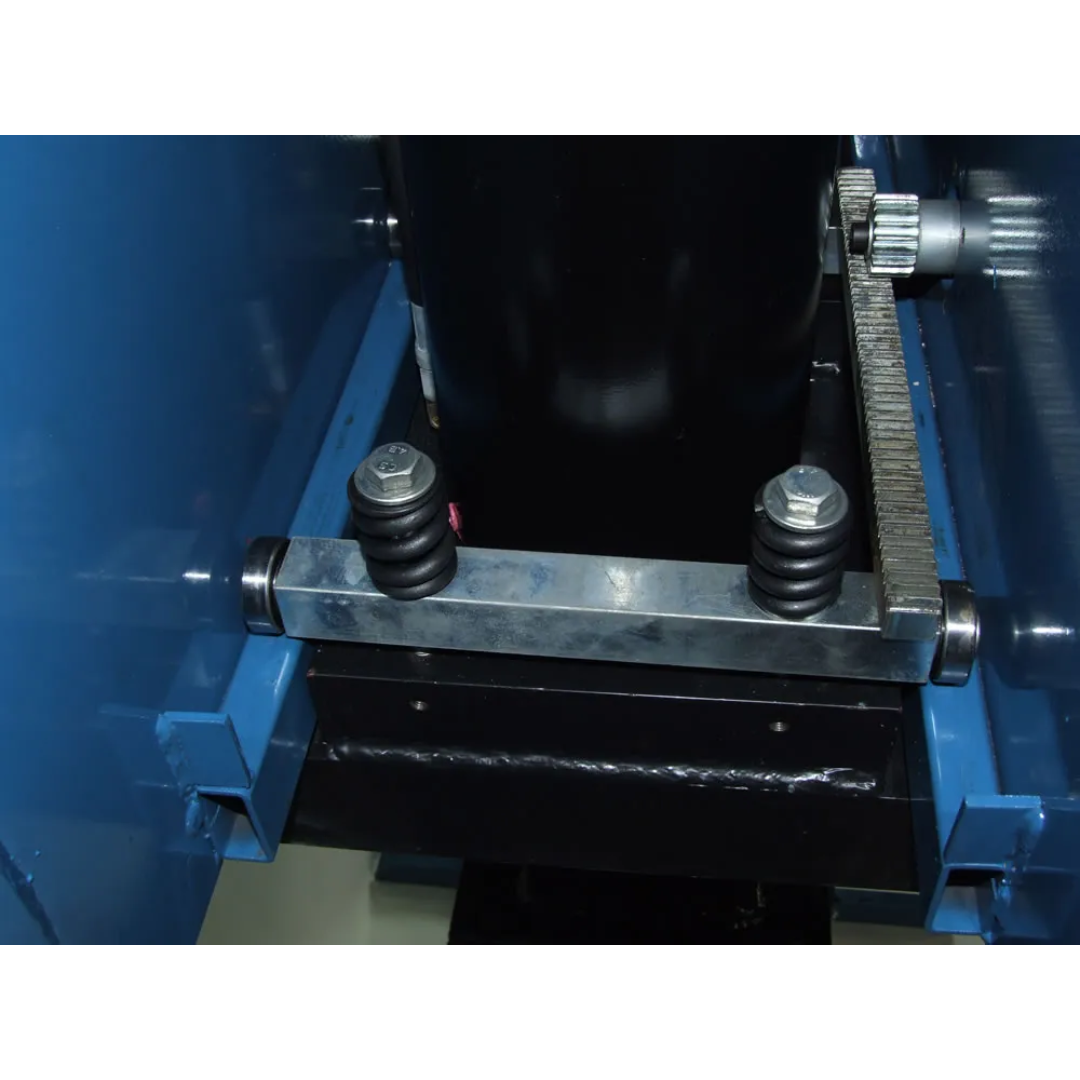

- Movable hydraulic cylinder travels 6.5 inches from side to side, making it easier to work on off-center parts and unique component configurations.
- Adjustable work table design enables fast setup changes and efficient positioning of different-sized parts.
- Foot pedal controls allow hands-free operation for improved safety and workpiece handling.
- Manual lever control option provides additional flexibility based on operator preference and application requirements.
- Integrated pressure gauge helps monitor applied force and ensures accurate pressing operations.

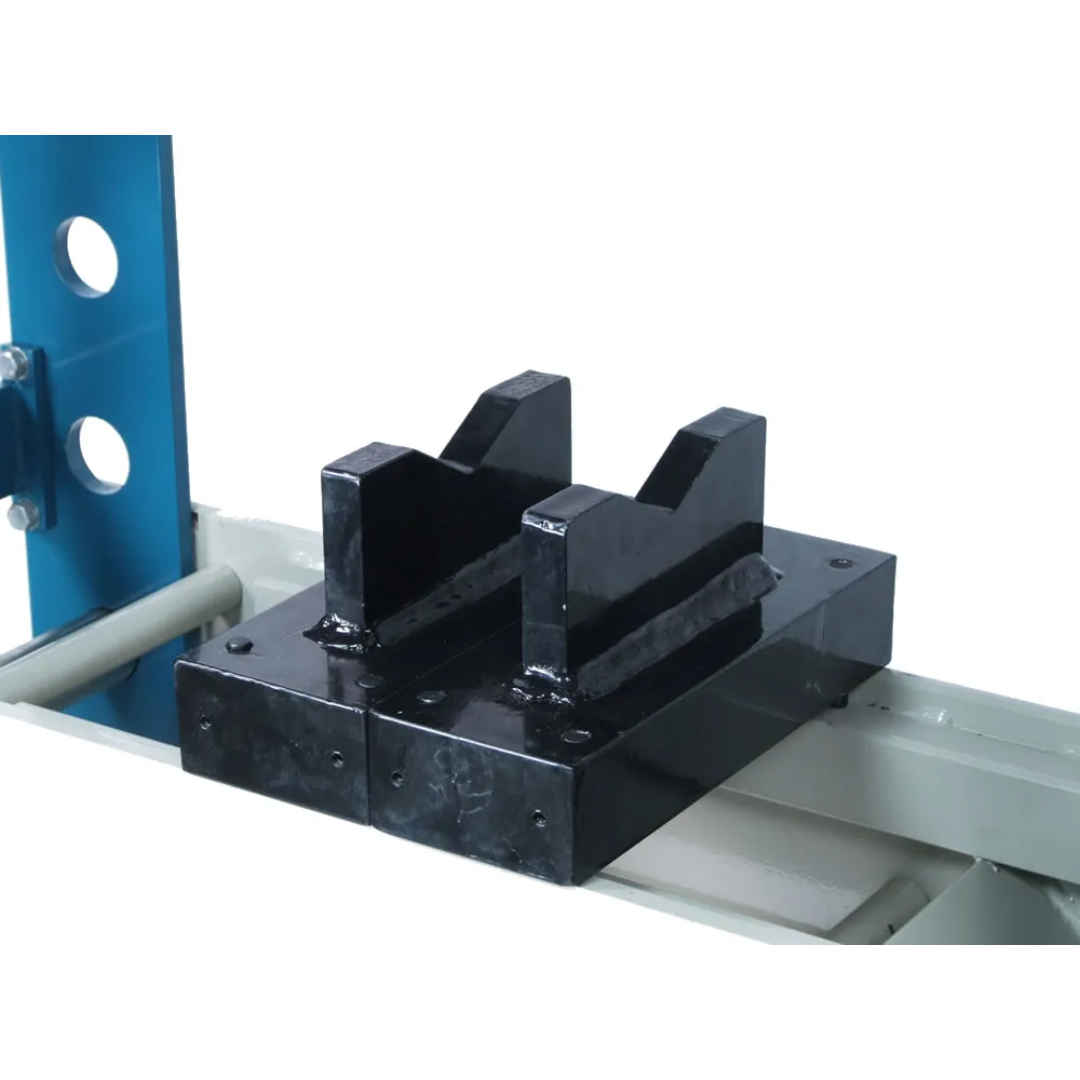

- Included V-blocks provide secure support and positioning for shafts, tubing, and round components.
- Industrial-grade design built for continuous use in professional fabrication, maintenance, and repair environments.
Why Choose the Baileigh 100-Ton Pneumatic H-Frame Shop Press (HSP-100A) 1004759
- Powerful 100-ton capacity for heavy-duty industrial pressing applications.
- Pneumatic operation improves productivity while reducing operator effort.
- Movable cylinder and adjustable work area increase versatility.
- Heavy-duty welded steel construction ensures long service life.
- Foot pedal and manual controls provide flexible operation.
- Pressure gauge and V-blocks included for enhanced functionality.
- Backed by a 1-year warranty and Baileigh lifetime technical support.
The Baileigh 100-Ton Pneumatic H-Frame Shop Press (HSP-100A) 1004759 delivers industrial-strength performance, precision control, and exceptional durability, making it an ideal solution for fabrication shops, maintenance departments, and repair facilities that demand reliable high-tonnage pressing power every day.
