Baileigh 10.63-Inch Semi-Automatic Dual-Mitering Bandsaw (BS-350SA) 1001570 Applications
- Structural steel and metal fabrication operations.
- Production cutting of tubing, pipe, bar stock, and profiles.
- Maintenance and repair facilities requiring accurate metal cutting.
- Industrial manufacturing and component production environments.
- Handrail, frame, and support structure fabrication.
- Machine shops processing steel, aluminum, stainless steel, and alloys.
- Projects requiring frequent miter cuts without repositioning material.
The dual-swivel head design allows operators to make left and right miter cuts quickly while keeping material securely positioned, reducing setup time and improving production efficiency.
Baileigh 10.63-Inch Semi-Automatic Dual-Mitering Bandsaw (BS-350SA) 1001570 Specifications
| Model Number | BS-350SA |
|---|---|
| Product Name | Baileigh 10.63-Inch Semi-Automatic Dual-Mitering Bandsaw |
| Motor Power | 2 HP |
| Power Requirement | 220V Single Phase |
| Motor Speed | 1720 RPM |
| Drive System | Gear-Driven Direct Drive |
| Blade Width | 1" |
| Blade Speed Range | 66 – 280 SFPM (Variable) |
| Round Cutting Capacity at 90° | 10.5" |
| Notch Capacity OD | 10.5" |
| Miter Capacity | 60° Right / 45° Left |
| Miter Adjustment Type | Dual Swivel Head |
| Descent Control | Pressure Assist Hydraulic |
| Head Return | Hydraulic |
| Blade Guide Type | Carbide Roller Guides |
| Assembled Dimensions | 72" x 30" x 66" |
| Net Weight | 1080 lbs |
| Gross Weight | 1080 lbs |
| UPC | 731325398526 |
| Warranty | 1 Year |
Baileigh 10.63-Inch Semi-Automatic Dual-Mitering Bandsaw (BS-350SA) 1001570 Performance & Construction
- 2 HP Inverter-Driven Motor: Provides dependable cutting power for production and fabrication environments.
- Semi-Automatic Operation: Hydraulic vise clamping, controlled feed, and automatic head return reduce operator fatigue and improve productivity.
- Dual-Miter Head Design: Swivels up to 60° right and 45° left without moving material, improving efficiency and accuracy.
- 10.5" Round Capacity: Handles large tubing, pipe, and round stock for a broad range of fabrication applications.
- Variable Blade Speeds: Adjustable from 66 to 280 SFPM to optimize cutting performance across different materials.
- Gear-Driven Direct Drive System: Delivers smooth torque transmission while reducing maintenance compared to belt-driven alternatives.
- Heavy Cast-Iron Head and Bow: Minimizes vibration and improves cut quality, blade life, and machine durability.
- Carbide Roller Blade Guides: Maintain accurate blade tracking and support precise, repeatable cuts.
- Pressure-Assisted Hydraulic Descent: Provides controlled cutting pressure for improved blade performance and finish quality.
- Hydraulic Head Return: Automatically returns the saw head after cuts, increasing workflow efficiency.
- Flood Coolant System: Helps control heat buildup, extends blade life, and flushes chips from the cutting zone.
- Industrial Weight Construction: The 1080 lb machine weight provides exceptional rigidity and stability during heavy-duty cutting operations.
Why Choose the Baileigh 10.63-Inch Semi-Automatic Dual-Mitering Bandsaw (BS-350SA) 1001570
- Semi-automatic hydraulic operation improves productivity and consistency.
- Dual-swivel miter head eliminates unnecessary material repositioning.
- 2 HP gear-driven system delivers reliable cutting performance.
- Variable blade speeds support a wide range of materials and applications.
- Heavy cast-iron construction enhances accuracy and durability.
- Flood coolant system helps maximize blade life and cutting efficiency.
- Large 10.5" round capacity accommodates substantial workpieces.
- Backed by Baileigh's 1-year warranty and lifetime technical support.

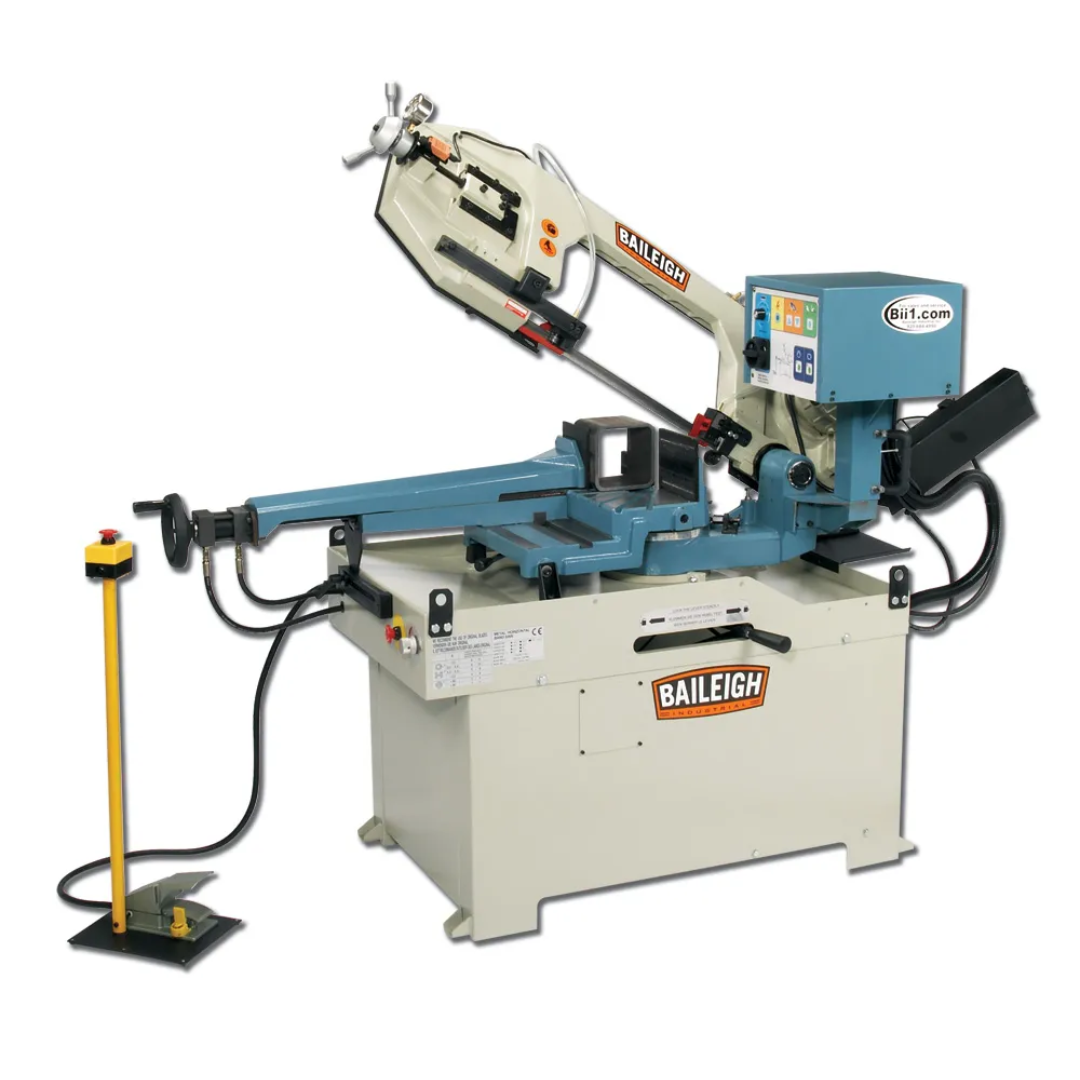

The Baileigh 10.63-Inch Semi-Automatic Dual-Mitering Bandsaw (BS-350SA) 1001570 combines industrial-grade construction, hydraulic semi-automatic functionality, and versatile dual-miter cutting capability to deliver efficient, accurate, and dependable metal cutting performance for professional fabrication and production environments.
