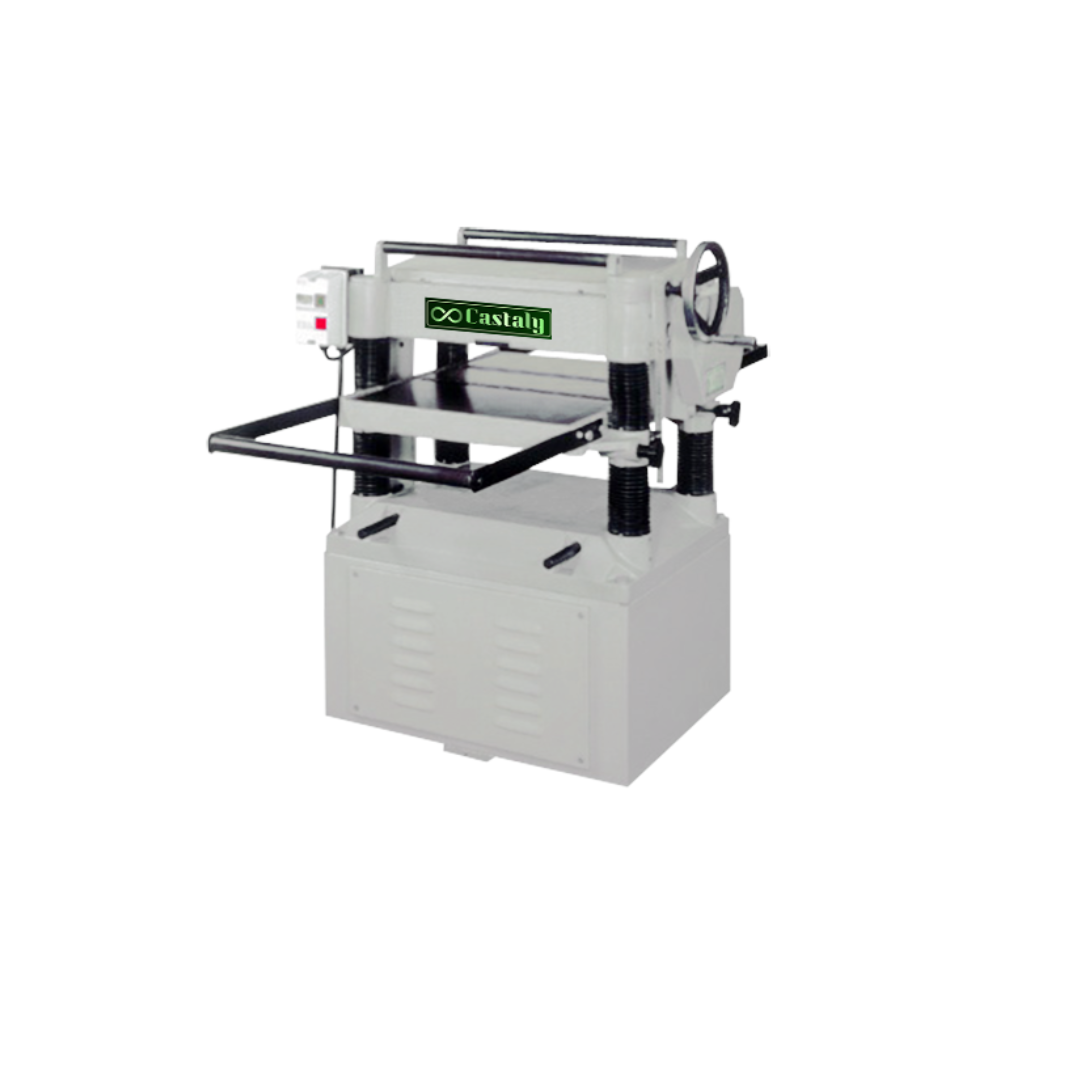

Castaly 20" Planer WP-0020 Applications
- Cabinet and furniture manufacturing
- Millwork and architectural woodworking
- Hardwood and softwood thickness surfacing
- Production planing of wide stock up to 20"
- Professional woodworking shops requiring consistent finish quality
Designed for accurate, repeatable thickness planing with smooth finish results and reliable feeding performance.
Castaly 20" Planer WP-0020 Specifications
| Model | WP-0020 |
|---|---|
| Maximum Planing Width | 20" |
| Maximum Planing Thickness | 8" |
| Minimum Planing Length | 7" |
| Maximum Depth of Cut | 1/4" |
| Feed Speeds | 16 / 20 FPM (Dual Speed) |
| Cutterhead Speed | 5000 RPM |
| Number of Knives | 4 |
| Cutterhead Diameter | 200 mm |
| Table Size | 20" × 26" |
| Main Motor | 3 HP, 1 Phase, 230V |
| Machine Dimensions | 36.6" W × 26" D × 41" H |
| Net Weight | 770 lbs |
| Gross Weight | 920 lbs |
Castaly 20" Planer WP-0020 Performance & Construction
- Precision-Ground Cast Iron Table ensures flat, stable support for consistent thickness accuracy.
- Long-Life Sealed Ball Bearings reduce maintenance and provide extended operational life.
- Four-Knife Cutterhead (5000 RPM) delivers smooth surface finish and efficient stock removal.
- Dual Automatic Infeed Speeds (16 / 20 FPM) allow operators to balance finish quality and productivity.
- Chain-Driven Feed Rollers provide positive, consistent material feeding.
- Stop/Start Feeding Clutch gives operators controlled stock movement during operation.
- Top Rollers for Stock Return simplify handling of long or heavy boards.
- Extension Rollers support longer stock for safer and more stable feeding.
- Large Handwheel Table Adjustment allows smooth and accurate raising and lowering of the table.
- Anti-Kickback Fingers enhance operator safety by preventing material reversal.
- Integrated Dust Hood improves chip extraction and maintains a cleaner working environment.
- Easy Knife Installation System enables fast, accurate knife alignment and replacement.
Castaly 20" Planer WP-0020 Replacement Blades
-
BD-020P – 4 PCS Set 20" Planer Blade – $119.00
High-quality replacement knife set designed specifically for the Castaly 20" Planer WP-0020 to maintain optimal cutting performance and surface finish.
Why Choose the Castaly 20" Planer WP-0020
- Heavy-duty cast iron construction for long-term reliability.
- Dual feed speeds for flexible production control.
- Smooth, accurate 4-knife cutterhead operation.
- Integrated safety and dust control features.
- Compact footprint with substantial 770 lb stability.
The Castaly 20" Planer WP-0020 combines precision engineering, rugged durability, and operator-friendly features—making it a dependable solution for professional woodworking environments that demand consistent thickness accuracy and smooth surface results.
