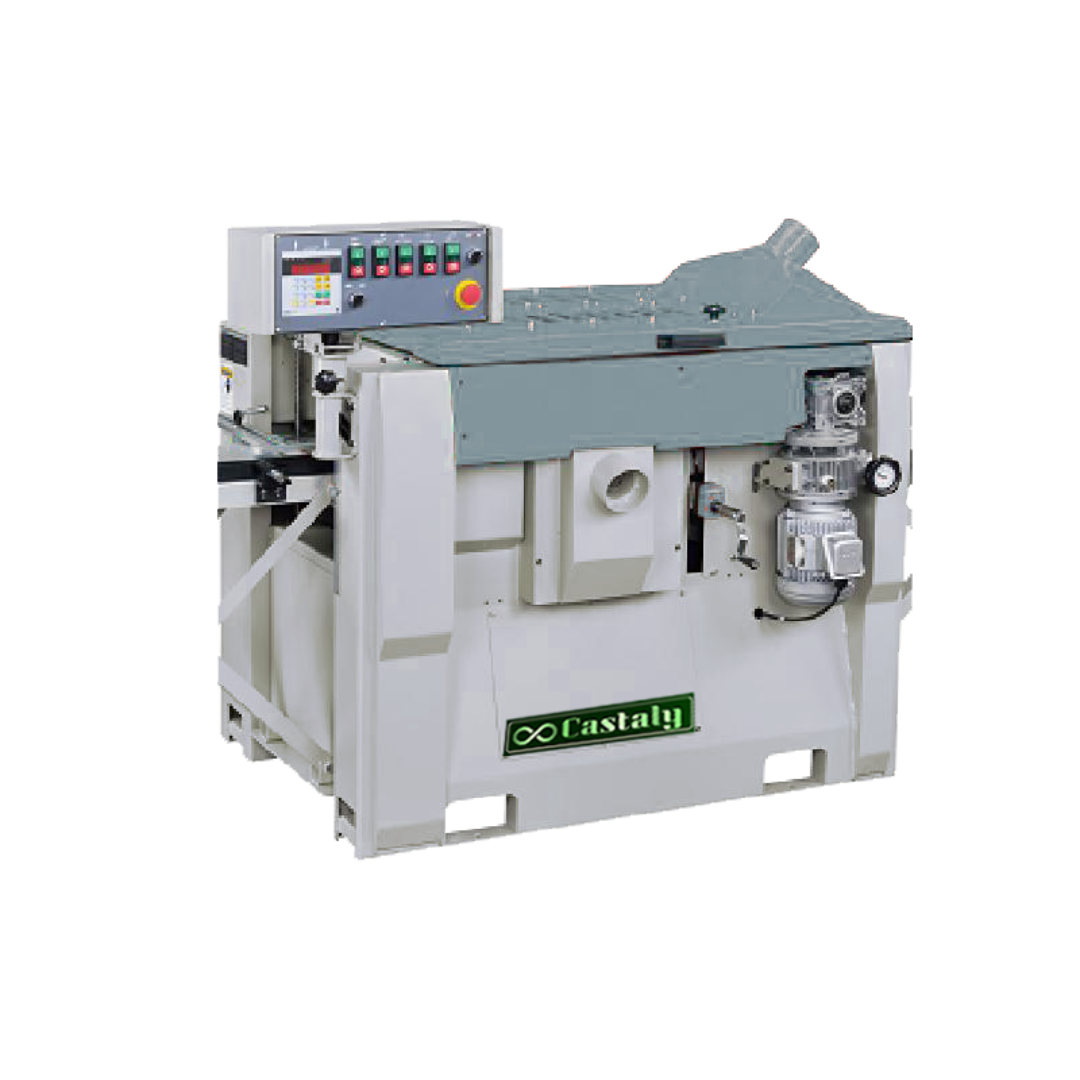

Castaly 11-3/4” x 4 ~ 9” Four Side Planer / Moulder SM-124TA Applications
- Farm and rural woodworking operations
- School and vocational training shops
- Hobby and custom woodworking projects
- Small furniture and cabinet manufacturing
- Precision 2-side and 4-side moulding production
A versatile and space-saving solution for professional moulding and surfacing in compact shop environments.
Castaly 11-3/4” x 4 ~ 9” Four Side Planer / Moulder SM-124TA Specifications
| Planing Capacity | 11-5/8" (W) × 7/16" – 9" (D) |
|---|---|
| 2-Side Planing / Moulding | 11-3/4" (W) × 7/16" – 9" (D) |
| 4-Side Planing / Moulding | 10-1/4" (W) × 7/16" – 4" (D) |
| Spindle Speed | 7,000 RPM |
| Top & Bottom Spindle Motor | 4.1 HP (3 kW) × 2 |
| Right & Left Vertical Spindle Motor | 4.1 HP (3 kW) × 2 |
| Feed Speed (Variable) | 11 – 52 ft/min |
| Feed Motor | 1/2 HP (0.375 kW) |
| Table Size | 1030 × 630 mm |
| Machine Dimensions (L × W × H) | 1375 × 1080 × 1210 mm |
| Net Weight | 525 kg (1157 lbs) |
| Gross Weight | 620 kg (1366 lbs) |

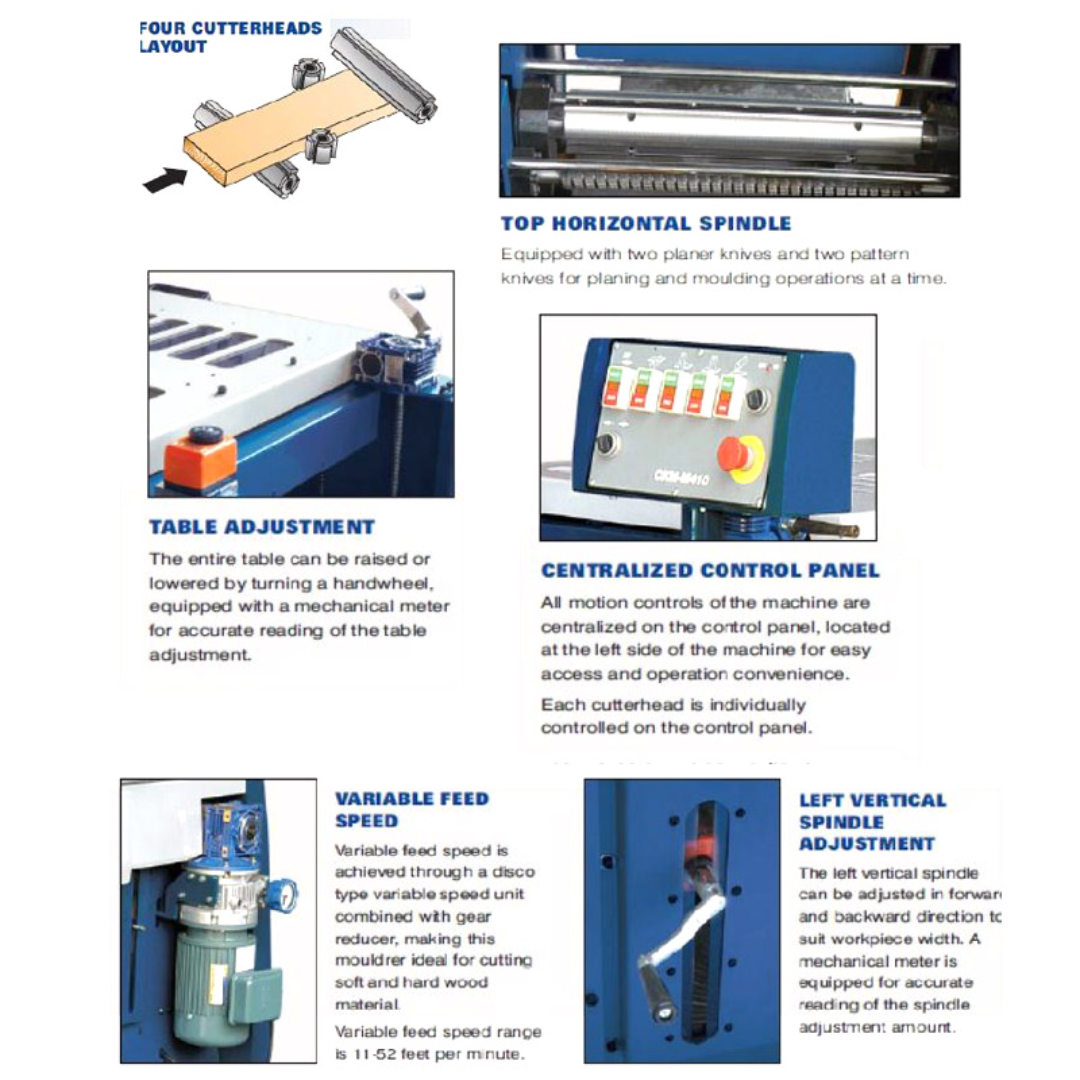

Castaly 11-3/4” x 4 ~ 9” Four Side Planer / Moulder SM-124TA Performance & Construction
- Extremely Compact Construction offering powerful 4-side moulding capability in limited shop space.
- Four Independent High-Speed Spindles powered by dedicated motors for consistent and balanced cutting performance.
- 7,000 RPM Spindle Speed ensures clean cuts and smooth moulded finishes.
- Rigid Alloy Steel Spindles precision-mounted for vibration-free power transfer and accurate cutting.
- Heavy-Duty Sheet Metal Frame provides structural stability and long-term durability.
- Mechanical Thickness Meter for precise and repeatable thickness adjustments.
- Precision Rack & Pinion Table Elevation ensures smooth and accurate height control.
- Variable Feed Speed Control (11–52 ft/min) for flexible production and finish optimization.
- See-Through Top Guard enhances operator visibility and safety.
- Magnetic Overload Switch protects the machine from electrical overload conditions.
- Totally Enclosed TEFC Motors with sealed-for-life ball bearings for reduced maintenance and extended service life.
- Heavy-Duty Alloy Spindles engineered for durability and minimal run-out performance.
Why Choose the Castaly 11-3/4” x 4 ~ 9” Four Side Planer / Moulder SM-124TA
- Professional 4-side moulding capacity in a compact footprint.
- High-speed 7,000 RPM spindles for superior surface finish.
- Independent powerful motors driving each spindle.
- Flexible performance with variable feed speed control.
- Affordable and ideal for small to mid-size operations.
The Castaly 11-3/4” x 4 ~ 9” Four Side Planer / Moulder SM-124TA combines flexibility, precision, and compact engineering—making it a dependable moulding and planing solution for workshops that require performance without sacrificing space.
