Castaly 10" Auto Pusher Beam Saw TS-P10AAT Applications
- Cabinet and furniture manufacturing facilities
- Laminated panel and composite board processing
- High-volume production cutting operations
- Precision sizing of plywood, MDF, and engineered panels
Built for operations that require rapid throughput, programmable cutting accuracy, and consistent square performance.
Castaly 10" Auto Pusher Beam Saw TS-P10AAT Specifications
| Model | TS-P10AAT |
|---|---|
| Maximum Cutting Length | 128" |
| Maximum Cutting Thickness | 4" |
| Main Saw Blade Size | 355 mm × 3.0 mm |
| Scoring Blade Size | 160 mm × 2.9 mm |
| Main Spindle Diameter | 1" |
| Scoring Spindle Diameter | 1" |
| Main Saw Speed | 4,500 RPM |
| Scoring Saw Speed | 6,500 RPM |
| Carriage Feed Speed | 16 – 98 FPM |
| Carriage Return Speed | 98 FPM |
| Main Motor | 10 HP |
| Saw Carriage Motor | 1 HP (Frequency Controlled) |
| Pusher Servo Motor | 1/2 HP AC Servo |
| Pusher Feed Speed | 16 – 49 FPM |
| Air Pressure Requirement | 80 PSI |
| Table Height | 33" |
| Machine Dimensions (L × W × H) | 16.5' × 10.5' × 6' |
| Net Weight | 5,280 LBS |
| Gross Weight | 7,000 LBS |
Castaly 10" Auto Pusher Beam Saw TS-P10AAT Performance & Construction

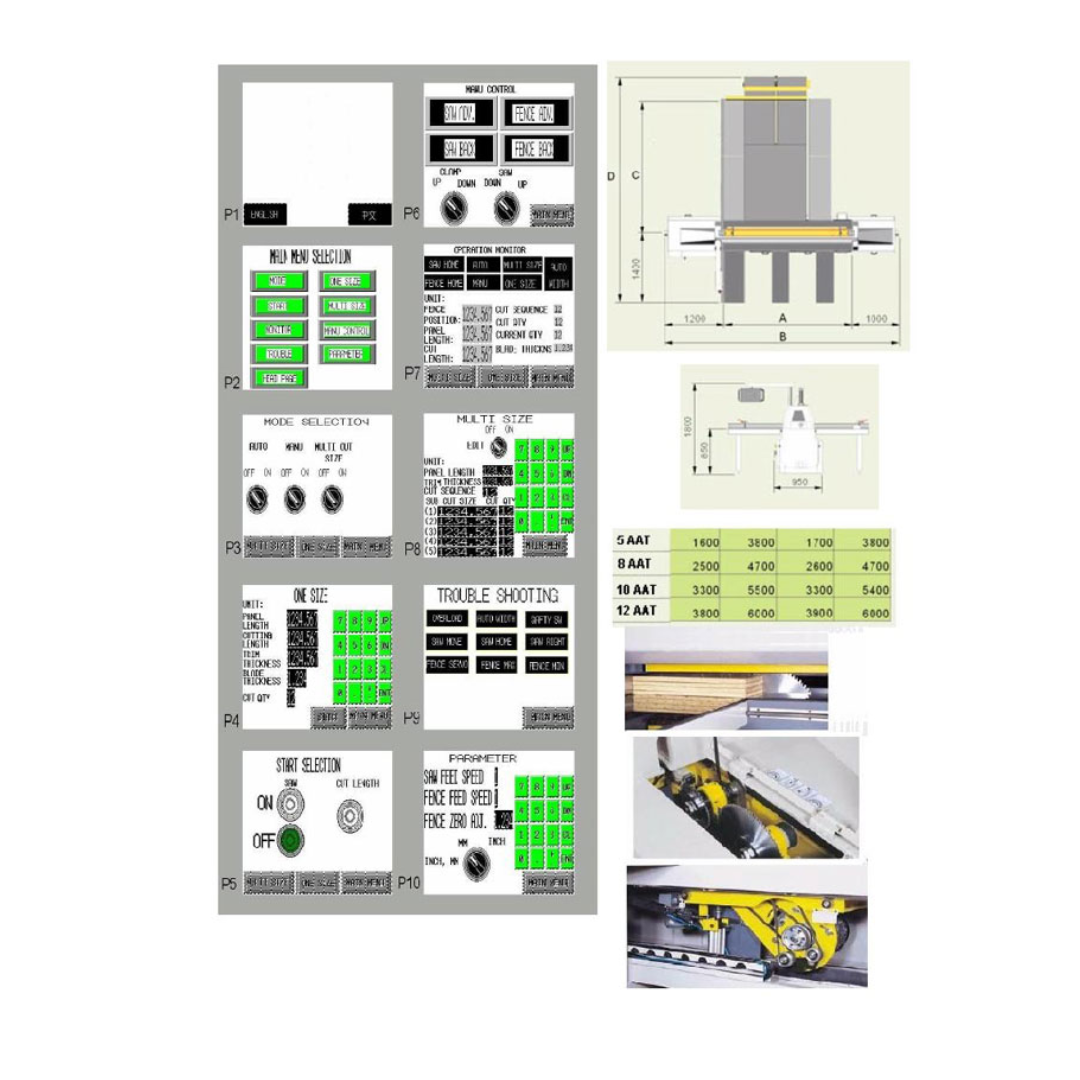

- Advanced Computer Control System with touch screen interface for intuitive, dust-free operation.
- High Accuracy Servo-Driven Pusher powered by 1/2 HP AC servo motor with positioning accuracy within 0.002".
- Large Memory Capacity allows storage of single or grouped cutting programs for production efficiency.
- RS-232 Interface enables office PC connection for downloading cutting data and printing reports.
- Automatic Saw Stroke Optimization reduces cycle time by cutting only the required panel length before return.
- Bronze Wheel Saw Carriage CNC precision machined for smooth, vibration-free cutting.
- Hard Chrome Plated Guide Rods ensure rigid support and guaranteed ripping accuracy.
- High-Performance Limit Switch System for precise stroke control.
- Variable Speed Carriage Feed (16–98 FPM) driven by 1 HP AC motor with frequency control.
- Linear Motion Guide Panel Feeding improves accuracy and reduces operator effort.
- Bakelite Table Surface protects panels from scratches during feeding.
- Heavy-Duty Welded Steel Base constructed from cold-rolled steel plate for industrial durability.
- Self-Diagnostic System with troubleshooting guidance for quick maintenance and reduced downtime.
- Adjustable Scoring Blade for burr-free laminated panel cutting and compensation for blade wear.
Castaly 10" Auto Pusher Beam Saw TS-P10AAT Optional Equipment
- TS-PFT Air Floating Table – $3,690.00
- TS-P3SB Extra Third Scoring Jump Blade for Laminated Panel – $6,000.00
Optional upgrades enhance material handling efficiency and further improve laminated panel cutting performance.
Why Choose the Castaly 10" Auto Pusher Beam Saw TS-P10AAT
- Computer-controlled cutting for maximum productivity.
- High-speed servo pusher feed with 0.002" positioning accuracy.
- Optimized cycle time with automatic stroke control.
- Industrial-grade construction for long-term reliability.
- Advanced software and diagnostic systems for efficient operation.
The Castaly 10" Auto Pusher Beam Saw TS-P10AAT delivers precision, speed, and intelligent automation—making it an ideal solution for modern, high-output panel processing operations.
