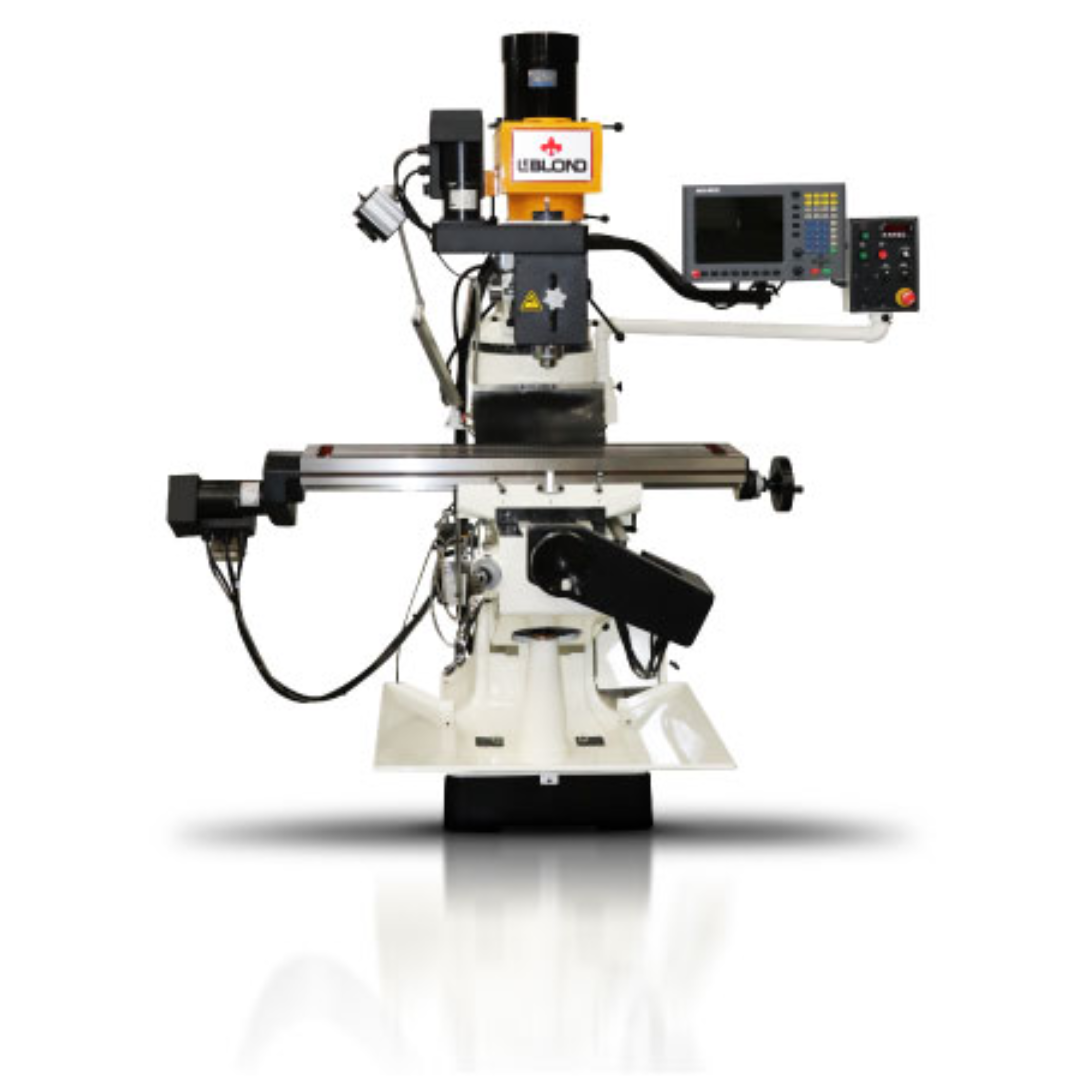

LeBlond LVM 9″ x 48″ Mill with CNC Control Applications
- General machining and precision part production
- Tool rooms and prototype development
- Retrofit upgrades for existing knee mills
- Manufacturing requiring 2D and 3D contouring
- Engraving applications including alphanumeric marking
- Small to medium batch production environments
Ideal for shops seeking CNC capability without sacrificing manual control flexibility.
LeBlond LVM 9″ x 48″ Mill with CNC Control Specifications
| Table Size | 9" x 48" |
|---|---|
| CNC Control | 3-Axis CNC System |
| Processor | 1.4 GHz Celeron M |
| User Memory | 1.25 MB |
| Display | 12.1" 1024 × 768 Color LCD |
| Internal Storage | 2.5 GB Flash (User) |
| Connectivity | Ethernet, USB (x2), RS-232 |
| Protection Rating | IP54 (Front) / IP40 (Back) |
| Feed Override | Potentiometer Control |
| Error Compensation | Linear & Bidirectional Non-linear |
| Graphic Interface | 2D Line, 3D Line, 3D Solid |
| Program Capacity | Up to 9999 Steps |
| Power Options | 3 Phase or Single Phase |
LeBlond LVM 9″ x 48″ Mill with CNC Control Performance & Features
- Full 3-axis CNC capability with conversational programming for easy operation without prior coding experience.
- Dual-mode operation allowing use as a DRO, programmable CNC, or intelligent power feed system.
- 3D contouring and graphics system enables machining of complex geometries with visual verification.
- High-resolution 12.1" display provides clear, intuitive interface with simplified navigation menus.
- Remote stop/go pendant for improved operator control and safety.
- Servo drives and motors deliver precise, repeatable motion control.
- USB and Ethernet connectivity for easy program transfer and integration with CAD/CAM systems.
- G-code compatibility allows direct import and execution of CAM-generated programs.
- Expanded tool and datum offsets for increased machining flexibility.
- Offline software availability enables program creation outside the machine environment.
LeBlond LVM 9″ x 48″ Mill with CNC Control Durability & Build
- Die-cast metal housing designed to withstand harsh shop environments.
- Industrial-grade components tested for resistance to contamination and wear.
- Machine-specific mounting hardware ensures secure installation and long-term reliability.
- Robust encoder and console mounting system maintains precision over time.
LeBlond LVM 9″ x 48″ Mill with CNC Control Versatility
- Operate as a manual mill, DRO system, or full CNC machine.
- Quickly switch between automatic and manual machining modes.
- Perform arcs, blends, circles, and complex geometries without additional fixtures.
- Integrated engraving capability for text and patterns in multiple orientations.
- Optional spindle control for automated speed and direction adjustments.
LeBlond LVM 9″ x 48″ Mill with CNC Control Availability Notice
- The 9″ x 48″ configuration is no longer available.
- Updated model LVM 9″ x 49″ is scheduled for release in 2026.
Contact us to learn more about upcoming availability or alternative configurations.
Why Choose the LeBlond LVM 9″ x 48″ Mill with CNC Control
- Combines CNC automation with manual machining flexibility.
- User-friendly interface eliminates steep learning curves.
- Supports complex 3D machining and engraving applications.
- Ideal for retrofitting existing mills into high-productivity CNC systems.
- Built with the durability and reliability expected from LeBlond machinery.
The LeBlond LVM 9″ x 48″ Mill with CNC Control is a powerful, flexible solution for shops looking to upgrade productivity, improve precision, and expand machining capabilities without complexity.
