JLT #79K-10 Heavy Duty Entry Door Clamp Applications
- Solid wood entry door manufacturing
- Stile and rail door assembly
- Cabinet door production with multiple door clamping capability
- Large-format door and panel assembly operations
- Custom woodworking and high-production facilities
Designed for shops producing solid wood entry doors and requiring heavy-duty clamping performance with precision results.
JLT #79K-10 Heavy Duty Entry Door Clamp Specifications
| Model | #79K-10 |
|---|---|
| Maximum Capacity | 48″ W × 120″ L |
| Minimum Door Size (Center Bar Out) | 8″ × 30″ |
| Minimum Door Size (Center Bar In) | 8″ × 14″ (Two Separate Gluing Areas) |
| Clamp Configuration | (4) Vertical & (2) Horizontal Pneumatic Clamps |
| Clamping Pressure | 2500 lbs per Clamp |
| Operation Type | Single Lever Valve Operation |
| Squaring Speed | (2) Second Squaring Cycle |
| Working Angle | 60° Vertical Angle |
| Machine Footprint | 145″ L × 70″ H × 50″ W |
| Assembly | Shipped Pre-Assembled |
JLT #79K-10 Heavy Duty Entry Door Clamp Performance & Construction

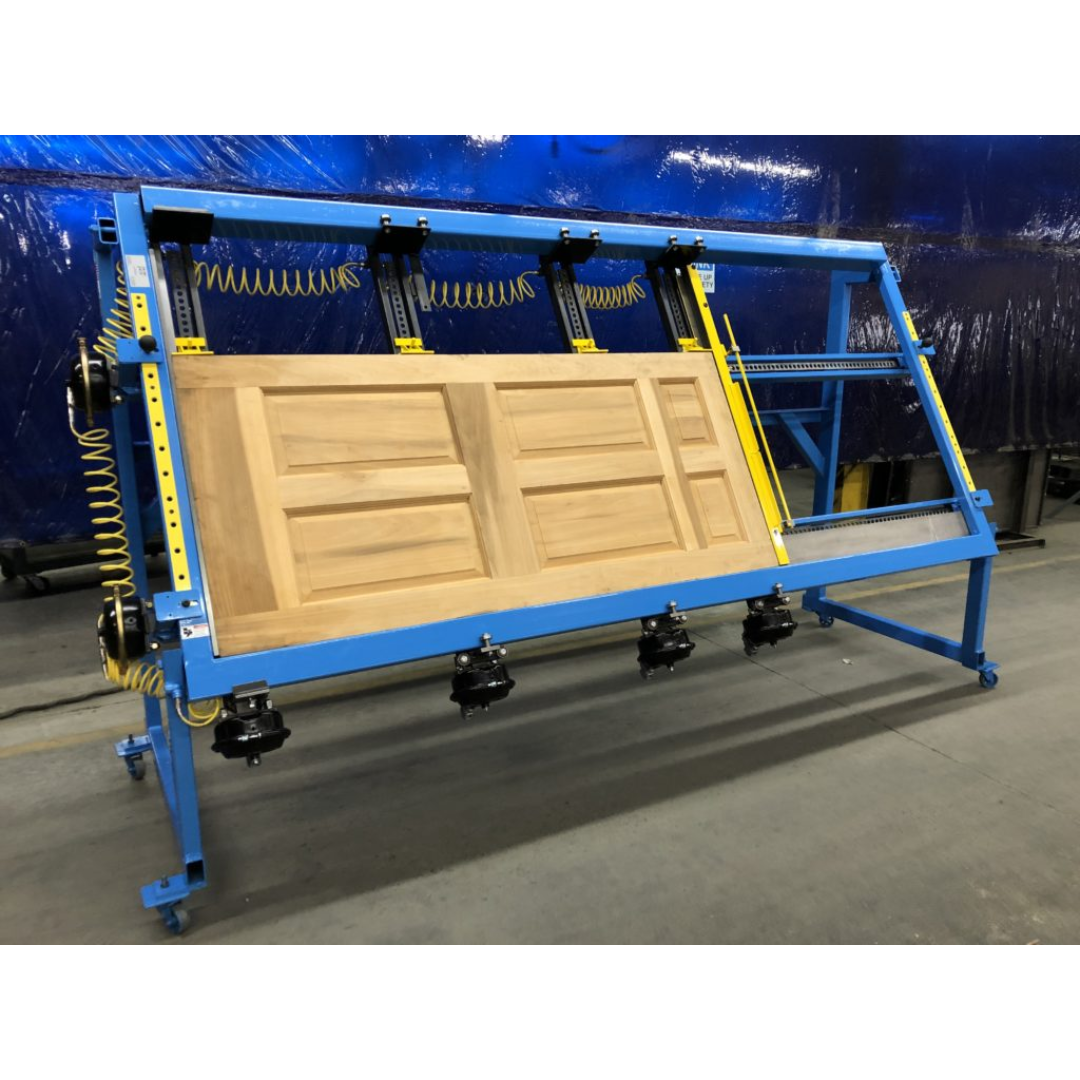

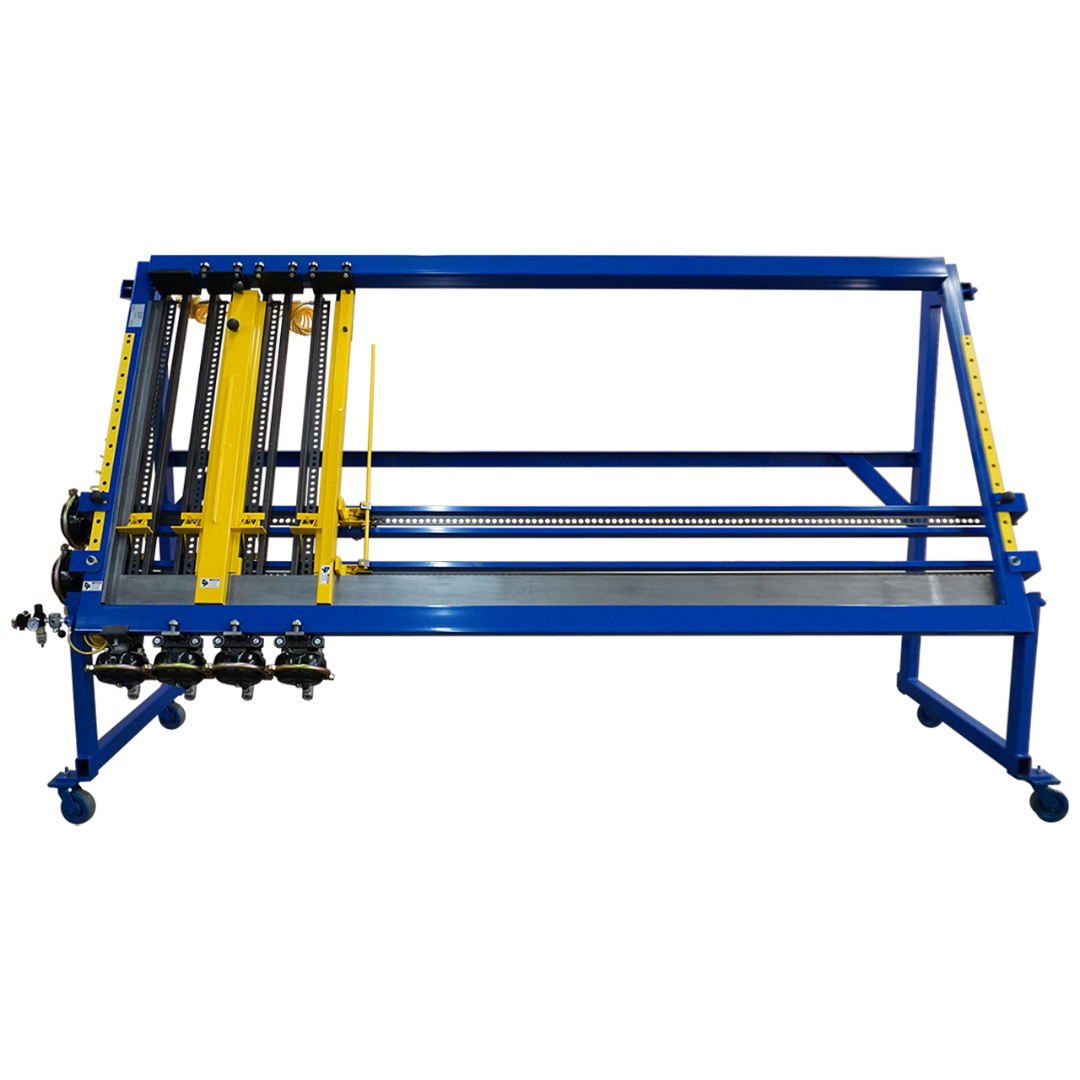

- 48″ × 120″ large capacity designed specifically for solid wood entry doors and oversized assemblies.
- High clamping force (2500 lbs per clamp) ensures tight joints and superior glue bond strength.

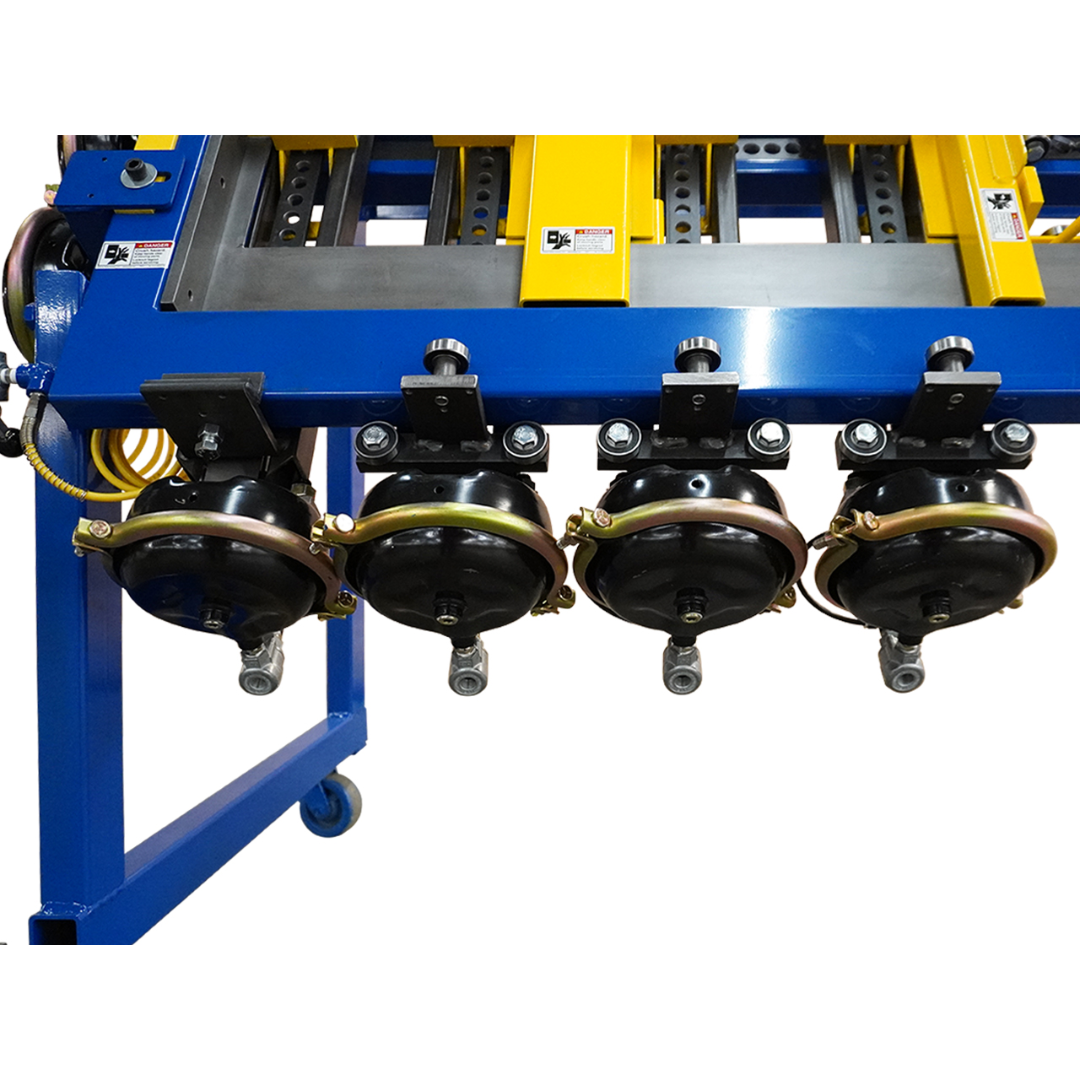

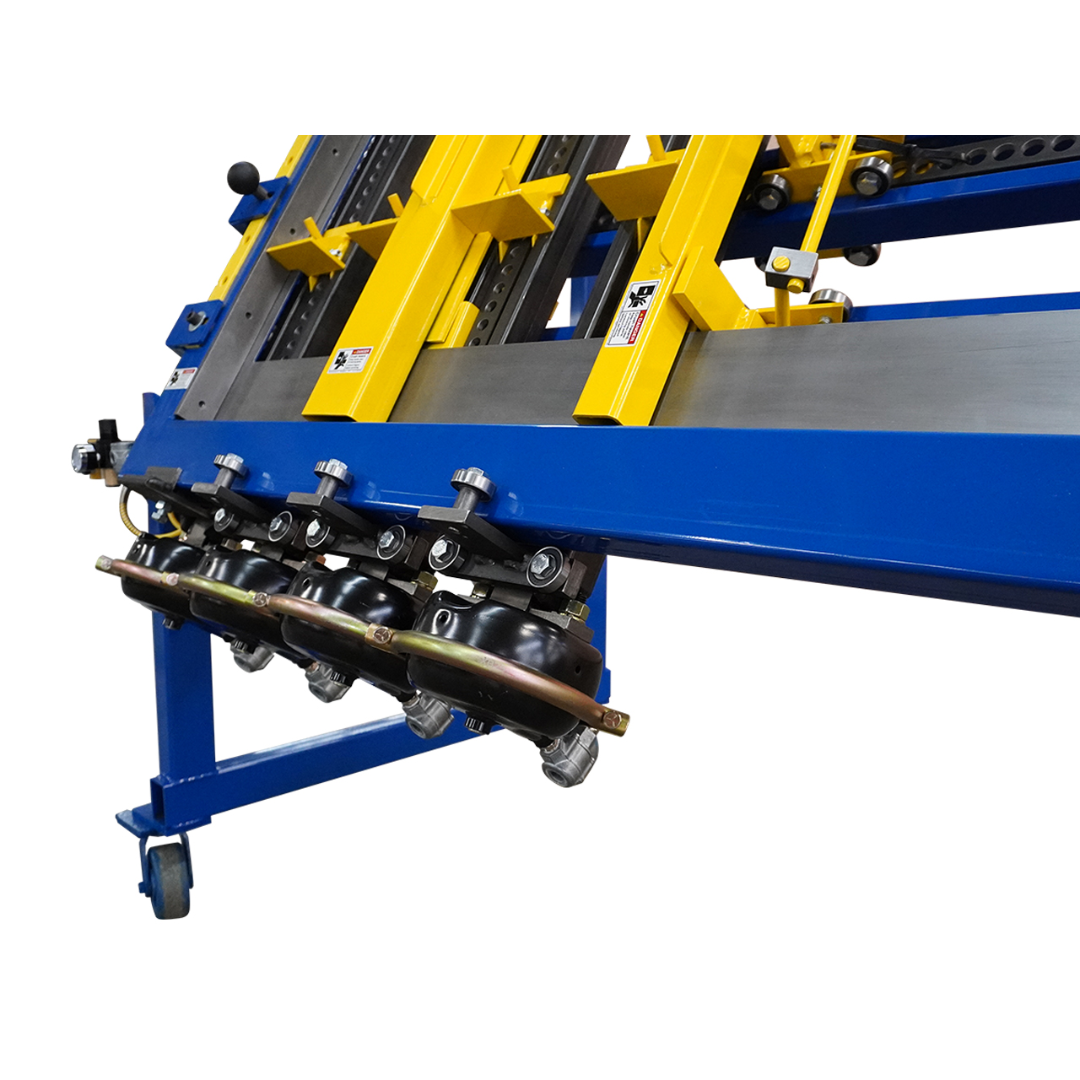

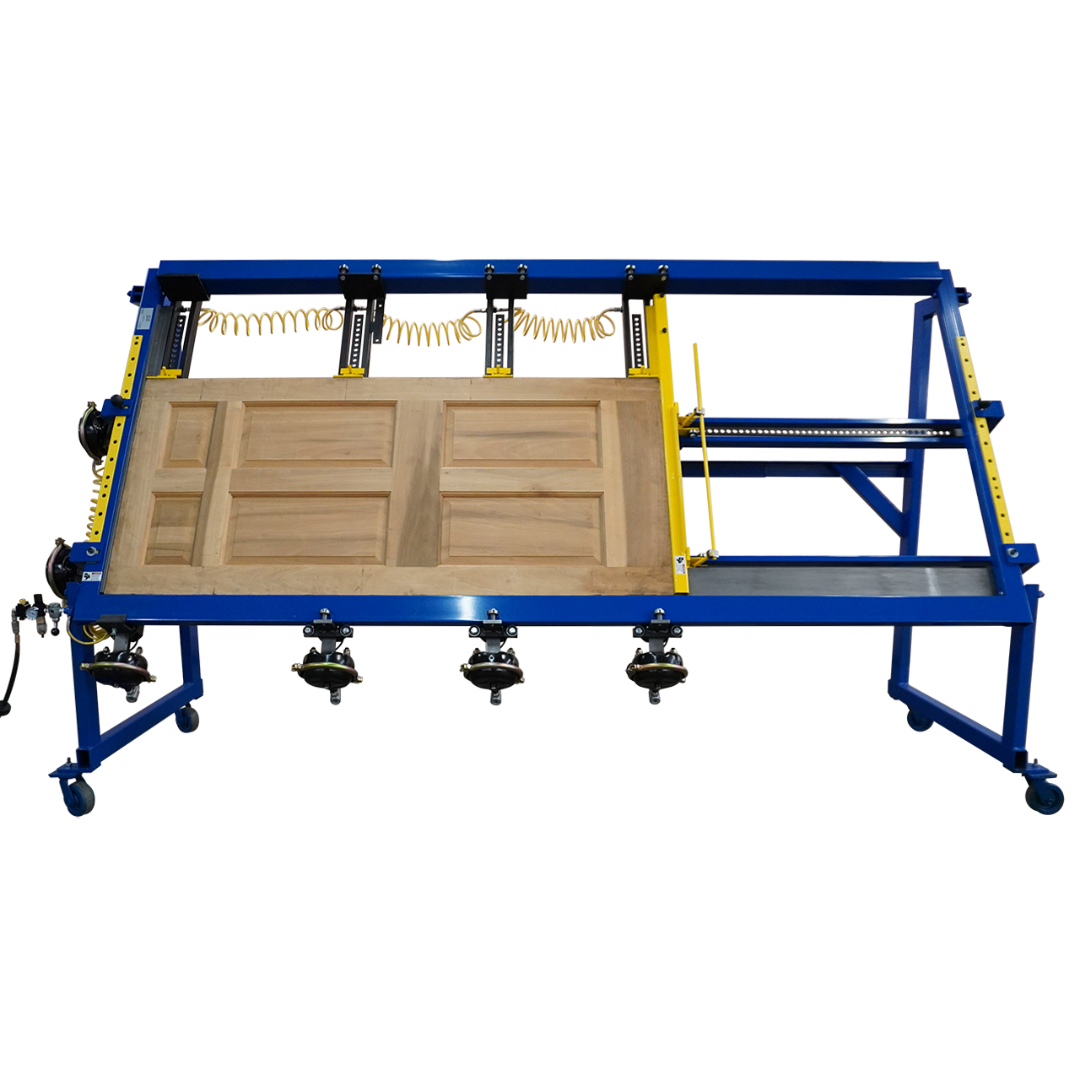

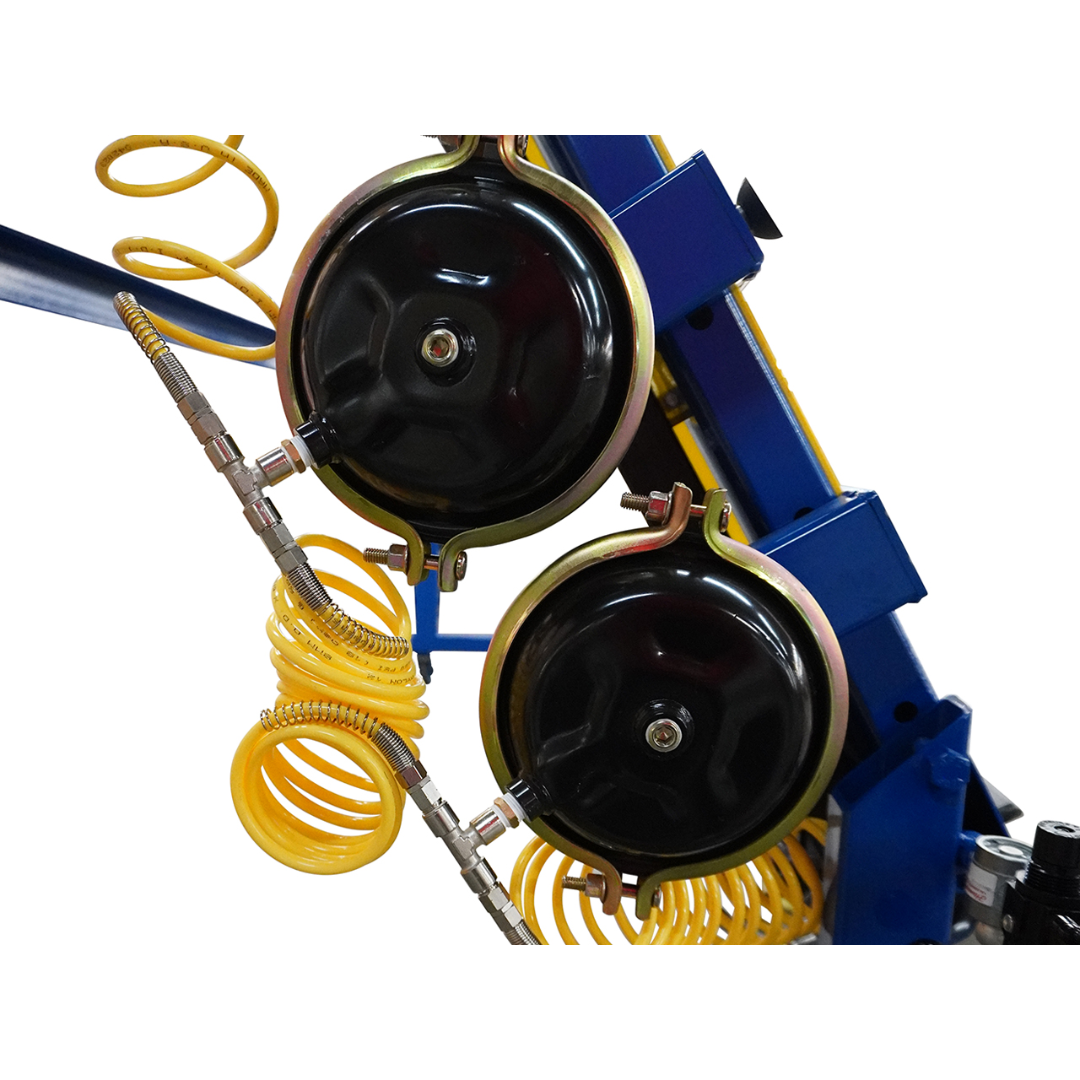

- (4) vertical and (2) horizontal pneumatic clamps provide even pressure distribution across the entire door surface.

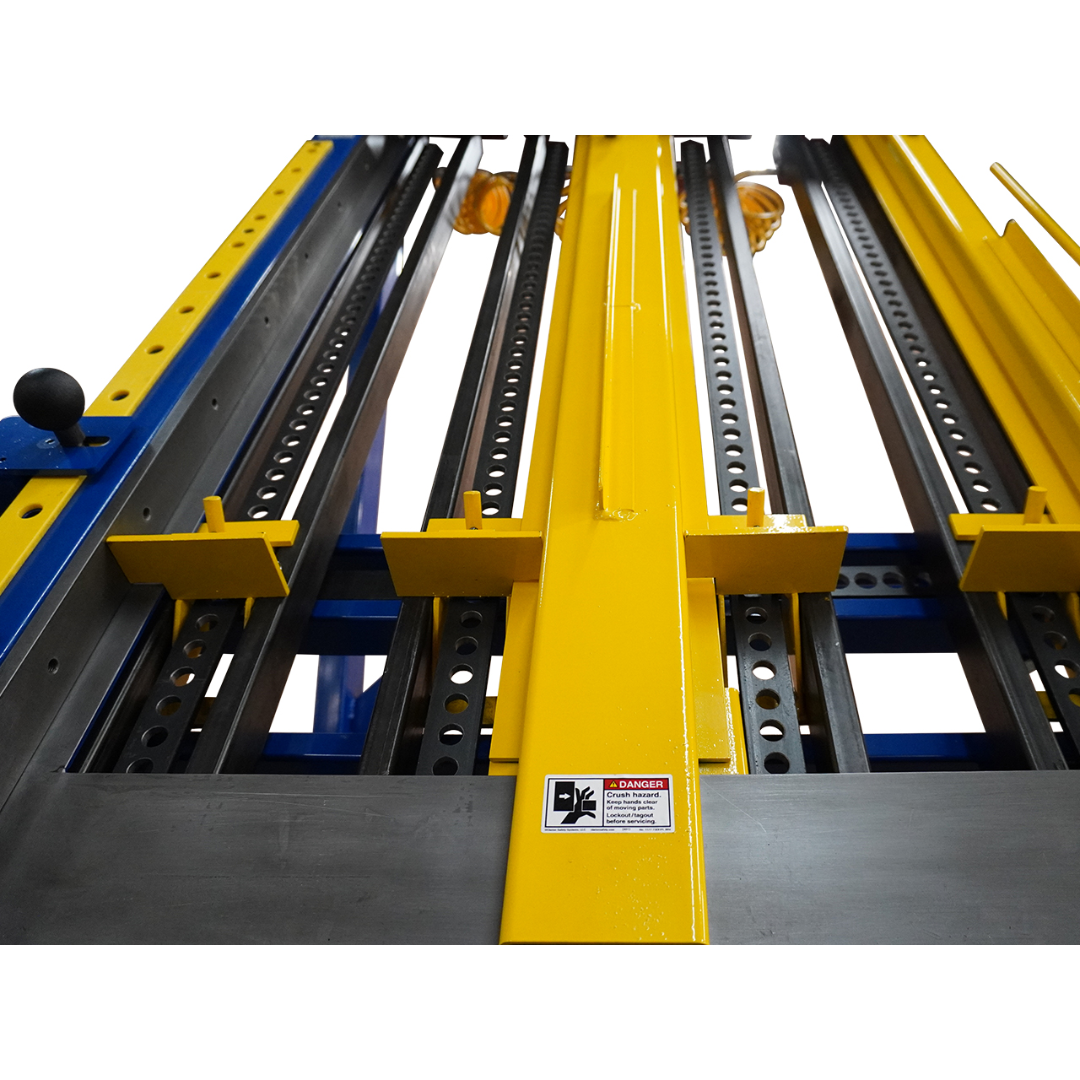

- Removable vertical center rail allows flexible operation for both single large doors and multiple cabinet doors.

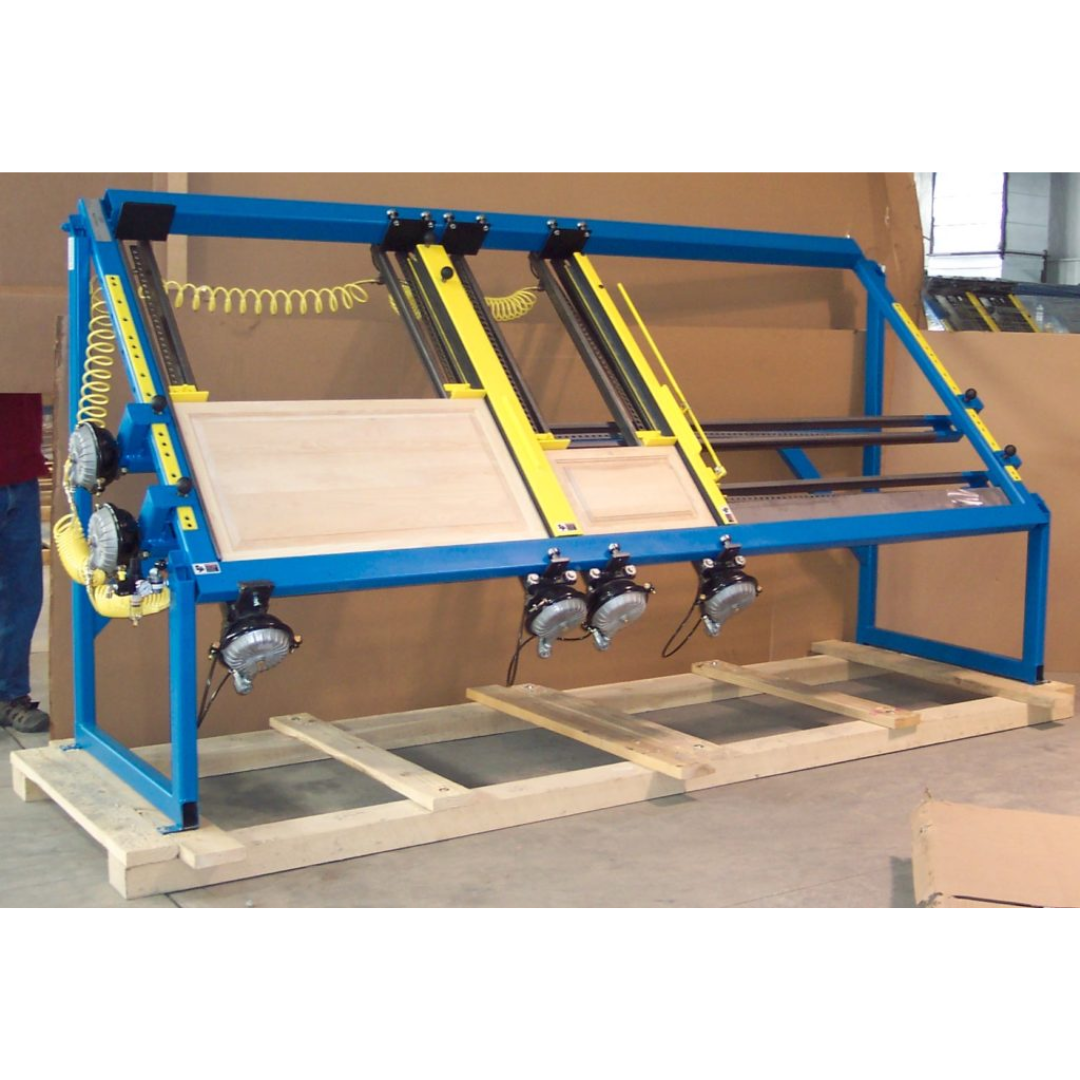

- Clamp two 48″ × 56″ cabinet doors simultaneously with center rail installed for increased productivity.

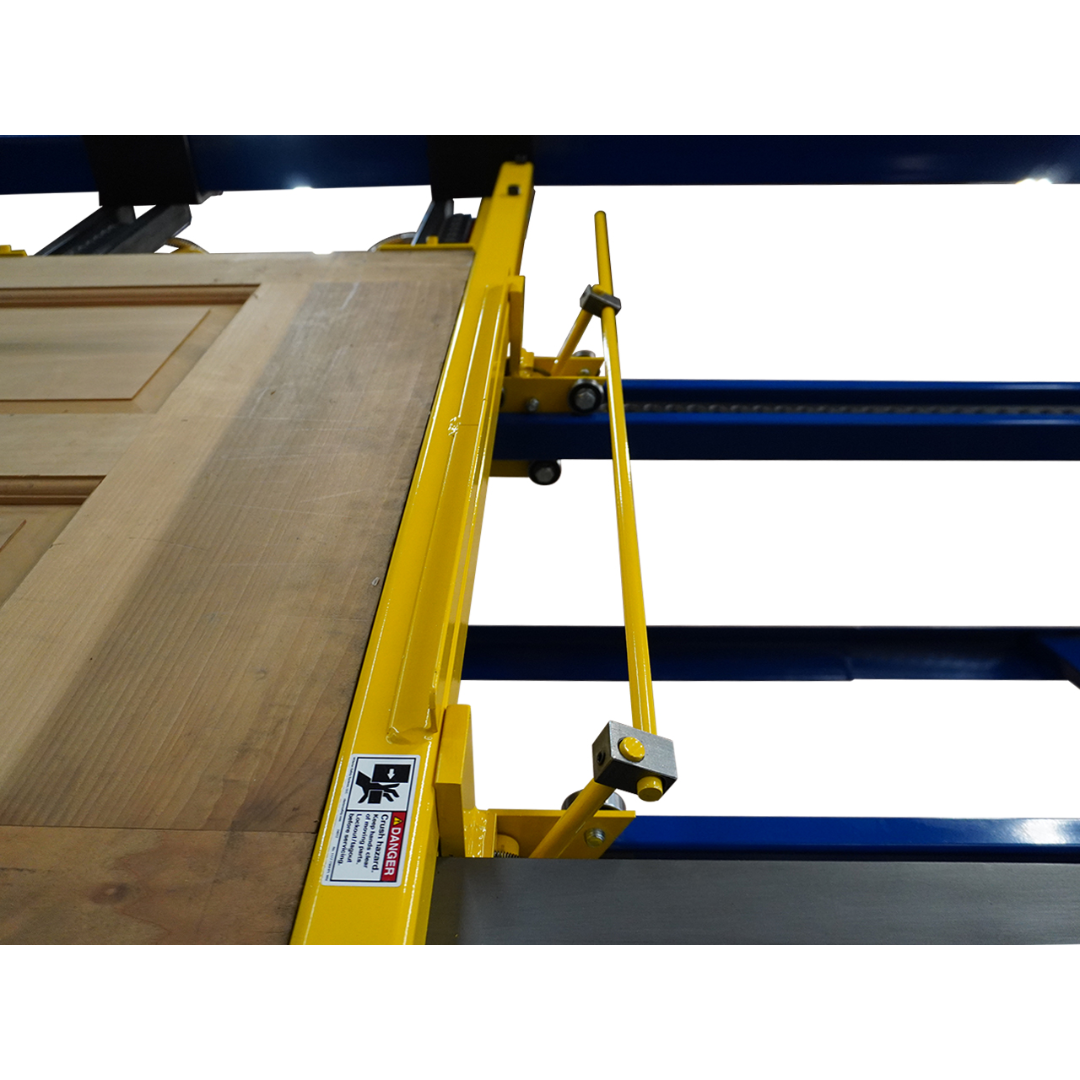

- Single lever valve operation enables fast, simple activation and consistent results.
- Fast (2) second squaring cycle improves workflow and production efficiency.
- Space-saving upright design maximizes shop floor efficiency.
- 60-degree working angle enhances ergonomics and improves glue joint alignment.

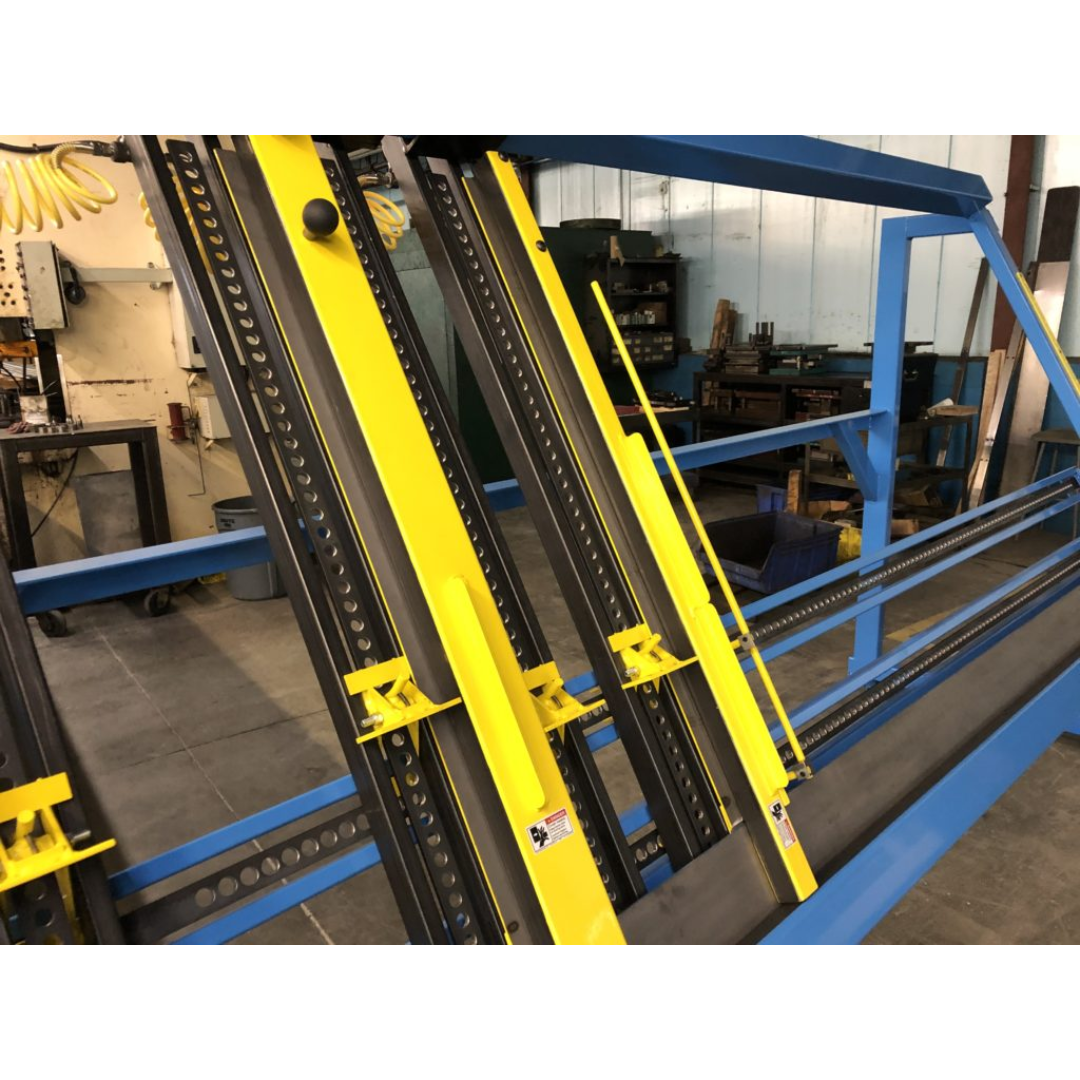

- 100% welded heavy-duty steel frame ensures long-term durability and structural integrity.
- Laser-cut steel components provide superior strength and longevity compared to wood-based systems.

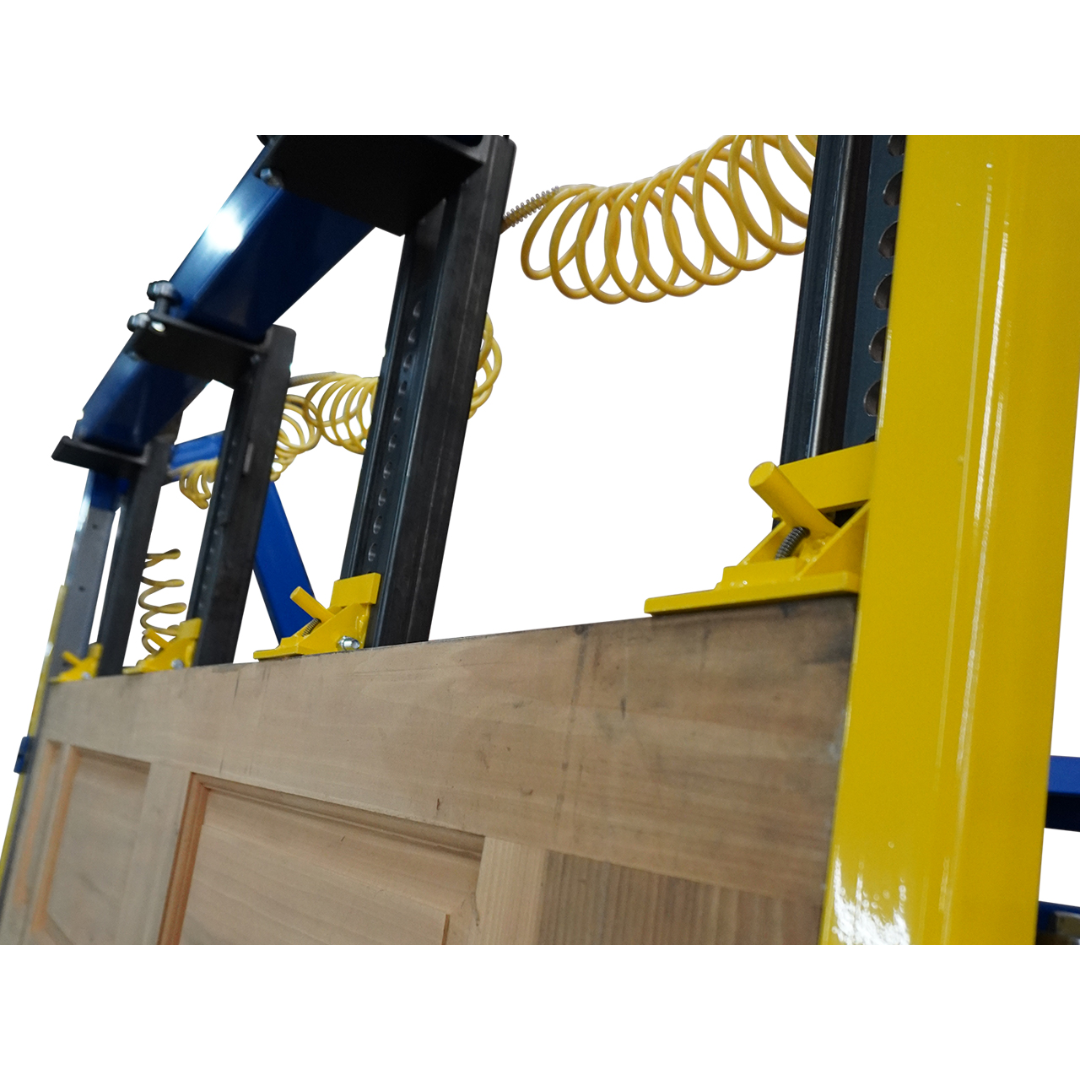

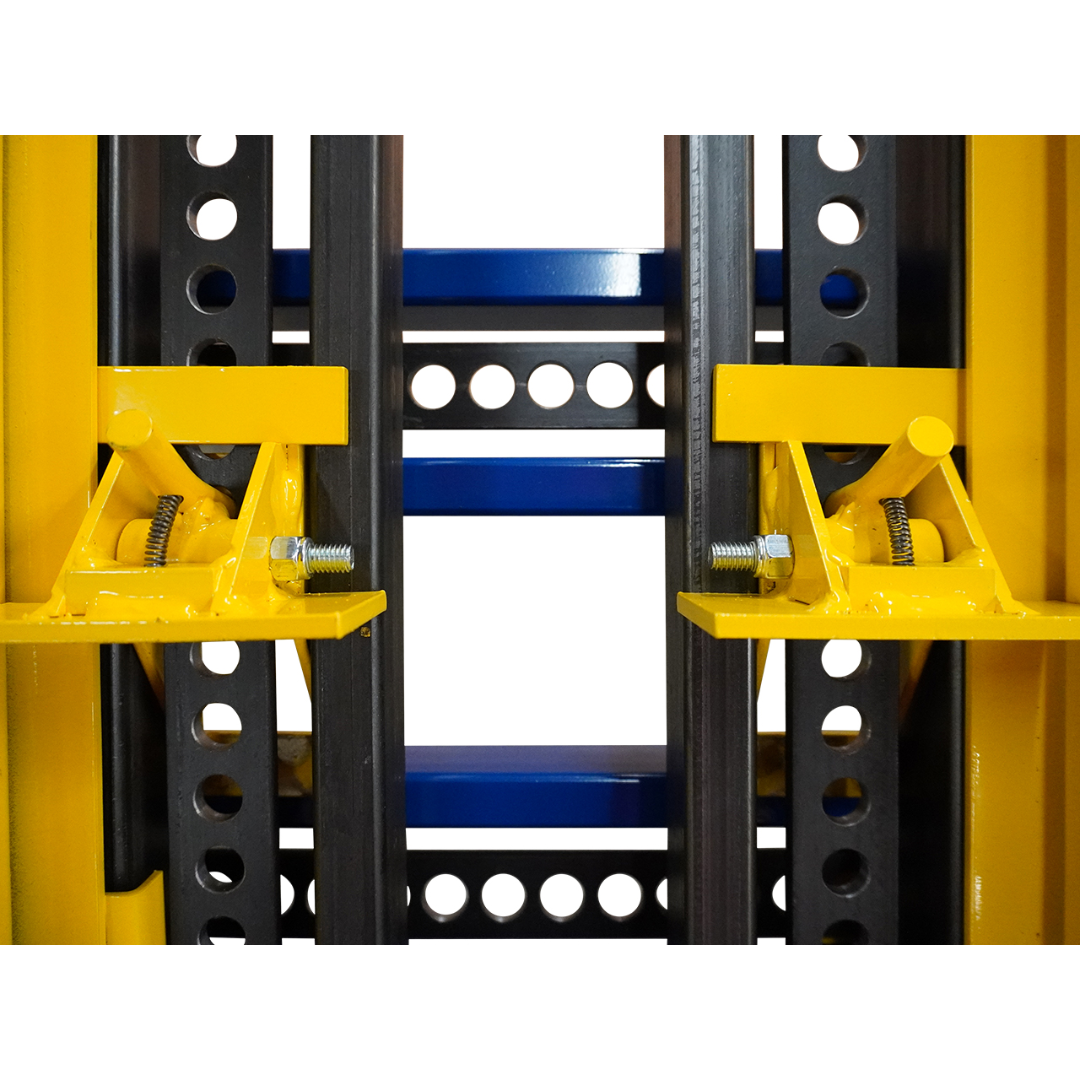

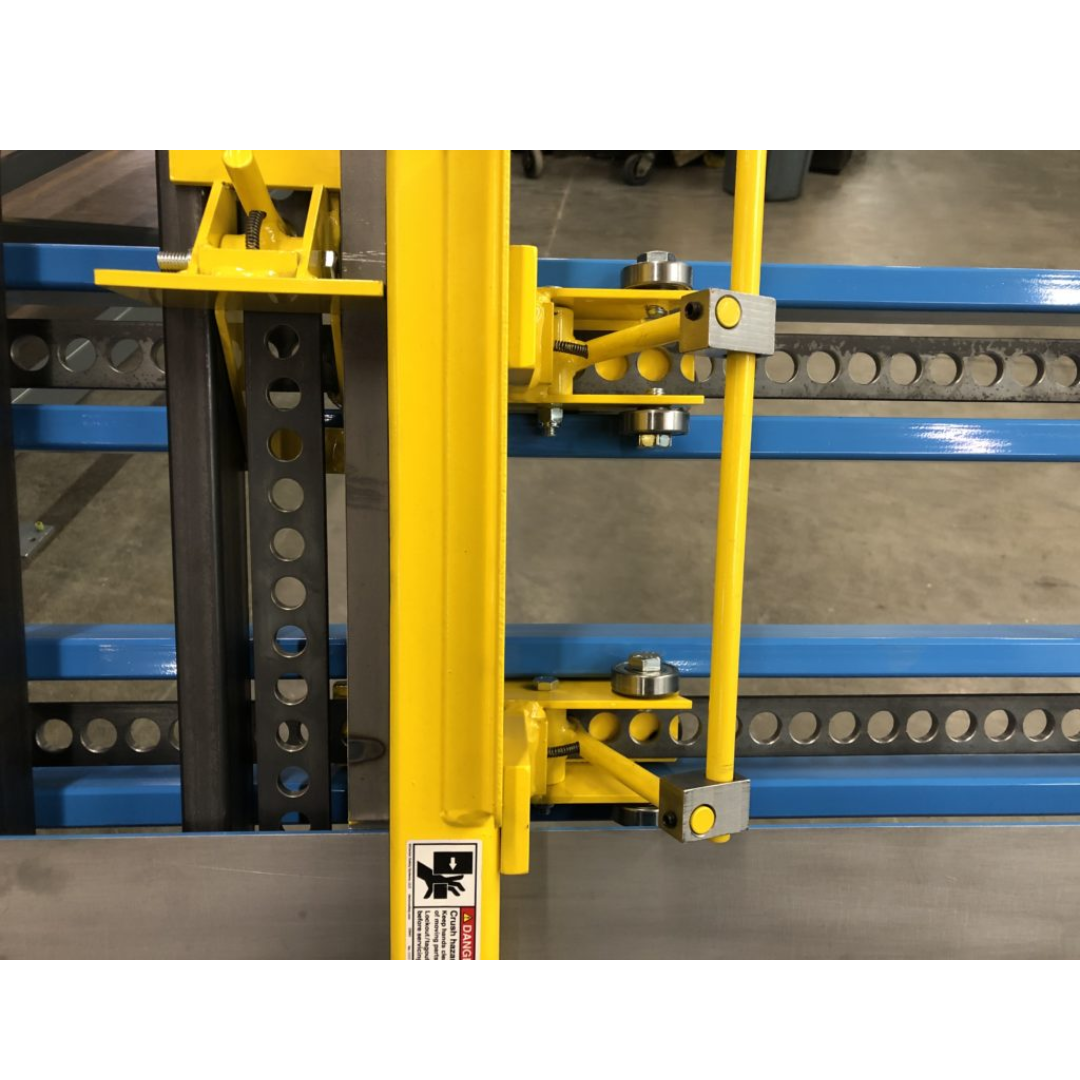

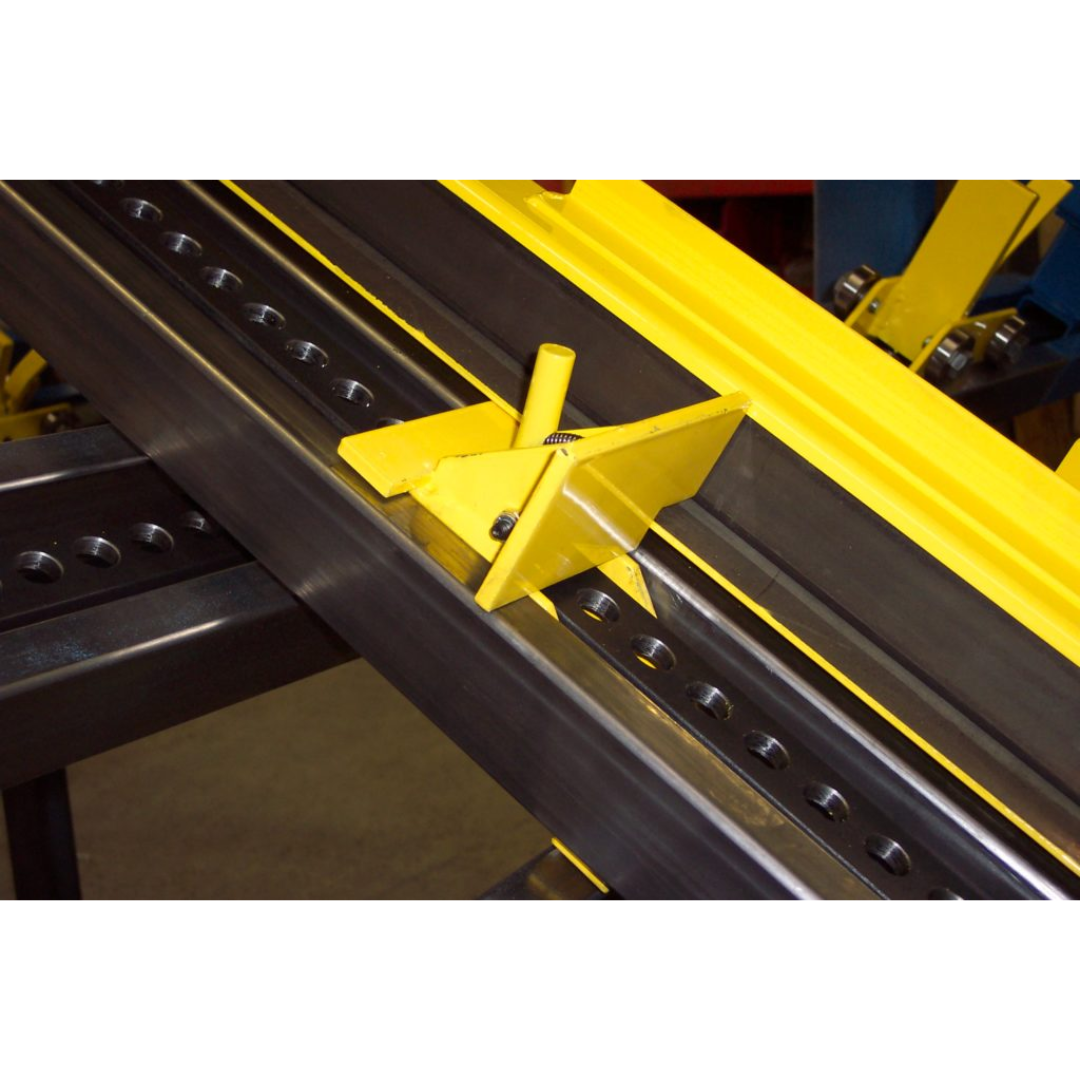

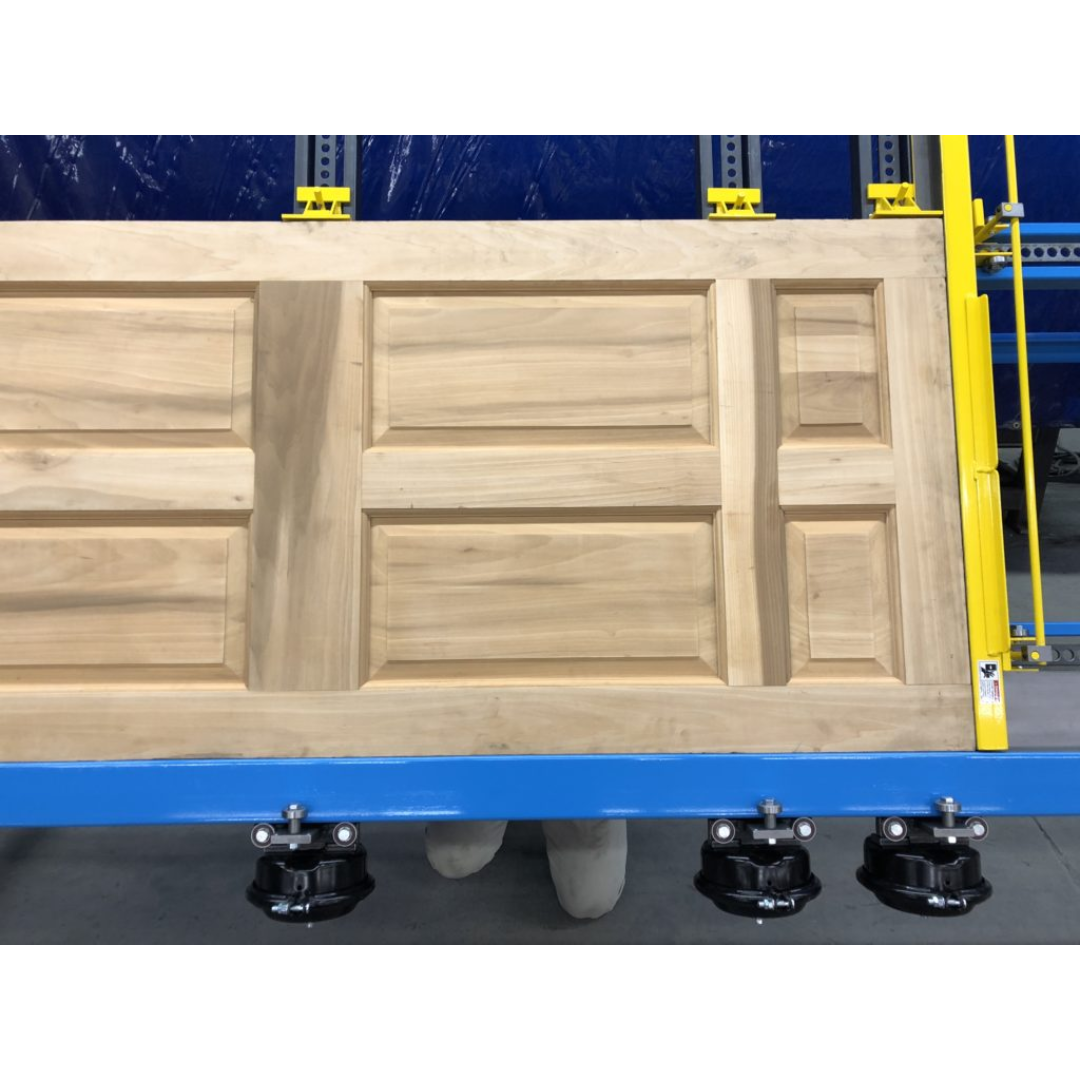

- Precision positioning system allows vertical clamps to be easily adjusted for optimal pressure placement.
- Engineered for long service life capable of handling thousands of door assemblies without performance loss.
Why Choose the JLT #79K-10 Heavy Duty Entry Door Clamp
- Built specifically for solid wood entry door production and large assemblies.
- High 2500 lb clamping pressure per clamp ensures strong, accurate joints.
- Flexible configuration for both single large doors and multiple cabinet doors.
- Heavy-duty steel construction delivers unmatched durability.
- Fast operation and ergonomic design improve overall shop productivity.
The JLT #79K-10 Heavy Duty Entry Door Clamp is the ultimate solution for woodworking professionals who demand strength, precision, and versatility when assembling large doors and high-quality cabinet products.
