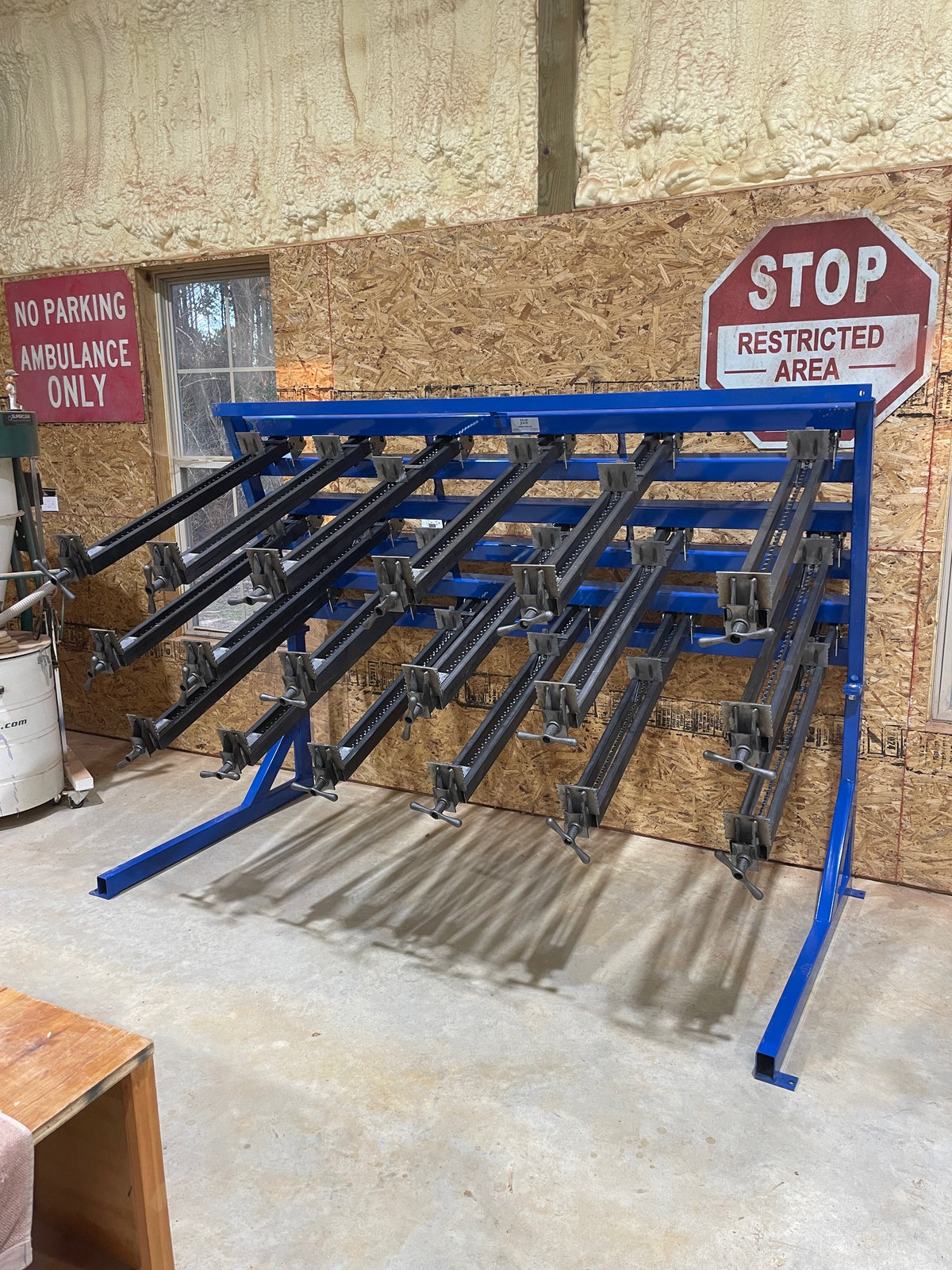

JLT #79F-8-PC 8′ Panel Clamp Applications
- Edge gluing large solid wood panels and boards
- Face gluing thick stock using rocker plate accessories
- Production of rails, beams, posts, flooring blanks, and panels
- High-output woodworking and manufacturing environments
- Custom shops requiring large-capacity panel clamping systems
Built for shops needing high production output and consistent panel quality on large glue-ups.
JLT #79F-8-PC 8′ Panel Clamp Specifications
| Model | #79F-8-PC |
|---|---|
| Gluing Levels | 5 Total Levels |
| Clamp Capacity | 40″ Standard (52″ Optional) |
| Minimum Clamp Opening | 9″ |
| Clamp Quantity | Includes (18) 3 1/2″ High Jaw Clamps |
| Clamping Force | Up to 3000 lbs per Clamp |
| Weight Capacity | 3000 lbs |
| Construction | 100% Tubular Steel (Robotically Welded) |
| Configuration | Free Standing Unit |
| Warranty | 3 Year Warranty + Lifetime on Welded Components |
JLT #79F-8-PC 8′ Panel Clamp Performance & Construction

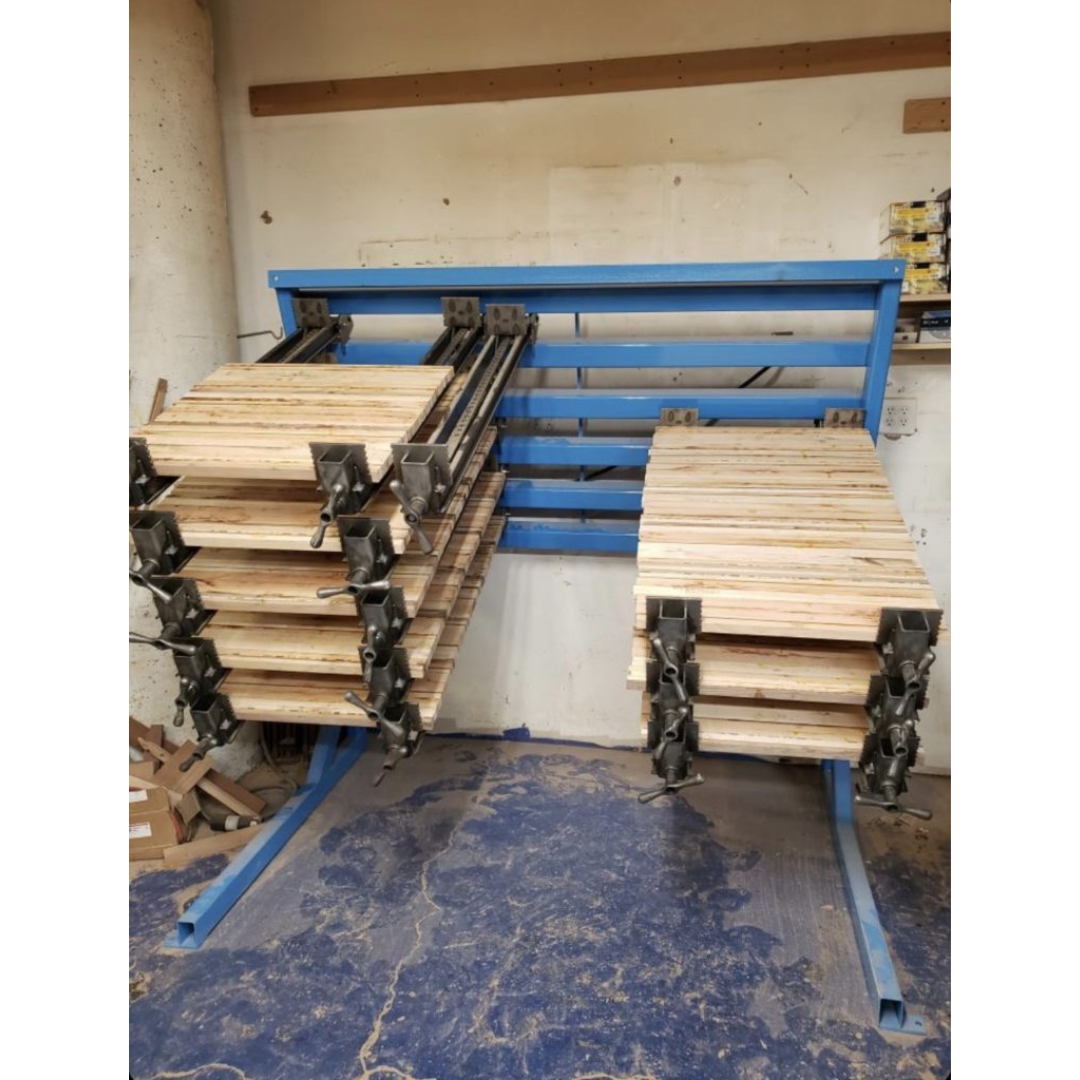

- Produces 50+ edge glued panels per day for high-efficiency production environments.

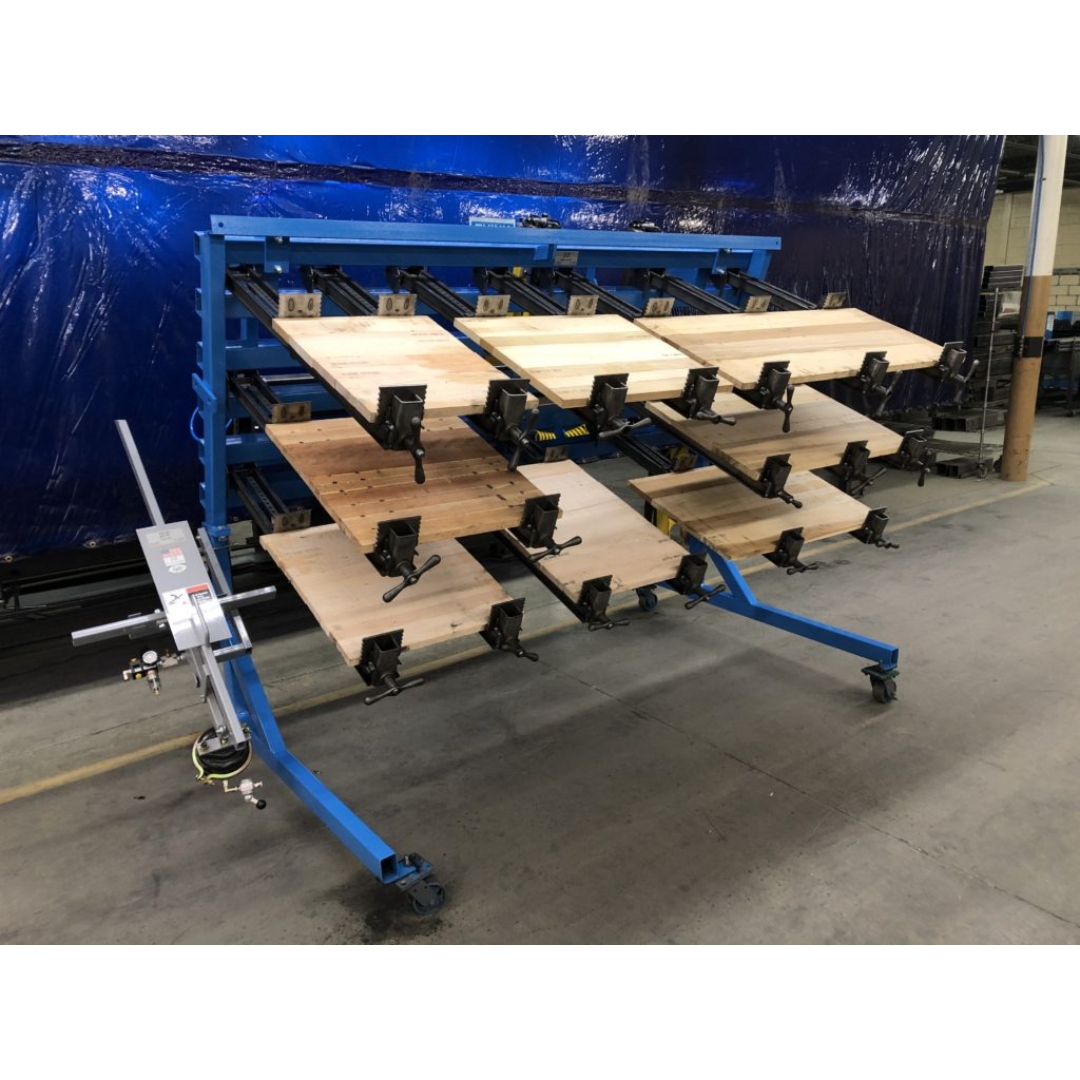

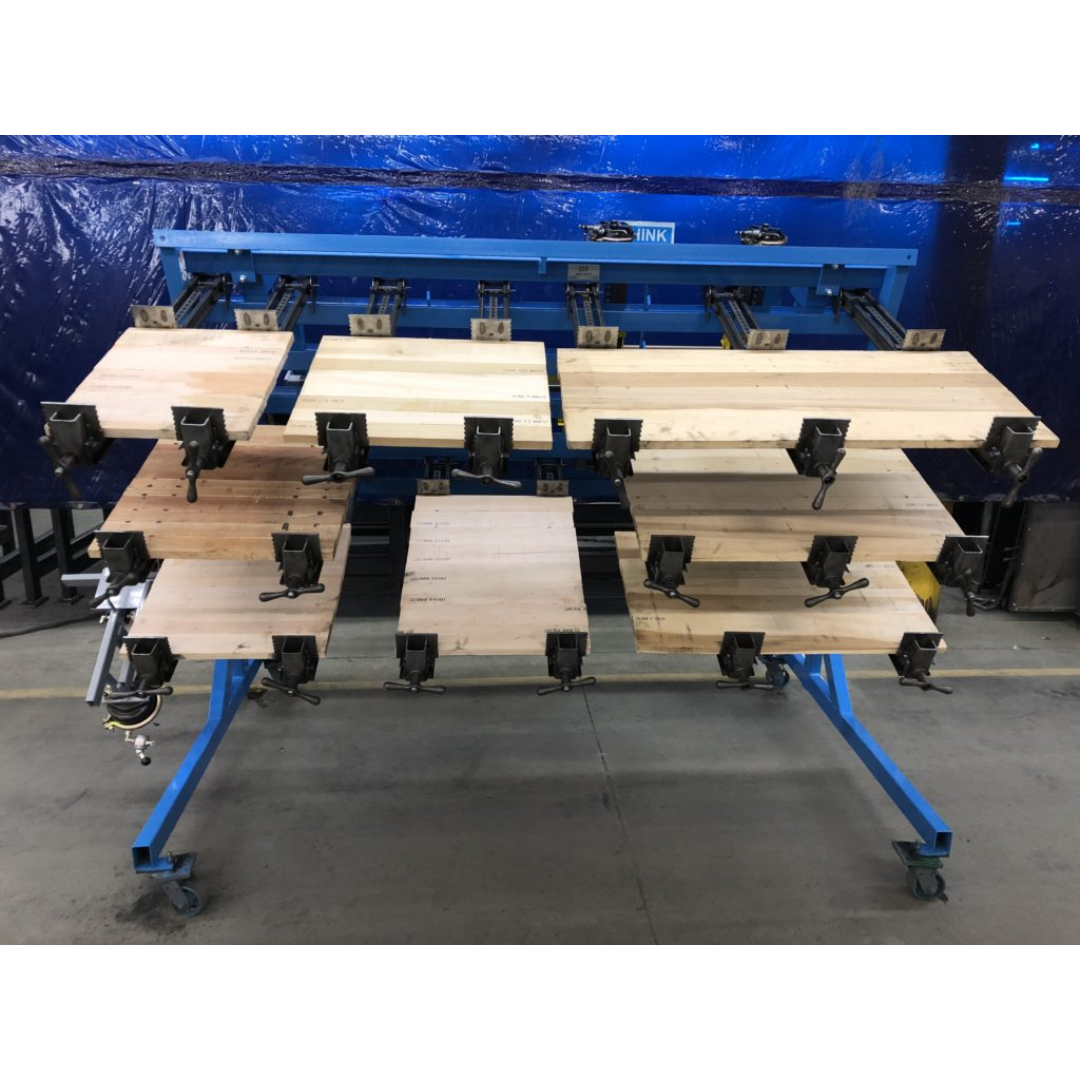

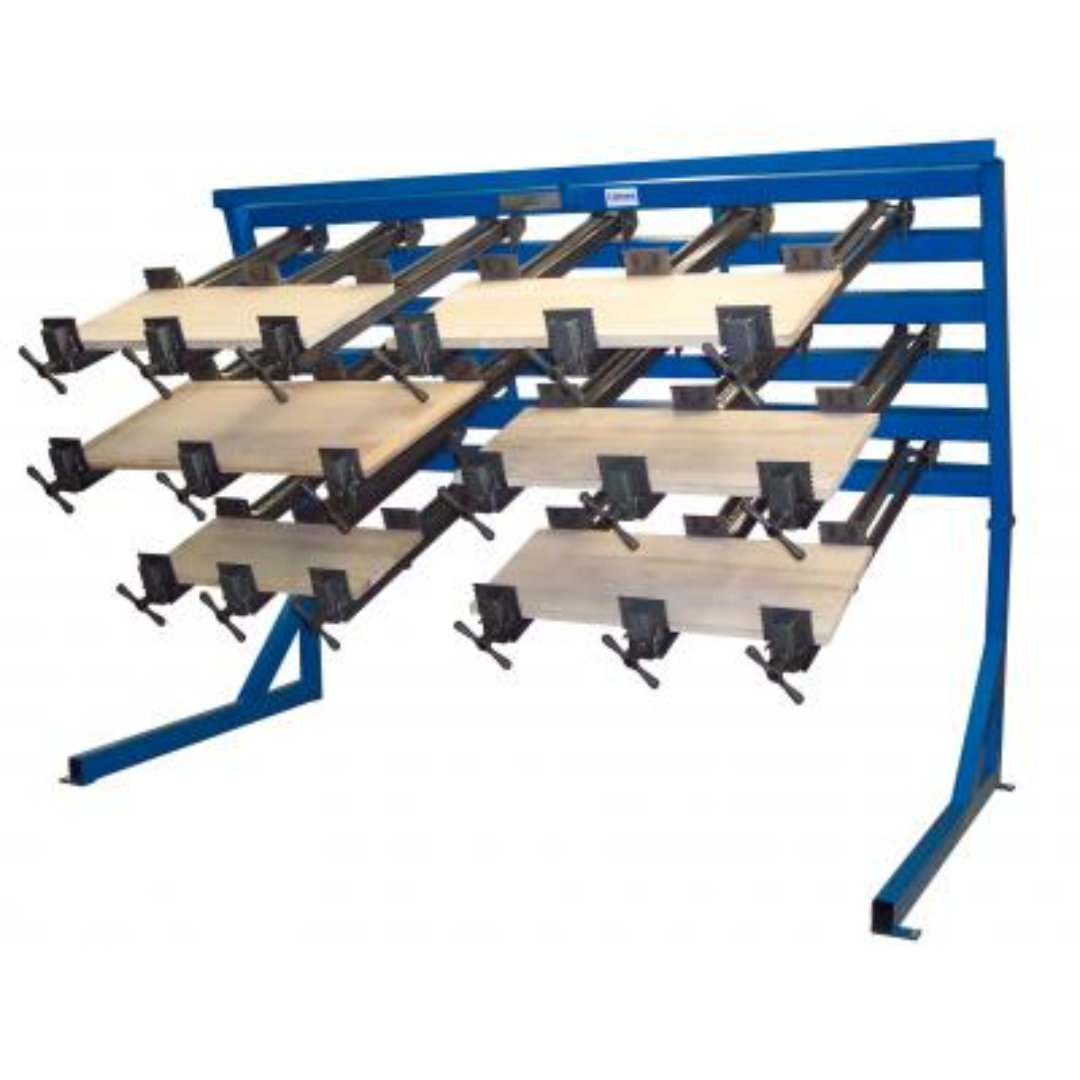

- (5) total gluing levels maximize throughput while maintaining a compact footprint.

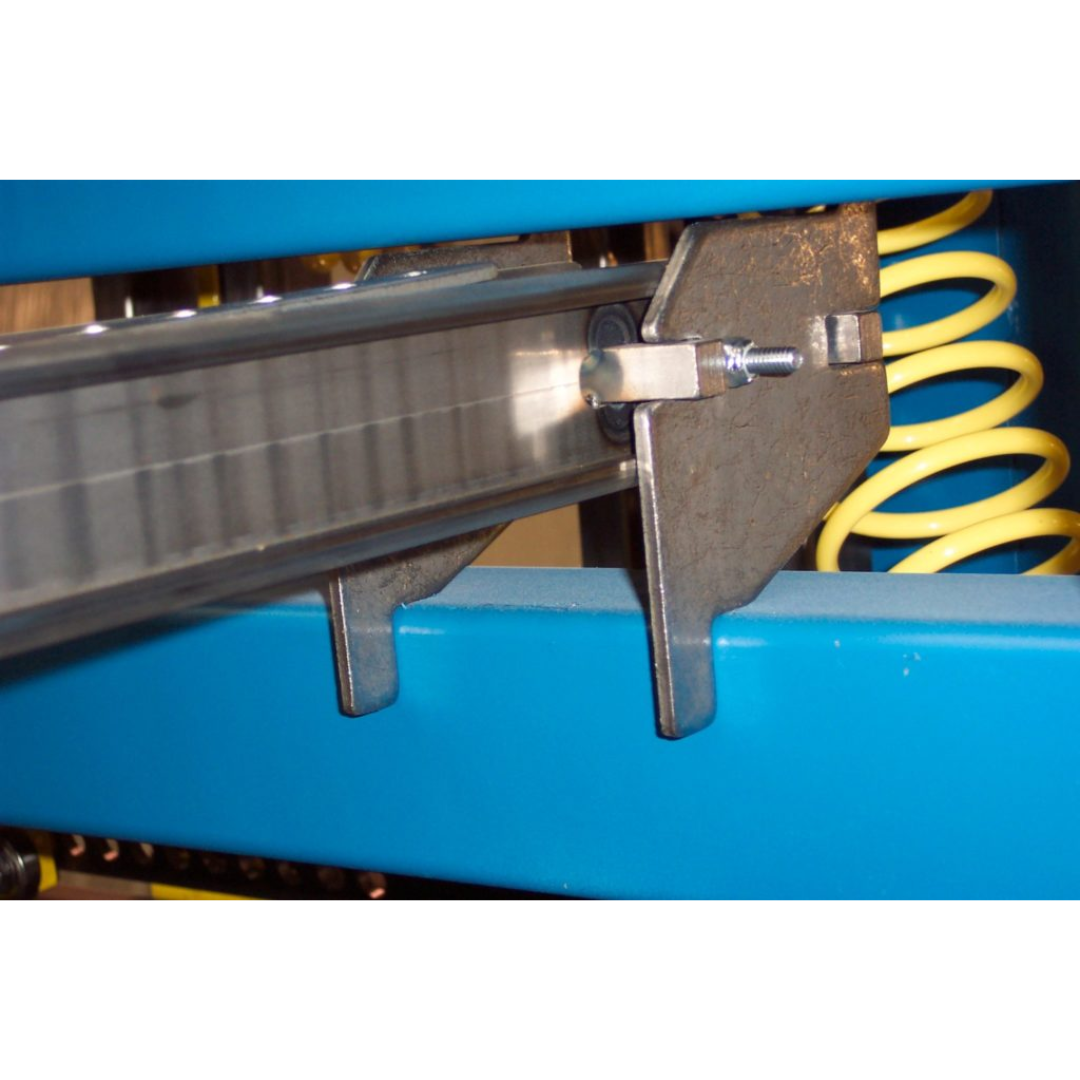

- Patented equalizer clamp arm design ensures even pressure from front and rear jaws for superior glue lines.
- Up to 3000 lbs of clamping force per clamp delivers strong, consistent bonding.

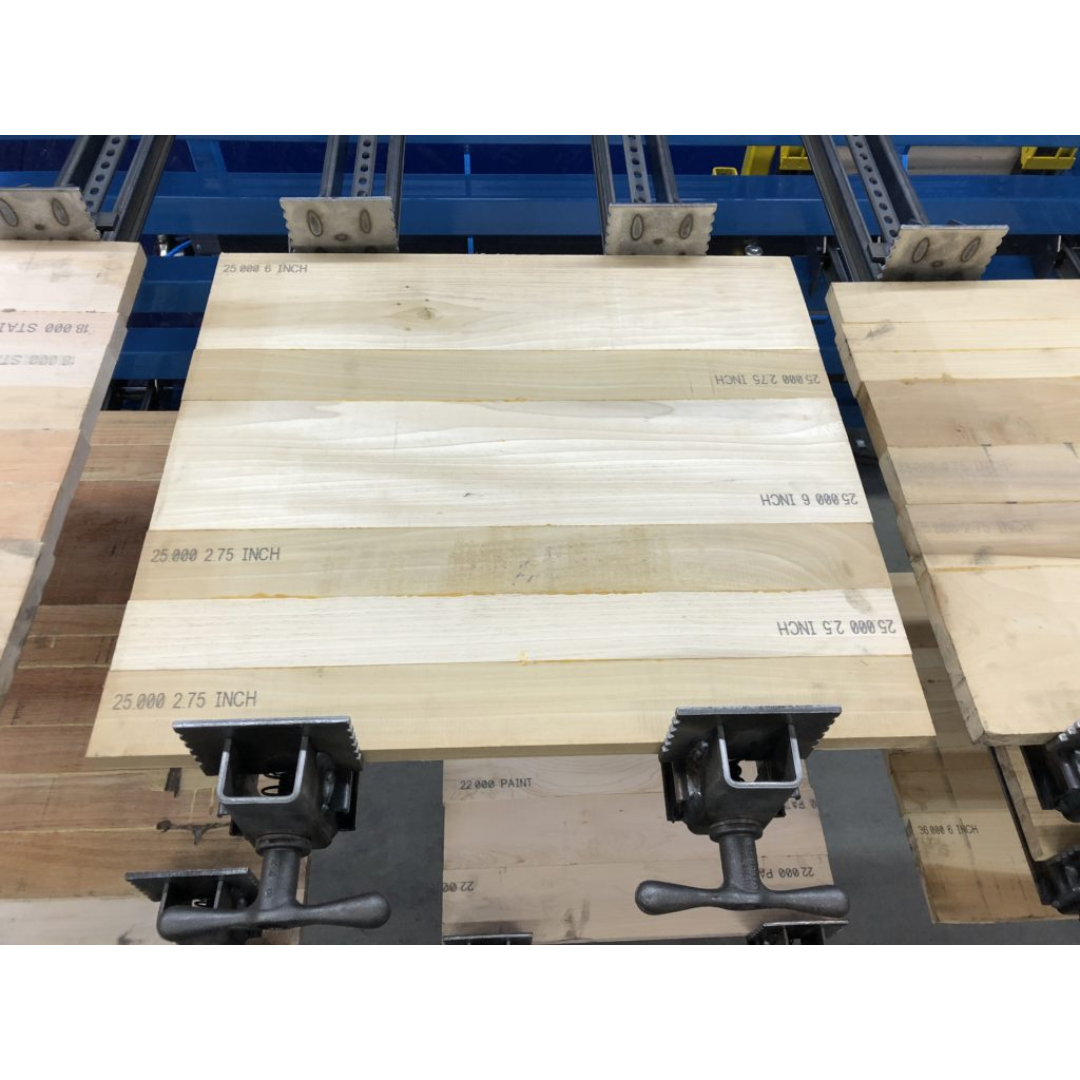

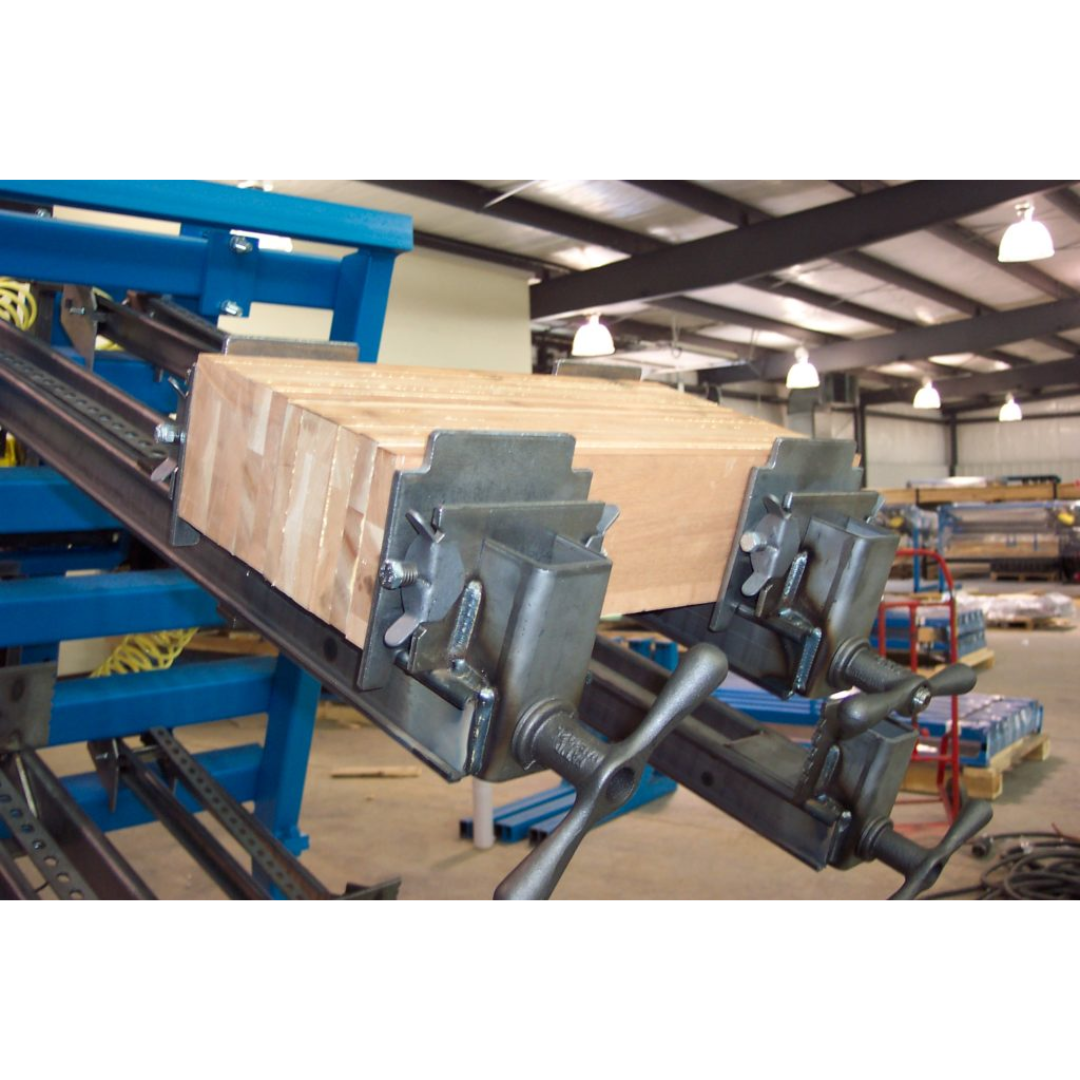

- Edge and face gluing versatility supports a wide range of solid wood applications.
- Heavy-duty tubular steel construction creates a flat, rigid clamping surface that will not twist or bend.
- Includes (18) high jaw clamps for large panel capacity and even pressure distribution.
- Expandable production capability by placing two units side by side for panels up to 16′ long.

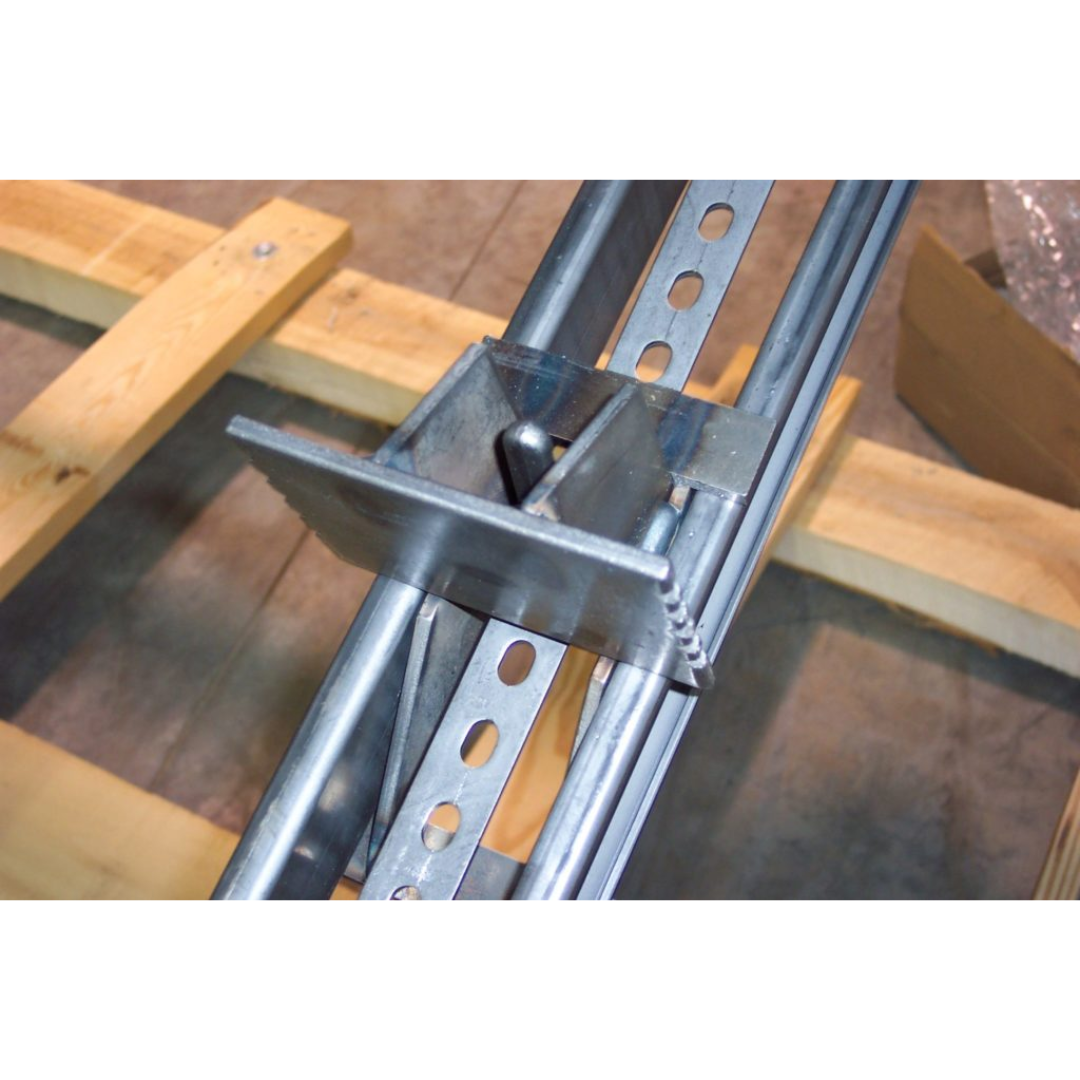

- Quick-adjust mounting system allows clamps to slide easily for fast setup and changeovers.

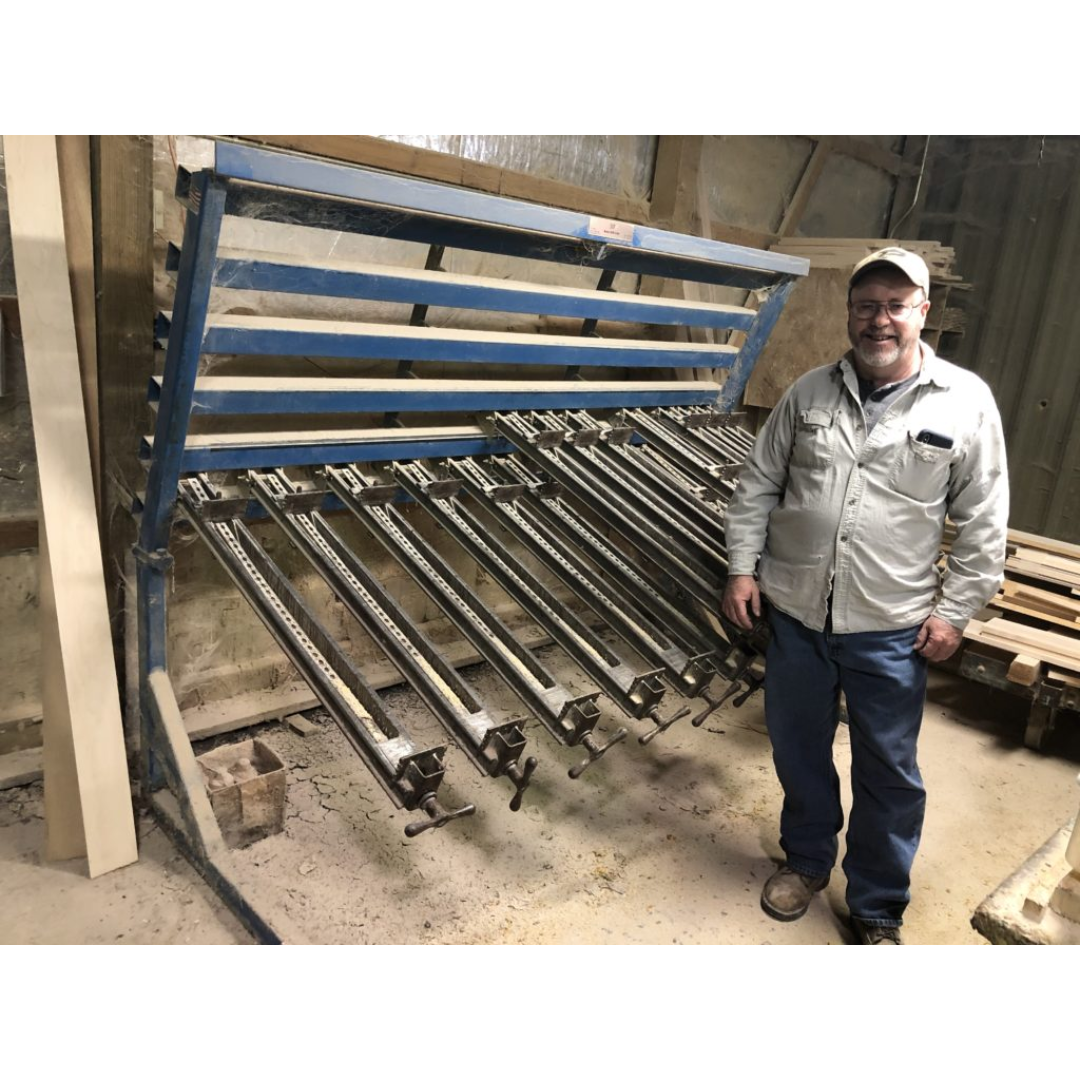

- Vertical storage capability enables clamps to hang when not in use, saving valuable floor space.
- Custom sizing options available from 32″ to 120″ openings for specialized applications.
- Guaranteed structural integrity—engineered to never twist, bow, or bend under normal conditions.
Why Choose the JLT #79F-8-PC 8′ Panel Clamp
- High-output system producing 50+ panels per day.
- Superior glue line quality with patented equalizer design.
- Large capacity with flexible configuration options.
- Durable, industrial-grade construction for long-term use.
- Expandable system for oversized panel production.
The JLT #79F-8-PC 8′ Panel Clamp is the ultimate solution for woodworking professionals who need maximum capacity, consistent results, and high production efficiency in panel glue-up operations.
