JLT #78H Mini Pod Press Applications
- Face gluing solid wood panels and components up to 12” wide
- Engineered stiles and rails for doors and cabinetry
- Engineered flooring, stair treads, and strip laminations
- Headers, kickers, and structural wood assemblies
- Curved and pyramid-style glue-ups for increased production efficiency
Ideal for shops needing high-pressure laminating in a compact footprint with precise control and flexible production capabilities.
JLT #78H Mini Pod Press Specifications
| Model | #78H |
|---|---|
| Work Area Width | 12" (Optional 16" Model Available) |
| Available Lengths | 42", 84", 126", 168" |
| Adjustable Opening | 0" – 40" |
| Clamping System | 18 Diaphragm Cylinders (30 sq in each) |
| Maximum Pressure | Up to 10 Tons per 42" Section @ 110 PSI |
| Total Pressure Capacity | Up to 30 Tons @ 120 PSI |
| Platen Adjustment | 1" to 1-1/2" Increments |
| Machine Footprint (10' Model) | 128" L × 36" W × 76" H |
JLT #78H Mini Pod Press Performance & Construction
- Individually controlled platens allow precise pressure application across different sections.

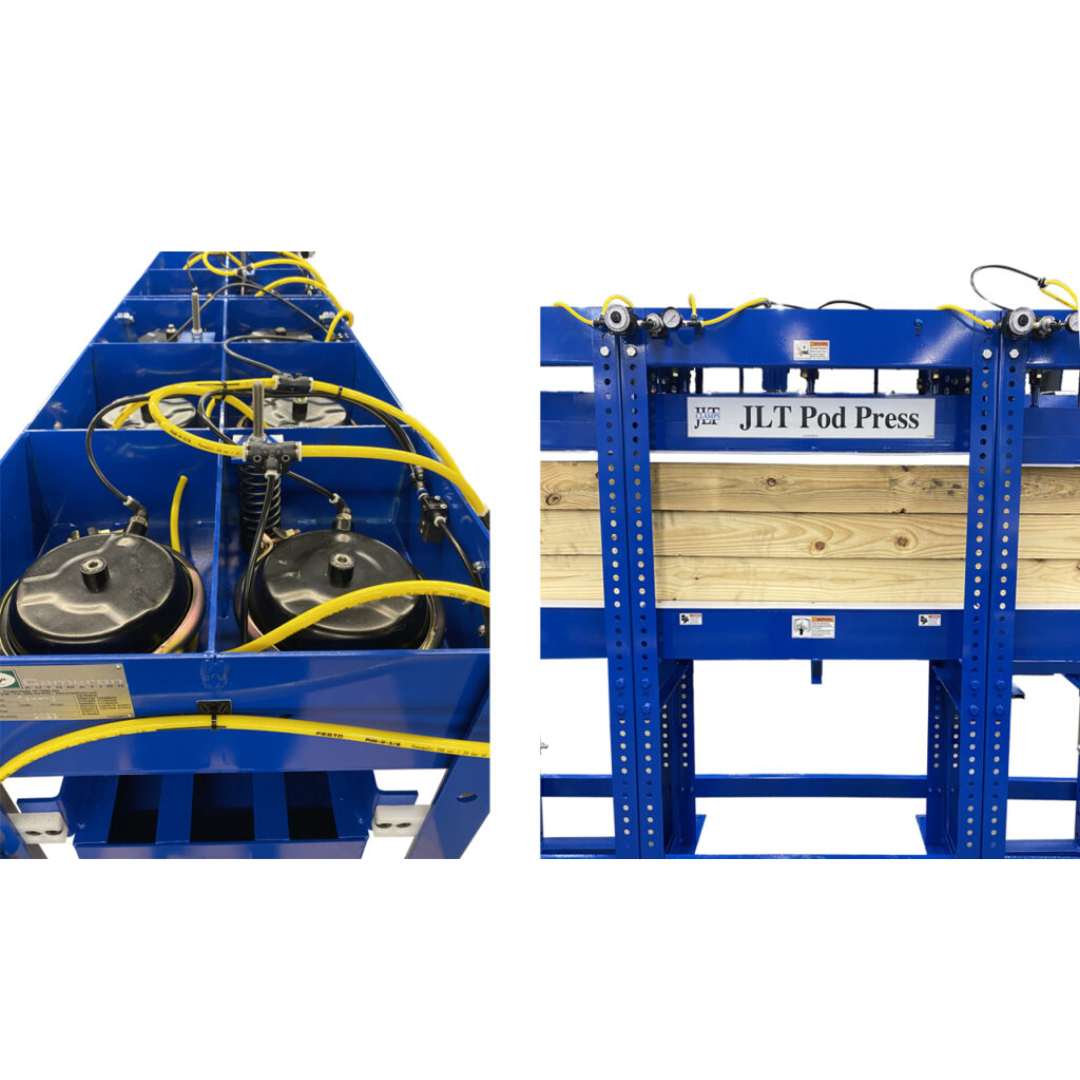

- 18 diaphragm cylinders deliver consistent and evenly distributed high clamping pressure.

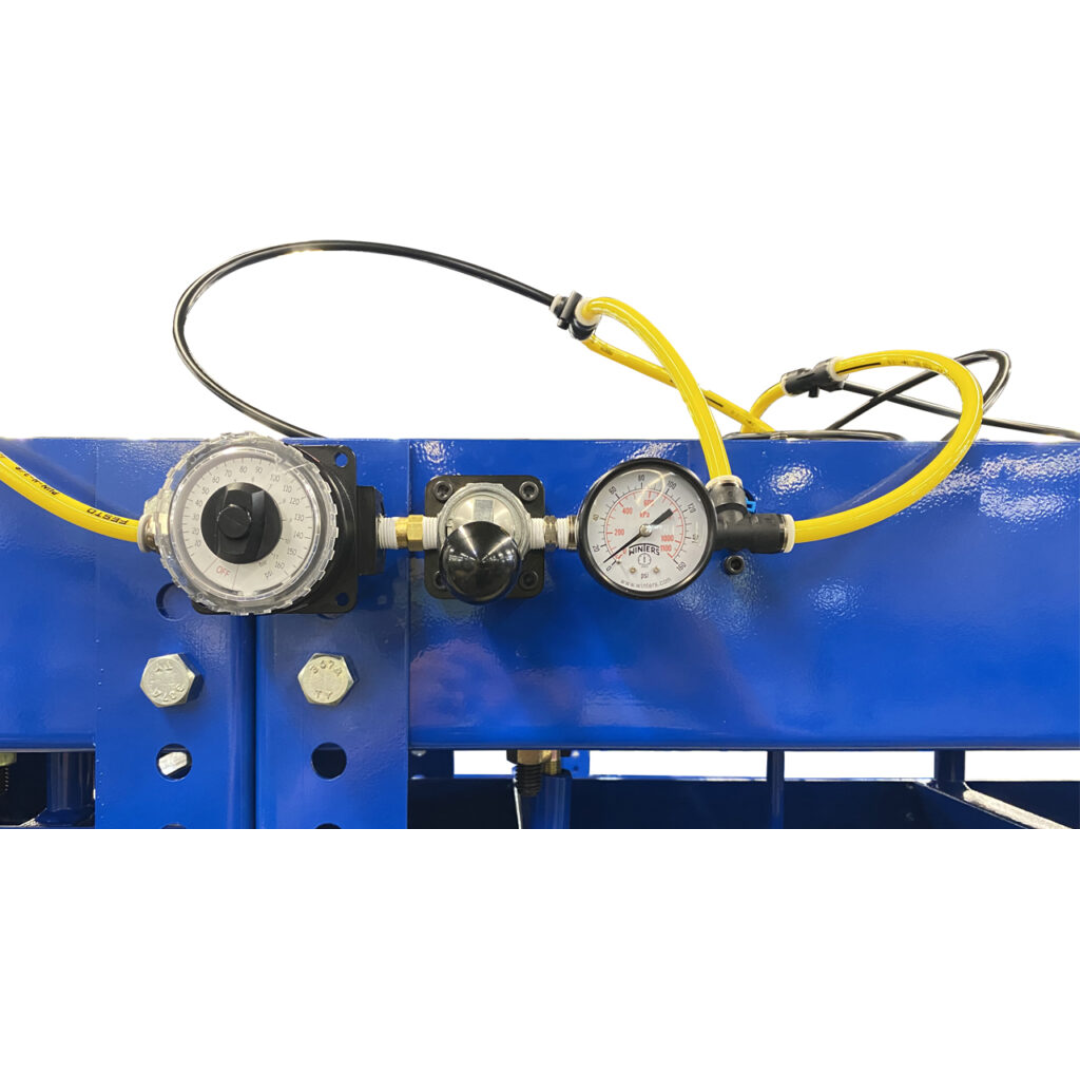

- Dial regulators provide fine-tuned control of air pressure and alignment for optimal glue results.

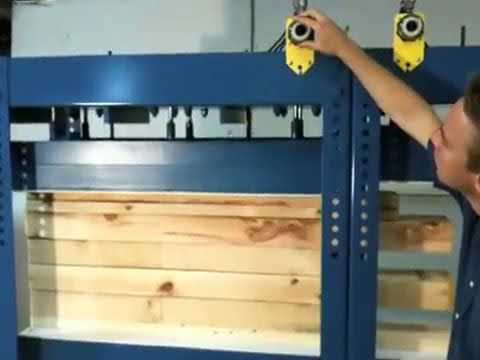

- Vertical press design supports up to 40" of stackable capacity for multiple components.
- Handles both short and long stock—from 40" blocks to entry door stiles up to 10'.
- Modular configuration allows expansion and customization to meet production needs.
- Upper platen with 2" stroke ensures effective engagement and pressure distribution.
- Steel platens with UHMW base plates provide durability and non-stick performance.
- Pyramid glue-up capability increases throughput by allowing mixed-size stacking.

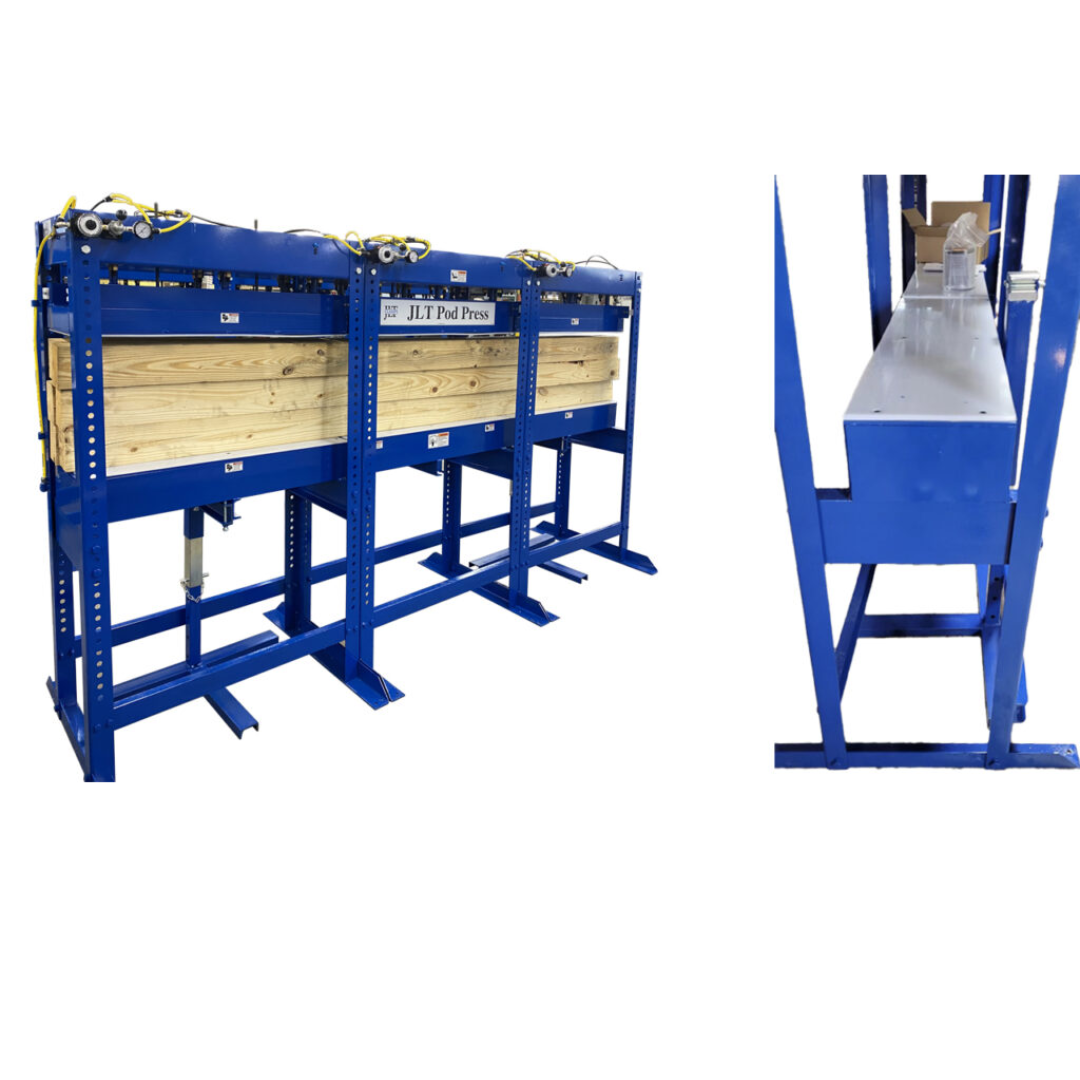

- Space-saving footprint maximizes shop efficiency without sacrificing performance.
- Easy operation simplifies setup and improves workflow consistency.
Why Choose the JLT #78H Mini Pod Press
- High-pressure laminating with precise, repeatable control.
- Flexible sizing and modular design for various production needs.
- Efficient vertical pressing for maximum space utilization.
- Handles a wide range of materials and glue-up configurations.
- Improves productivity while ensuring superior glue line quality.
The JLT #78H Mini Pod Press is a powerful, compact solution for woodworking professionals who require precision, flexibility, and high-pressure performance in face gluing and laminating applications.
