JLT #720A (#78G) Face Frame Table Applications
- Cabinet face frame assembly and alignment
- Large and oversized face frame production
- Custom cabinetry and woodworking shops
- Multi-operator production workstations
- Precision assembly requiring consistent clamping pressure
Designed for professional shops requiring accurate, repeatable face frame assembly with minimal setup time.
JLT #720A (#78G) Face Frame Table Specifications
| Model | #720A (#78G) |
|---|---|
| Available Sizes | 5′ × 8′ and 5′ × 12′ |
| Base Layup Surface | 5′ × 8′ (25% Larger than Standard 4′ × 8′ Tables) |
| Clamping System | (5) Pneumatic Air Cylinders |
| Air Requirement | Single Air Hookup (0–100 PSI) |
| Material Thickness Range | 5/8″ Minimum – 1-3/8″ Maximum |
| Construction | All Welded Steel Frame with Melamine Surface |
| Machine Footprint | 148″ L × 70″ H × 48″ W |
JLT #720A (#78G) Face Frame Table Performance & Construction

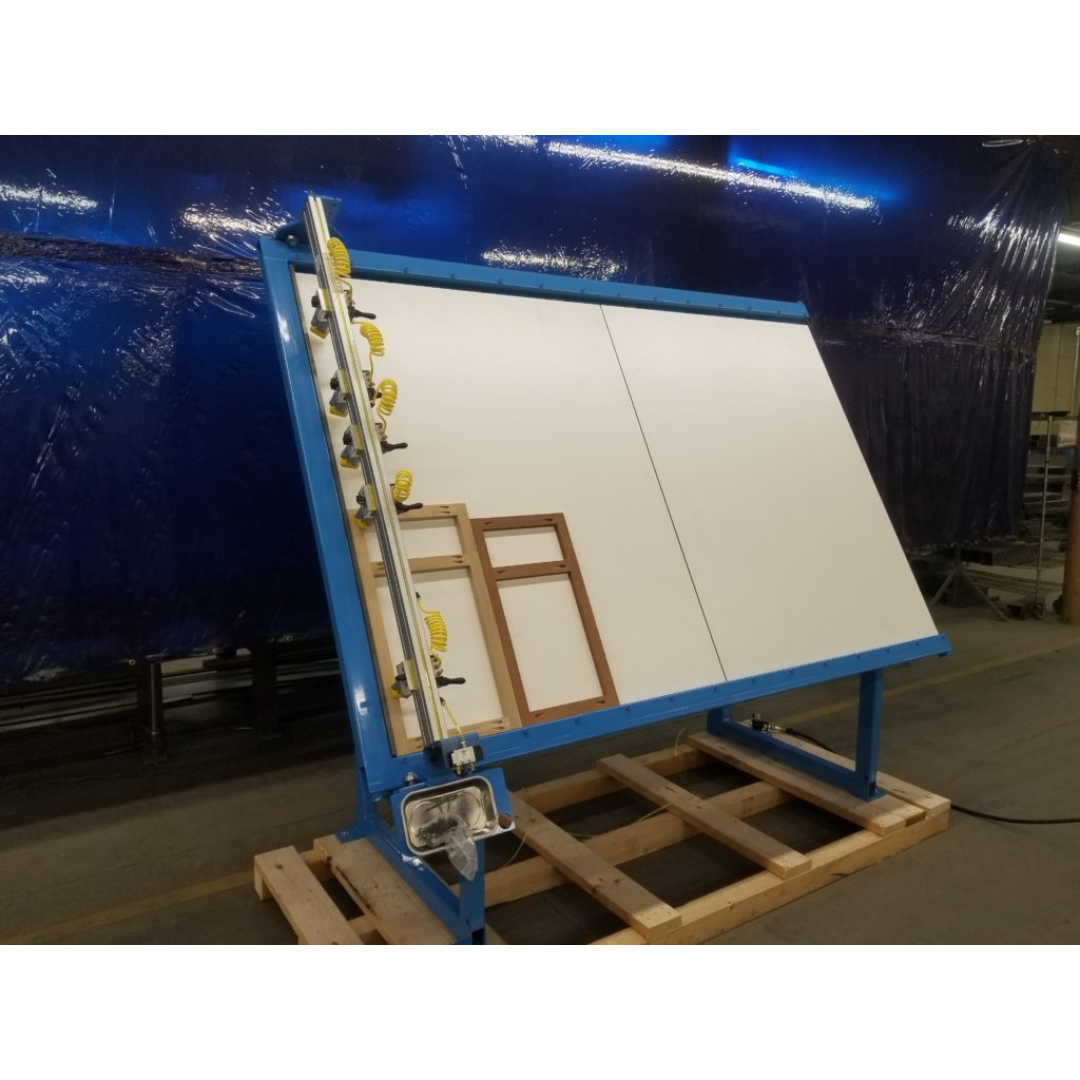

- Expanded 5′ × 8′ layup surface provides 25% more working area than standard tables.

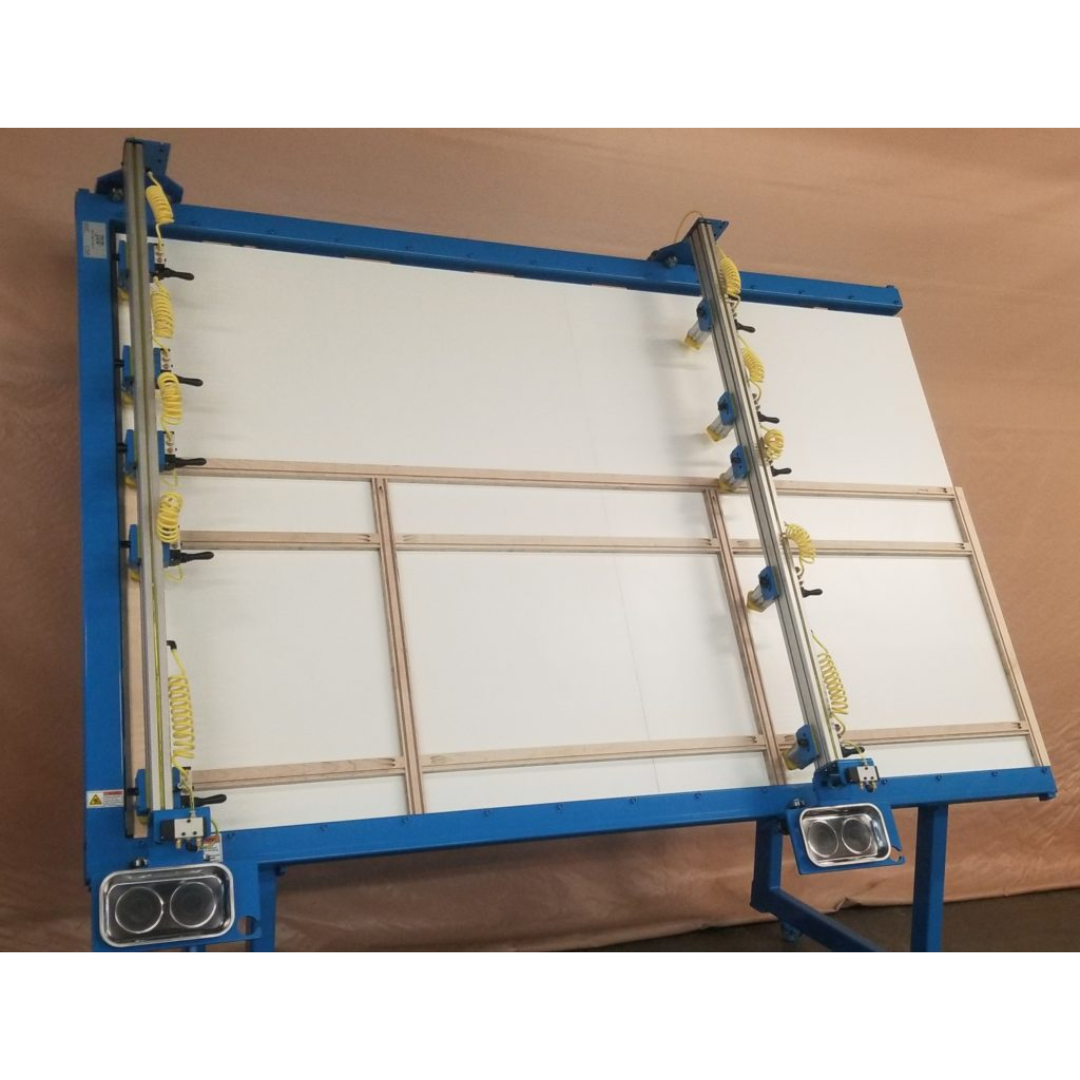

- Optional 5′ × 12′ model supports oversized face frames or dual-operator workflows.
- Open-end design allows handling of large or extended frame assemblies.

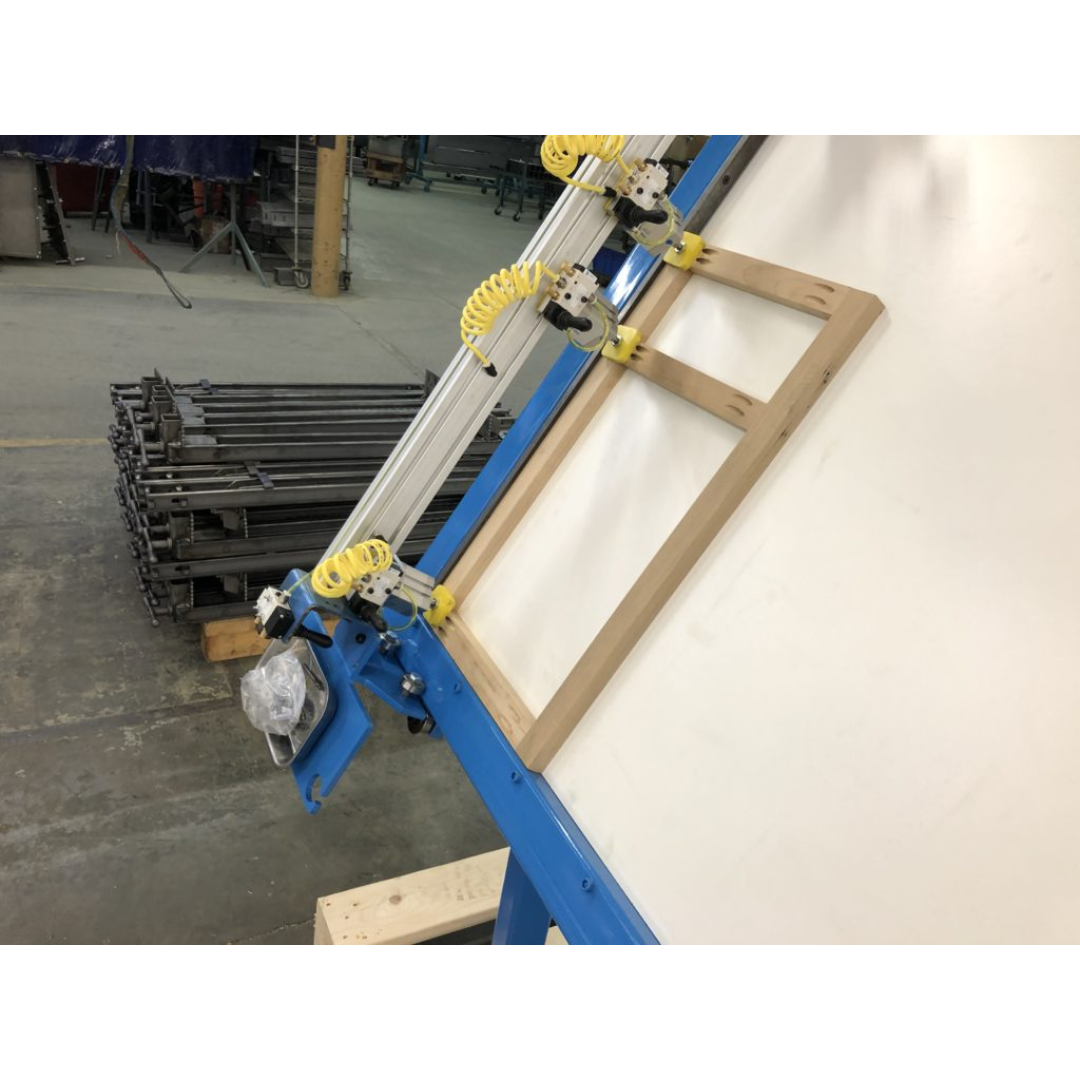

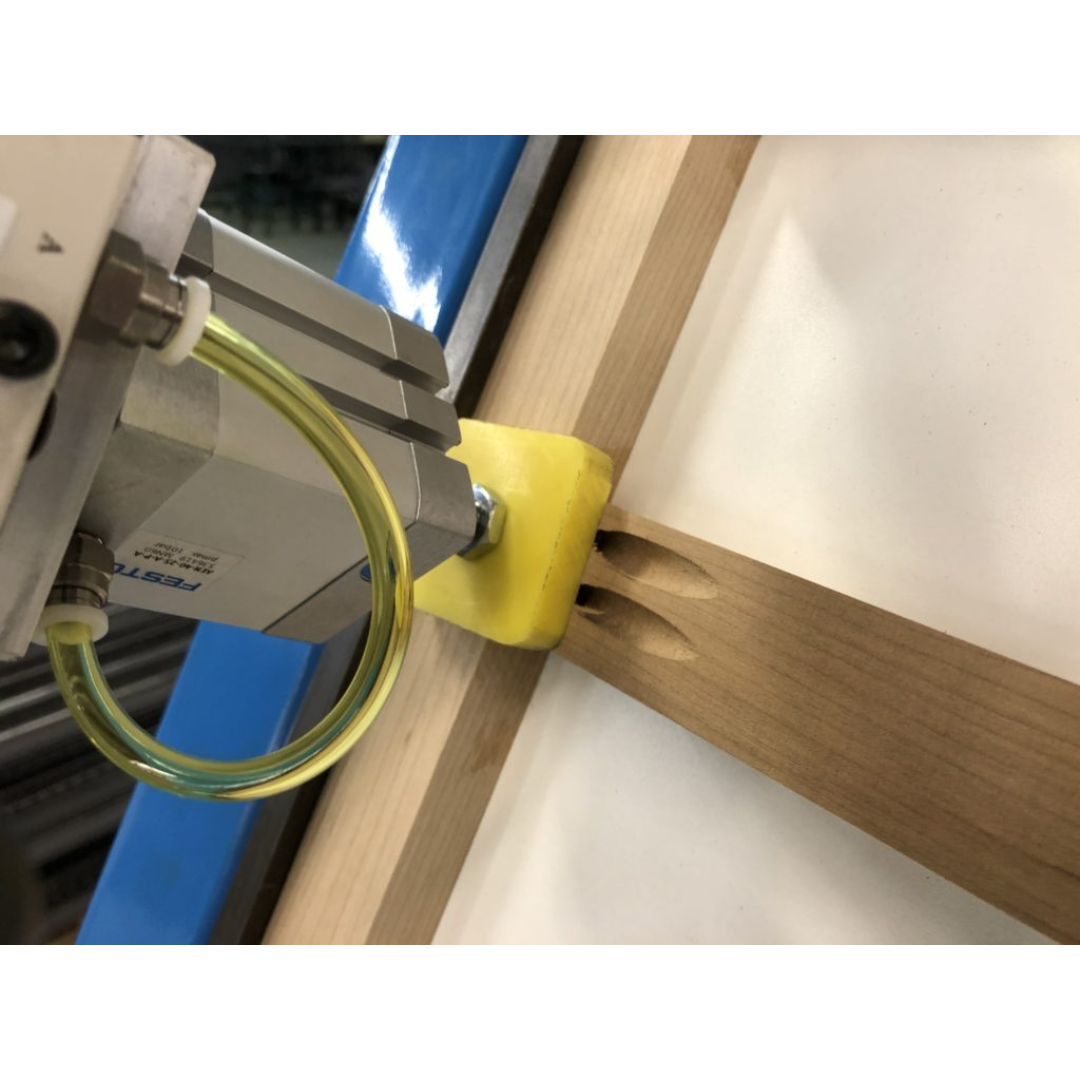

- (5) pneumatic clamping cylinders deliver consistent, even pressure across the frame.
- Master control switch enables simultaneous activation or release of all clamps.
- Individually adjustable cylinders slide and lock into position for flexible setups.

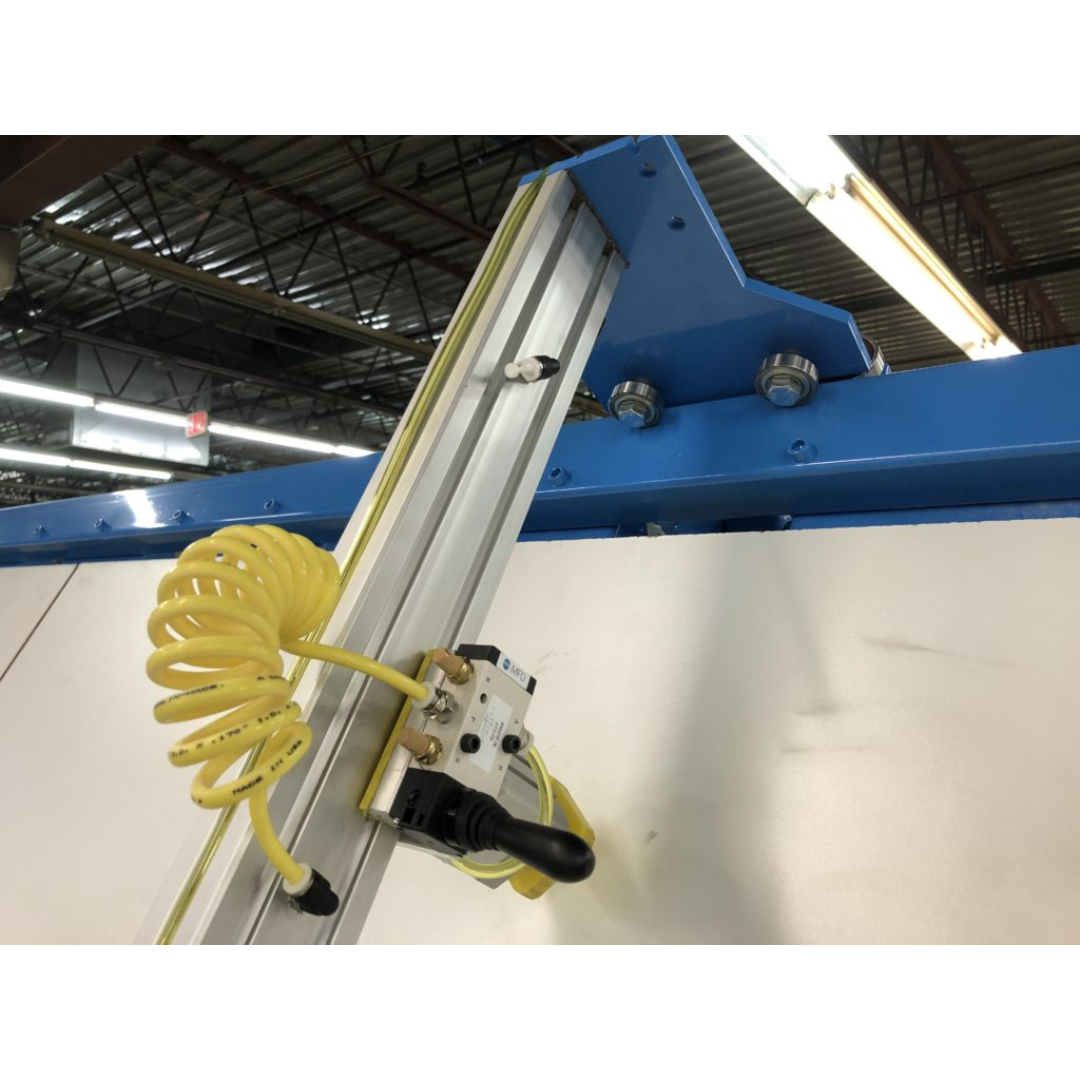

- Vertical pressure arm with roller system ensures smooth, precise clamping movement.
- Melamine-wrapped surface resists glue adhesion and provides a smooth, durable work area.
- Replaceable work surface extends machine lifespan and reduces maintenance costs.
- Magnetic tray keeps screws and hardware organized during assembly.
- Additional clamping arms available for increased flexibility and efficiency.
- Heavy-duty welded steel construction prevents warping and ensures long-term durability.
Why Choose the JLT #720A (#78G) Face Frame Table
- Larger working surface improves efficiency and productivity.
- Precision pneumatic clamping ensures accurate frame assembly.
- Flexible configuration supports both small and oversized projects.
- Durable construction built for continuous production use.
- Ideal for both single and multi-operator workflows.
The JLT #720A (#78G) Face Frame Table is the ultimate solution for woodworking professionals seeking precision, efficiency, and durability in face frame assembly operations.
