JLT #718A-8-M 8′ Miter Buddy System Applications
- Miter cabinet door assembly with precision corner control
- Stile and rail cabinet door production

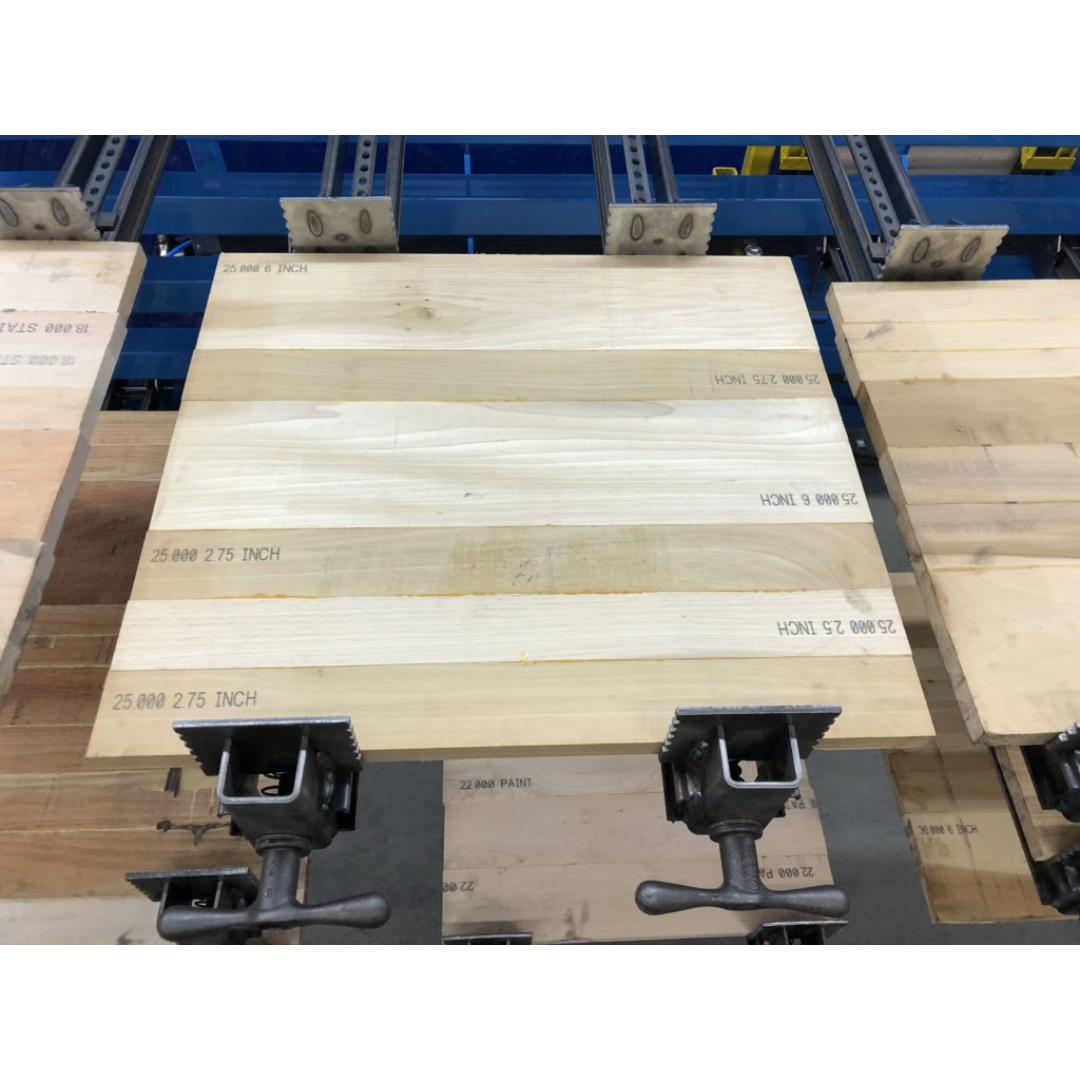

- Edge gluing and face gluing of solid wood panels
- Production of rails, beams, posts, and flooring blanks
- Custom woodworking and high-output manufacturing environments
Ideal for shops needing both miter door precision and panel production in a single space-saving system.
JLT #718A-8-M 8′ Miter Buddy System Specifications
| Model | #718A-8-M |
|---|---|
| Miter Door Clamp Capacity | 26″ × 62″ |
| Panel Clamp Width | 8′ |
| Gluing Levels | 5 Total Levels |
| Clamp Quantity | Includes (18) 3 1/2″ High Jaw Clamps |
| Clamp Capacity | 40″ Standard (52″ Optional) |
| Production Output | 100+ Miter Doors/Day & 50+ Panels/Day |
| Machine Footprint | 97″ L × 70″ H × 64″ W |
JLT #718A-8-M 8′ Miter Buddy System Performance & Construction

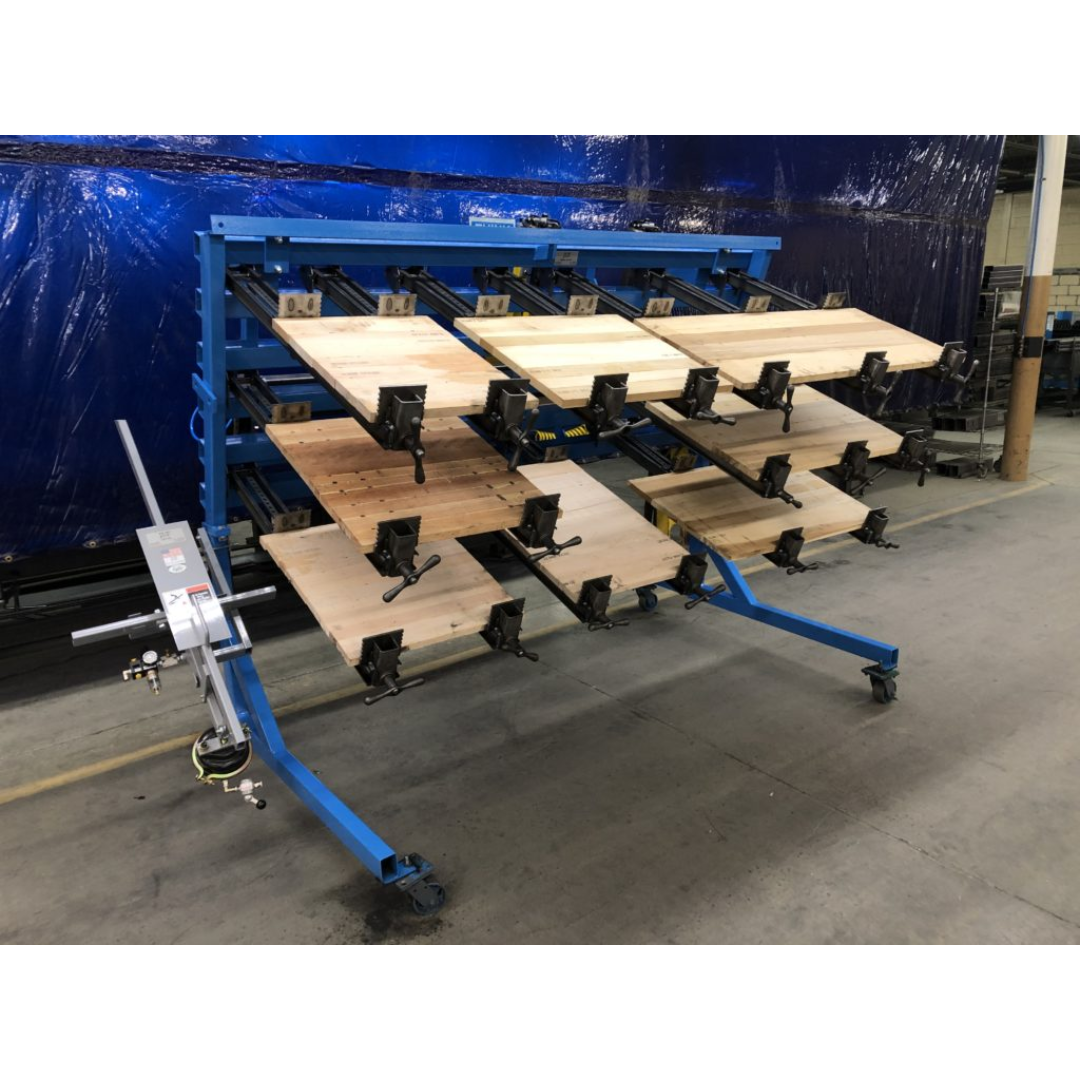

- Dual-function system combines miter door clamping and panel clamping into one efficient workstation.

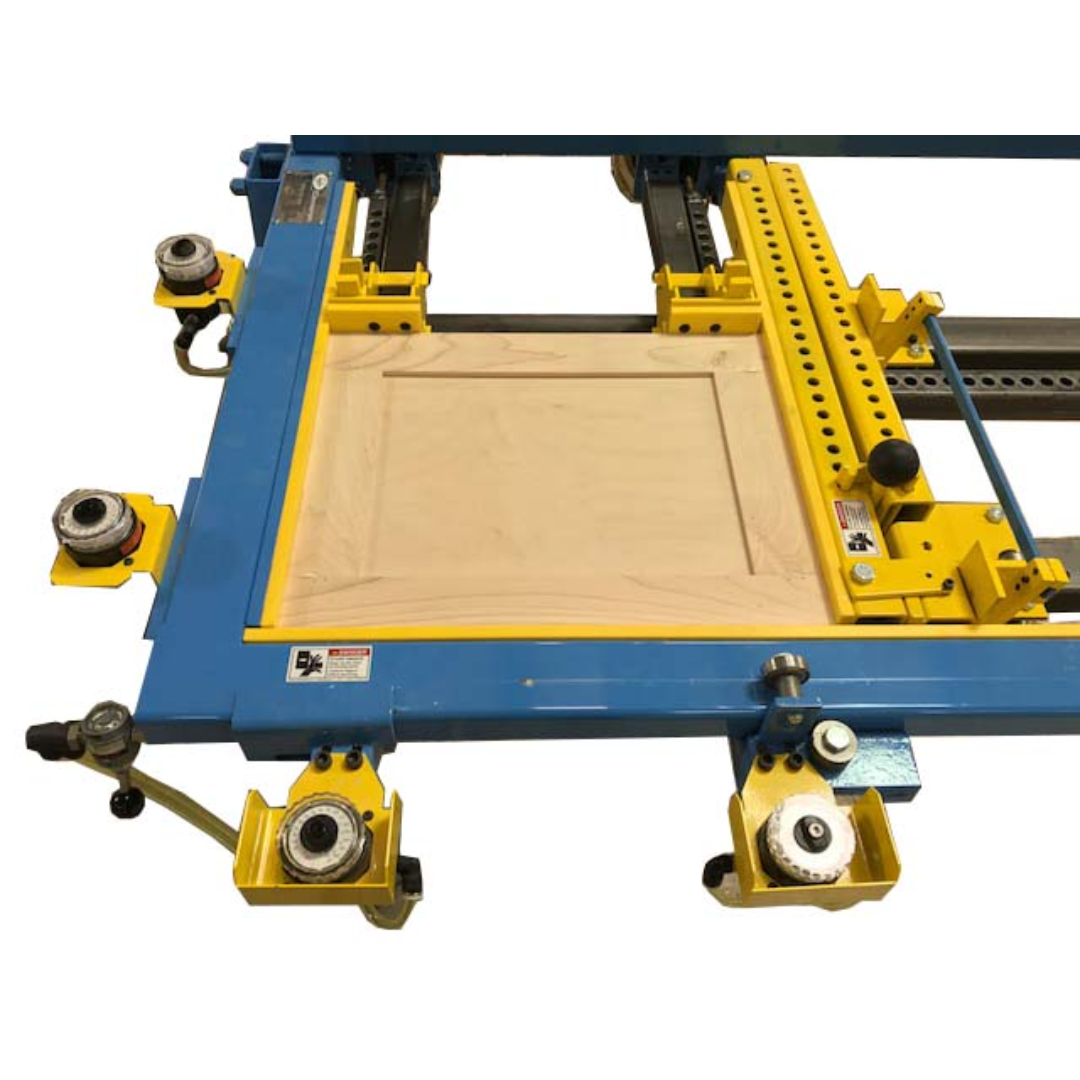

- Advanced Dial Control System allows precise adjustments in both directions while under clamping pressure.
- High production output—produce 100+ miter cabinet doors and 50+ panels per day.

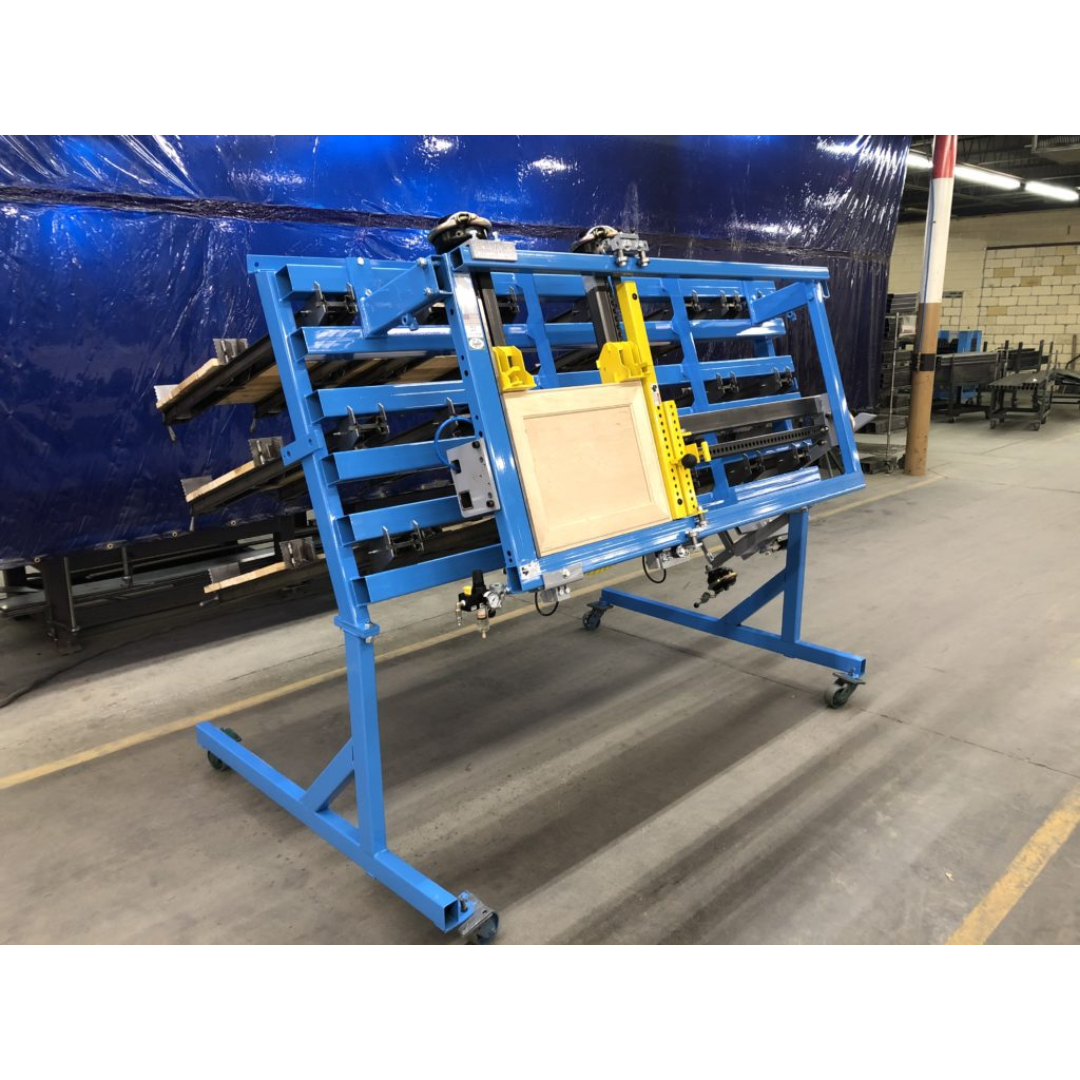

- (2) vertical and (2) horizontal clamps provide balanced, accurate pressure for miter joints.

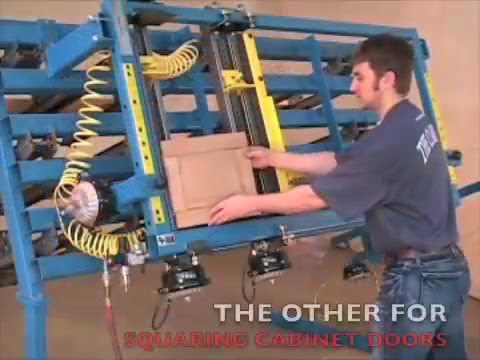

- Precision squaring capability for both miter and stile & rail cabinet doors.

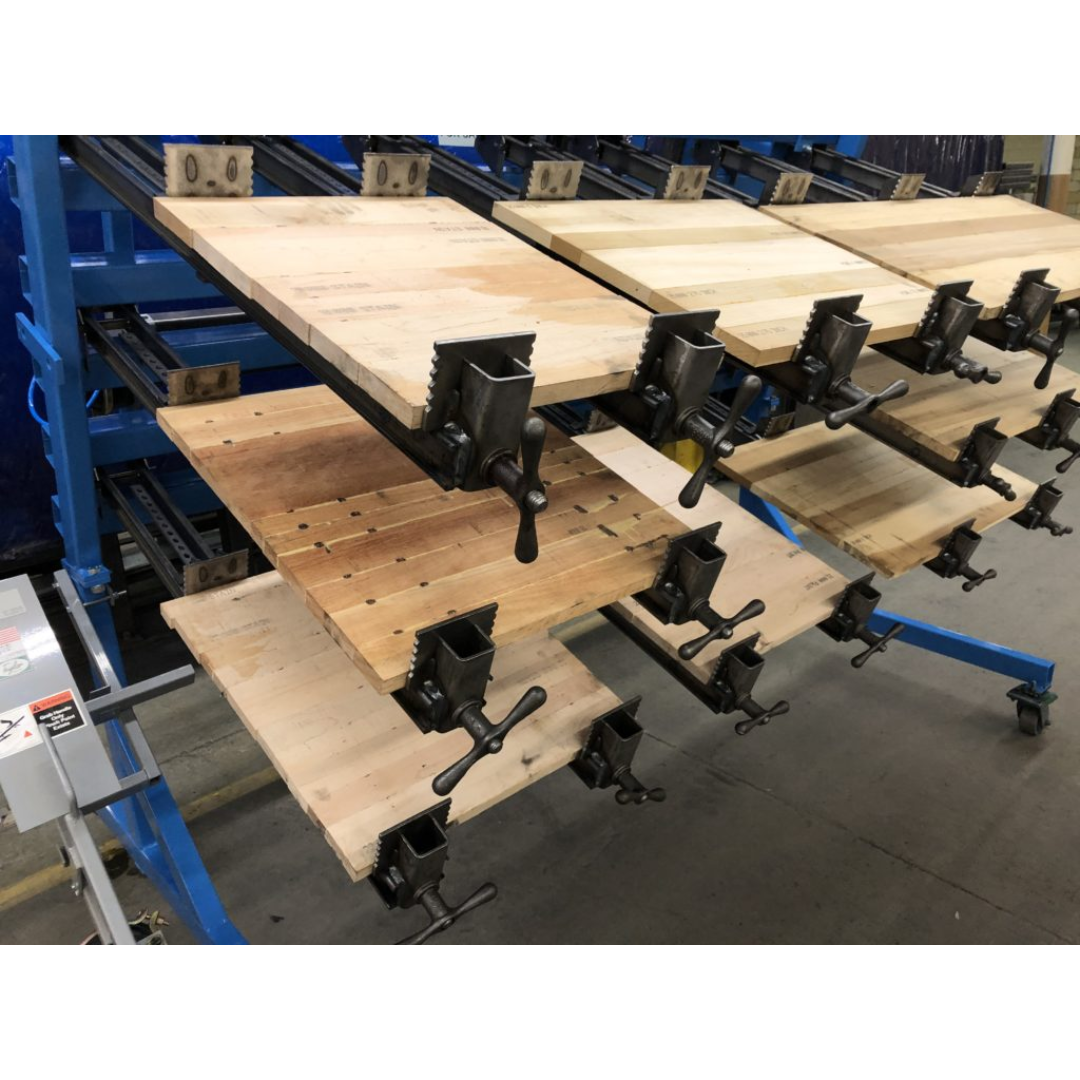

- Panel clamp side with (5) gluing levels increases throughput for panel glue-up.

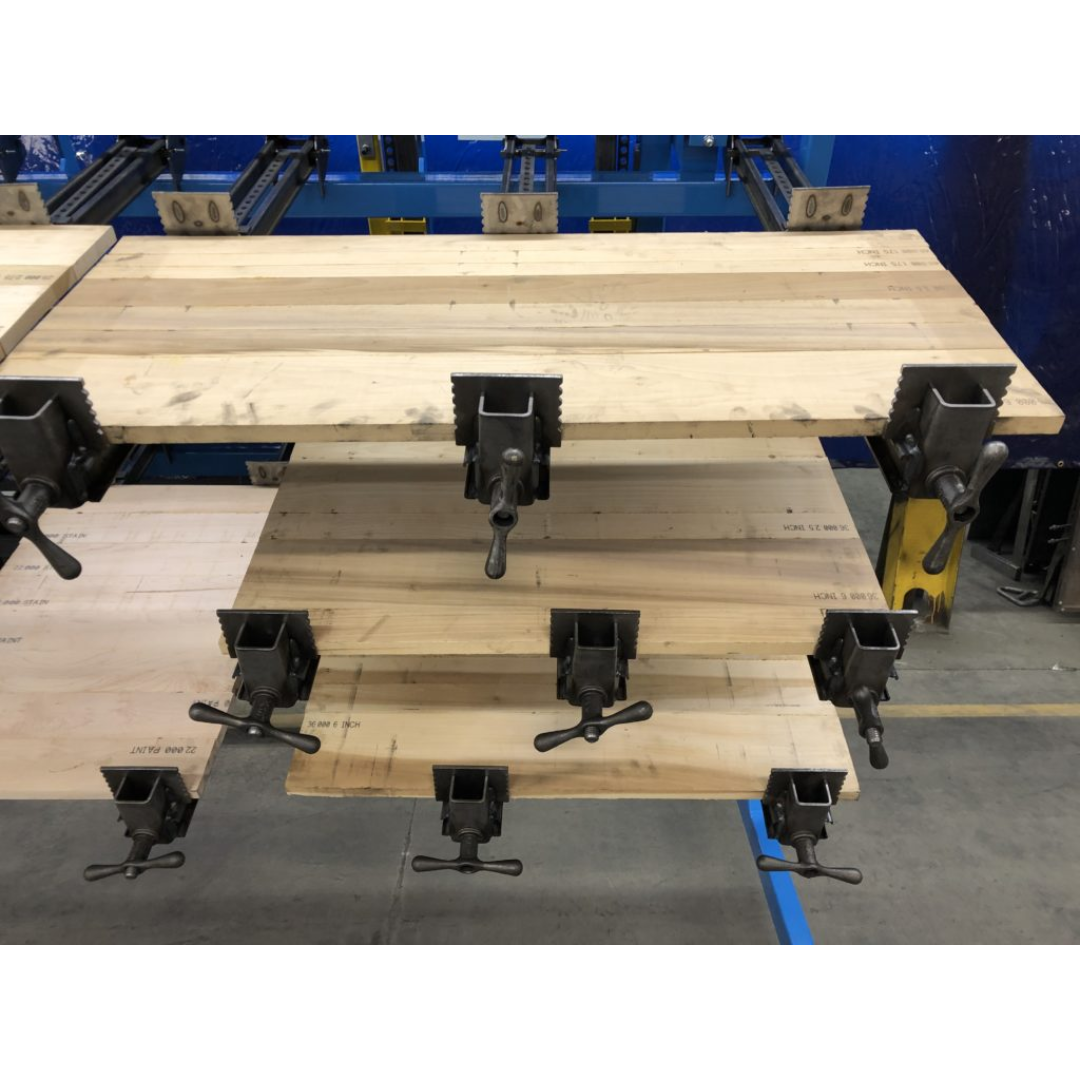

- Includes (18) high jaw clamps for even pressure distribution and consistent results.
- Edge and face gluing versatility supports a wide range of solid wood applications.
- Space-saving vertical clamp storage allows clamps to hang when not in use.
- Intuitive pin system enables fast setup and quick changeovers.
- Rear-mounted cylinders provide additional workspace and improved operator access.
- Redesigned jaws with thumb plate increase efficiency and ease of positioning.
- Thicker push bars reduce wear and extend machine lifespan.
- Heavy-duty tubular steel construction ensures long-term durability and structural stability.
- Expandable panel capacity by pairing systems for glue-ups up to 16′ long.
Why Choose the JLT #718A-8-M 8′ Miter Buddy System
- Combines miter door precision and panel production in one system.
- Dial Control System delivers unmatched accuracy for miter joints.
- High-output solution for both doors and panels.
- Space-saving design maximizes shop efficiency.
- Durable construction built for long-term industrial use.
The JLT #718A-8-M 8′ Miter Buddy System is the ultimate solution for woodworking professionals who demand precision miter door assembly, efficient panel production, and maximum productivity in a single, powerful machine.
