JLT #717C-CHBB Large Capacity Double Miter Door Clamp Applications
- Large miter cabinet door assembly and precision corner joining
- Simultaneous clamping of multiple cabinet doors
- Stile and rail cabinet door production
- MDF and HDF door manufacturing (with optional UHMW package)
- High-volume woodworking and production environments
Ideal for manufacturers requiring large-capacity clamping with precise miter joint control and multi-door efficiency.
JLT #717C-CHBB Large Capacity Double Miter Door Clamp Specifications
| Model | #717C-CHBB |
|---|---|
| Maximum Capacity | 38″ × 96″ |
| Minimum Clamping Capacity | 9″ |
| Clamp Configuration | (4) Vertical & (2) Horizontal Clamps |
| Squaring Sections | (2) Sections (Each: 38″ W × 46″ L) |
| Working Angle | 60° |
| Operation Type | Single Lever Operation |
| Machine Footprint | 120″ L × 76″ H × 42″ W |
JLT #717C-CHBB Large Capacity Double Miter Door Clamp Performance & Construction

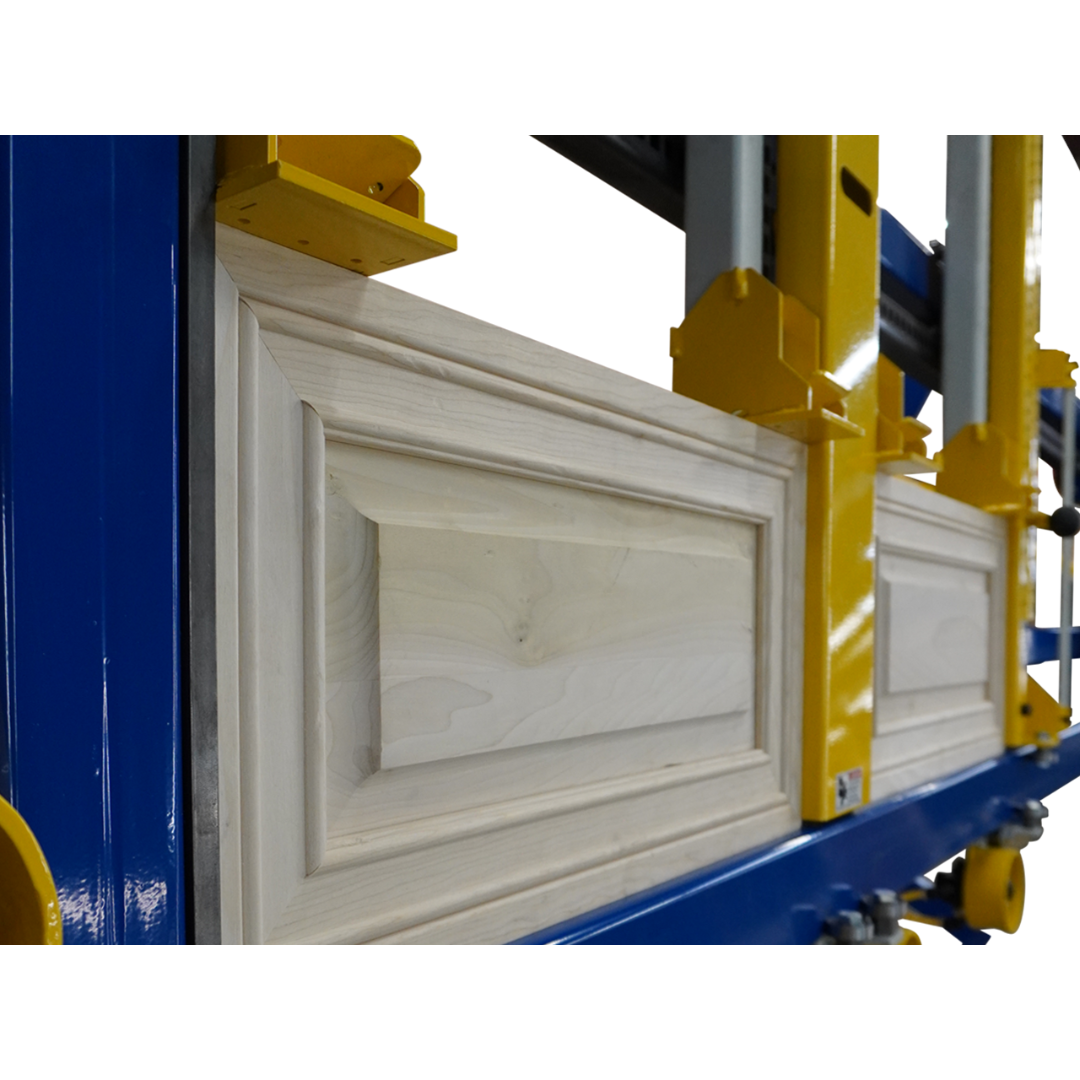

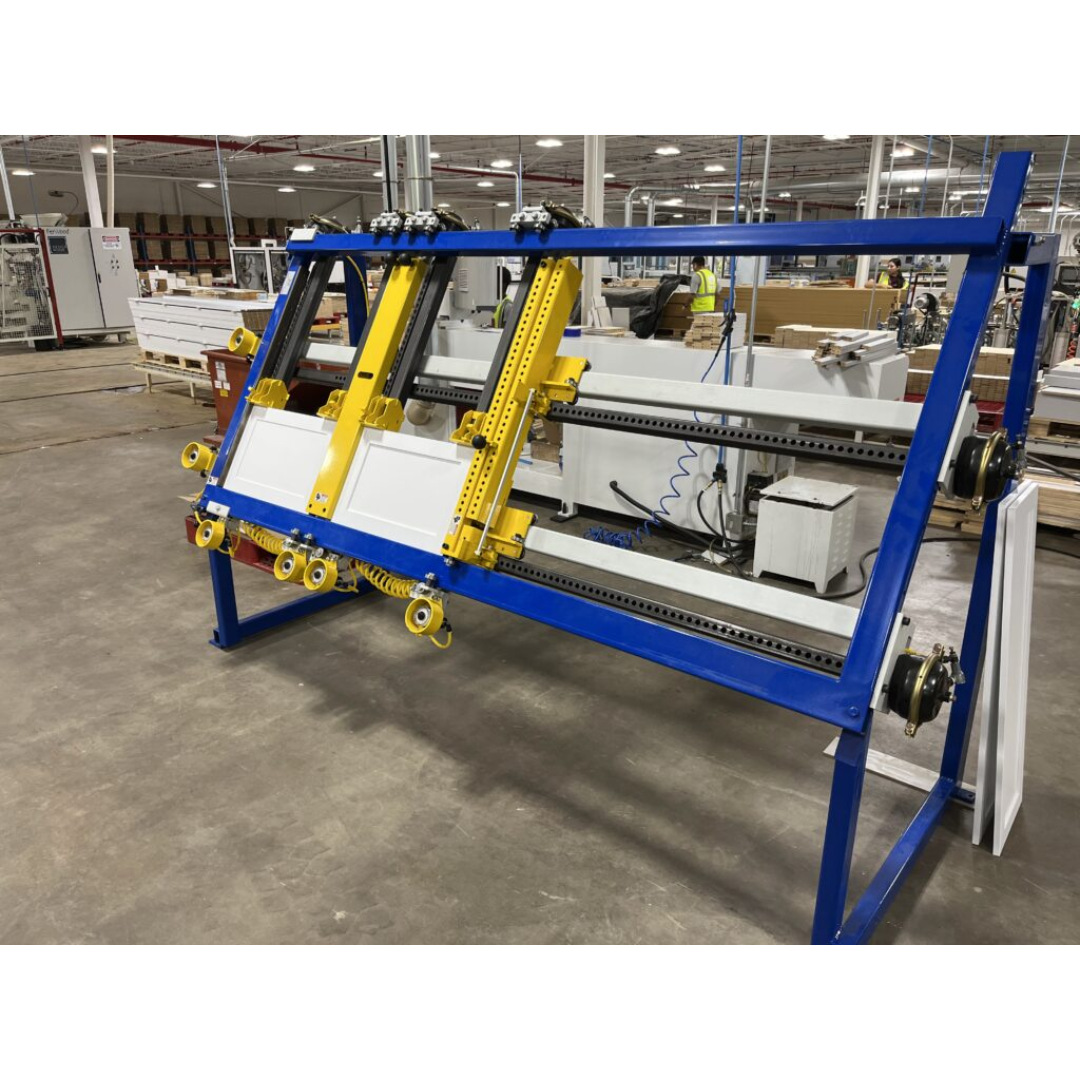

- Large 38″ × 96″ capacity supports oversized cabinet doors and miter assemblies.

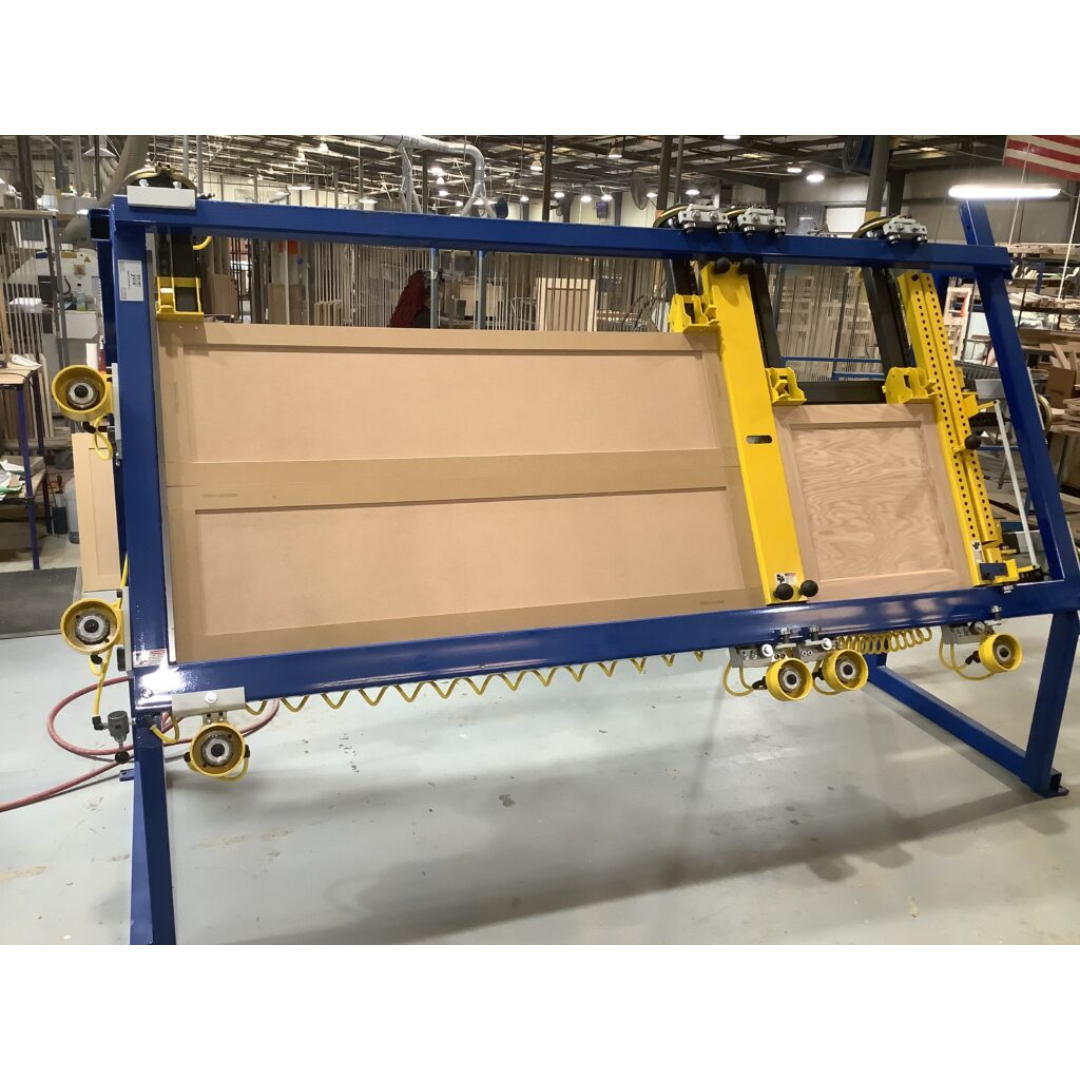

- Dual squaring sections allow simultaneous clamping and squaring of multiple doors.

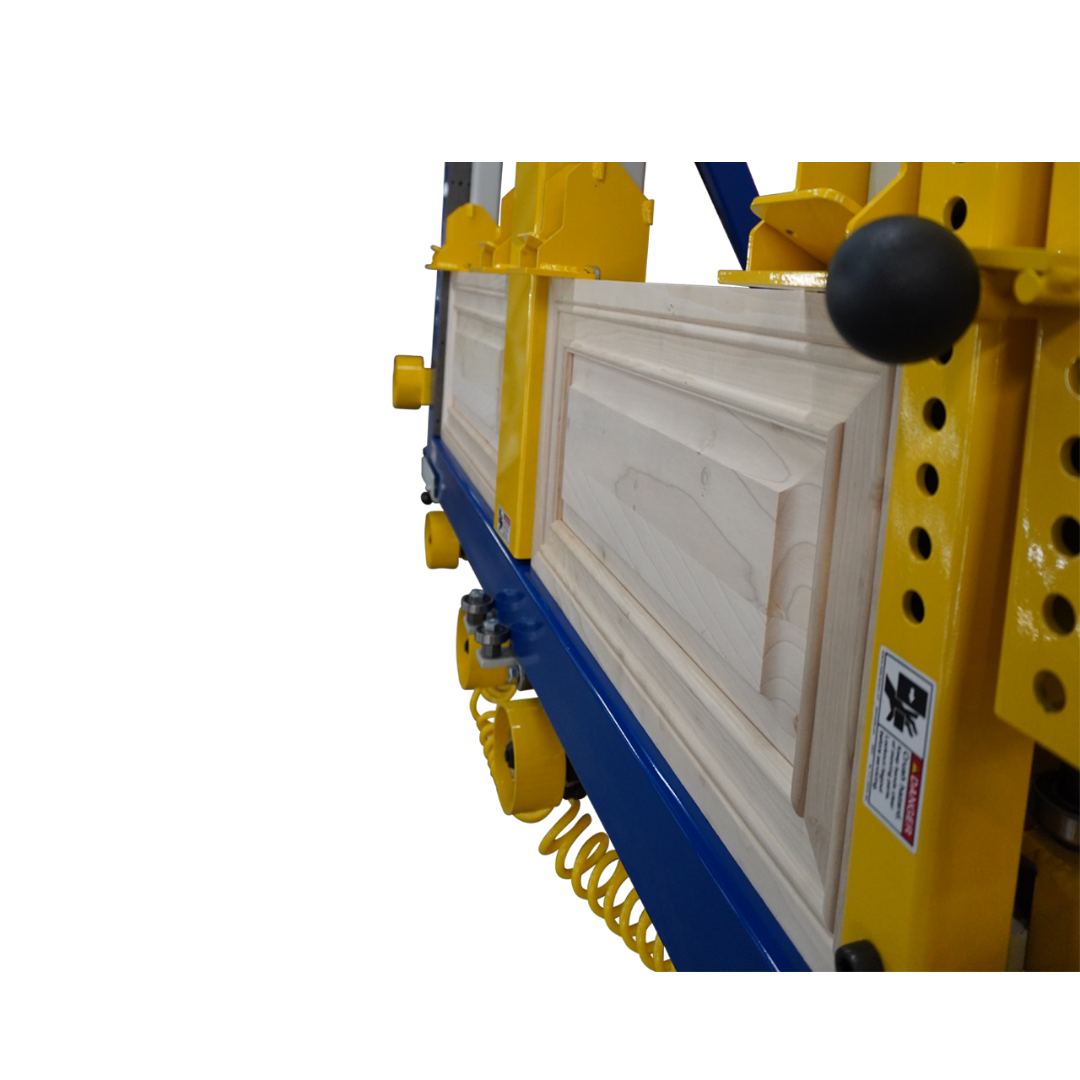

- Advanced Dial Control System enables precise adjustments in both directions while under clamping pressure.

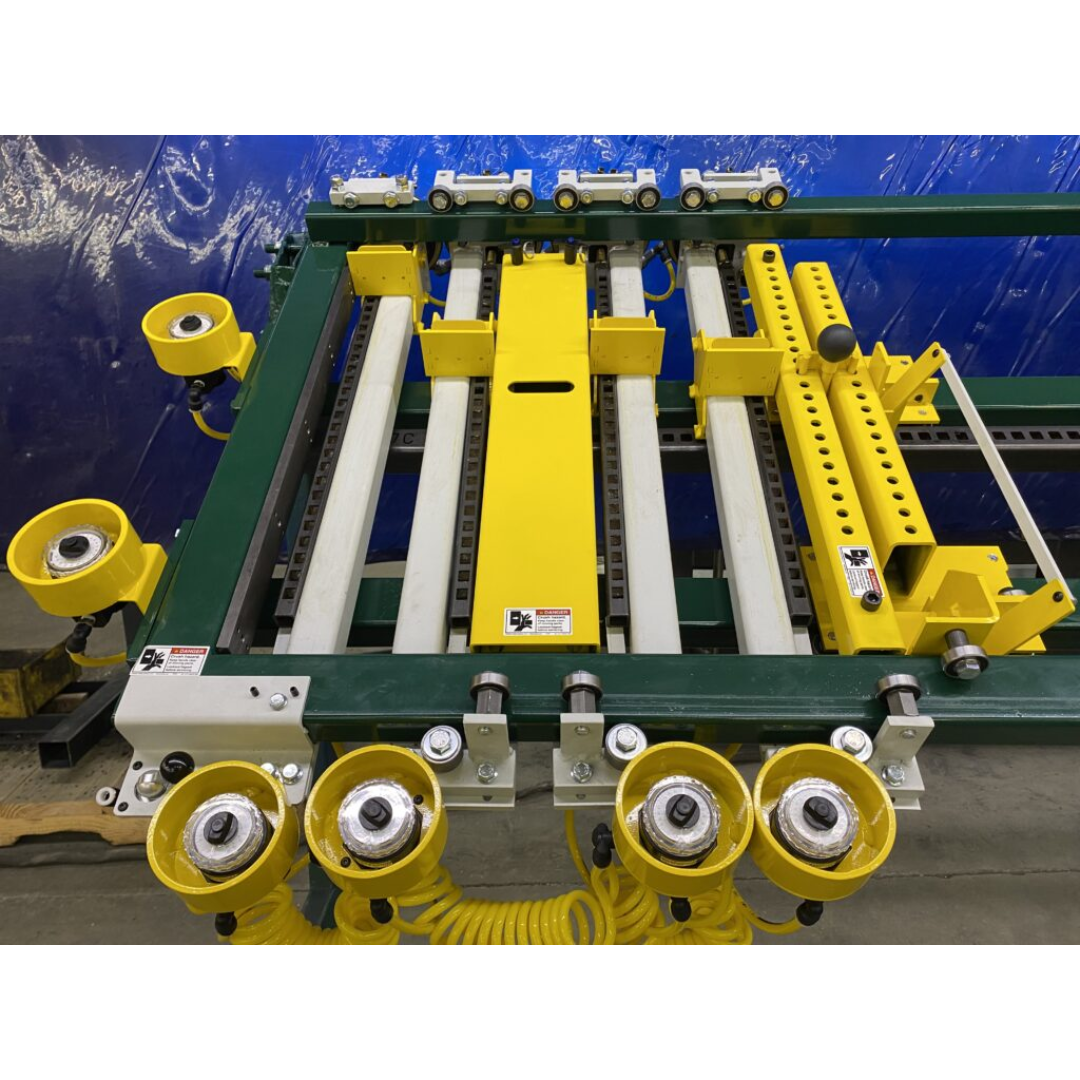

- (4) vertical and (2) horizontal clamps provide balanced pressure for accurate joint alignment.

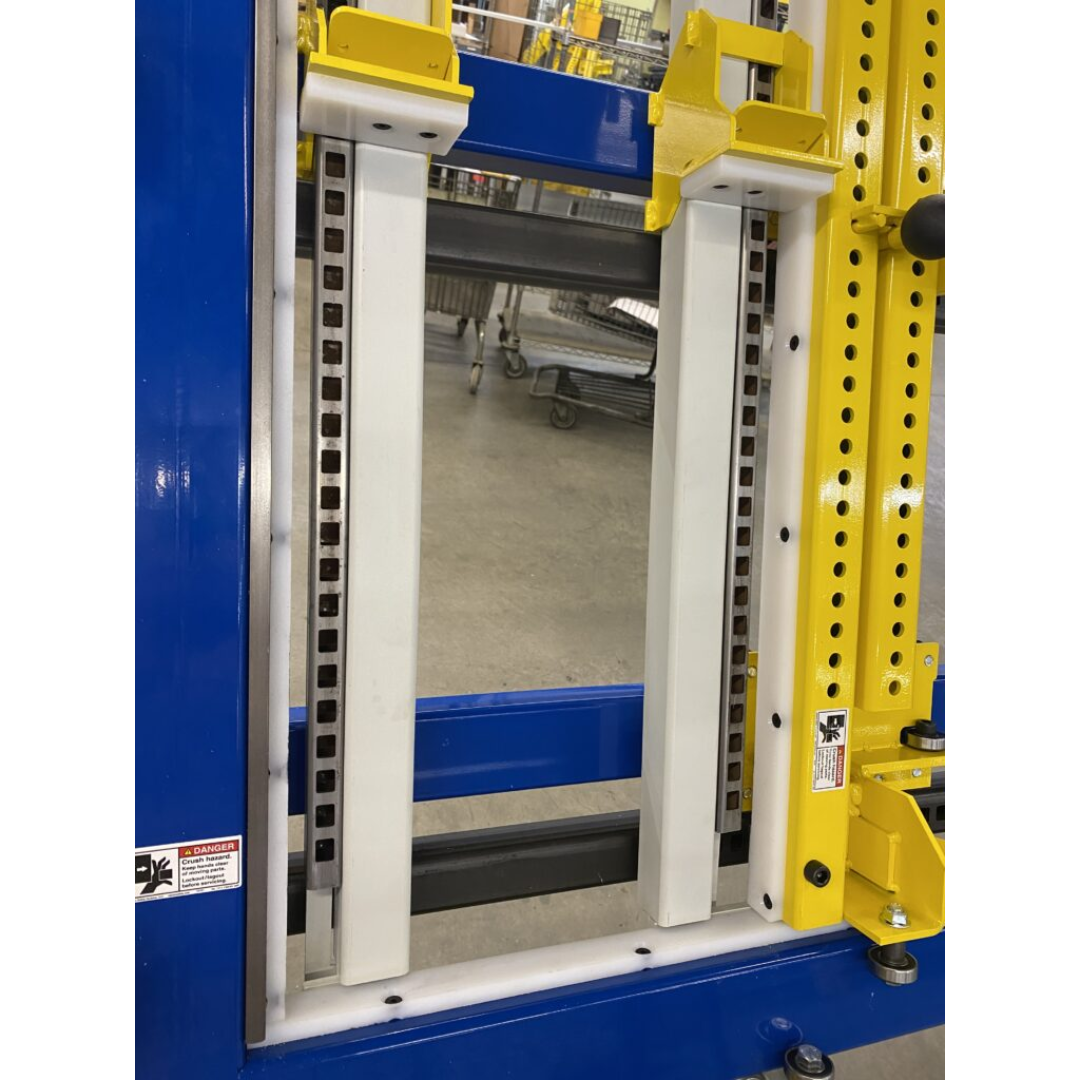

- Precision squaring capability for both miter and stile & rail cabinet doors.
- Optional UHMW border package protects MDF and HDF doors during clamping.

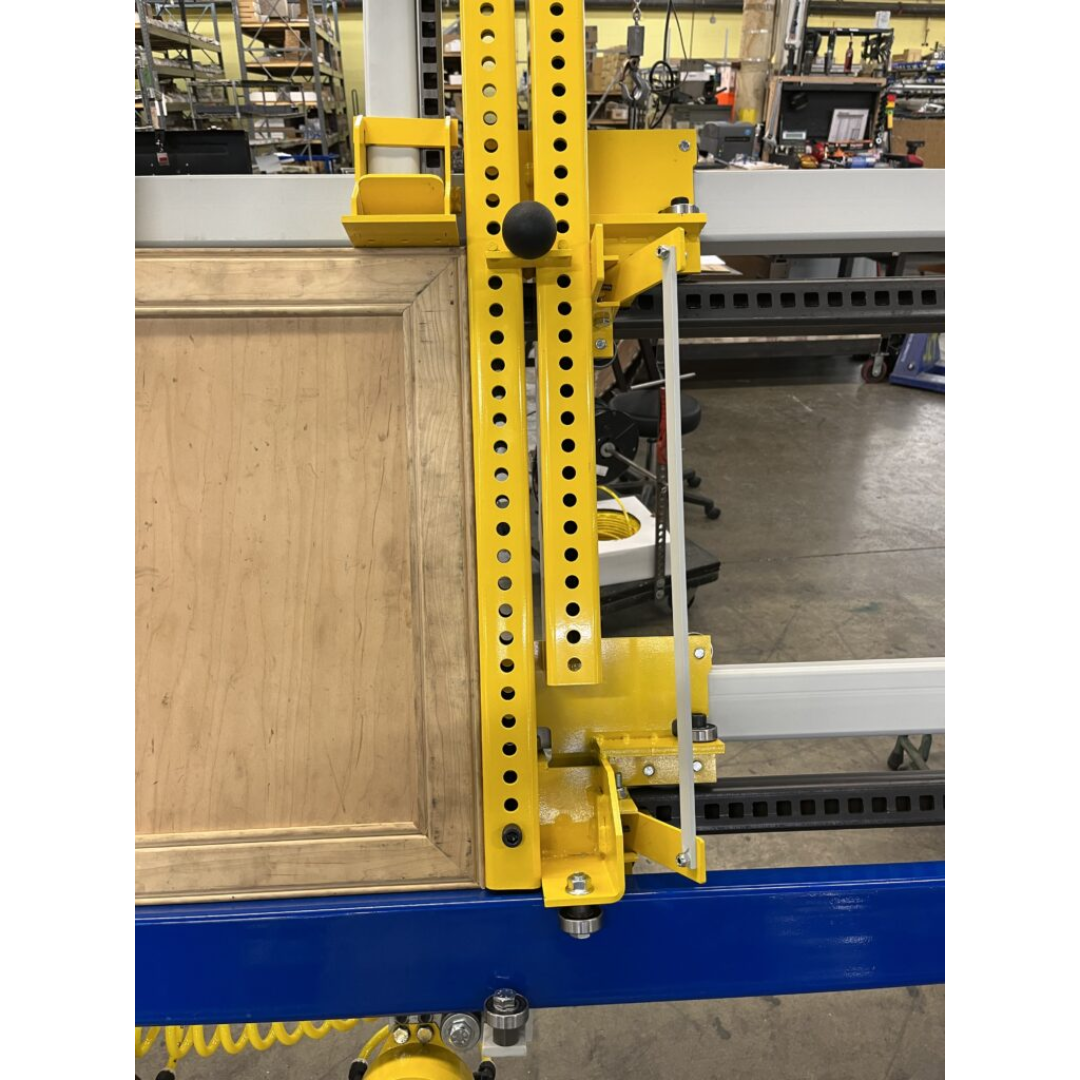

- Fast changeovers with intuitive pin system for quick size adjustments.
- Single lever operation ensures ease of use and consistent clamping results.
- 60-degree working angle improves ergonomics and glue joint alignment.
- Rear-mounted cylinders increase operator workspace and accessibility.
- Redesigned jaws with thumb plate enhance positioning speed and efficiency.
- Thicker push bars reduce wear and extend machine lifespan.
Why Choose the JLT #717C-CHBB Large Capacity Double Miter Door Clamp
- Handles large-capacity miter and cabinet door assemblies with precision.
- Dual clamping zones increase productivity and efficiency.
- Dial Control System delivers unmatched adjustment accuracy.
- Flexible for multiple materials including MDF, HDF, and solid wood.
- Built for durability and long-term industrial use.
The JLT #717C-CHBB Large Capacity Double Miter Door Clamp is the ideal solution for woodworking professionals seeking precision, flexibility, and high-capacity performance in miter door and cabinet door production.
