JLT #190C Large Capacity Drawer & Box Clamp Applications
- Assembly of dovetail and doweled drawer boxes
- Upper cabinet box and case goods production
- Square assembly of drawer components and panels
- High-volume cabinet manufacturing environments
- Custom woodworking shops requiring fast, accurate clamping
Designed to streamline drawer and box assembly with fast cycle times and precise squaring performance.
JLT #190C Large Capacity Drawer & Box Clamp Specifications
| Model | #190C |
|---|---|
| Maximum Capacity | 48″ W × 48″ H × 12″ D |
| Clamping System | Pneumatic (Foot Pedal Activated) |
| Clamp Configuration | (4) Heavy Duty Horizontal Clamps |
| Clamping Pressure | Up to 3500 lbs |
| Operation Speed | (2) Second Clamp & Square Cycle |
| Working Orientation | Upright Vertical Design |
| Machine Footprint | 82″ L × 86″ H × 36″ W |
| Assembly | Shipped Pre-Assembled |
JLT #190C Large Capacity Drawer & Box Clamp Performance & Construction
- High clamping force up to 3500 lbs ensures tight joints and accurate box assembly.
- Fast (2) second clamping cycle significantly increases production efficiency.

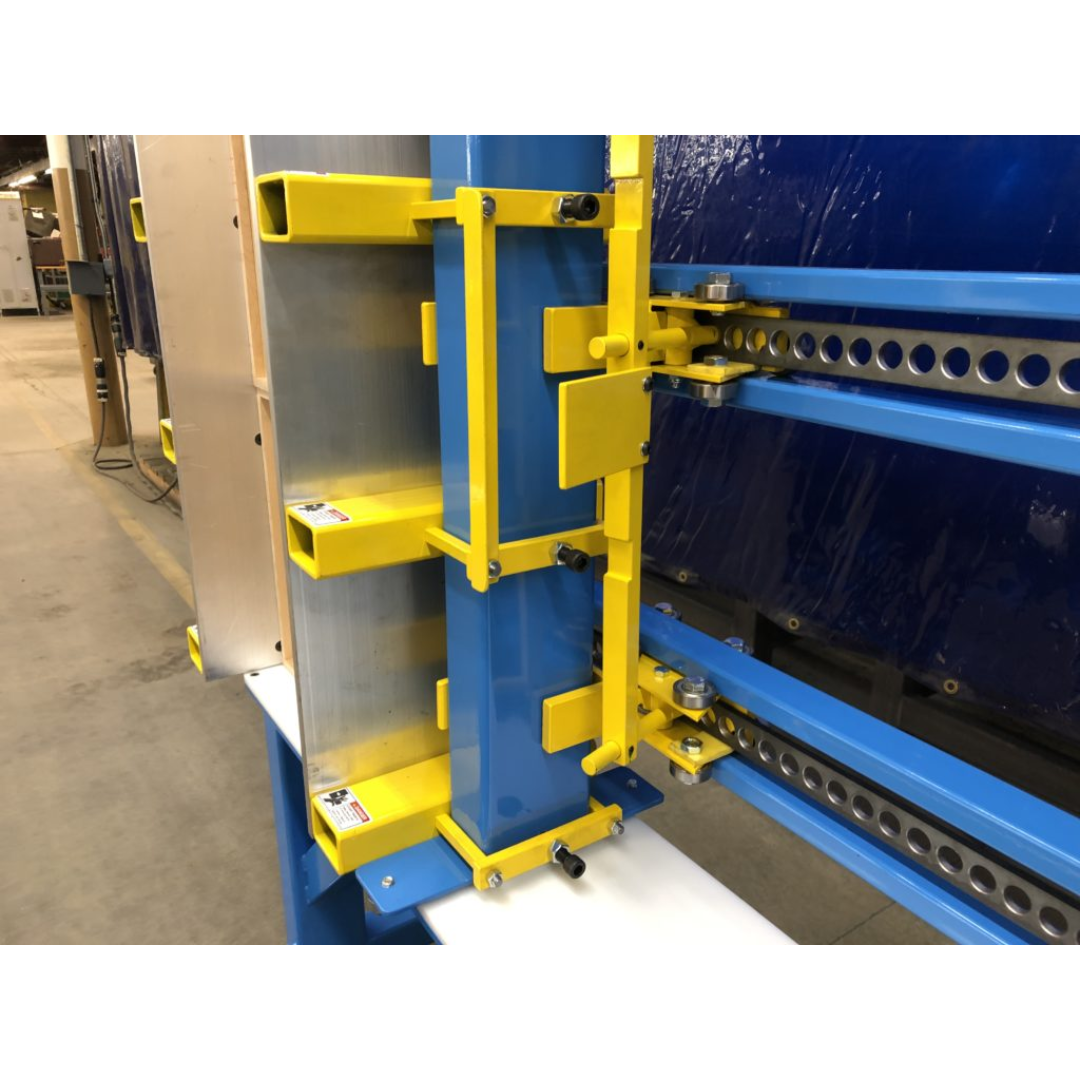

- Pneumatic foot pedal operation allows hands-free activation for improved workflow and safety.

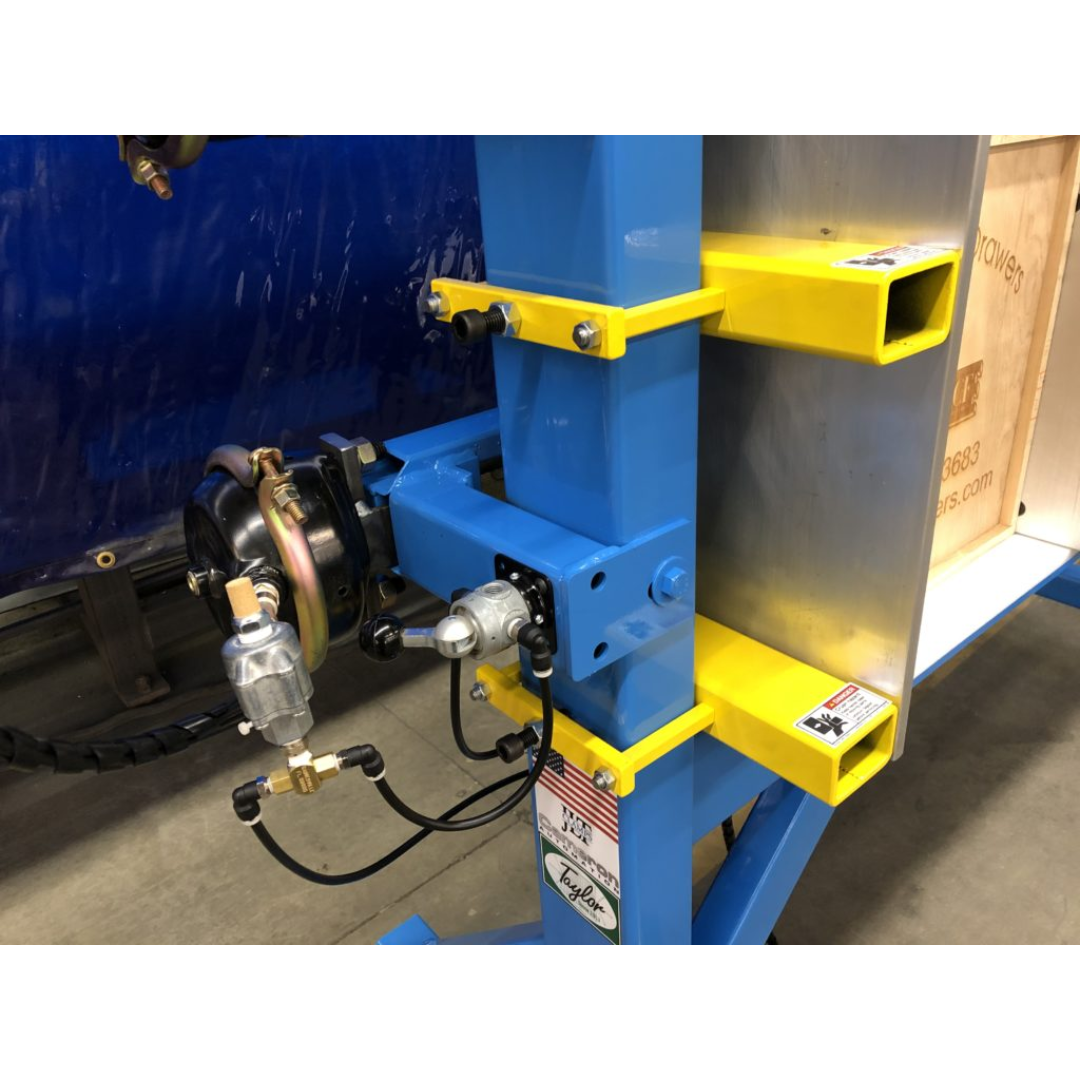

- (4) heavy-duty horizontal clamps provide even pressure across drawer and box assemblies.
- Side-mounted pressure hold system locks assemblies in place while glue sets.

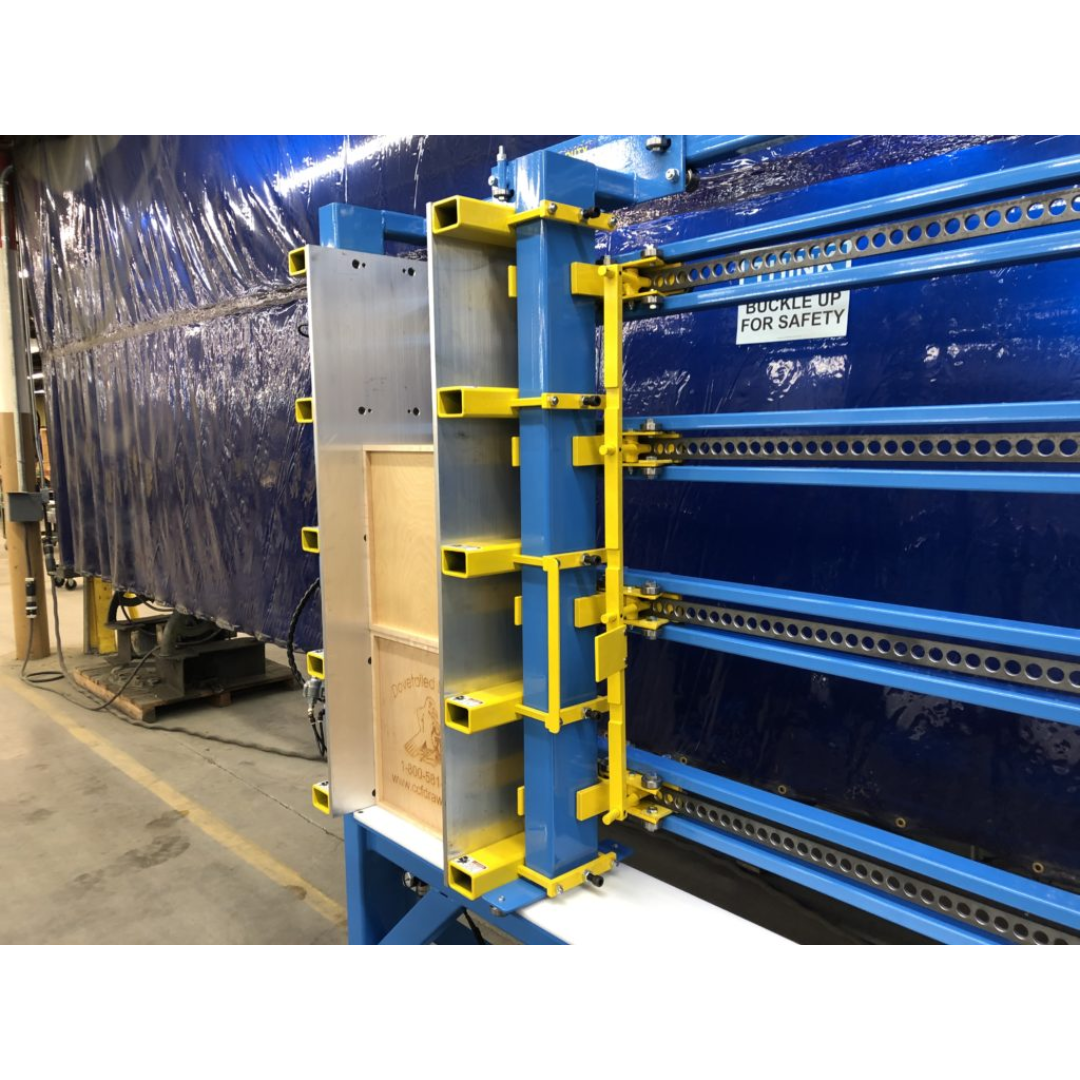

- Quick-adjust roller carriage eliminates setup time when switching between box sizes.

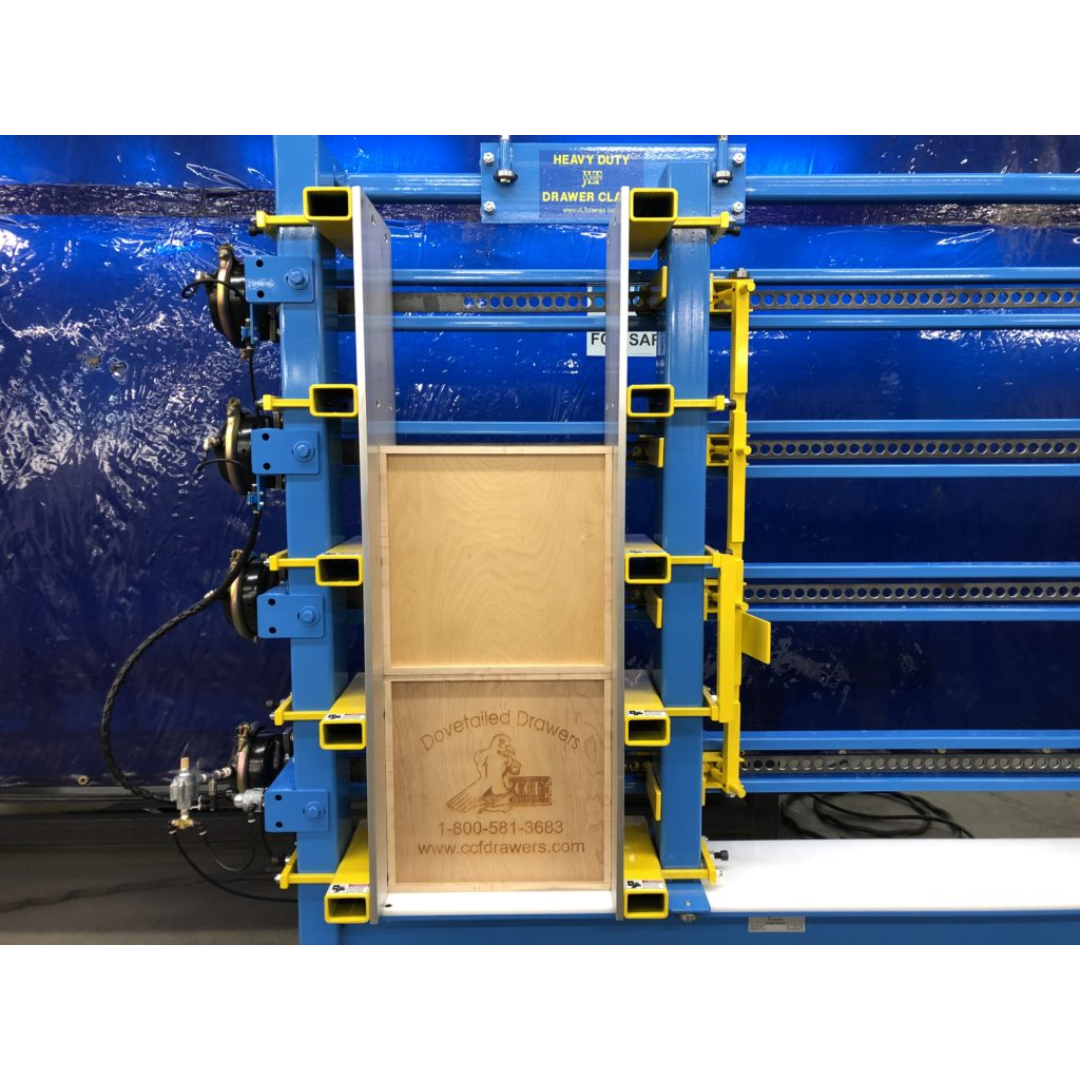

- Upright vertical design saves floor space and improves operator ergonomics.
- Heavy-duty aluminum clamping plates provide a solid, durable clamping surface.
- Versatile for multiple construction types including dovetail and doweled drawers.
- All welded steel construction ensures long-term durability and stability.
Why Choose the JLT #190C Large Capacity Drawer & Box Clamp
- Clamp and square drawer boxes in just seconds.
- Handles a wide range of box sizes up to 48″ × 48″ × 12″.
- Powerful pneumatic system ensures consistent pressure.
- Quick adjustments reduce downtime between jobs.
- Built for long-term use in demanding production environments.
The JLT #190C Large Capacity Drawer & Box Clamp is the ultimate solution for woodworking professionals seeking fast, precise, and reliable drawer and box assembly in high-production environments.
