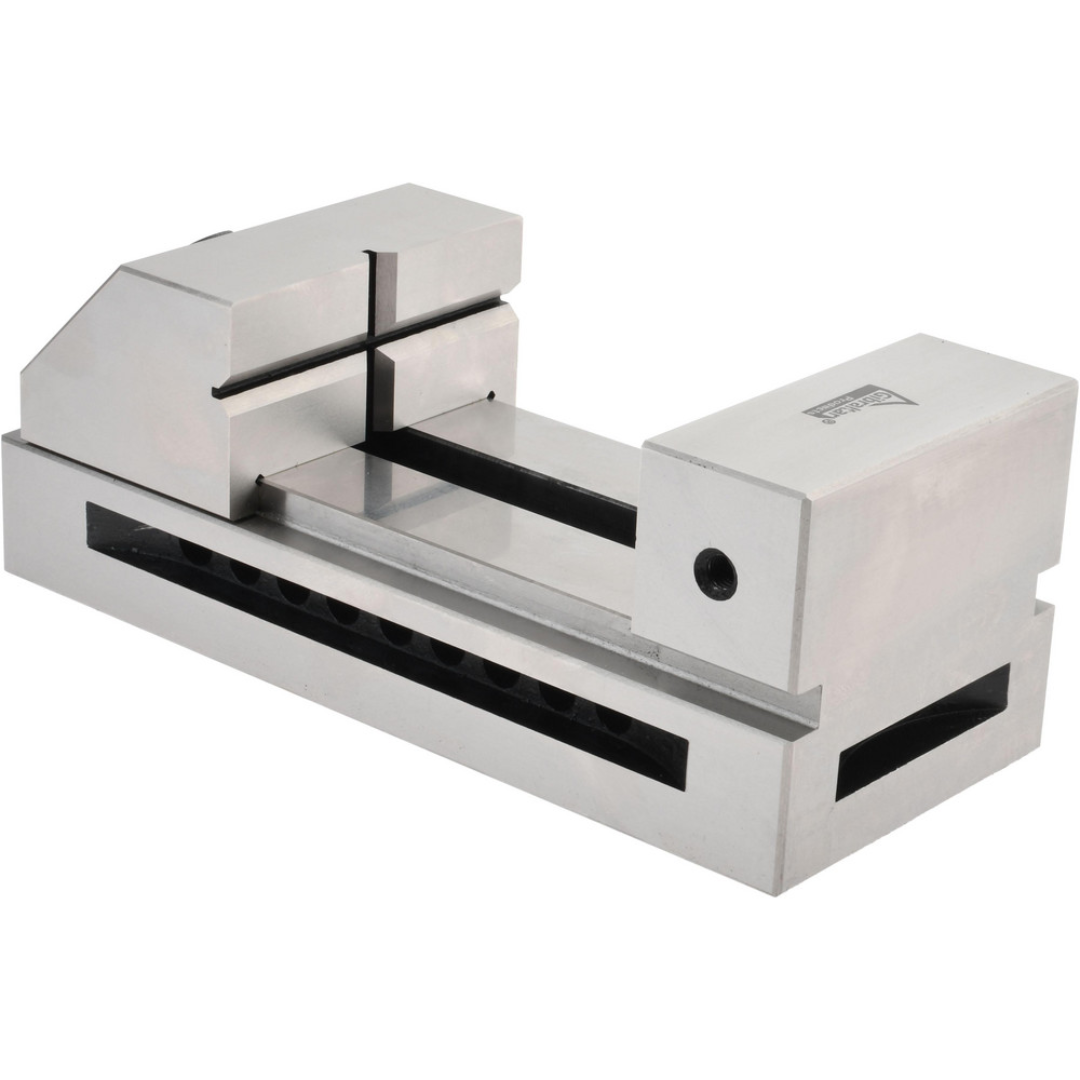

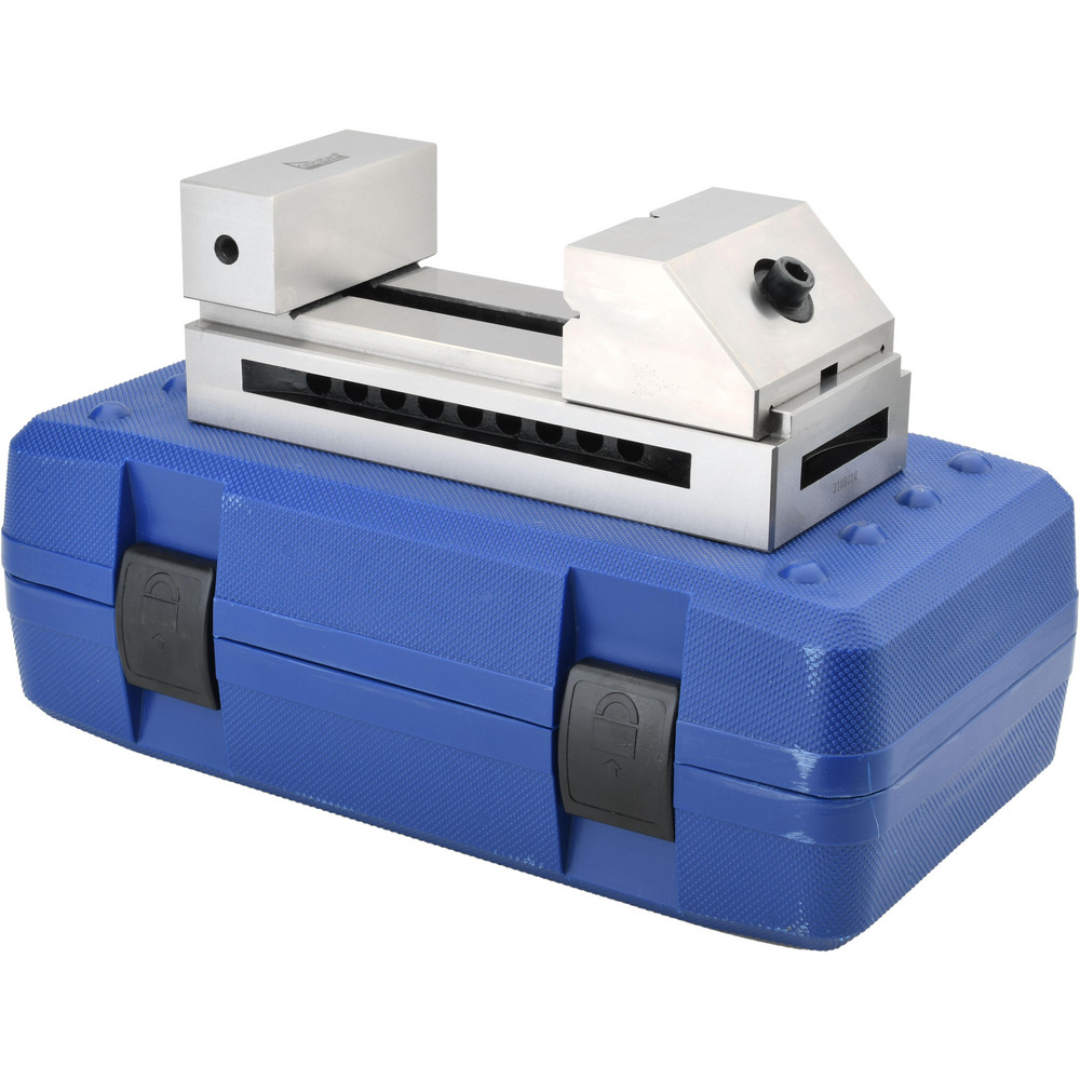

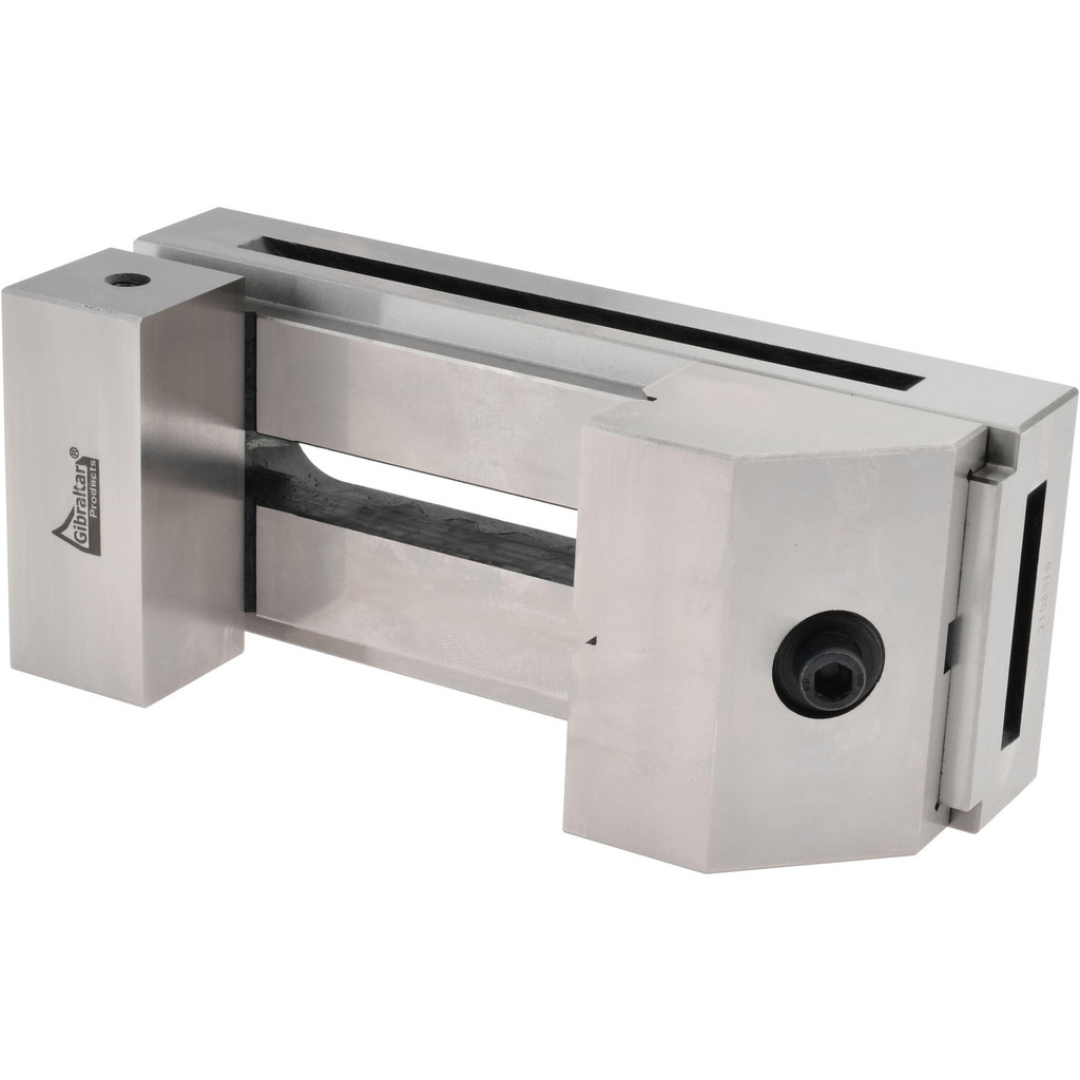

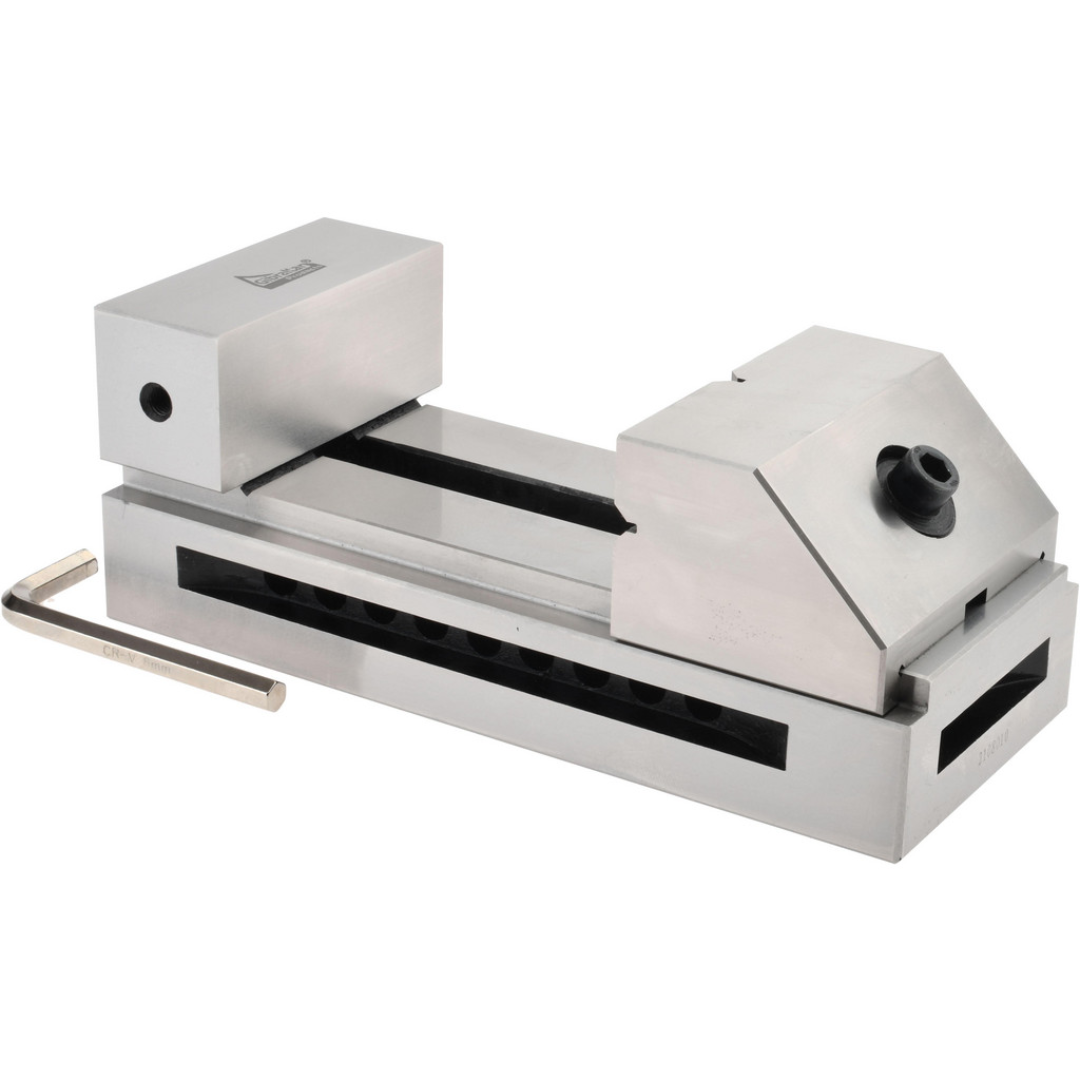

Gibraltar Toolmakers Vise TVS-40 Applications
- Surface grinding and precision finishing operations
- Electrical Discharge Machining (EDM)
- Tool and die manufacturing
- Precision milling and drilling
- Inspection and metrology laboratories
- Fixture building and precision assembly work
- Prototype machining and production environments
- Machine shops requiring highly accurate workholding solutions
Engineered for applications where precise alignment, repeatable positioning, and rigid workholding are essential for maintaining dimensional accuracy and superior finished surface quality.
Gibraltar Toolmakers Vise TVS-40 Specifications
| Model | TVS-40 |
|---|---|
| Jaw Width | 4.92 in. (Approximately 3-15/16 in.) |
| Maximum Jaw Opening | 6.29 in. |
| Nominal Jaw Opening | 5 in. |
| Jaw Height | 1.97 in. |
| Jaw Shape | Flat |
| Material | Precision Ground Hardened Steel |
| Parallelism | 0.0030 in. |
| Squareness | 0.0050 in. |
| Overall Length | 11.02 in. (280 mm) |
| Overall Height | 3.93 in. |
| UNSPSC | 27112100 |
| Country of Origin | Various |
Gibraltar Toolmakers Vise TVS-40 Features & Performance
- Precision-ground hardened steel construction provides exceptional wear resistance, rigidity, and long-term dimensional stability.
- Large flat precision jaws securely clamp workpieces while maintaining accurate alignment during machining and inspection.
- Parallelism tolerance of 0.0030" helps ensure highly repeatable setups and consistent machining accuracy.
- Squareness tolerance of 0.0050" supports precision manufacturing, inspection, and measurement applications.
- Generous jaw opening capacity accommodates larger workpieces while maintaining excellent clamping force and stability.
- Smooth precision lead screw mechanism allows controlled jaw movement for accurate and repeatable workpiece positioning.
- Rigid one-piece body design minimizes vibration and deflection during grinding, milling, and EDM operations.
- Low-profile construction provides improved accessibility while maximizing clearance on precision machine tools.
- Designed for demanding professional environments including toolrooms, manufacturing facilities, inspection departments, and quality control laboratories.
- Versatile precision workholding solution suitable for grinding, machining, layout work, fixture building, and precision assembly.
Why Choose the Gibraltar Toolmakers Vise TVS-40
- Professional-grade hardened steel construction for long-lasting precision.
- Large jaw capacity accommodates a wider range of workpieces.
- Excellent parallelism and squareness support highly accurate machining.
- Rigid, low-profile design improves workholding stability and accessibility.
- Ideal for surface grinding, EDM, milling, inspection, and toolroom applications.
- Reliable precision performance for manufacturing, quality control, and production environments.
California Proposition 65 Warning: This product contains Nickel, a chemical known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov.
