Evolution Power Tools Single Bevel Sliding Miter Saw R185SMS+ Applications
- General woodworking and finish carpentry
- Cabinet, trim, molding, and flooring installation
- Construction, remodeling, and renovation projects
- Cutting hardwood, softwood, MDF, laminates, treated lumber, and reclaimed timber with embedded nails

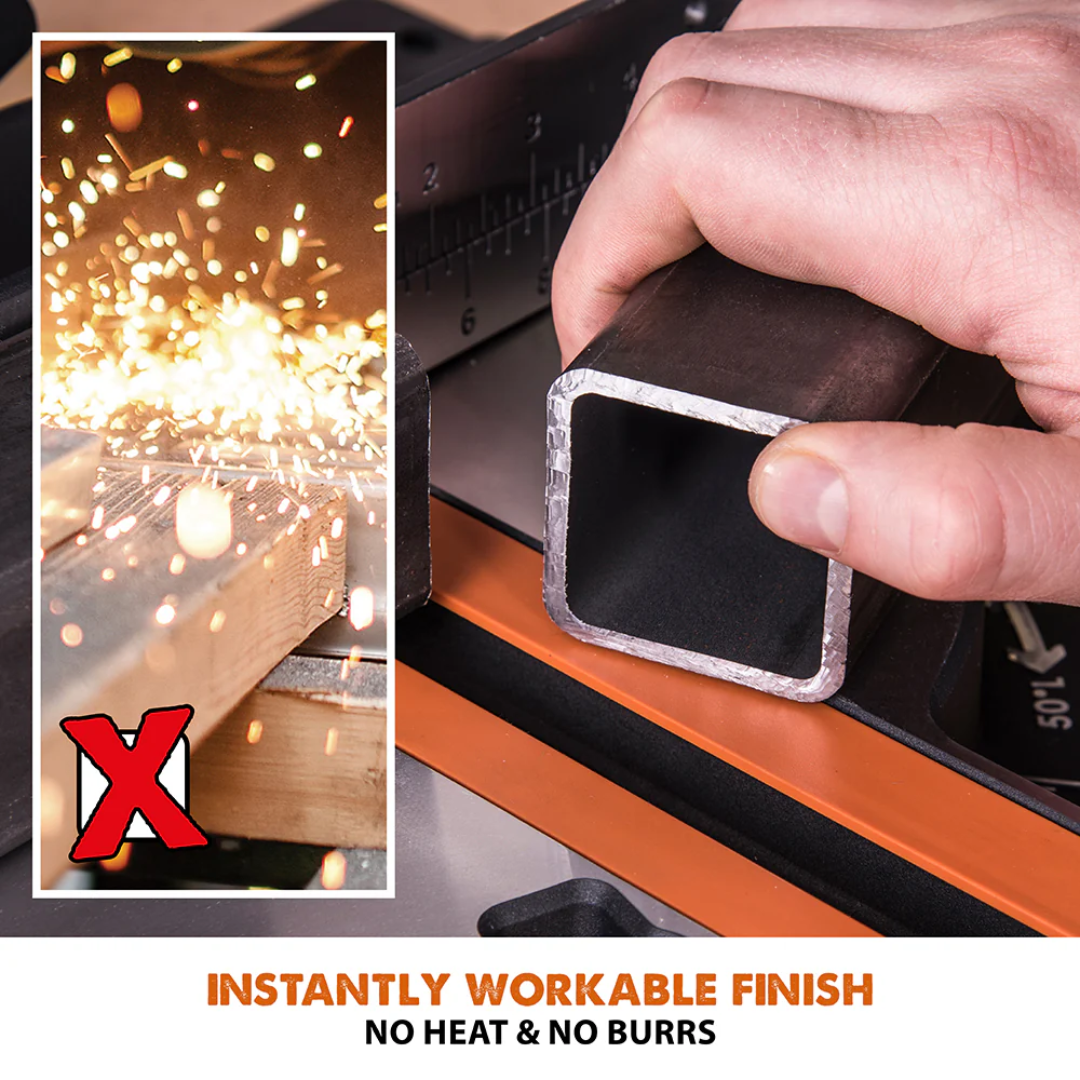

- Fabricating mild steel, angle iron, box section, square tubing, rebar, unistrut, and metal studs up to 1/4 inch thick
- Cutting aluminum, copper, cable trays, roof flashing, stair nosings, and non-ferrous metals
- Processing plastic conduit, PVC pipe, plexiglass, rubber hose, reinforced hose, and Wood Plastic Composites (WPC)
- Workshop, fabrication, maintenance, and professional jobsite applications
One saw and one premium TCT blade handle wood, metal, aluminum, and plastic without changing blades, making the R185SMS+ an efficient all-in-one cutting solution.
Evolution Power Tools Single Bevel Sliding Miter Saw R185SMS+ Specifications
| Model | R185SMS+ |
|---|---|
| Power Source | Corded Electric |
| Motor | 10 Amp (120V / 60Hz) |
| No Load Speed | 3,700 RPM |
| Blade Diameter | 7-1/4 in. |
| Blade Type | Japanese Tungsten-Carbide-Tipped (TCT) Multi-Material Blade |
| Blade Teeth | 20 Teeth |
| Blade Bore | 25/32 in. |
| Blade Kerf | 0.066 in. |

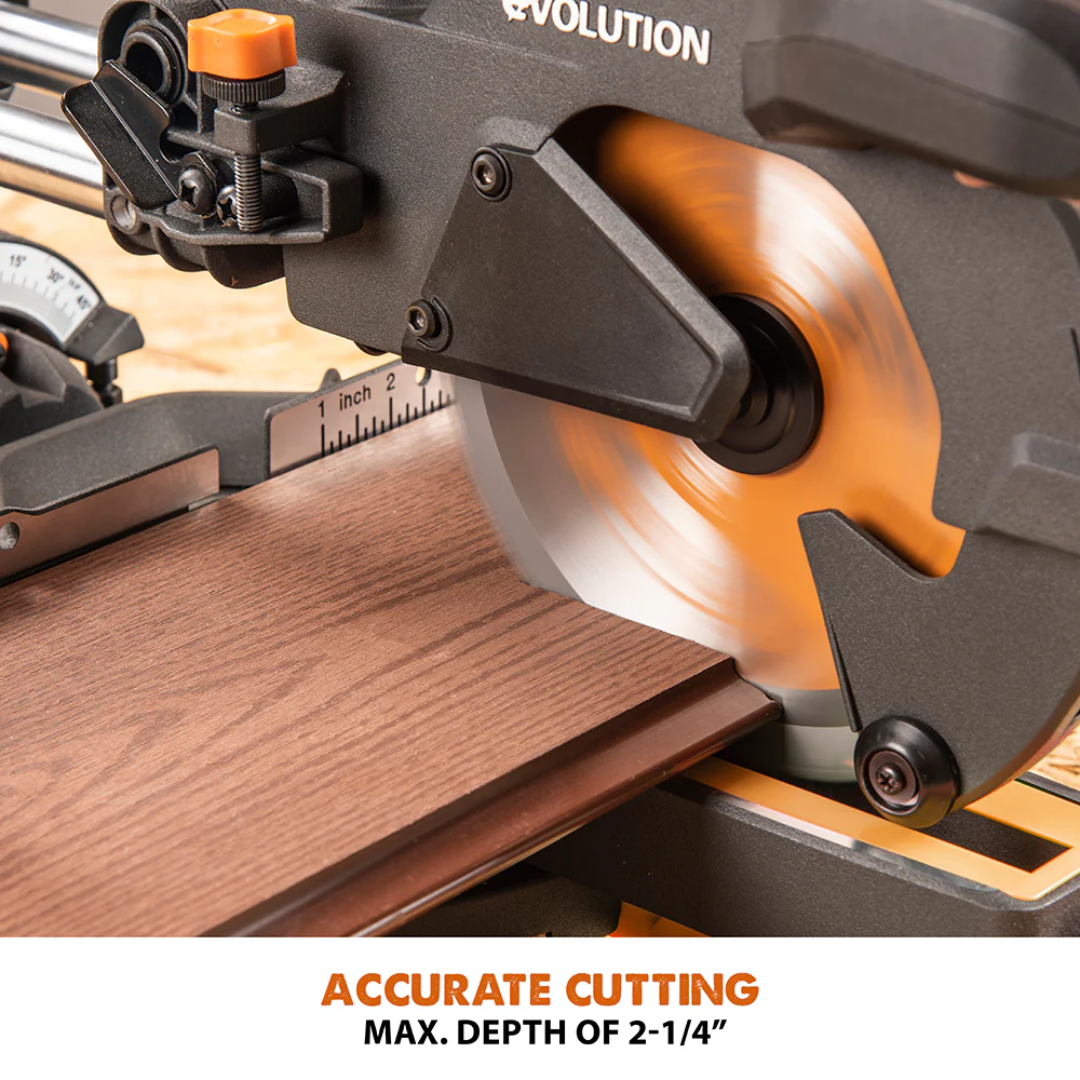

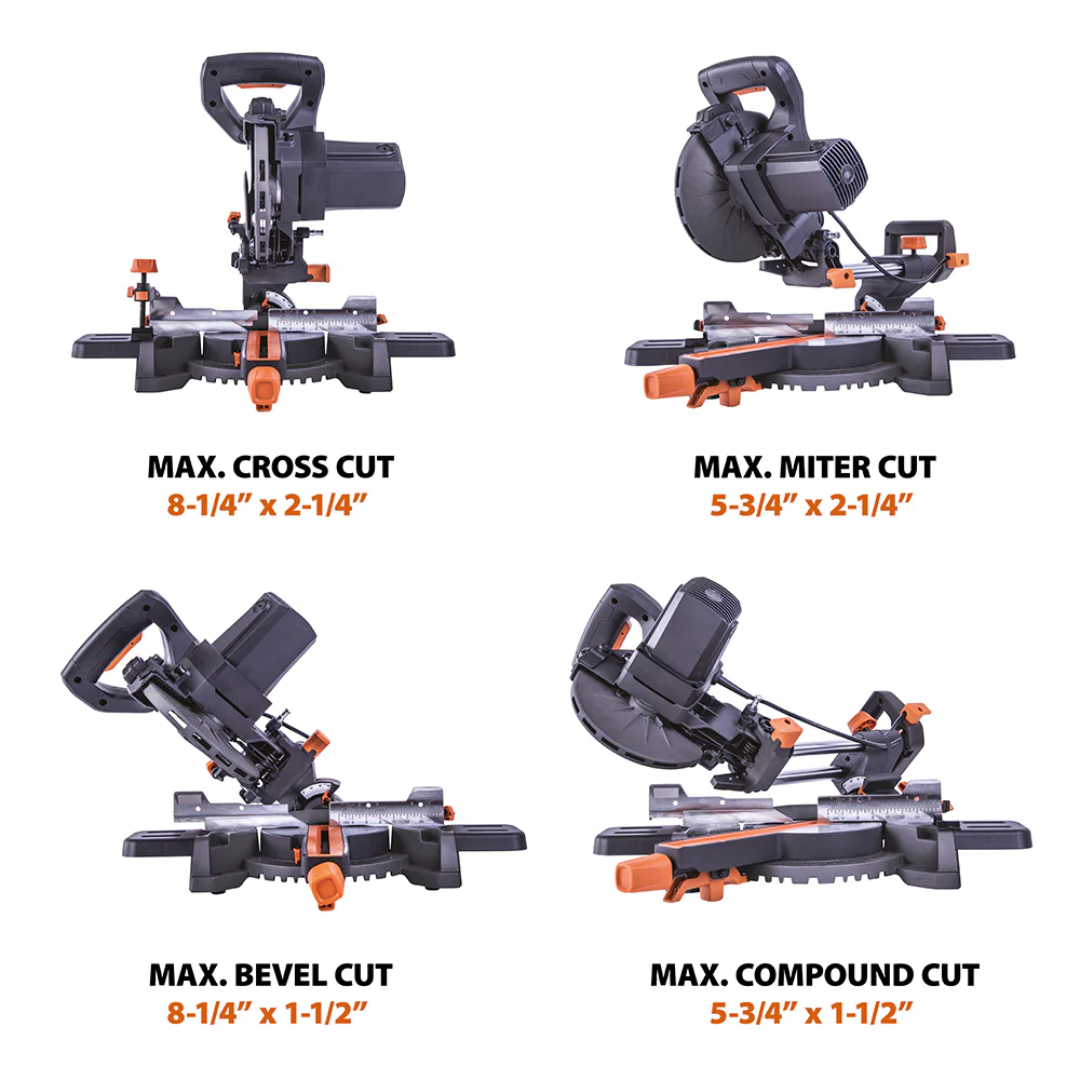

| Maximum Cross Cut | 8-1/4 in. × 2-1/4 in. |
| Maximum Bevel Cut (0° × 45°) | 8-1/4 in. × 1-1/2 in. |
| Maximum Miter Cut (45° × 0°) | 5-3/4 in. × 2-1/4 in. |
| Maximum Compound Cut (45° × 45°) | 5-3/4 in. × 1-1/2 in. |
| Maximum Mild Steel Box Section | 1/4 in. Wall Thickness |
| Maximum Mild Steel Plate | 1/4 in. Thickness |

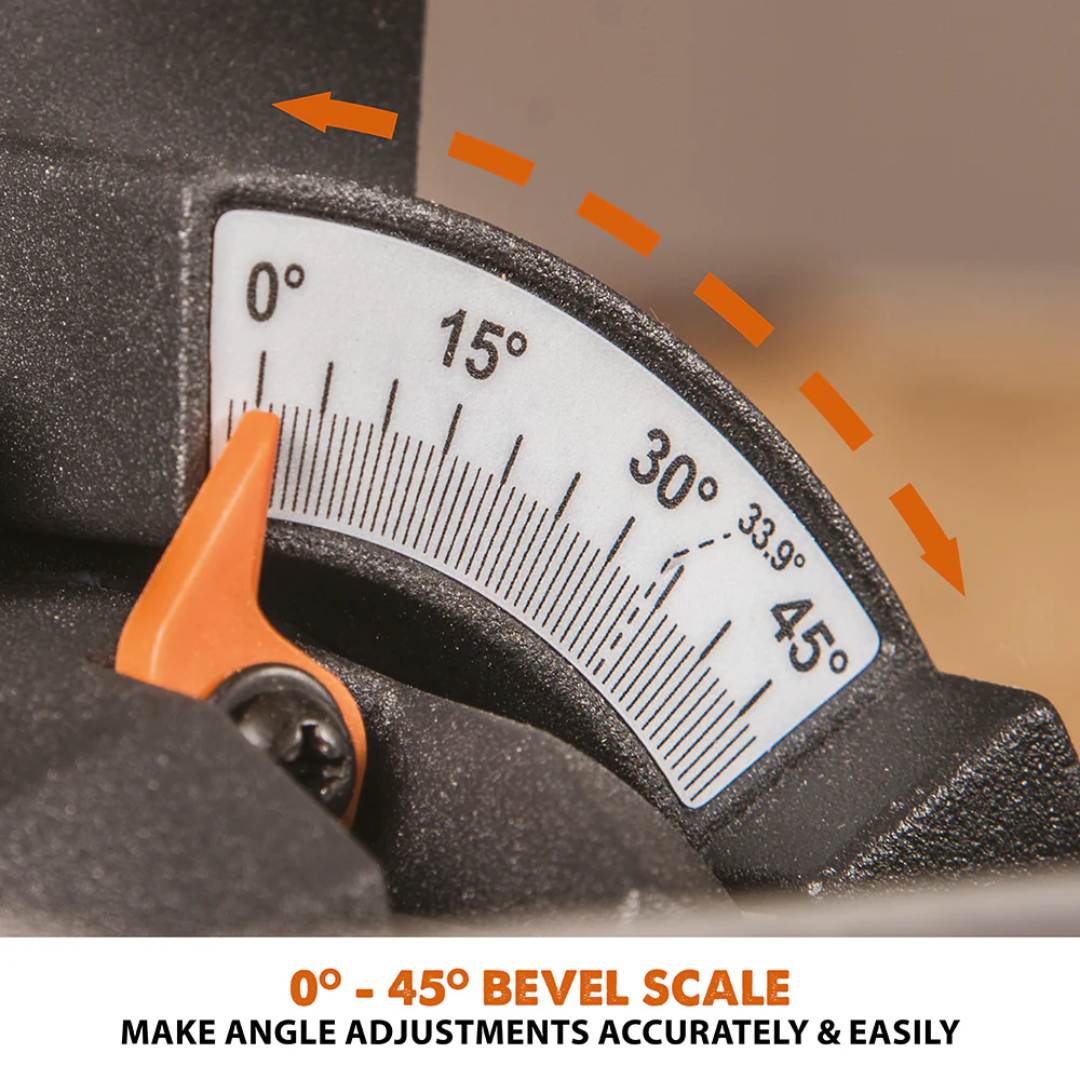

| Bevel Range | 0° – 45° Left |
| Miter Range | 50° Left / 50° Right |
| Power Cable Length | 10 ft. |
| Product Dimensions | 11-3/8 × 23-1/2 × 22-1/4 in. |
| Packaging Dimensions | 17-33/64 × 17-1/8 × 12-13/32 in. |
| Product Weight | 19.7 lbs. |
| Packaged Weight | 23.5 lbs. |
| Sound Pressure Level | 91.9 dB(A) |
| Sound Power Level | 104.9 dB(A) |
| Warranty | 3-Year Limited Warranty |
| EAN / UPC | 849713090379 |
Evolution Power Tools Single Bevel Sliding Miter Saw R185SMS+ Performance & Features

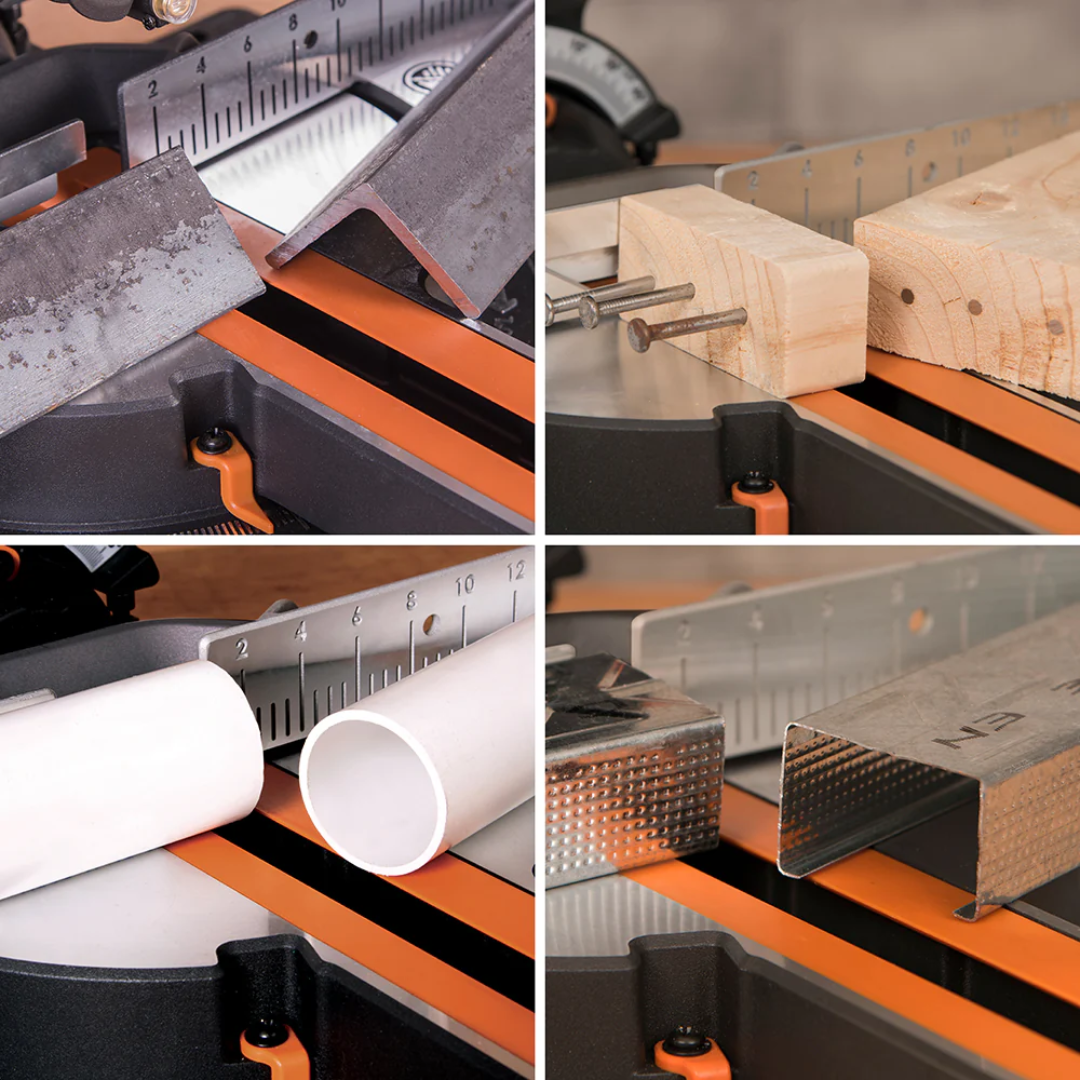

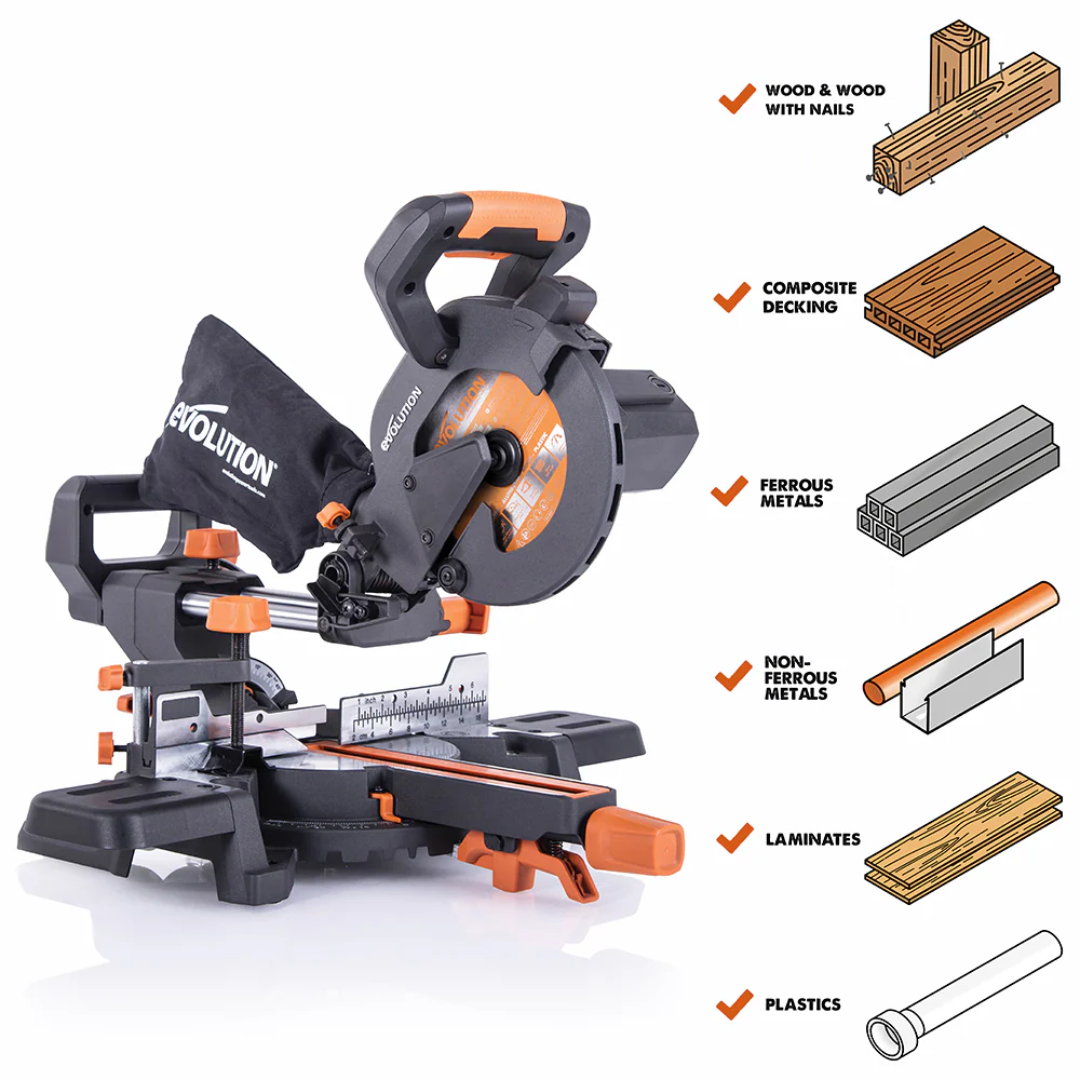

- Multi-Material Cutting Technology allows one blade to cut wood, ferrous metals, non-ferrous metals, plastics, and composite materials without changing blades.
- Premium Japanese Tungsten-Carbide-Tipped (TCT) blade included delivers exceptional blade life, smooth finishes, and consistent cutting accuracy.

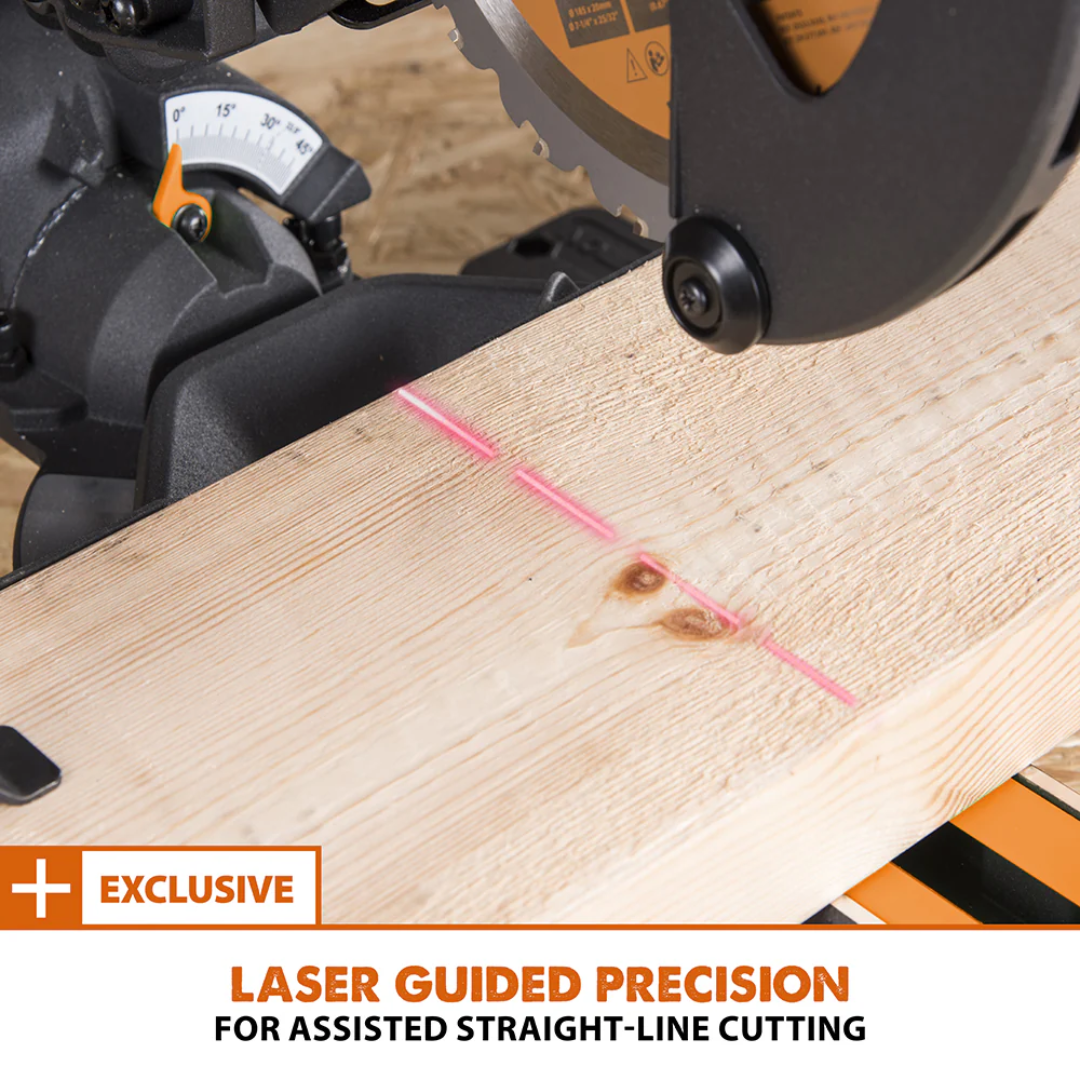

- Laser-guided cutting system improves visibility and helps achieve straight, repeatable cuts with confidence.
- Smooth sliding carriage increases crosscut capacity up to 8-1/4 inches while maintaining excellent cutting precision.
- Adjustable depth stop makes trenching, rebates, and controlled depth cuts quick and simple.

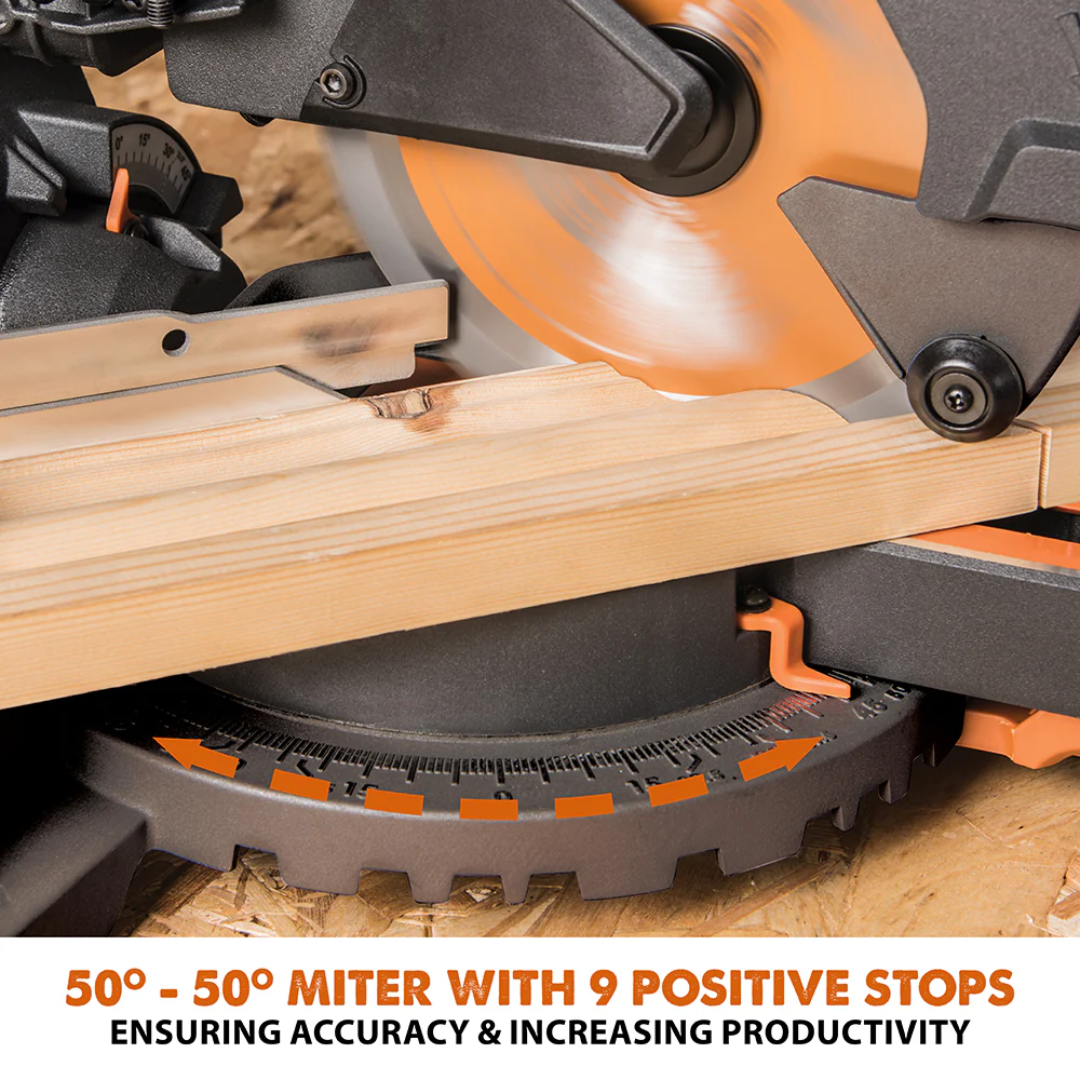

- Nine positive miter stops provide rapid adjustment for commonly used cutting angles.
- 50° left and right miter capability combined with a 0°–45° left bevel handles a wide range of compound cutting applications.

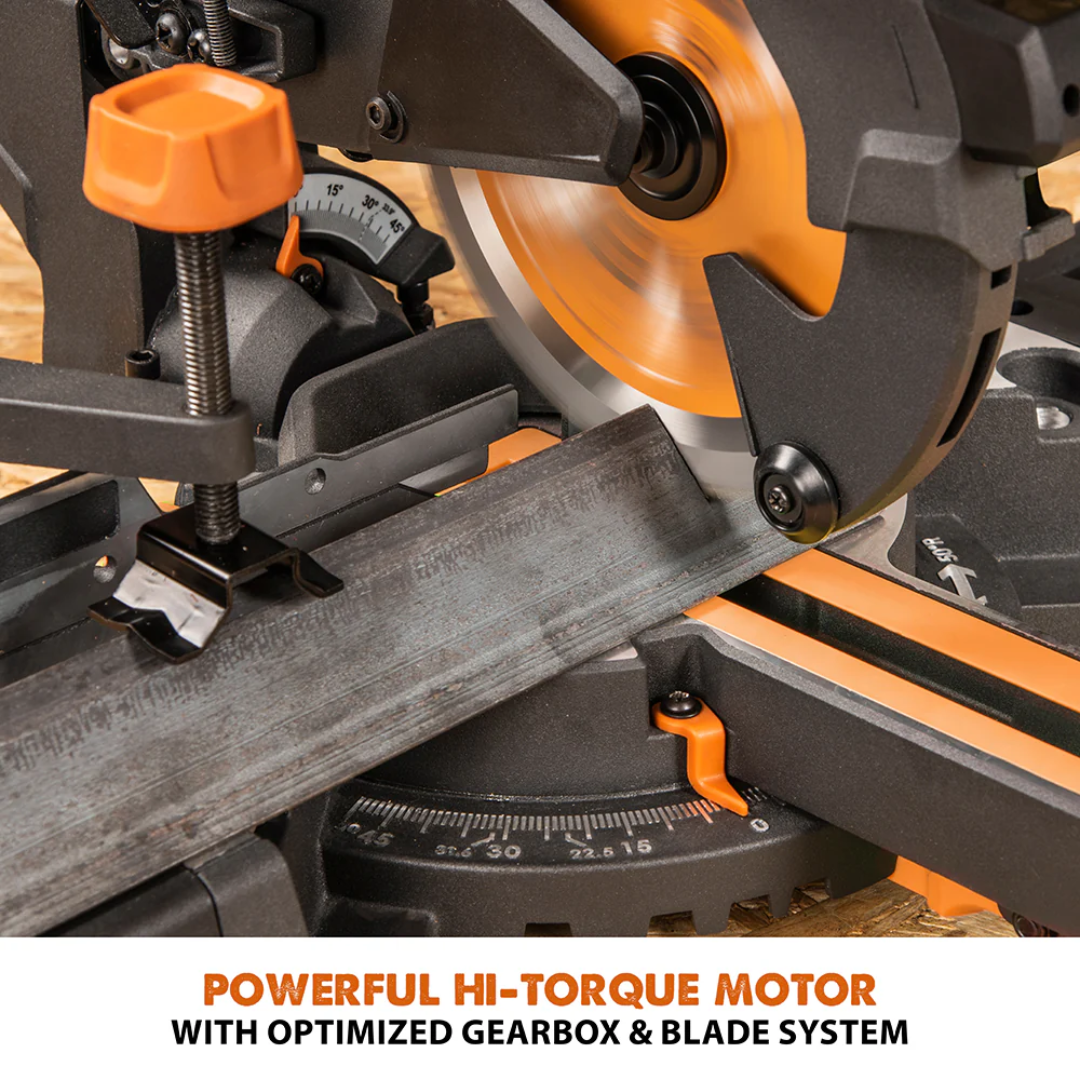

- Powerful 10 Amp high-torque motor paired with an optimized gearbox delivers reliable performance and efficient material removal.
- Compact design weighing under 20 lbs. allows easy transportation between jobsites and workshops.

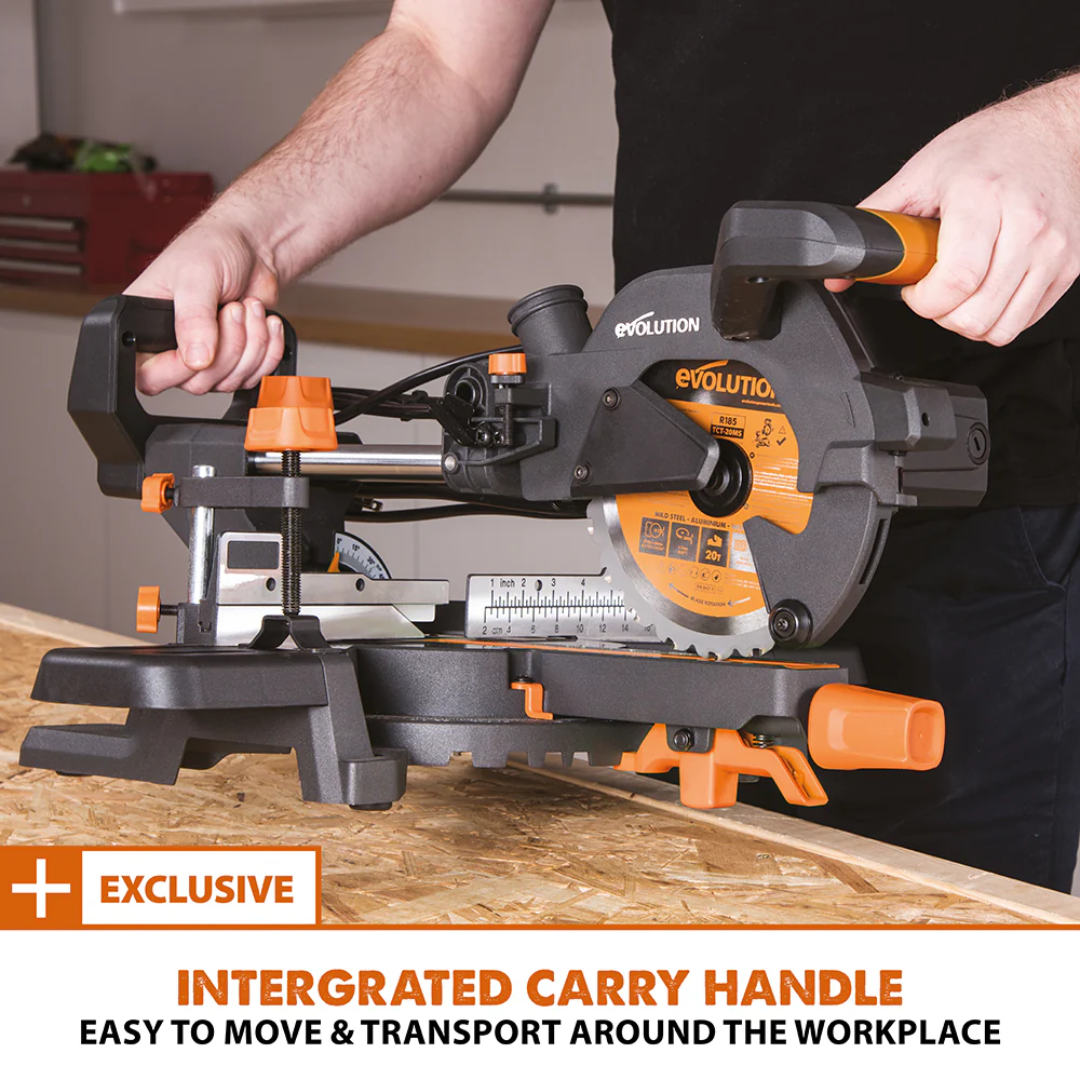

- Integrated carry handles make lifting and transporting the saw safe and comfortable.

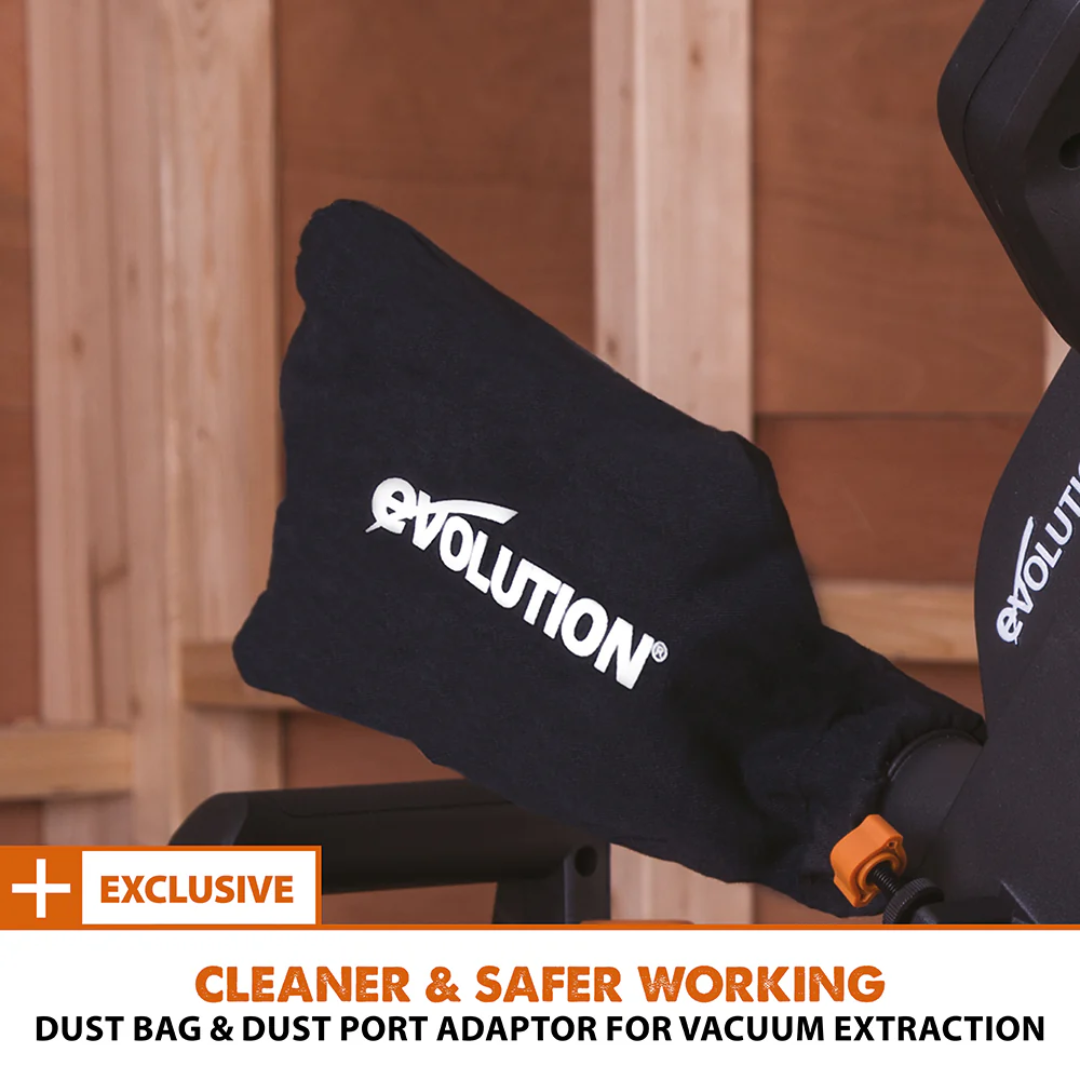

- Dust collection bag and dust port adaptor help maintain a cleaner, safer workspace and allow connection to compatible vacuum systems.

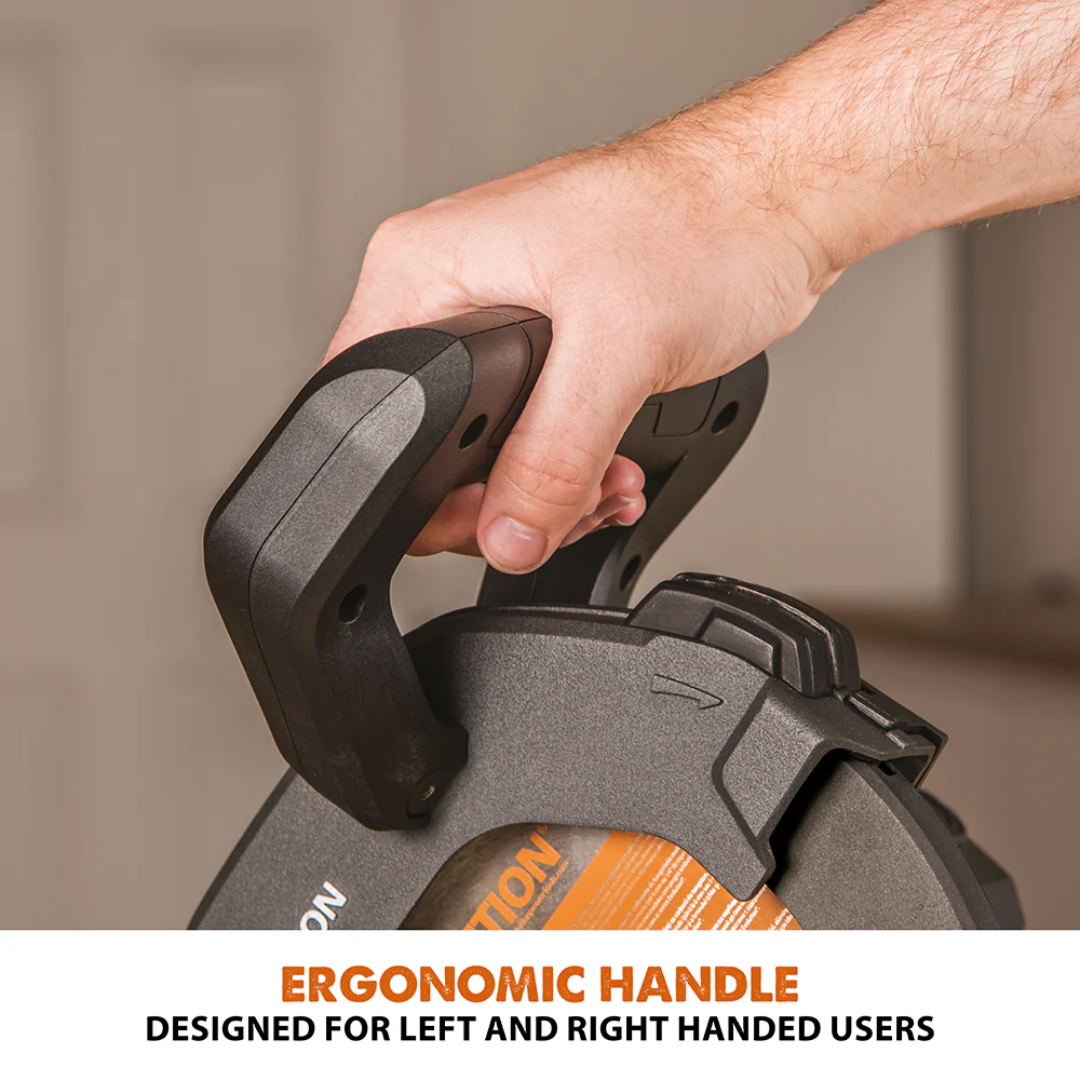

- Ergonomic trigger handle is comfortable for both left-handed and right-handed users.

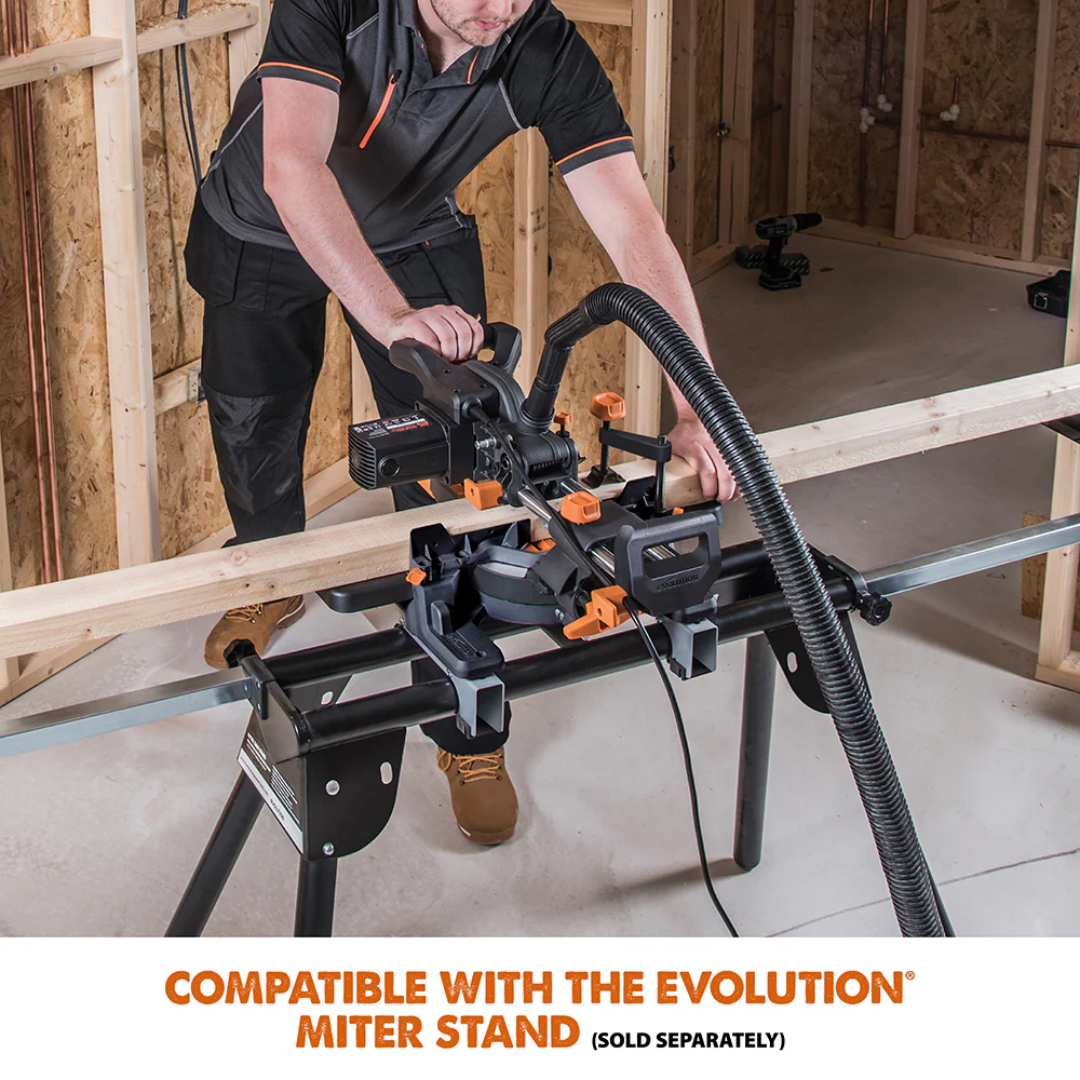

- Compatible with Evolution Miter Saw Stand for improved support on larger workpieces.

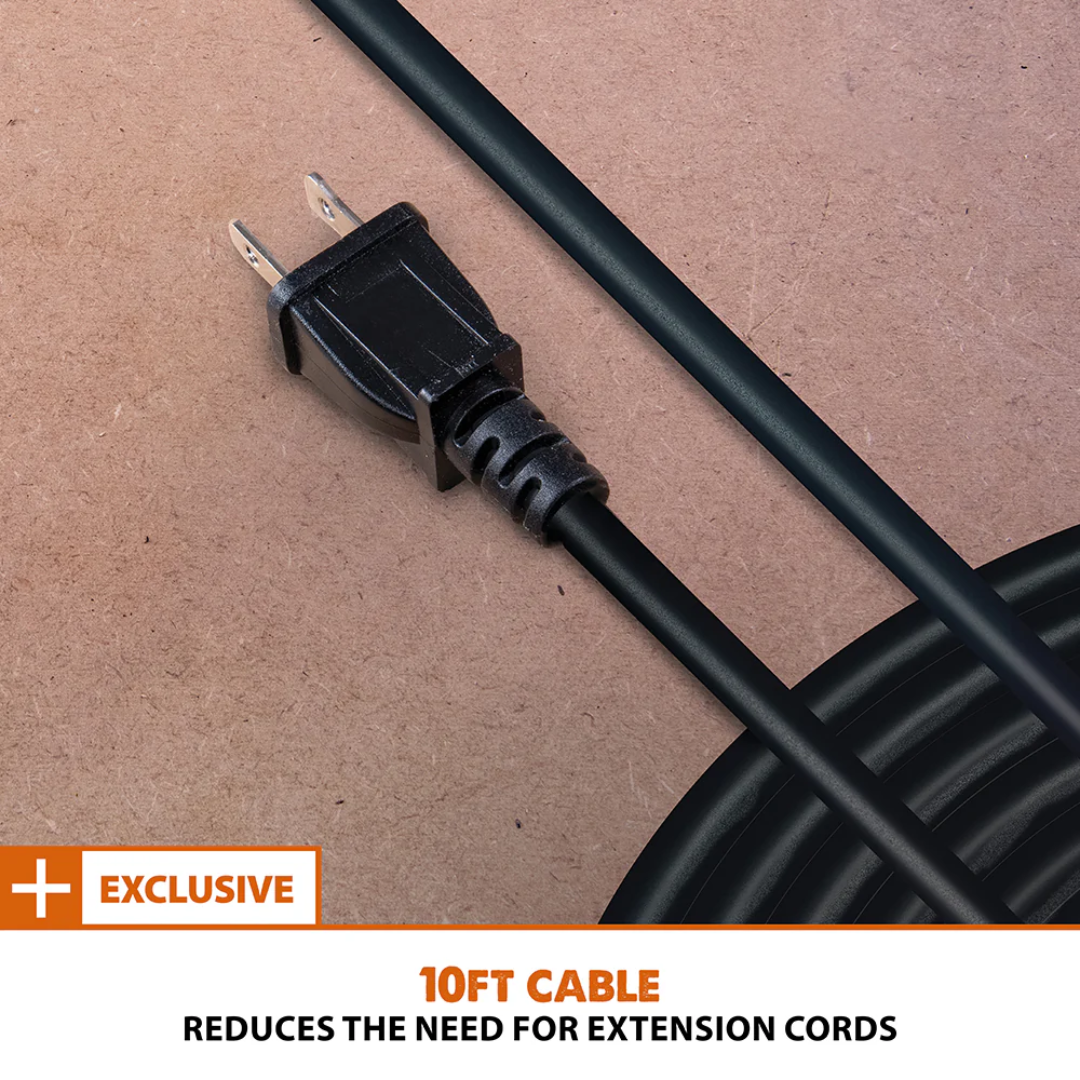

- 10-foot power cable offers greater mobility while reducing dependence on extension cords.
Evolution Power Tools Single Bevel Sliding Miter Saw R185SMS+ Includes

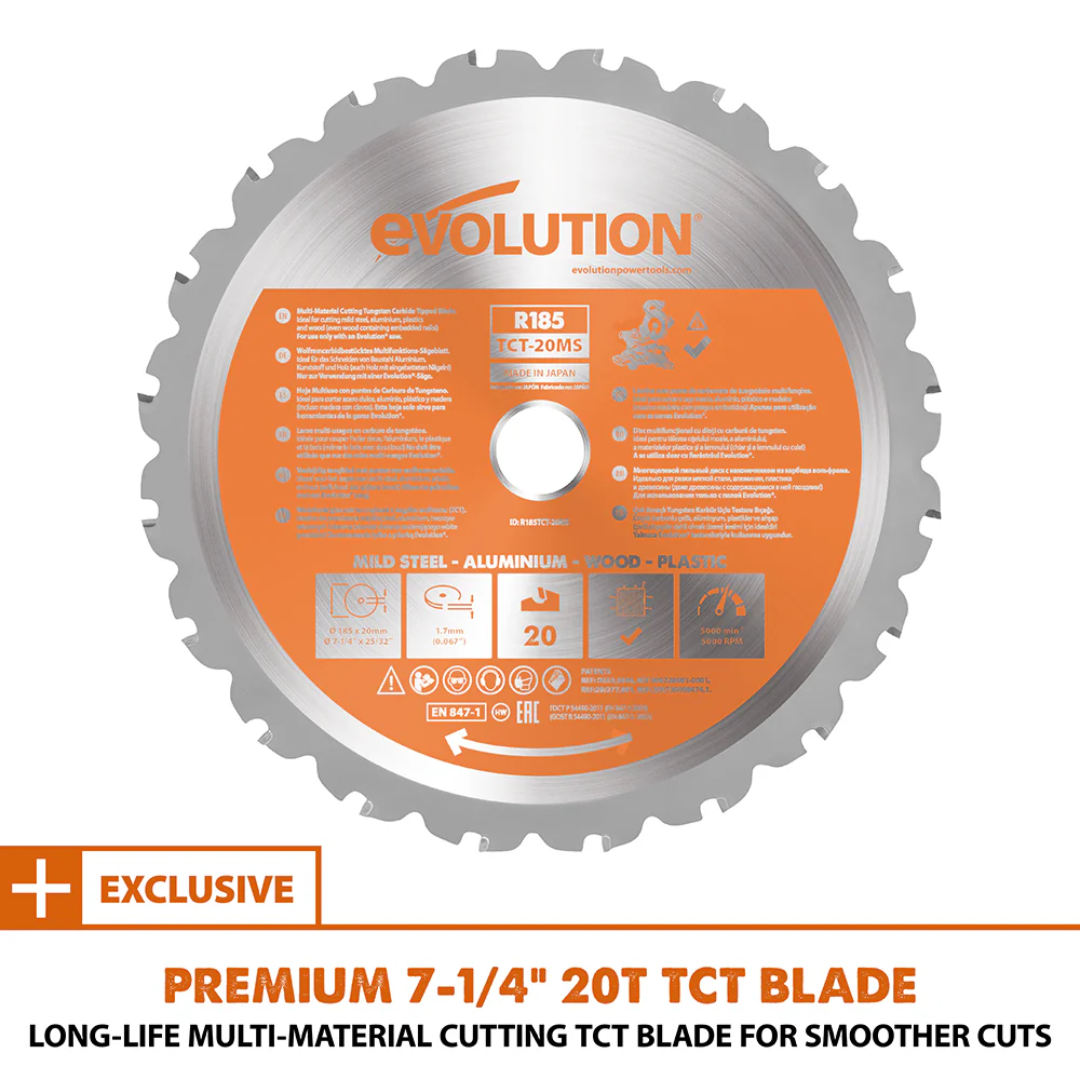

- 7-1/4 in. 20-Tooth Multi-Material TCT Blade

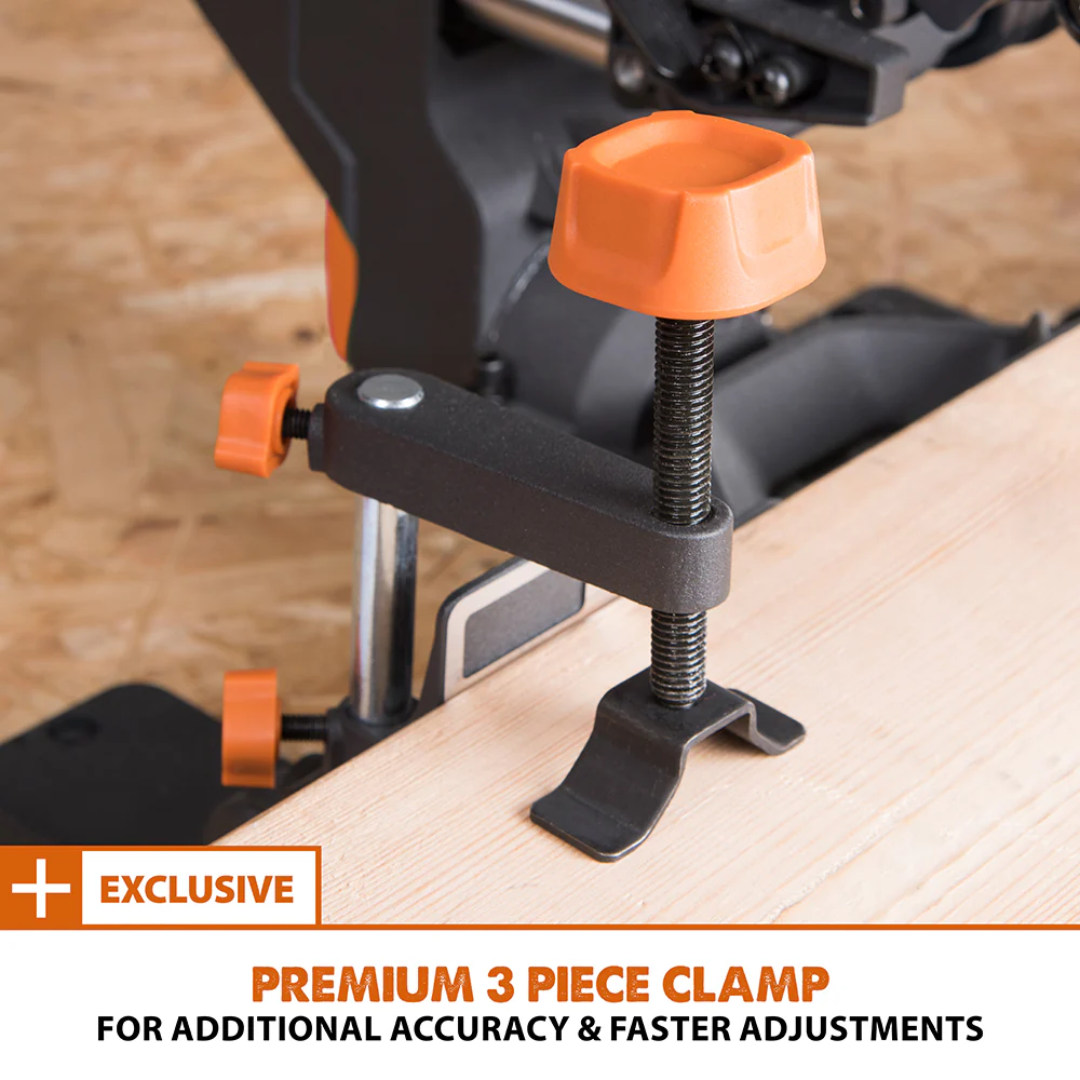

- 3-Piece Hold Down Clamp
- Machine Table Extensions
- Dust Collection Bag
- Dust Port Adaptor

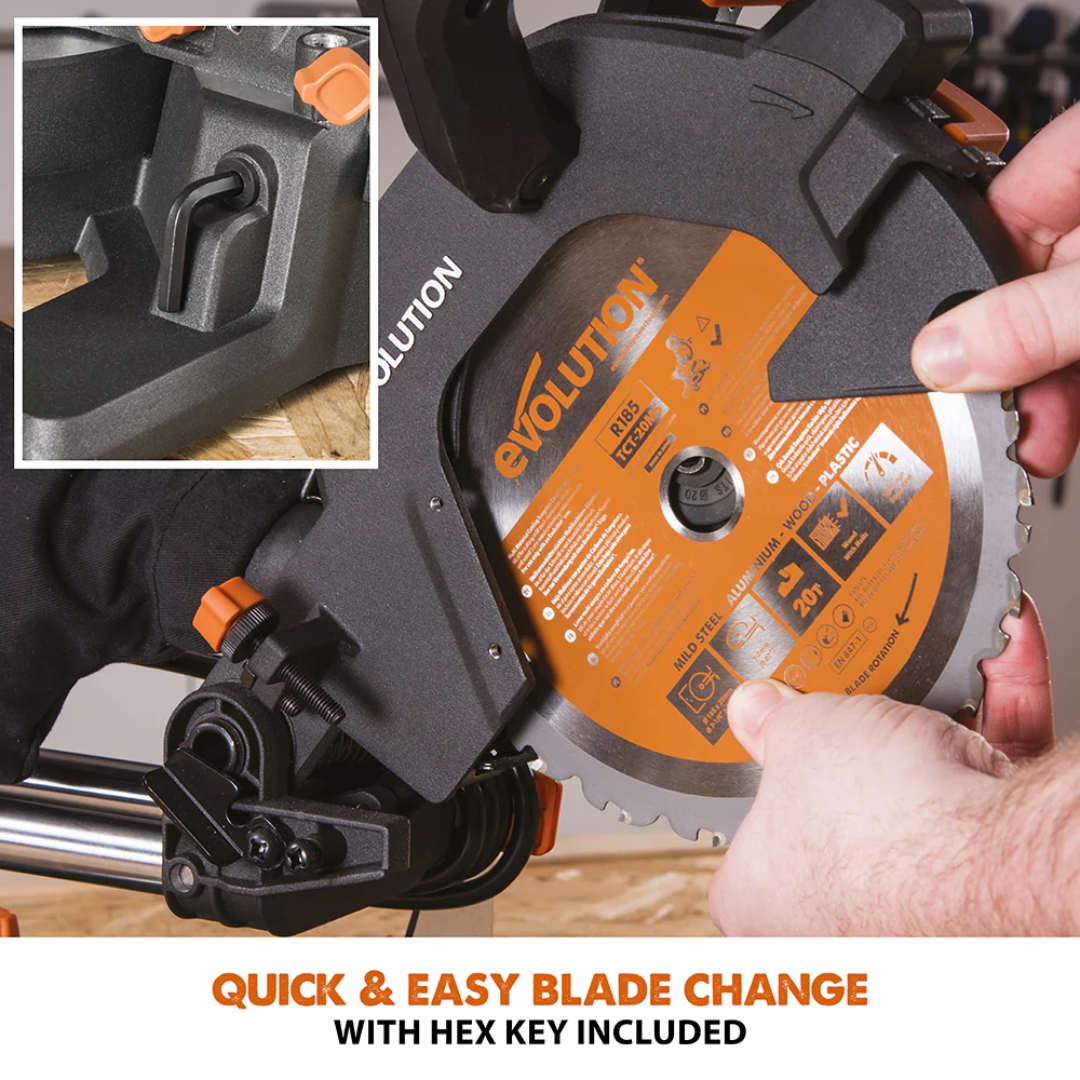

- Double-Ended Hex Key (M6 & M4)
- Rotary Table and Neck Assembly
- Sliding Carriage Assembly
- Miter Locking Knob
- Laser Lens Cap
- Rear Carry Handle
- Cable Guide and Clamp
- 10 ft. Power Cable
- Instruction Components and Mounting Hardware
Why Choose the Evolution Power Tools Single Bevel Sliding Miter Saw R185SMS+
- One blade cuts wood, metal, aluminum, and plastic.
- Laser guidance improves cutting accuracy and repeatability.
- Large 8-1/4 inch sliding crosscut capacity.
- Powerful 10 Amp motor with optimized gearbox for dependable performance.
- 50° dual-direction miter and 45° bevel provide outstanding cutting flexibility.
- Compact 19.7 lb design is ideal for mobile contractors and jobsite work.
- Dust collection system creates a cleaner and safer workspace.
- Premium Japanese TCT blade included for immediate multi-material cutting.
- Backed by Evolution's 3-Year Limited Warranty.
The Evolution Power Tools Single Bevel Sliding Miter Saw R185SMS+ delivers professional-grade cutting performance in a lightweight, portable package. Whether you're working with hardwood, steel, aluminum, plastics, or composite materials, its laser-guided precision, multi-material blade, smooth sliding action, and versatile angle adjustments provide exceptional accuracy and productivity on every project.
