Enco HD Benchtop Mill/Drill with Power Feed & Tapping: 10" x 32" 2 HP ZX45 Applications
- Precision drilling and tapping operations.
- End milling, face milling, and slot machining.
- Prototype manufacturing and product development.
- Tool and fixture fabrication.
- Maintenance and repair machining.
- General fabrication and machine shop production.
- Educational machine shop and vocational training.
- Machining steel, cast iron, aluminum, brass, plastics, and other machinable materials.
An excellent solution for shops requiring a compact but powerful mill/drill with integrated power feed, tapping capability, and professional machining performance.
Enco HD Benchtop Mill/Drill with Power Feed & Tapping: 10" x 32" 2 HP ZX45 Specifications
| Machine Type | Mill Drill Combination |
|---|---|
| Motor | 2 HP |
| Voltage / Phase | 220 Volt / Single Phase |
| Column Type | Square Column |
| Spindle Taper | R8 |
| Spindle Speeds | 6 |
| Spindle Speed Range | 90 – 1,970 RPM |
| Speed Control | Single Speed Gear Drive |
| Drilling Capacity (Steel) | 1-1/4" |
| Drilling Capacity (Cast Iron) | 1-3/4" |
| End Milling Capacity | 1.25" |
| Face Milling Capacity | 3.125" |
| Table Size | 31-1/2" × 9-1/2" |
| Longitudinal Travel | 22" |
| Cross Travel | 7-1/2" |
| Maximum Spindle to Table Distance | 18-1/8" |
| Maximum Spindle to Column Distance | 10-1/8" |
| Spindle Travel | 4-3/4" |
| Quill Diameter | 3" |
| T-Slots | 3 |
| T-Slot Size | 1/2" |
| Head Tilt | 45° Left / 45° Right |
| Head Swivel | 45° |
| Overall Dimensions (H × L × D) | 57" × 49-5/8" × 30-3/4" |
| UNSPSC Code | 23241500 |
| Country of Origin | China |
Enco HD Benchtop Mill/Drill with Power Feed & Tapping: 10" x 32" 2 HP ZX45 Performance & Construction
- Heavy-duty 2 HP motor delivers dependable power for drilling, milling, tapping, boring, and facing operations.

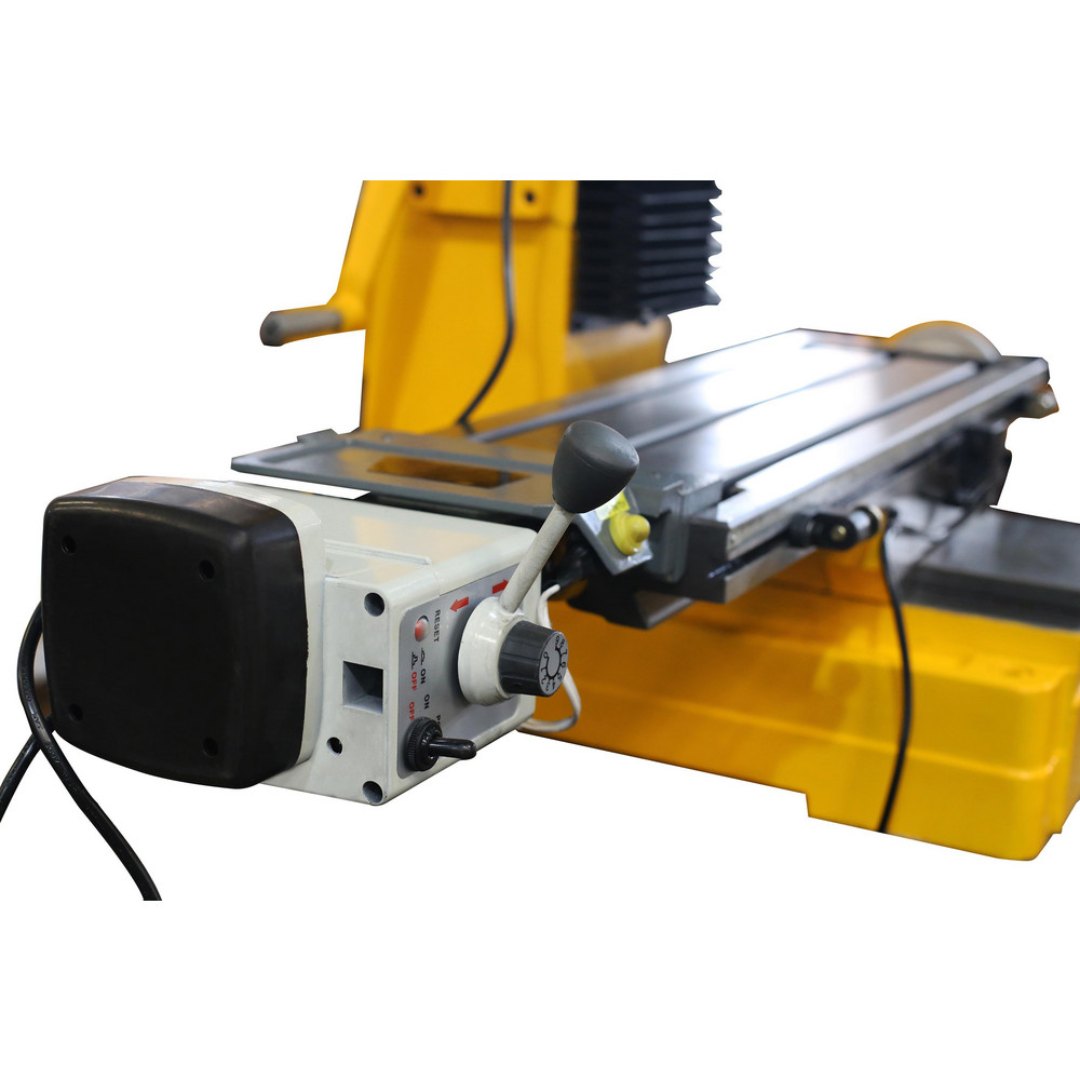

- Integrated power feed improves productivity, provides smoother table movement, and produces more consistent machining finishes.
- Built-in tapping capability allows efficient thread production without requiring separate tapping equipment.
- Rigid square column construction maintains spindle alignment while minimizing deflection during demanding machining operations.
- R8 spindle taper accepts a wide range of industry-standard collets, end mills, drill chucks, boring heads, fly cutters, and other tooling.
- Six spindle speeds from 90 to 1,970 RPM allow proper speed selection for various materials and cutting tools.
- Large 31-1/2" × 9-1/2" precision table provides ample workspace for vises, fixtures, and oversized workpieces.
- Generous 22" longitudinal and 7-1/2" cross travel support a wide variety of machining operations without frequent workpiece repositioning.
- 45° left and right tilting head with 45° swivel simplifies angled drilling, bevel milling, and compound machining applications.
- Excellent machining capacity with drilling capacities up to 1-1/4" in steel and 1-3/4" in cast iron, plus 3.125" face milling capability.
- Heavy-duty benchtop design delivers industrial performance while conserving valuable floor space.
Why Choose the Enco HD Benchtop Mill/Drill with Power Feed & Tapping: 10" x 32" 2 HP ZX45
- Integrated power feed increases machining efficiency and surface finish quality.
- Built-in tapping capability expands machine versatility.
- Rigid square column improves machining precision.
- Powerful 2 HP motor handles demanding drilling and milling applications.
- Industry-standard R8 spindle supports a broad selection of tooling.
- Large work table and generous travels accommodate complex machining setups.
- Excellent choice for fabrication, maintenance, toolrooms, educational facilities, and production machining.
The Enco HD Benchtop Mill/Drill with Power Feed & Tapping: 10" x 32" 2 HP ZX45 combines industrial-grade rigidity, precision machining capabilities, integrated power feed, and tapping functionality into one versatile benchtop machine. Designed for professional performance and long-term durability, it is an outstanding solution for shops requiring accurate, efficient, and dependable milling and drilling operations.
