Burr King Vibra KING Bench Top Bowls Models 110, 150 & 200 11000 Applications
- Precision deburring of small machined and fabricated components.
- Surface polishing and cosmetic finishing.
- Descaling and oxide removal.
- Surface conditioning before coating, plating, or painting.
- Cleaning delicate metal and non-metal components.
- Prototype production, laboratory finishing, and small-batch manufacturing.
- Ideal for machine shops, maintenance departments, gunsmiths, jewelry shops, educational facilities, and light industrial applications.

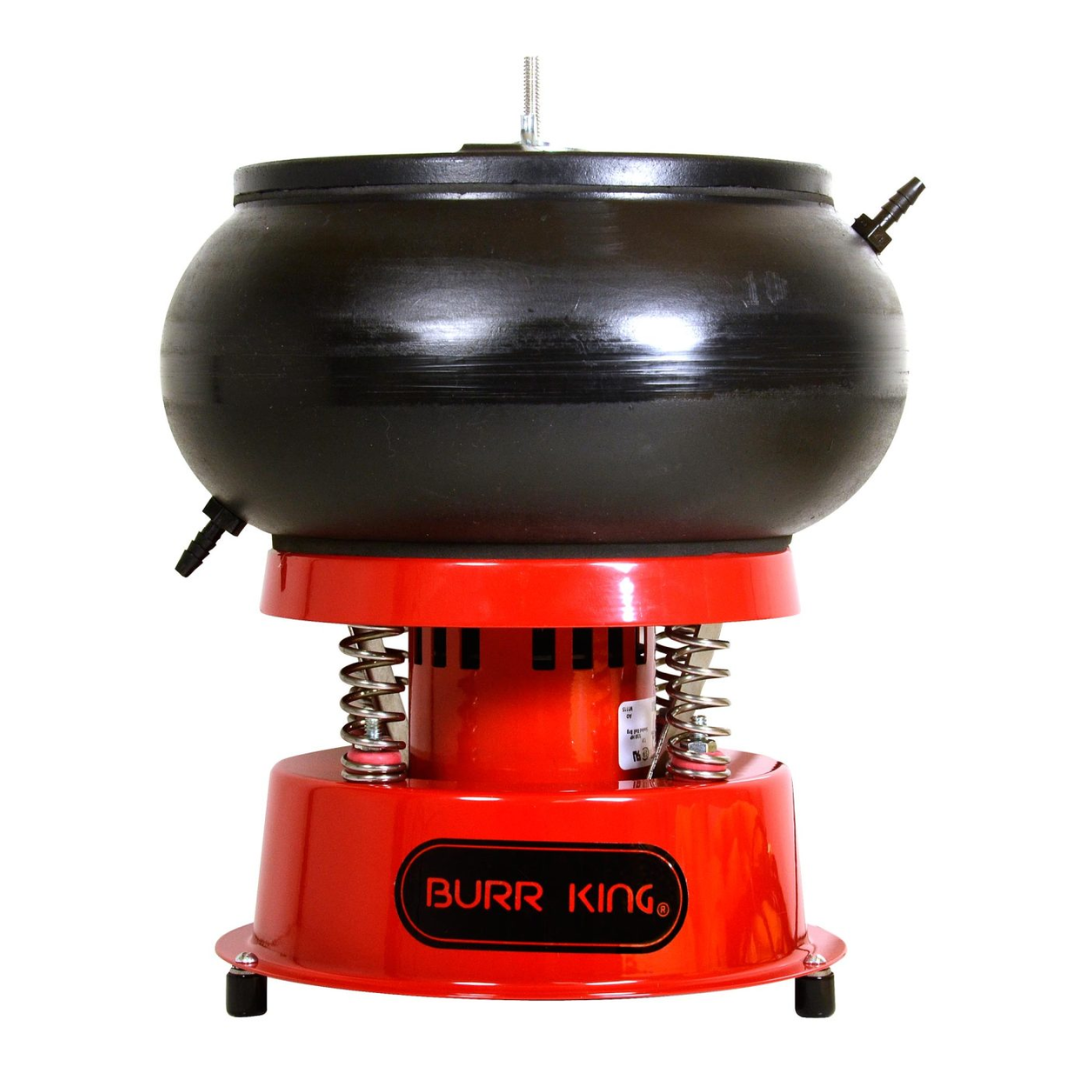

The compact Model 110 delivers fast, quiet, and effective vibratory finishing while requiring minimal bench space, making it ideal for small production runs and precision finishing operations.

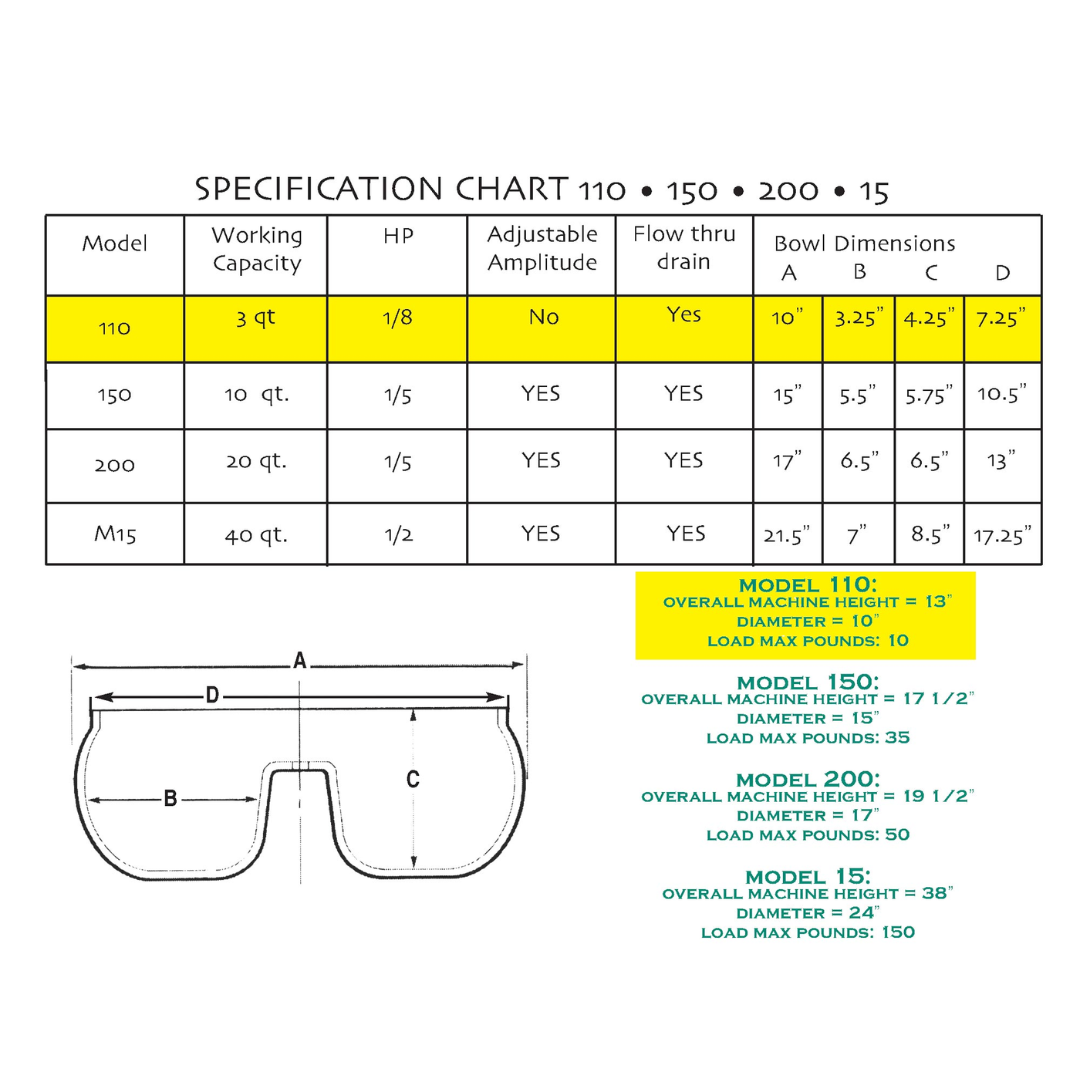

Burr King Vibra KING Bench Top Bowls Models 110, 150 & 200 11000 Specifications
| Model | 110 |
|---|---|
| Motor | 1/30 HP |
| Voltage / Phase | 120 Volt / Single Phase |
| Frequency | 60 Hz |
| Power Connection | 120V Cord and Switch Included |
| Total Capacity | 3 Quarts / 0.75 Gallons / 0.1 Cubic Feet |
| Maximum Load Capacity | 10 lbs |
| Ceramic Media Capacity | 10 lbs |
| Plastic Media Capacity | 8 lbs |
| Cob Media Capacity | 4 lbs |
| Amplitude | Fixed |
| Bowl Material | High-Density Polyethylene (HDPE) |
| Flow-Through Design | Compatible with FilterPak 4001 and SumpPak 1000 |
| Processing Capability | Ceramic, Plastic, Burnishing, Wood, and Shell Media for Wet or Dry Processing |
| Operation | Bench Top |
| Machine Weight | 10 lbs |
| Country of Origin | Assembled in the USA with Domestic and Foreign Components |
Burr King Vibra KING Bench Top Bowls Models 110, 150 & 200 11000 Features & Performance
- Compact 3-quart vibratory bowl is ideal for precision finishing of small batches and individual components.
- Reliable 1/30 HP motor provides smooth, quiet, and energy-efficient operation for continuous bench-top use.
- High-density polyethylene (HDPE) bowl offers outstanding abrasion resistance, chemical resistance, and long service life.
- Fixed amplitude vibration delivers consistent media movement for repeatable finishing results.
- Processes up to 10 pounds of ceramic media, 8 pounds of plastic media, or 4 pounds of cob media depending on the application.
- Compatible with ceramic, plastic, burnishing, wood, and shell media for exceptional application flexibility.
- Supports both wet and dry processing for polishing, cleaning, deburring, and surface conditioning operations.
- Flow-through bowl design integrates with the Burr King FilterPak 4001 and SumpPak 1000 to improve fluid management and finishing consistency.
- Portable, no bolt-down design allows the machine to be easily relocated as production requirements change.
- Cell manufacturing friendly with a compact footprint that integrates easily into workstations and production cells.
- Durable coated surfaces resist wear while maintaining a professional industrial appearance.
- American designed and assembled using domestic and foreign components for dependable quality and performance.
Why Choose the Burr King Vibra KING Bench Top Bowls Models 110, 150 & 200 11000
- Compact vibratory finishing system ideal for bench-top operation.
- Fast, quiet, and effective polishing, deburring, descaling, and surface conditioning.
- Heavy-duty HDPE bowl provides outstanding abrasion resistance and durability.
- Compatible with multiple media types for wet or dry finishing processes.
- Flow-through design works with the FilterPak 4001 and SumpPak 1000.
- Portable design requires no permanent installation.
- Perfect for small production runs, prototypes, maintenance, and precision finishing.
- American designed and assembled for dependable industrial performance.
The Burr King Vibra KING Bench Top Bowls Models 110, 150 & 200 11000 combines compact size, quiet operation, and professional vibratory finishing performance into an efficient bench-top machine. Whether polishing, deburring, cleaning, or surface conditioning, the Model 110 delivers consistent, repeatable results while offering the portability and versatility required for today's precision manufacturing environments.
