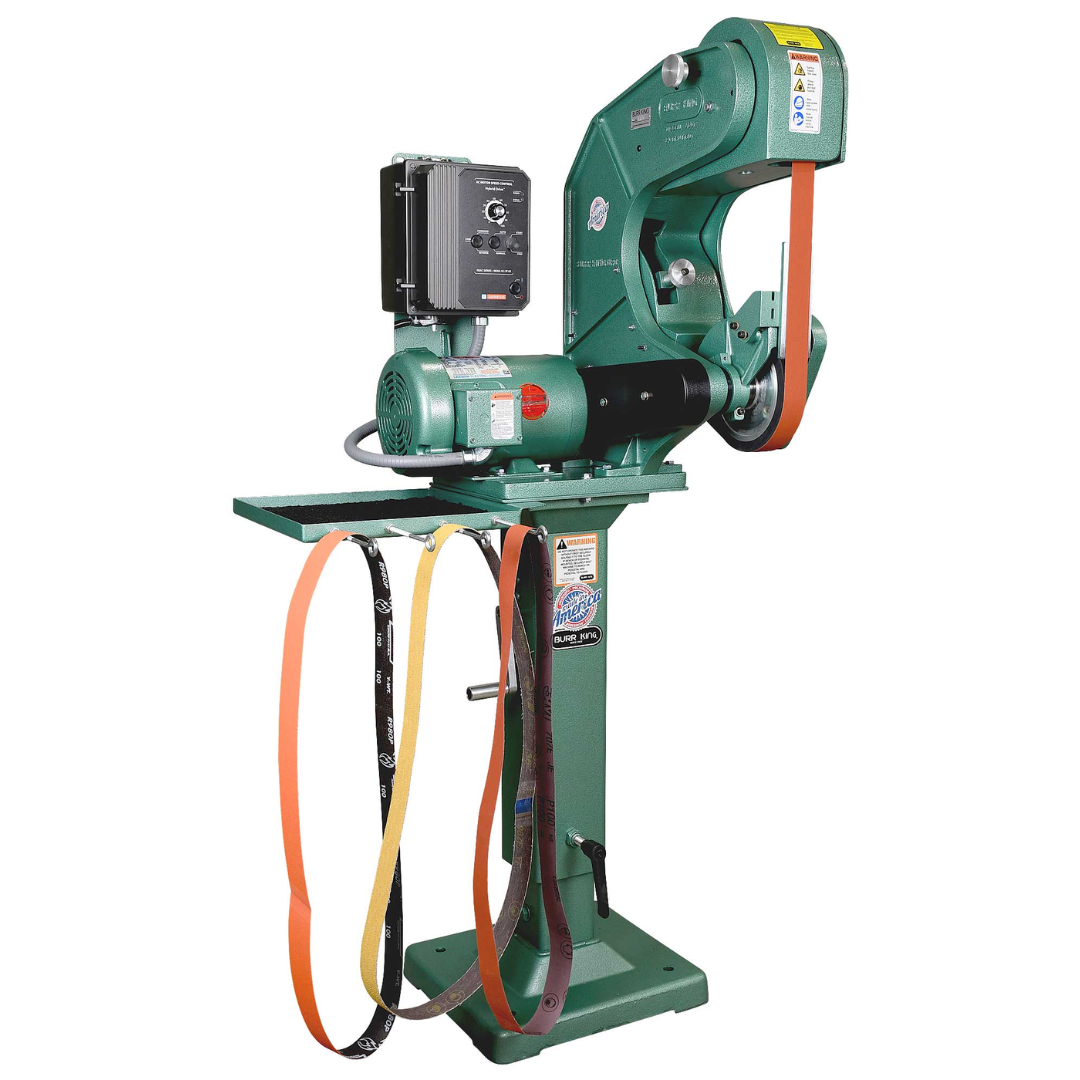

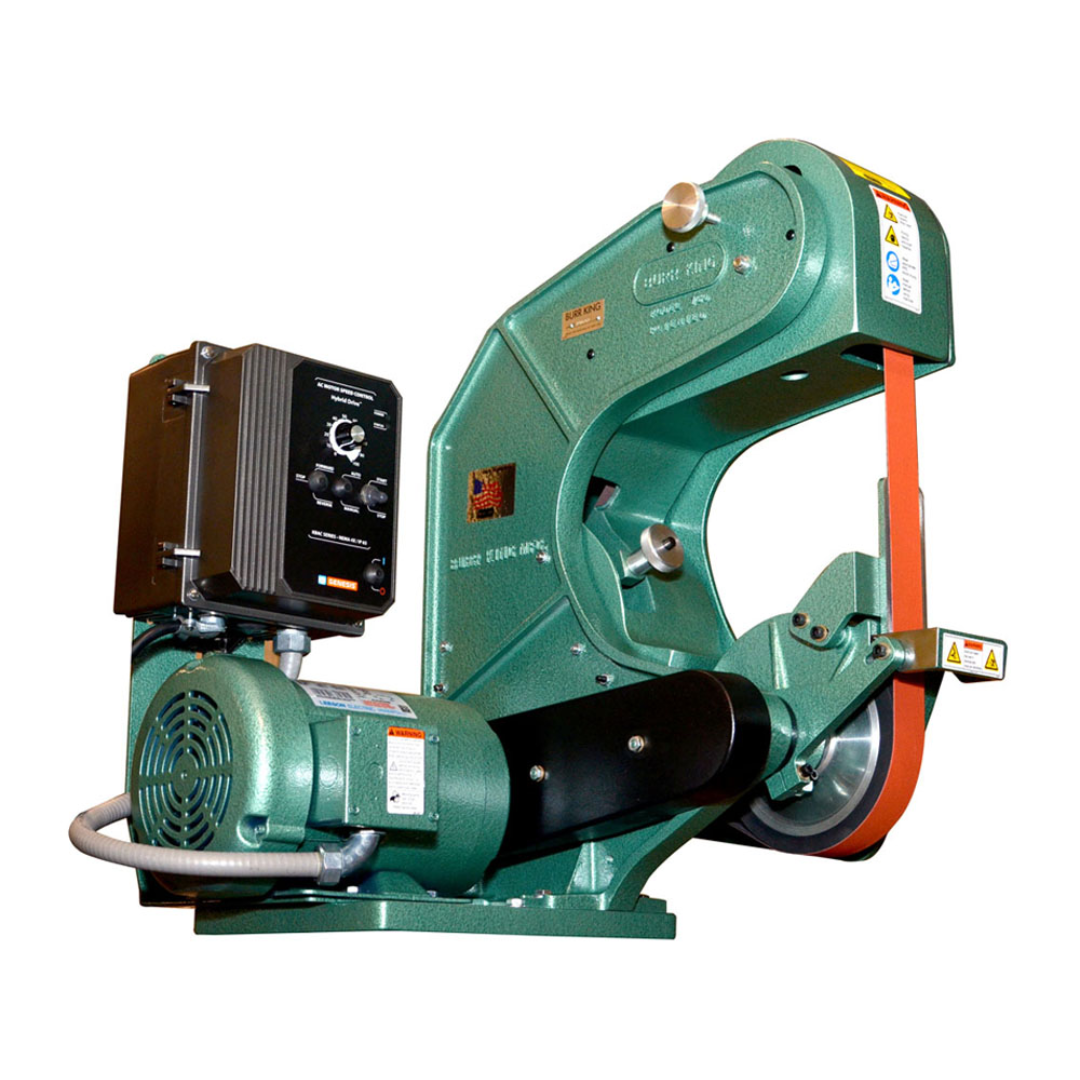

Burr King 1.5 x 60 or 2 x 60 Three Wheel Belt Grinder Model 760 72110 Applications
- Heavy-duty grinding and rapid stock removal.
- Precision deburring of machined, stamped, laser-cut, and fabricated components.
- Edge beveling, weld blending, and surface preparation.
- Contour grinding and finishing of curved or irregular workpieces.
- Knife making, tool sharpening, and custom fabrication.
- Grinding steel, stainless steel, aluminum, brass, titanium, and specialty alloys.
- Ideal for fabrication shops, production manufacturing, maintenance departments, aerospace, and industrial metalworking operations.
Variable belt speed combined with Burr King's three-wheel design gives operators exceptional control over material removal, finish quality, and heat generation for virtually any grinding application.
Burr King 1.5 x 60 or 2 x 60 Three Wheel Belt Grinder Model 760 72110 Specifications
| Model | 760 (72110) |
|---|---|
| Belt Size | 1-1/2" × 60" |
| Compatible Belt Widths | 1-1/2" × 60" or 2" × 60" |
| Motor | 1.5 HP |
| Voltage / Phase | 120 Volt / Single Phase |
| Frequency | 50–60 Hz |
| Speed Type | Variable Speed |
| Belt Speed Range | 800–8,000 SFPM |
| Dynamic Braking | Yes |
| Number of Wheels | 3 |
| Contact Wheel Size | 7" × 1.5" |
| Contact Wheel Hardness | 55 Duro (Standard) |
| Throat Clearance | 8-7/8" |
| Steel Backup Platen | 2" × 6" × 1/4" |
| Belt Tension System | Quick Change Assembly |
| Belt Tracking | Positive Tracking Adjustment |
| Adjustable Work Rest | Yes |
| Safety Belt Guard | Included |
| Construction | Cast Aluminum |

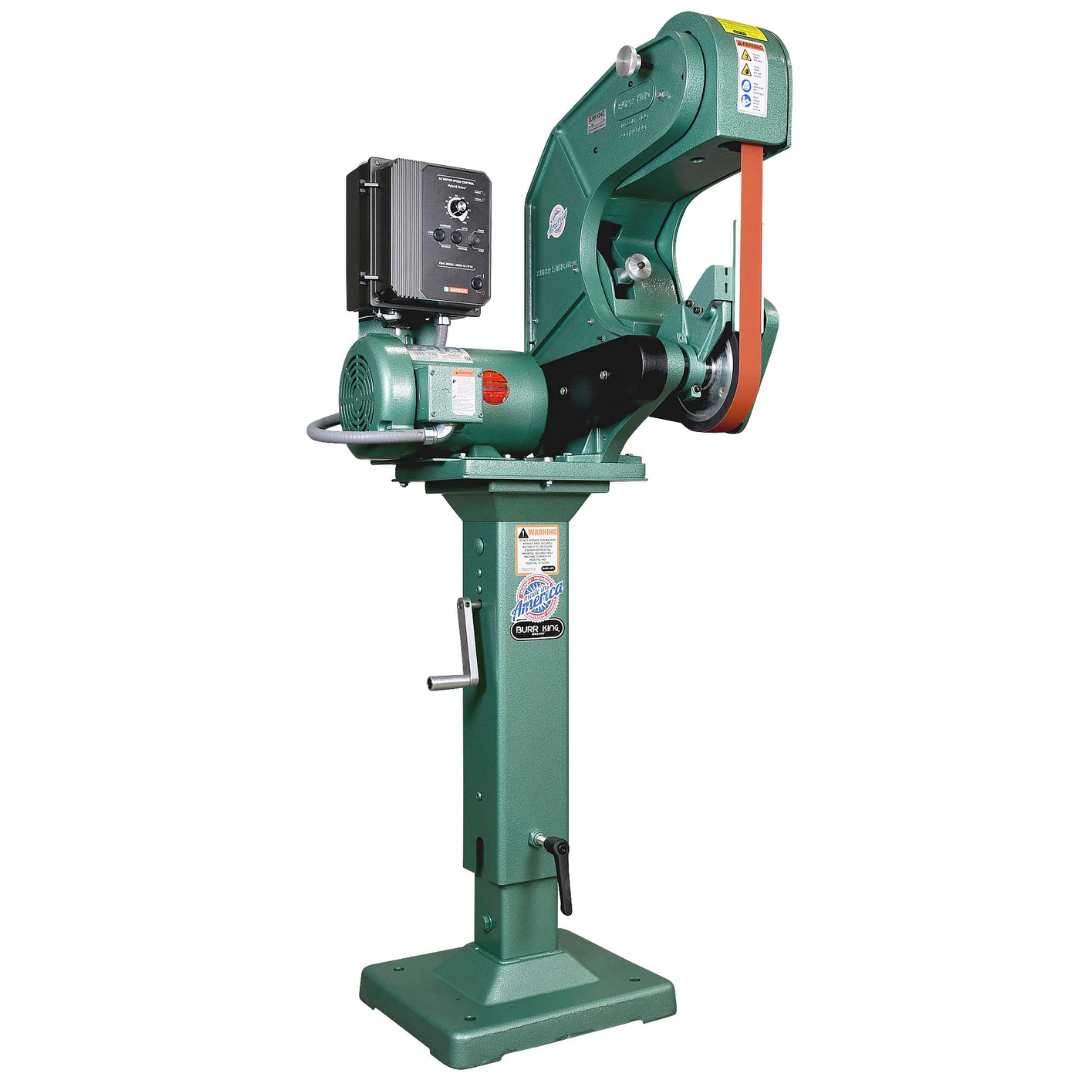

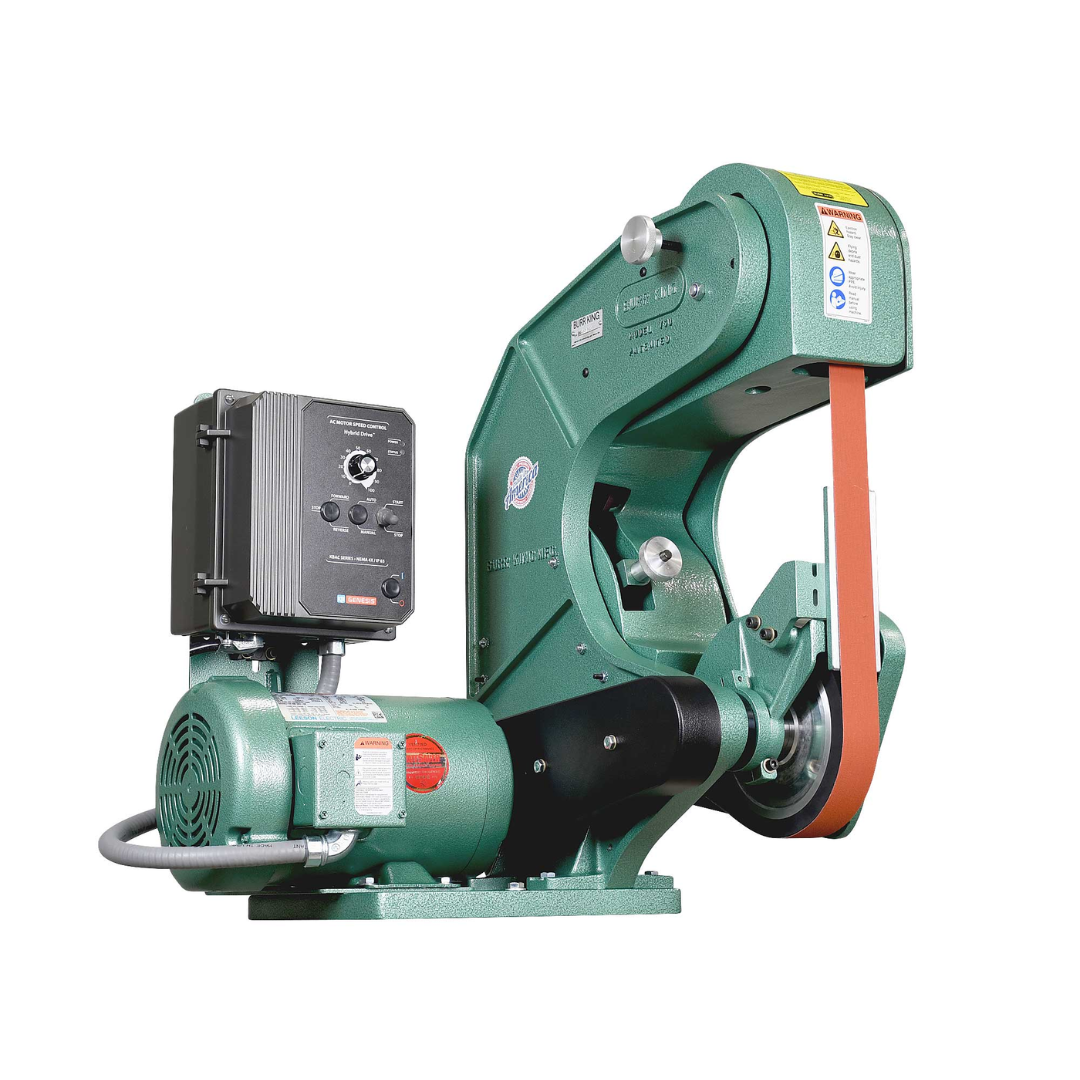

| Mounting Options | Bench or Pedestal Mount |
| Pedestal Included | No |
| Base Area | 10" × 13" |
| Overall Dimensions (H × W × D) | 26" × 24" × 23" |
| Machine Weight | 130 lbs |
| Main Application | Belt Grinding |
| Country of Origin | Made in USA |
Burr King 1.5 x 60 or 2 x 60 Three Wheel Belt Grinder Model 760 72110 Features & Performance
- Industrial 1.5 HP motor delivers dependable power for demanding continuous-duty grinding applications.
- Variable belt speed from 800 to 8,000 SFPM allows operators to optimize grinding performance for aggressive stock removal, precision finishing, polishing preparation, and temperature-sensitive materials.
- Dynamic braking system helps reduce stopping time after power is removed, improving productivity and enhancing operator safety.
- Three-wheel belt configuration increases belt accessibility for contour grinding, inside curves, and difficult-to-reach work areas.
- Supports both 1-1/2-inch × 60-inch and 2-inch × 60-inch abrasive belts to provide greater flexibility across multiple grinding applications.
- Large 7-inch × 1.5-inch contact wheel with 55-durometer hardness delivers an ideal balance of aggressive grinding and quality surface finishes.
- 8-7/8-inch throat clearance provides ample working space for larger parts and complex fabrication projects.
- Quick-change belt tension assembly enables rapid abrasive belt replacement, minimizing downtime between operations.
- Positive belt tracking adjustment maintains accurate belt alignment for smooth, consistent grinding performance.
- Steel backup platen provides rigid support for flat grinding and controlled finishing applications.
- Adjustable work rest improves workpiece stability, operator control, and grinding precision.
- Heavy-duty cast aluminum construction minimizes vibration while providing exceptional rigidity, corrosion resistance, and long-term durability.
- Bench or pedestal mounting capability offers installation flexibility for virtually any production or maintenance environment.
- Proudly designed and manufactured in the USA for dependable industrial quality and long service life.
Why Choose the Burr King 1.5 x 60 or 2 x 60 Three Wheel Belt Grinder Model 760 72110
- Professional-grade variable-speed grinder built for industrial production.
- Wide 800–8,000 SFPM speed range maximizes grinding versatility.
- Dynamic braking enhances operator safety and productivity.
- Three-wheel design improves accessibility for contour and precision grinding.
- Supports both 1-1/2-inch and 2-inch wide 60-inch abrasive belts.
- Heavy-duty cast aluminum construction ensures years of dependable service.
- Ideal for fabrication, machining, aerospace, welding, maintenance, and production environments.
- Designed and manufactured in the USA for professional industrial performance.
The Burr King 1.5 x 60 or 2 x 60 Three Wheel Belt Grinder Model 760 72110 combines industrial durability, precision variable-speed control, and Burr King's proven three-wheel grinding design into one exceptionally versatile machine. From aggressive stock removal to precision finishing, it provides the performance, control, and reliability required by today's demanding metalworking professionals.
