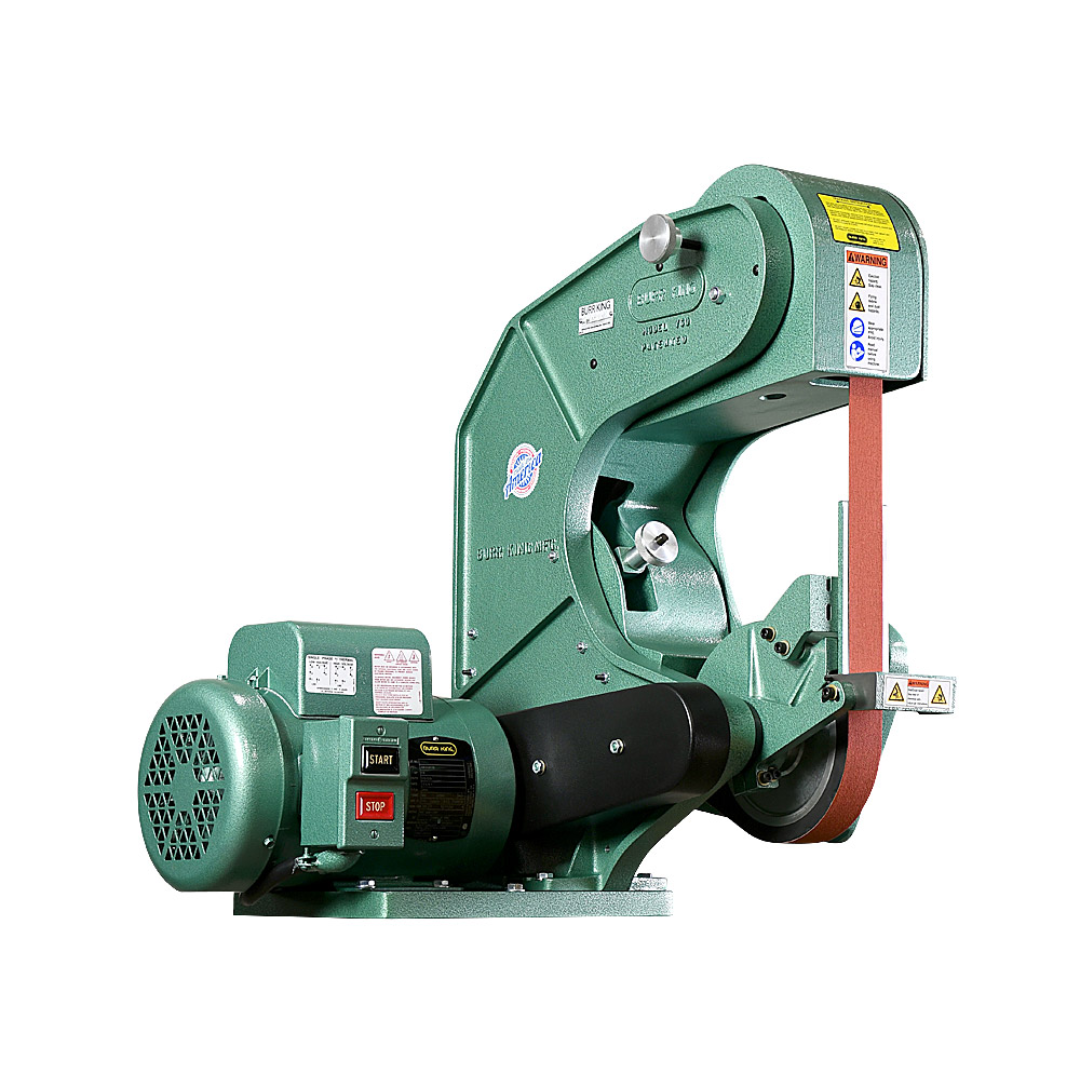

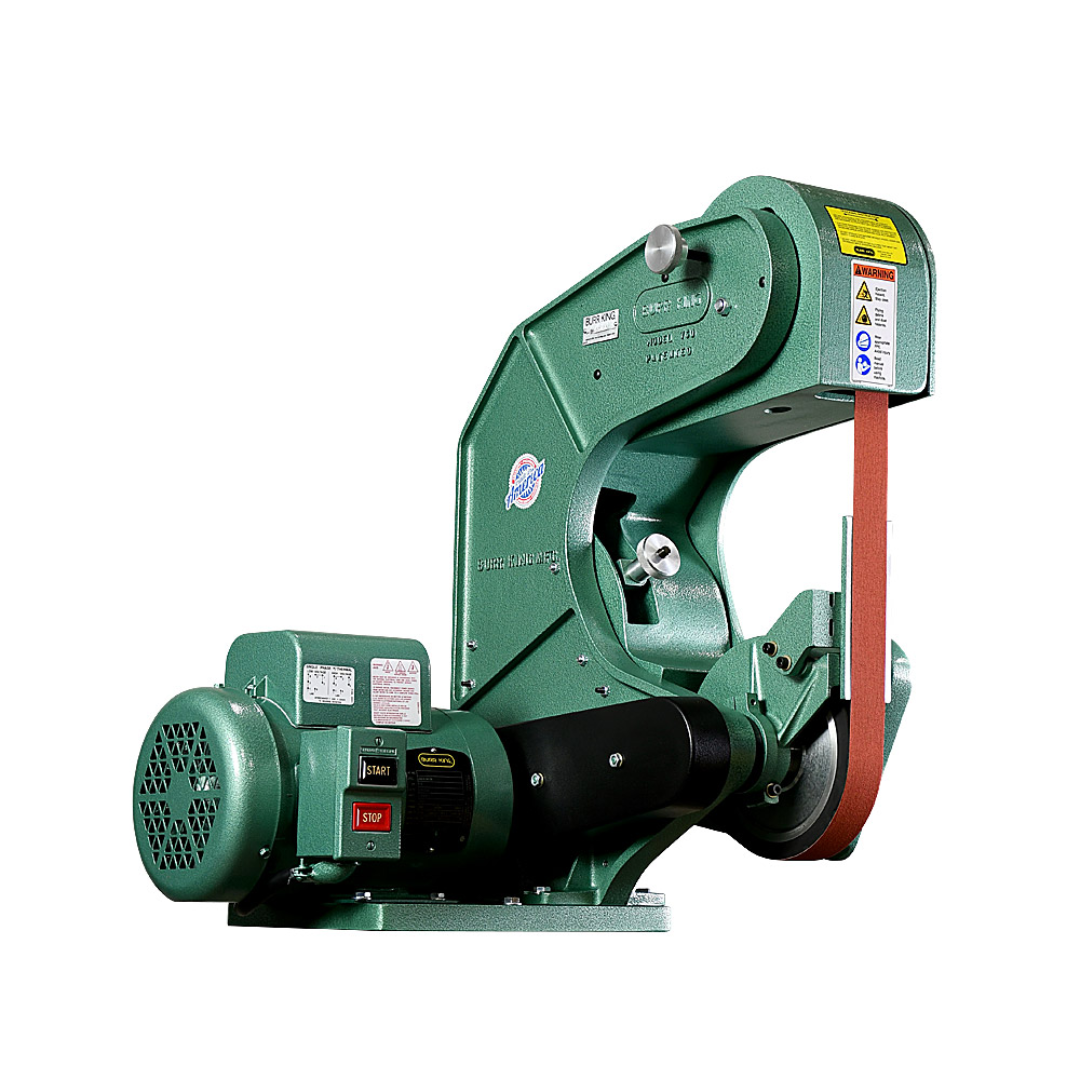

Burr King 1.5 x 60 or 2 x 60 Three Wheel Belt Grinder Model 760 70100 Applications
- Heavy-duty metal grinding and rapid stock removal.
- Deburring machined, laser-cut, stamped, and fabricated components.
- Edge beveling, weld cleanup, and blending.
- Contour grinding and finishing of curved or irregular workpieces.
- Knife making, tool sharpening, and custom fabrication.
- Grinding steel, stainless steel, aluminum, brass, titanium, and specialty alloys.
- Ideal for fabrication shops, production facilities, maintenance departments, aerospace, and industrial manufacturing.
The three-wheel design provides superior belt accessibility and an 8-7/8-inch throat clearance, allowing operators to efficiently grind complex parts while maintaining excellent control and visibility.
Burr King 1.5 x 60 or 2 x 60 Three Wheel Belt Grinder Model 760 70100 Specifications
| Model | 760 (70100) |
|---|---|
| Belt Size | 1-1/2" × 60" |
| Compatible Belt Widths | 1-1/2" × 60" or 2" × 60" |
| Motor | 1.5 HP |
| Voltage / Phase | 120 Volt / Single Phase |
| Frequency | 60 Hz |
| Belt Speed | 8,000 SFPM (Fixed Speed) |
| Variable Speed | No |
| Number of Wheels | 3 |
| Contact Wheel Size | 7" × 1.5" |
| Contact Wheel Hardness | 55 Duro (Standard) |
| Throat Clearance | 8-7/8" |
| Steel Backup Platen | 2" × 6" × 1/4" |
| Belt Tension System | Quick Change Assembly |
| Belt Tracking | Positive Tracking Adjustment |
| Adjustable Work Rest | Yes |
| Safety Belt Guard | Included |
| Construction | Cast Aluminum |

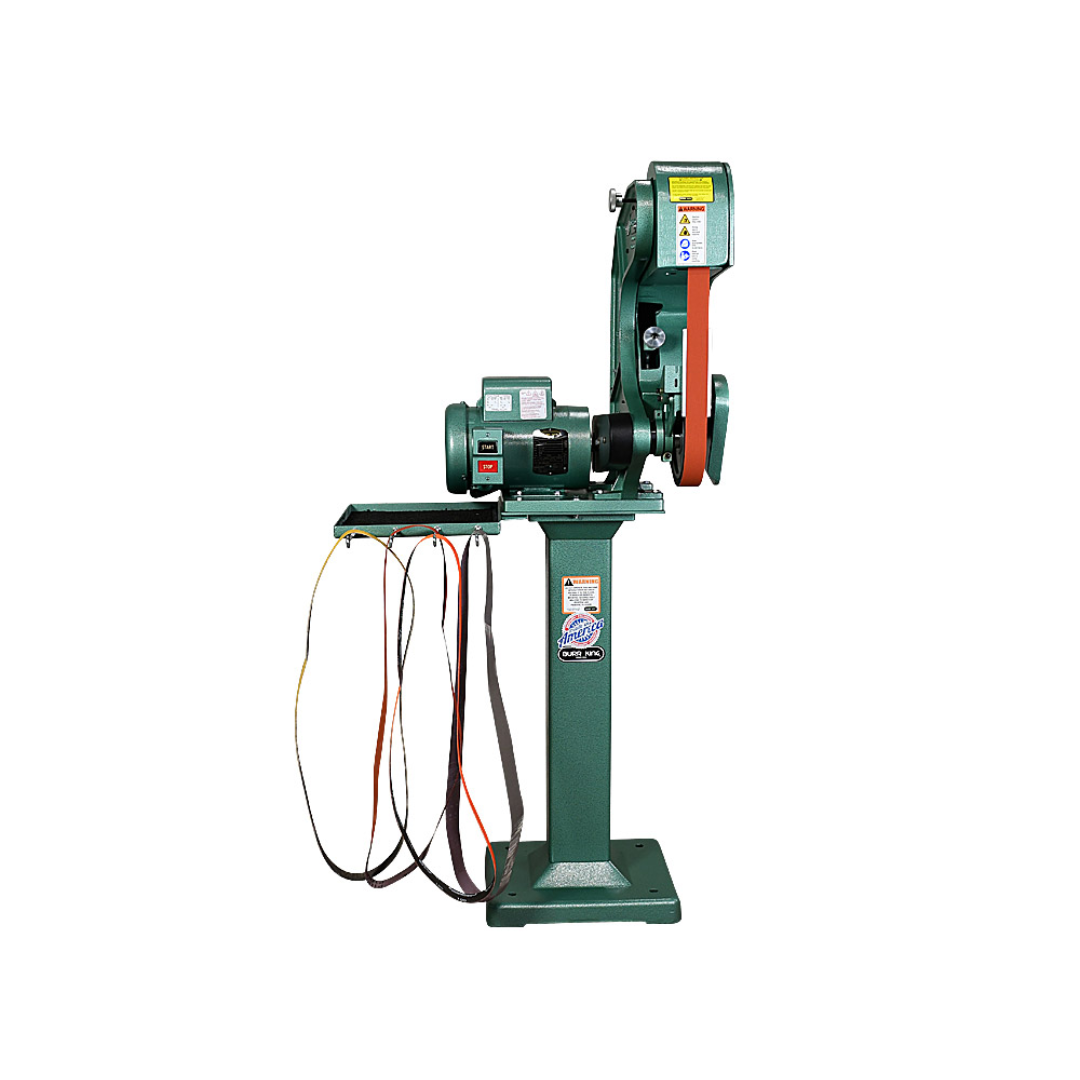

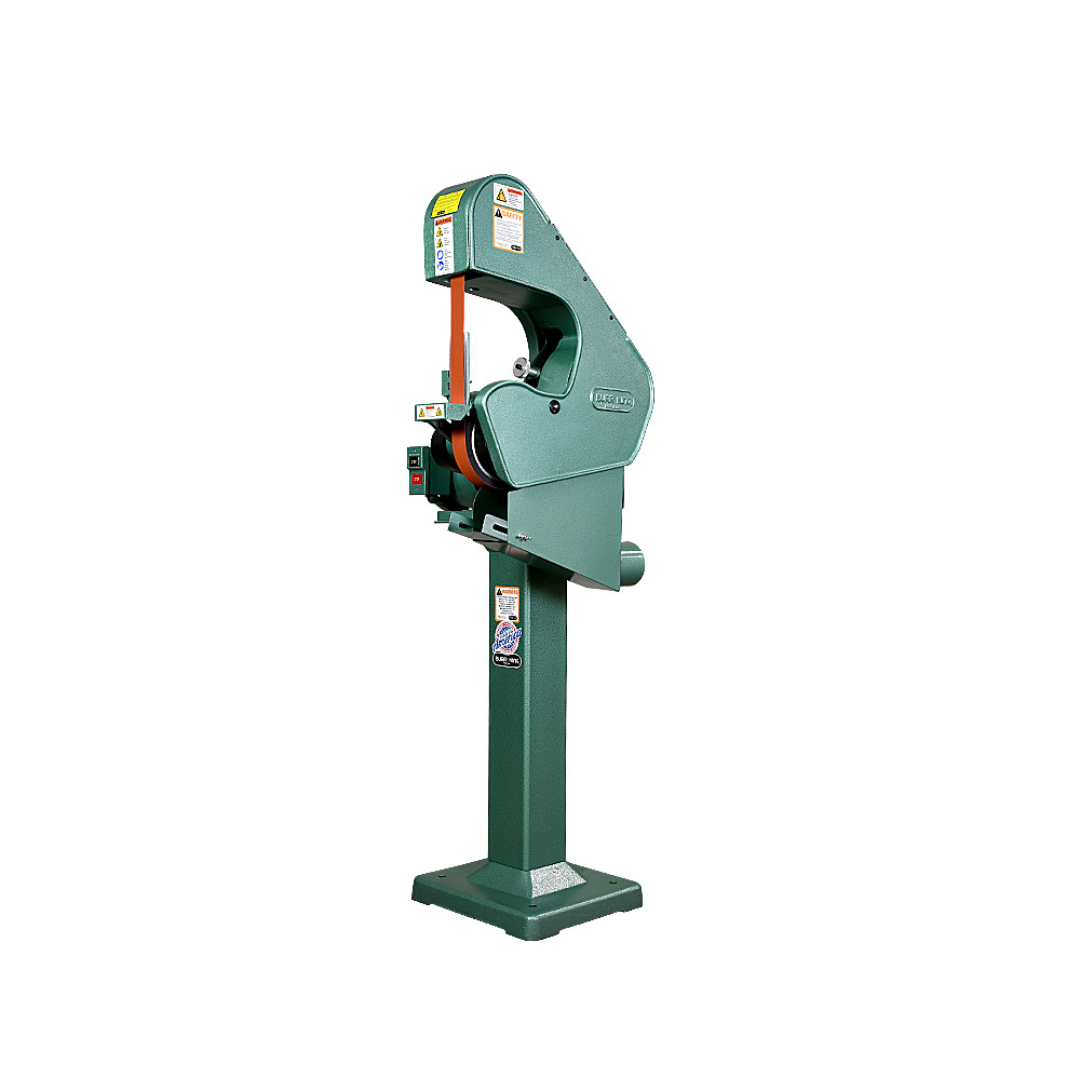

| Mounting Options | Bench or Pedestal Mount |
| Pedestal Included | No |
| Base Area | 10" × 13" |
| Overall Dimensions (H × W × D) | 26" × 24" × 23" |
| Machine Weight | 110 lbs |
| Main Application | Belt Grinding |
| Country of Origin | Made in USA |
Burr King 1.5 x 60 or 2 x 60 Three Wheel Belt Grinder Model 760 70100 Features & Performance

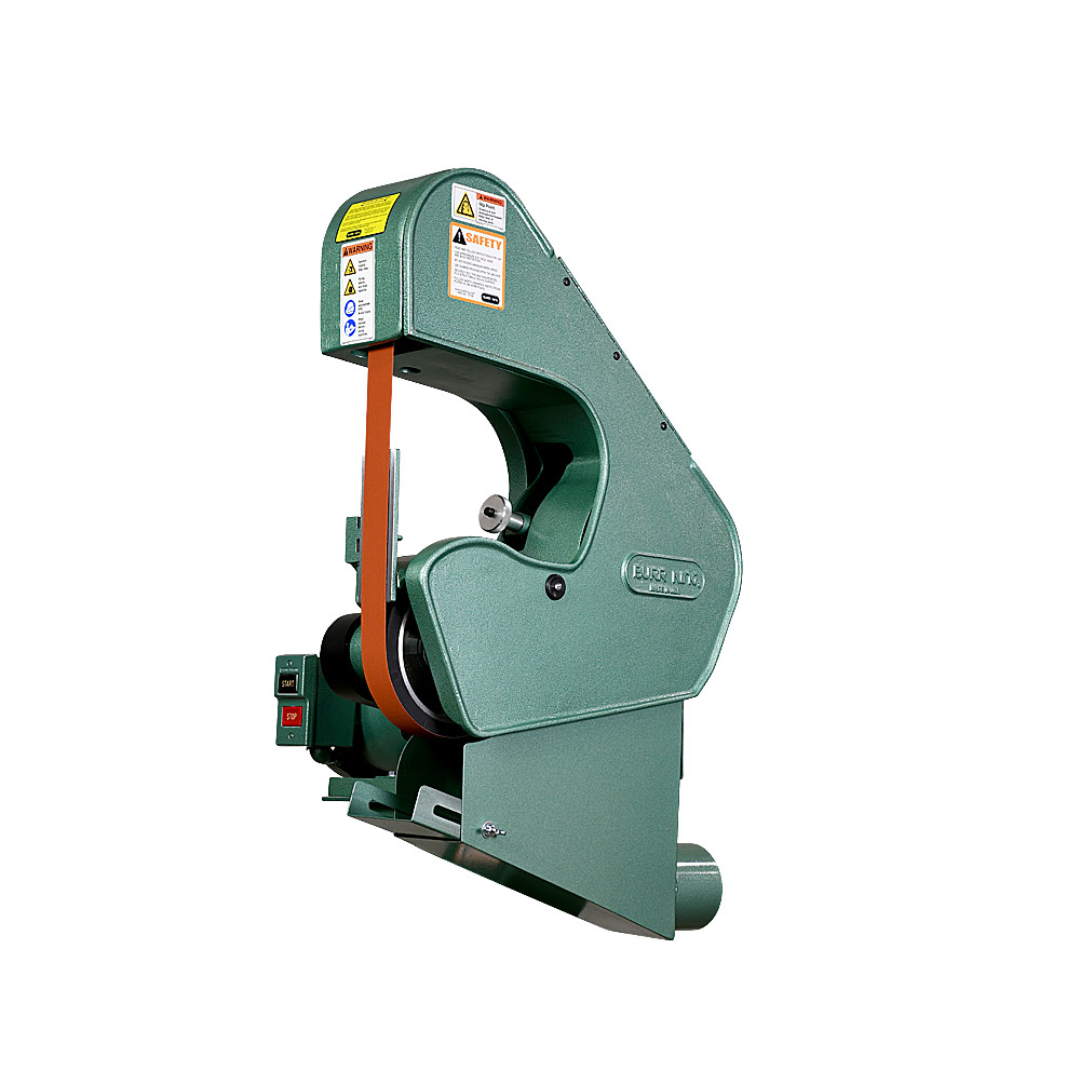

- Industrial 1.5 HP motor provides dependable power for demanding grinding, blending, and finishing operations.
- Fixed 8,000 SFPM belt speed delivers aggressive stock removal while maintaining consistent grinding performance.

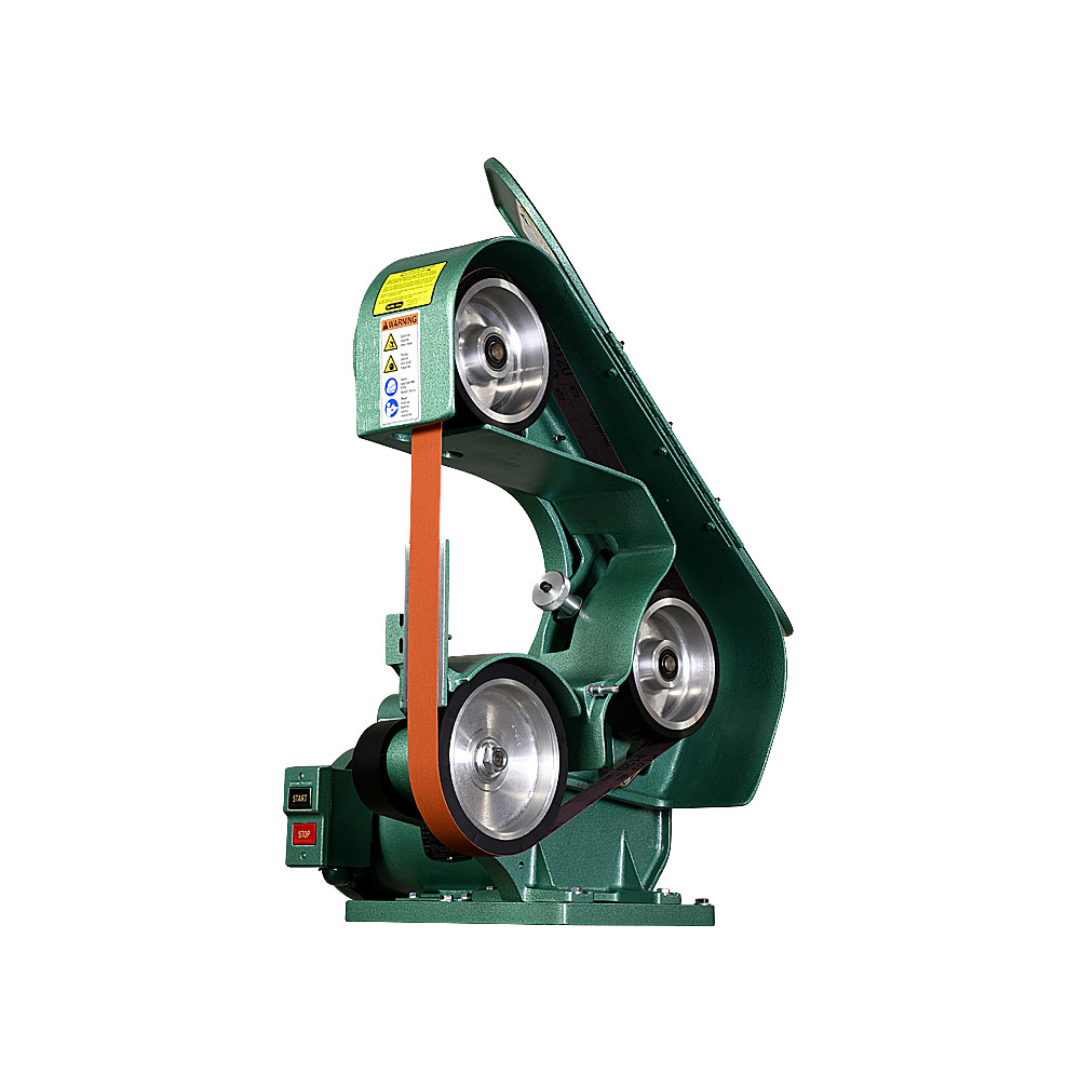

- Three-wheel belt configuration increases belt accessibility, making contour grinding and complex part finishing easier and more efficient.
- Supports 1-1/2-inch × 60-inch and 2-inch × 60-inch abrasive belts for greater application flexibility.
- Large 7-inch × 1.5-inch contact wheel with 55-durometer hardness provides an excellent balance between material removal and surface finish quality.

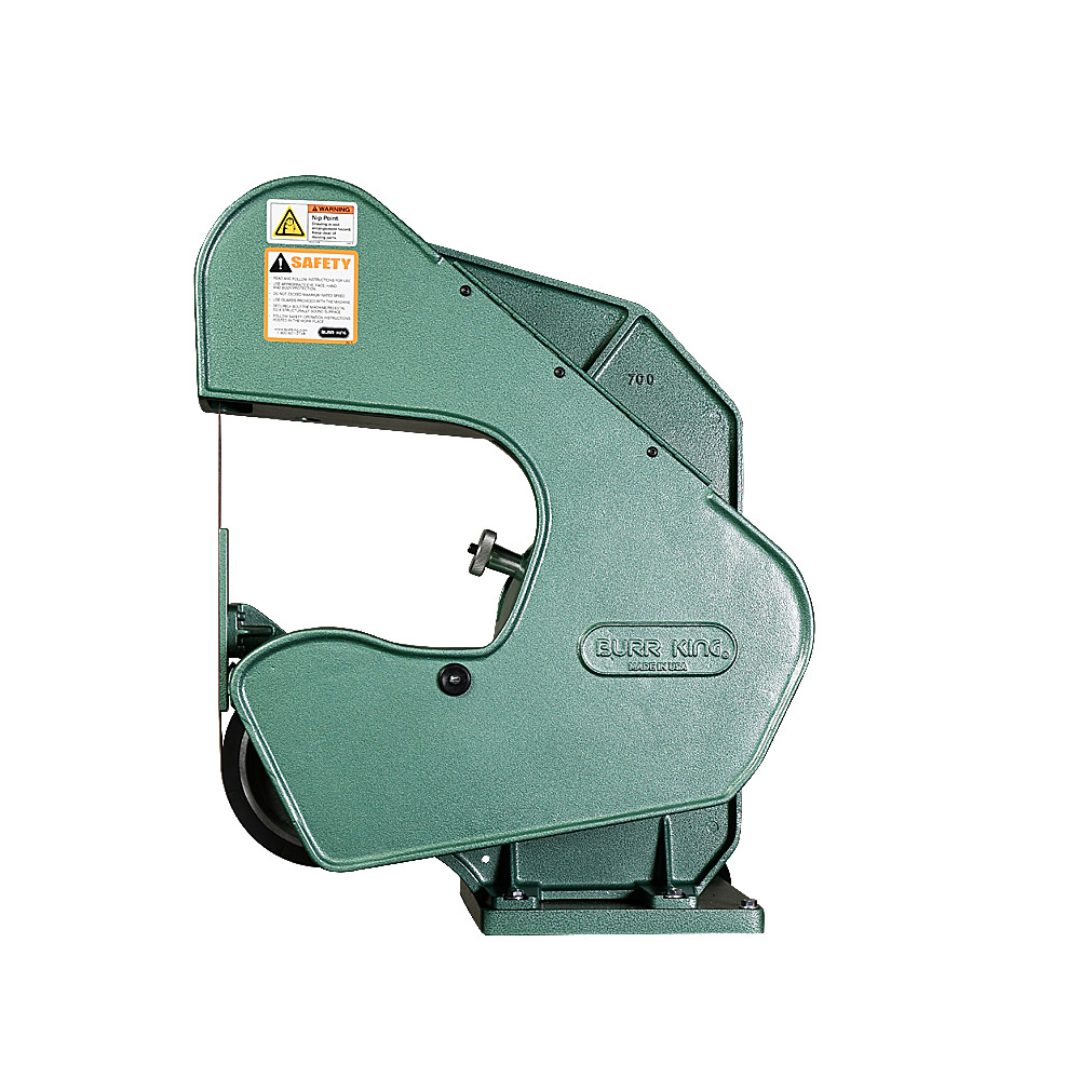

- 8-7/8-inch throat clearance accommodates larger workpieces while improving operator access during precision grinding.
- Quick-change belt tension assembly enables rapid abrasive belt replacement to minimize downtime.
- Positive belt tracking adjustment ensures smooth, accurate belt alignment for reliable operation.
- Steel backup platen provides rigid support for flat grinding and controlled finishing applications.
- Adjustable work rest improves workpiece stability, precision, and operator safety.

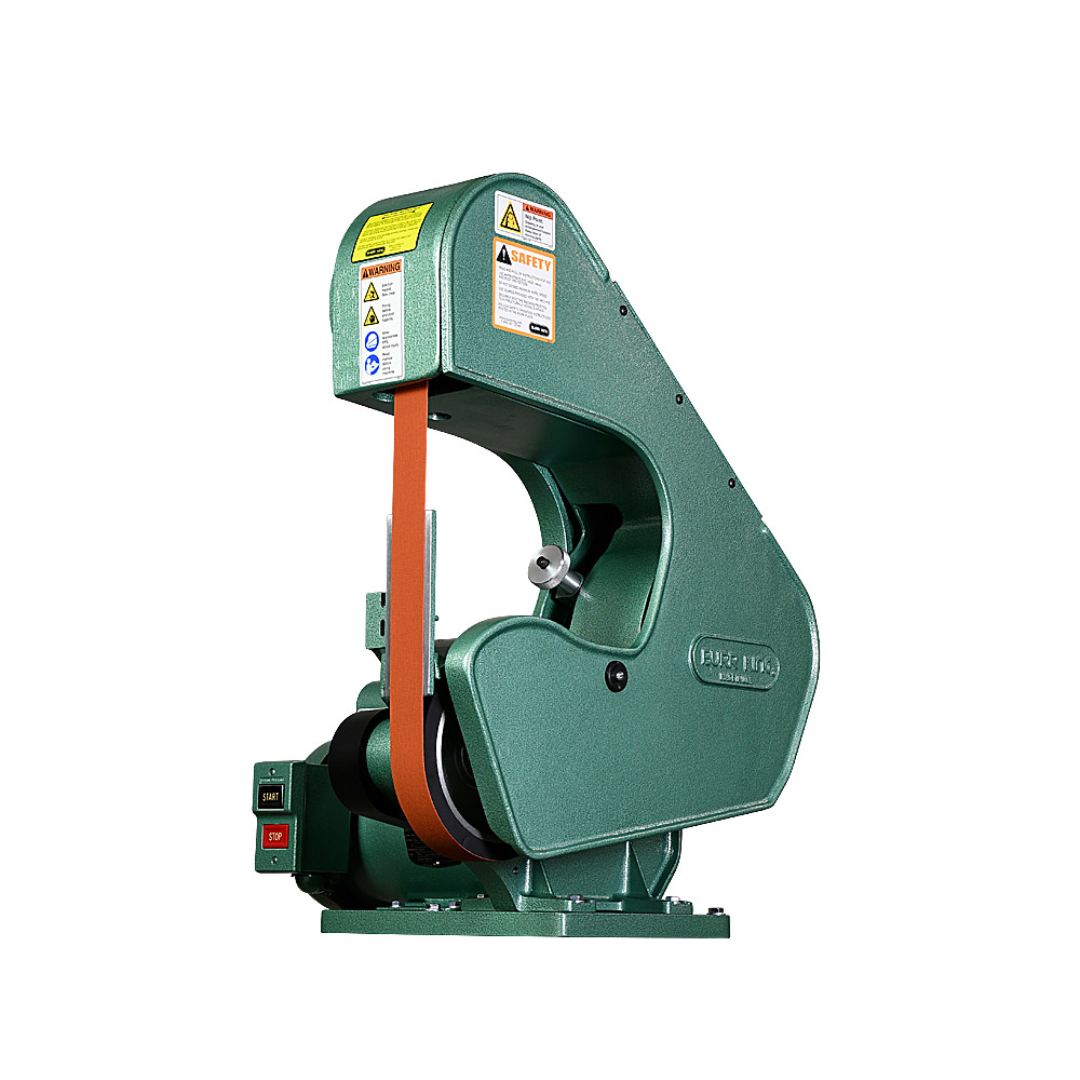

- Heavy-duty cast aluminum construction minimizes vibration while providing exceptional durability and long service life.

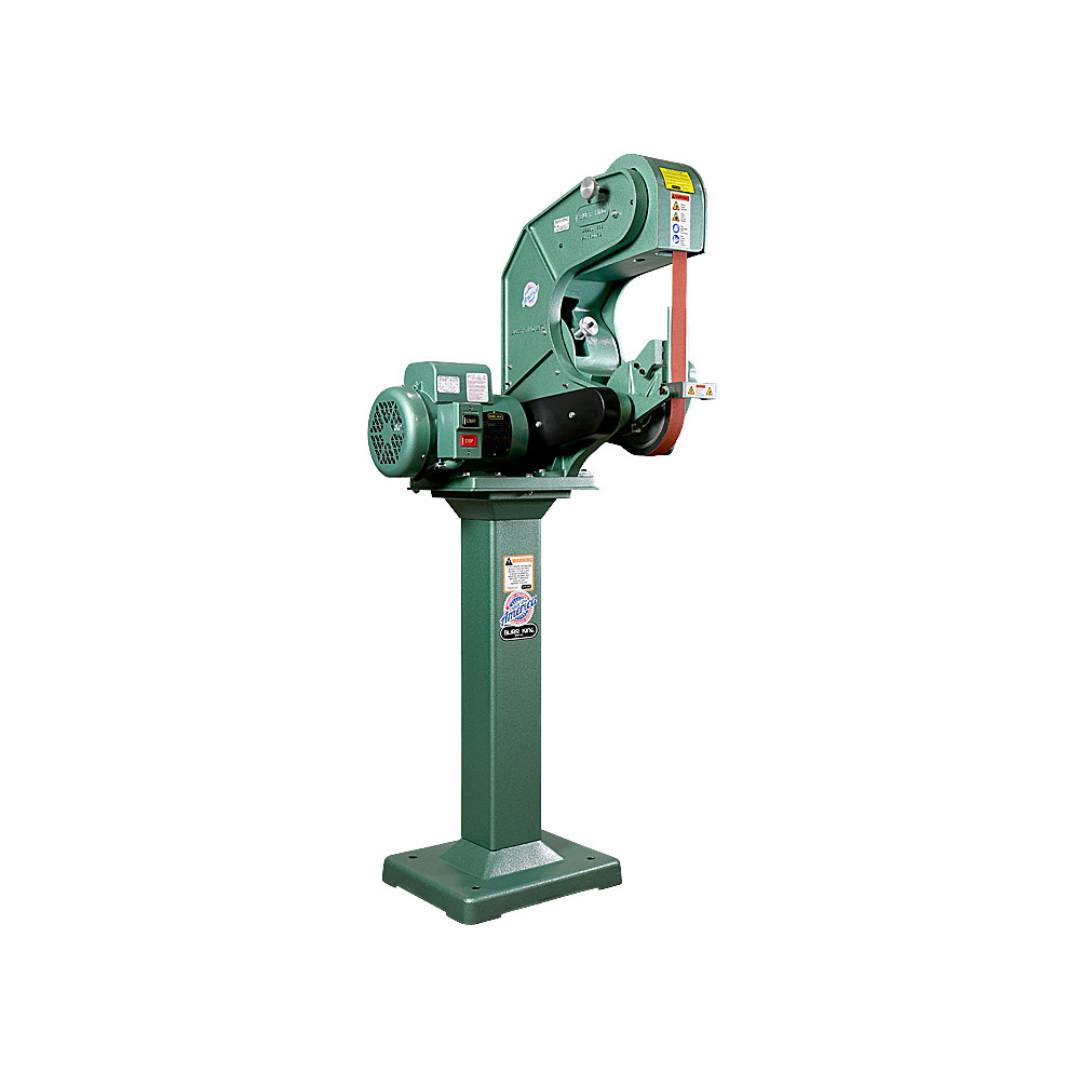

- Bench or pedestal mounting capability allows the grinder to adapt to virtually any industrial workspace.
- Proudly designed and manufactured in the USA for dependable professional performance and long-term reliability.
Why Choose the Burr King 1.5 x 60 or 2 x 60 Three Wheel Belt Grinder Model 760 70100
- Industrial-grade three-wheel grinder built for continuous-duty operation.
- Powerful 1.5 HP motor with fast 8,000 SFPM fixed belt speed.
- Supports both 1-1/2-inch and 2-inch wide 60-inch abrasive belts.
- Open three-wheel design improves grinding access and versatility.
- Quick-change belt system and precision tracking increase productivity.
- Heavy-duty cast aluminum construction delivers years of dependable performance.
- Ideal for fabrication, machining, welding, maintenance, and production environments.
- Designed and manufactured in the USA for professional industrial quality.
The Burr King 1.5 x 60 or 2 x 60 Three Wheel Belt Grinder Model 760 70100 combines industrial durability, precision belt tracking, and exceptional accessibility into a compact, professional-grade grinding system. Whether performing aggressive stock removal, deburring, contour grinding, or fine finishing, this machine delivers the reliability and performance demanded by today's metalworking professionals.
