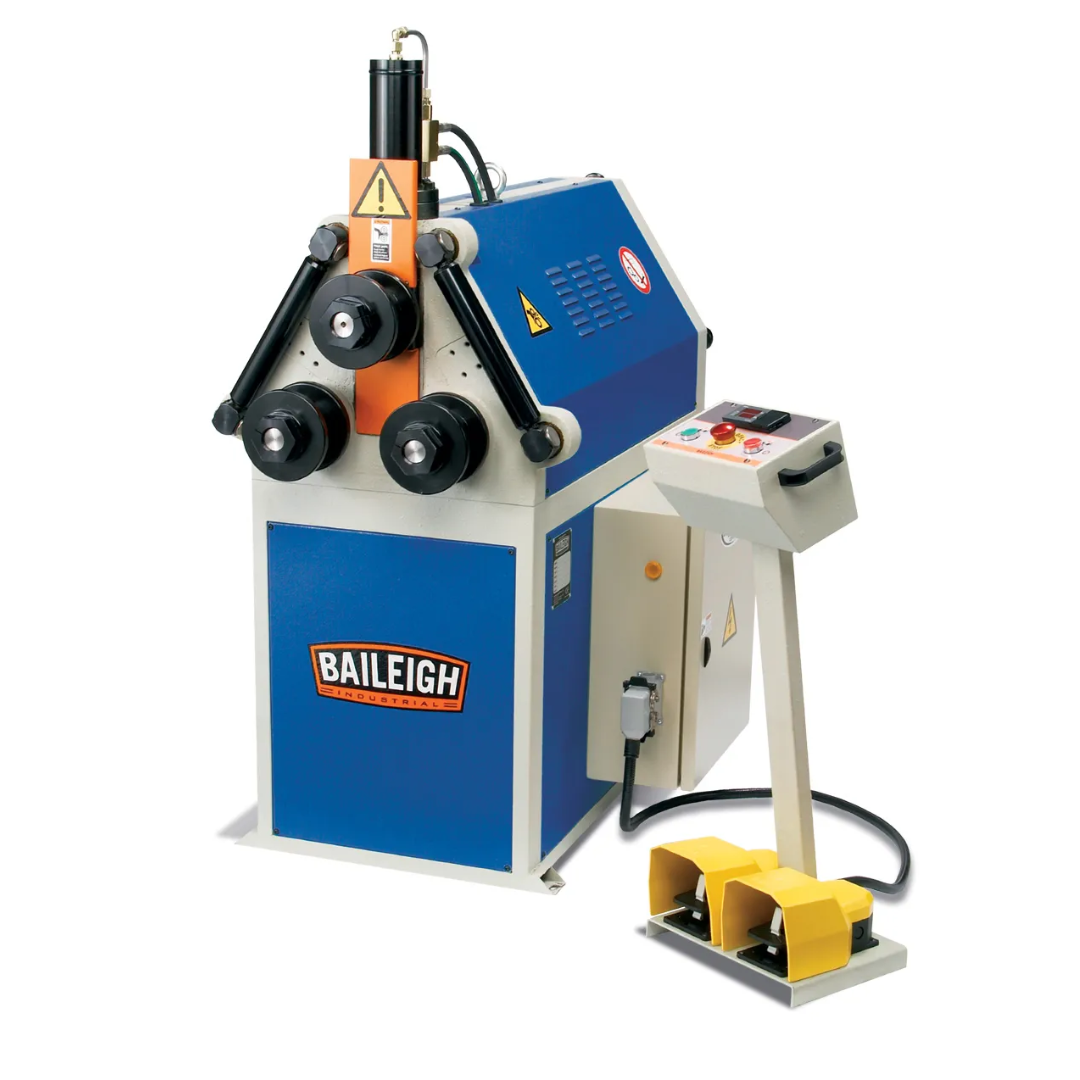

Baileigh Hydraulic Roll Bender R-H45 1006835 Applications
- Rolling round tubing, pipe, square tube, and rectangular profiles.
- Forming handrails, guardrails, gates, and ornamental ironwork.
- Architectural and decorative metal fabrication.
- Automotive chassis and custom fabrication projects.
- Trailer, agricultural, and equipment manufacturing.
- General fabrication shops requiring repeatable radius bending.
- Light industrial production of curved structural components.
Designed for fabrication professionals who require accurate hydraulic profile rolling with excellent repeatability, smooth operation, and convenient single-phase electrical compatibility.
Baileigh Hydraulic Roll Bender R-H45 1006835 Specifications
| Model | R-H45 |
|---|---|
| Product Number | 1006835 |
| Machine Type | Hydraulic Roll Bender / Ring Roller |
| Motor Power | 3.5 HP |
| Input Power | 220V Single Phase |
| Motor Phase | Single Phase |
| Driven Rolls | 3 Powered Rolls |
| Top Roll Adjustment | Hydraulic with Digital Readout (DRO) |
| Maximum Round Tube Capacity | 2.75 in. OD |
| Maximum Pipe Capacity | 2 in. Schedule 40 |
| Material Types | Round Tube, Square Tube, Pipe, Flat Bar, and Structural Profiles |
| Controls | Foot Pedal Forward/Reverse Operation |
| Lateral Guides | Integrated Material Guide Rollers |
| Construction | Heavy-Duty Fully Welded Steel Plate Frame |
| Net Weight | 1,000 lbs. |
| Gross Weight | 1,000 lbs. |
| Warranty | 1 Year |
| UPC | 19907415725 |
Baileigh Hydraulic Roll Bender R-H45 1006835 Performance & Construction
- Powerful 3.5 HP motor delivers dependable industrial performance while operating on standard 220V single-phase electrical service.

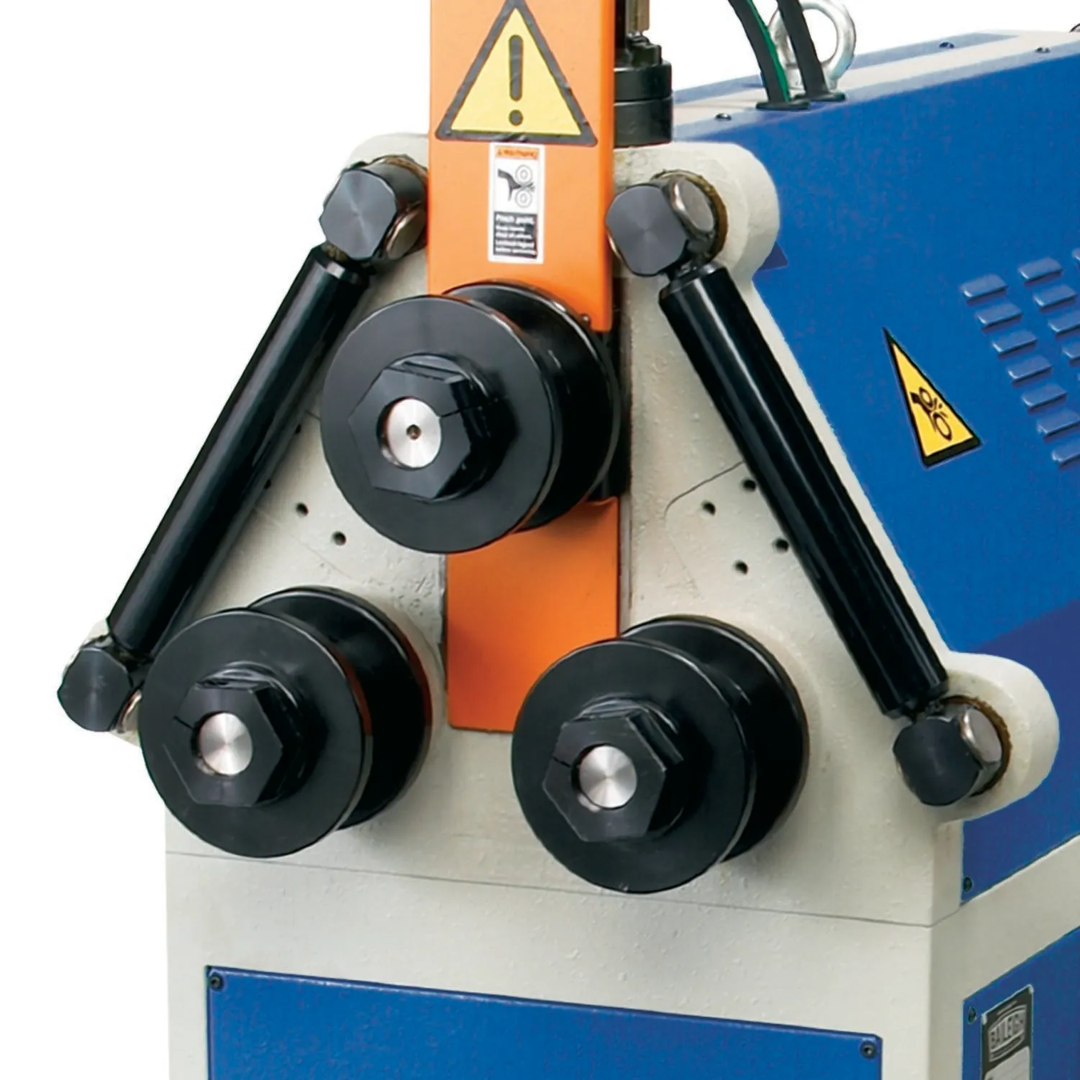

- Three fully driven rolls provide smooth material feeding and maintain consistent bending pressure for accurate profile rolling.

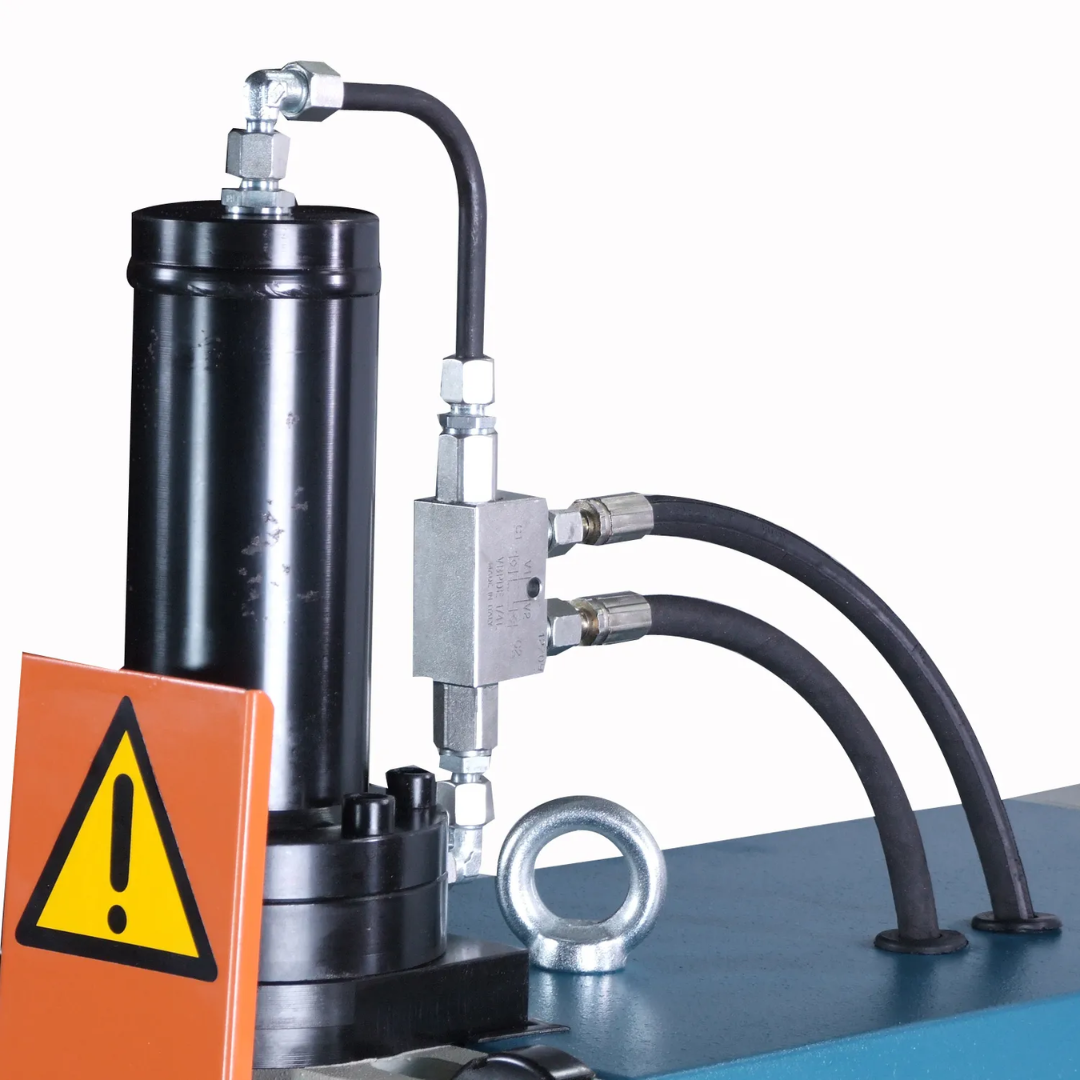

- Hydraulic top roll adjustment allows precise control of forming pressure for repeatable bends across a wide variety of materials.
- Digital roll position readout (DRO) enables operators to accurately duplicate settings for production work and repeat bending operations.
- Maximum capacity of 2-inch Schedule 40 pipe handles demanding pipe rolling applications in fabrication and industrial environments.
- Rolls round tubing up to 2.75-inch outside diameter for versatile tube and profile bending capabilities.
- Suitable for round, square, and flat stock expands fabrication flexibility for numerous architectural, structural, and custom metalworking applications.

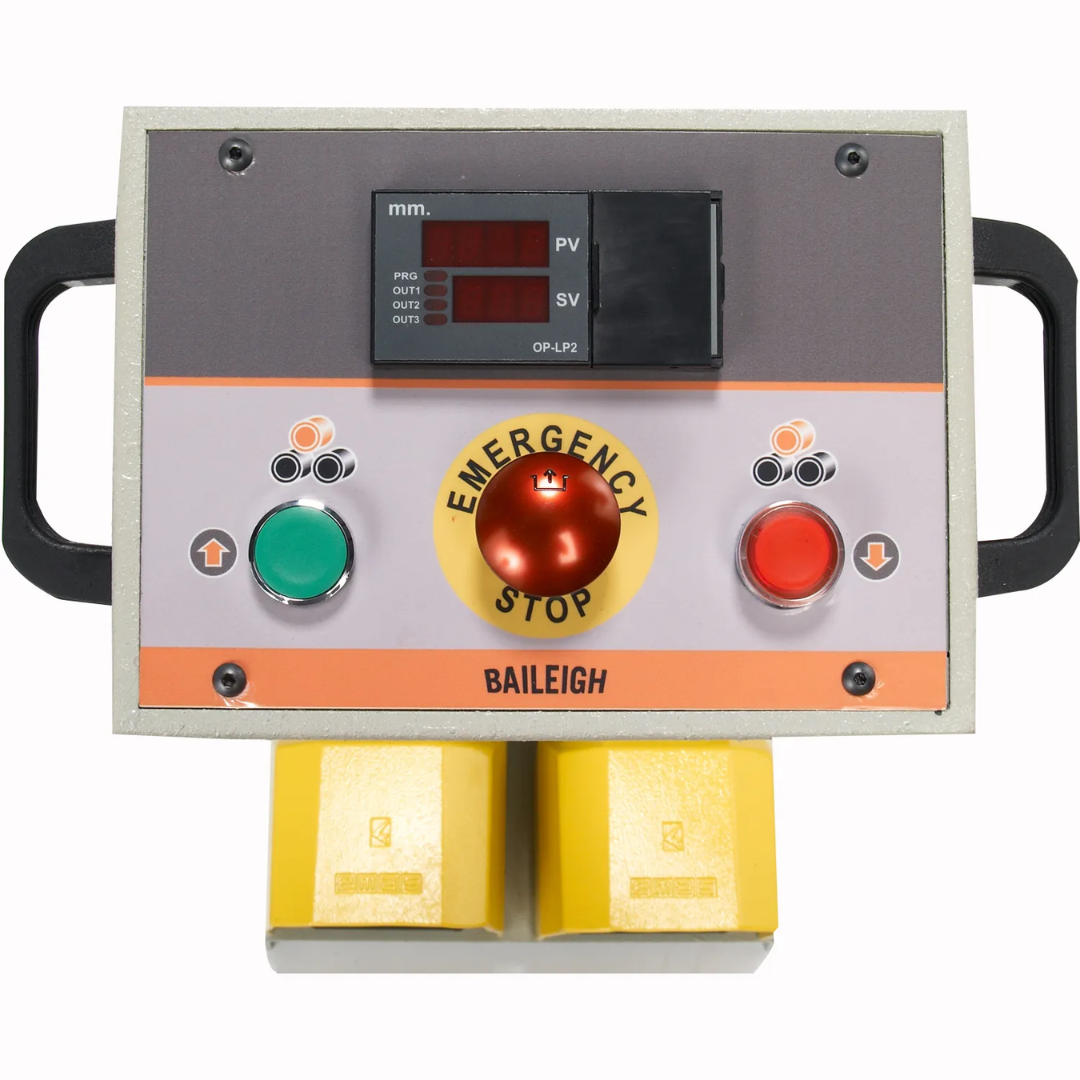

- Forward and reverse foot pedal controls provide hands-free machine operation while allowing better workpiece control and operator safety.
- Integrated lateral material guides help maintain profile alignment and minimize twisting during the rolling process.
- Heavy-duty welded steel plate frame minimizes deflection and vibration while ensuring long-term durability and consistent forming accuracy.
- Industrial hydraulic design delivers smooth, controlled bending action for high-quality finished parts with minimal operator effort.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for dependable long-term ownership.
Why Choose the Baileigh Hydraulic Roll Bender R-H45 1006835
- Hydraulic three-roll design produces smooth, consistent bends and large-radius curves.
- Digital roll position readout improves repeatability for production fabrication.
- Operates on convenient 220V single-phase power for easy shop installation.
- Capable of rolling pipe, tubing, flat bar, and structural profiles.
- Foot pedal controls and lateral guides improve efficiency and operator control.
- Heavy-duty welded construction ensures dependable long-term industrial performance.
- Ideal for fabrication shops, ornamental iron manufacturers, automotive builders, and custom metalworking professionals.
The Baileigh Hydraulic Roll Bender R-H45 1006835 combines hydraulic forming power, precision digital positioning, and rugged industrial construction into a versatile profile rolling solution. Built for repeatable accuracy, dependable performance, and professional fabrication results, it delivers the quality and reliability expected from Baileigh Industrial.
