Baileigh Cold Saw - (CS-275SA) 1002447 Applications
- Production metal fabrication facilities.
- Structural tubing and pipe fabrication.
- Machine shops requiring precision metal cutting.
- Automotive and motorsports fabrication.
- Industrial maintenance and repair departments.
- Manufacturing of frames, brackets, and welded assemblies.
- Production cutting of aluminum, steel, and stainless steel stock.
- General industrial metalworking operations.

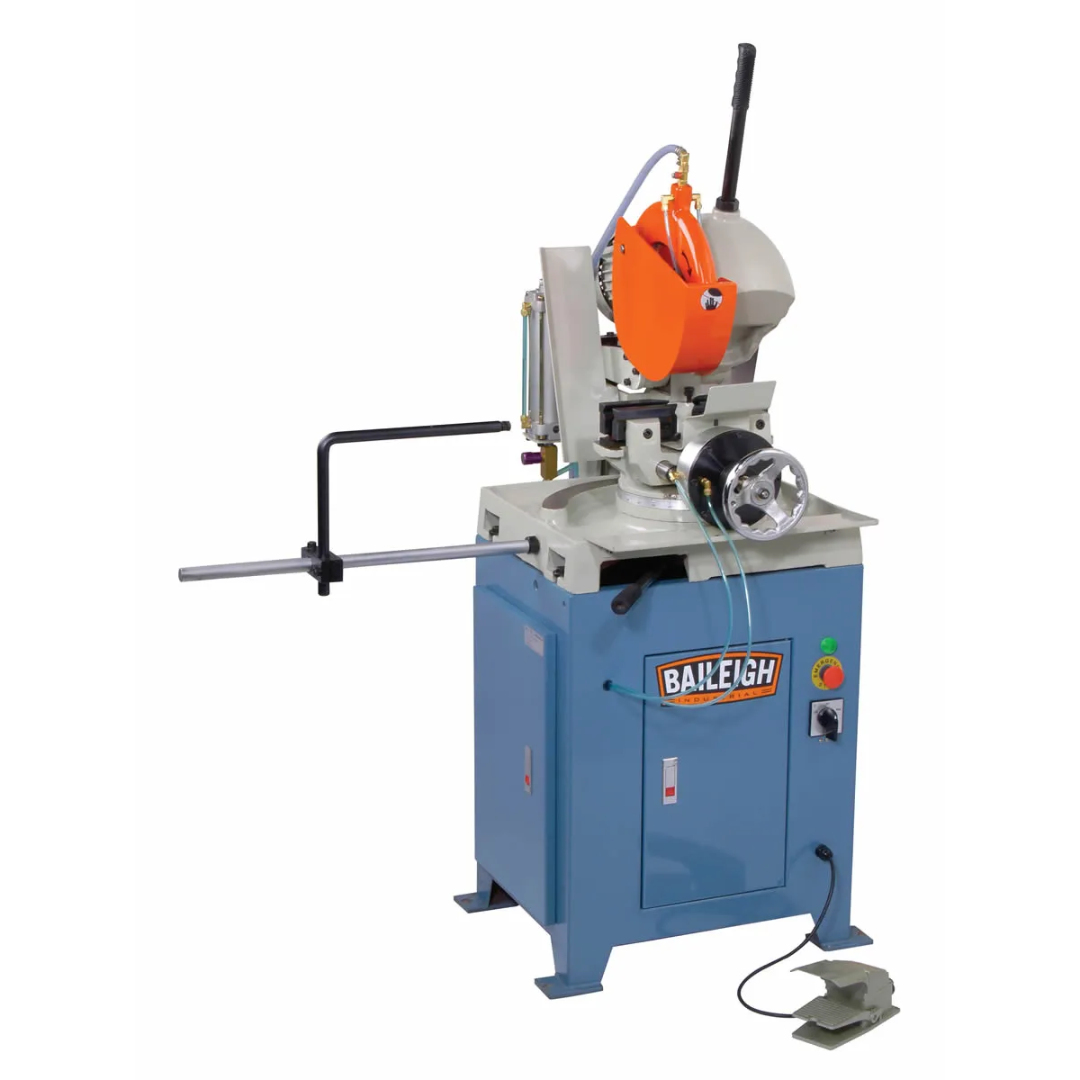

The Baileigh Cold Saw - (CS-275SA) 1002447 delivers repeatable, burr-free production cutting while minimizing operator effort through semi-automatic operation and precision workholding.
Baileigh Cold Saw - (CS-275SA) 1002447 Specifications
| Model | CS-275SA |
|---|---|
| Manufacturer | Baileigh Industrial |
| Product Number | 1002447 |
| Machine Type | Semi-Automatic Cold Saw |
| Blade Size | 11 in. |
| Motor | 3 HP |
| Input Power | 220V Three Phase |
| Motor Phase | Three Phase |
| Blade Speeds | Approximately 60 RPM and 120 RPM |
| Maximum Round Tube Capacity | 2.75 in. |
| Miter Range | 45° Right / 90° Left |
| Vise Style | Pneumatic (Air) American-Style Self-Centering Vise |
| Coolant System | Integrated Flood Coolant |
| Operation Modes | Semi-Automatic and Manual |
| Net Weight | 715 lbs. |
| Gross Weight | 715 lbs. |
| Warranty | 1 Year |
| UPC | 731325402032 |
Baileigh Cold Saw - (CS-275SA) 1002447 Performance & Construction
- Powerful 3 HP industrial motor provides dependable cutting performance for demanding fabrication and production applications.
- 220V three-phase electrical operation delivers consistent power for continuous industrial use.
- 11-inch cold saw blade capacity offers clean, accurate cutting across a wide variety of metal materials.
- Dual blade speeds of approximately 60 RPM and 120 RPM allow operators to match cutting speed to material type and thickness for improved blade life and surface finish.
- Semi-automatic operating cycle automatically returns the blade head after each completed cut, reducing operator fatigue while increasing productivity.
- Manual operating mode provides additional flexibility for custom cutting applications and setup work.
- Pneumatic American-style self-centering vise securely grips material while automatically centering stock for improved cutting precision and repeatability.
- Maximum 2.75-inch round tube capacity handles common tubing and pipe sizes used throughout industrial fabrication.
- Miter capability of 45° right and 90° left provides versatile angle cutting for frames, structural members, and fabricated assemblies.
- Integrated flood coolant system lubricates the blade, improves surface finish, evacuates chips, and extends blade life during continuous production.
- Heavy-duty cast-iron saw head minimizes vibration and maintains blade alignment for smoother, more accurate cuts.
- Production stop rod allows repeatable part lengths for efficient batch production and reduced measuring time.
- Direct-drive blade system transfers power efficiently while maintaining dependable cutting performance.
- Supported by Baileigh's 1-year warranty and lifetime technical support for long-term confidence and reliability.
Why Choose the Baileigh Cold Saw - (CS-275SA) 1002447
- Semi-automatic operation increases production while reducing operator fatigue.
- Powerful 3 HP three-phase motor delivers reliable industrial cutting performance.
- Dual blade speeds optimize cutting across multiple material types.
- Pneumatic self-centering vise improves accuracy and repeatability.
- Integrated flood coolant produces cleaner cuts while extending blade life.
- 2.75-inch round tube capacity accommodates common fabrication materials.
- Heavy cast-iron construction minimizes vibration for exceptional cutting precision.
- Supports both semi-automatic and manual operating modes for maximum flexibility.
- Ideal for fabrication shops, manufacturers, maintenance departments, and production environments.
- Backed by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Cold Saw - (CS-275SA) 1002447 combines industrial durability, precision cutting performance, and semi-automatic convenience into one dependable production machine. Featuring a rigid cast-iron construction, pneumatic self-centering vise, dual-speed operation, flood coolant system, and automatic blade return, this cold saw delivers clean, repeatable cuts while improving productivity in demanding metal fabrication environments.
