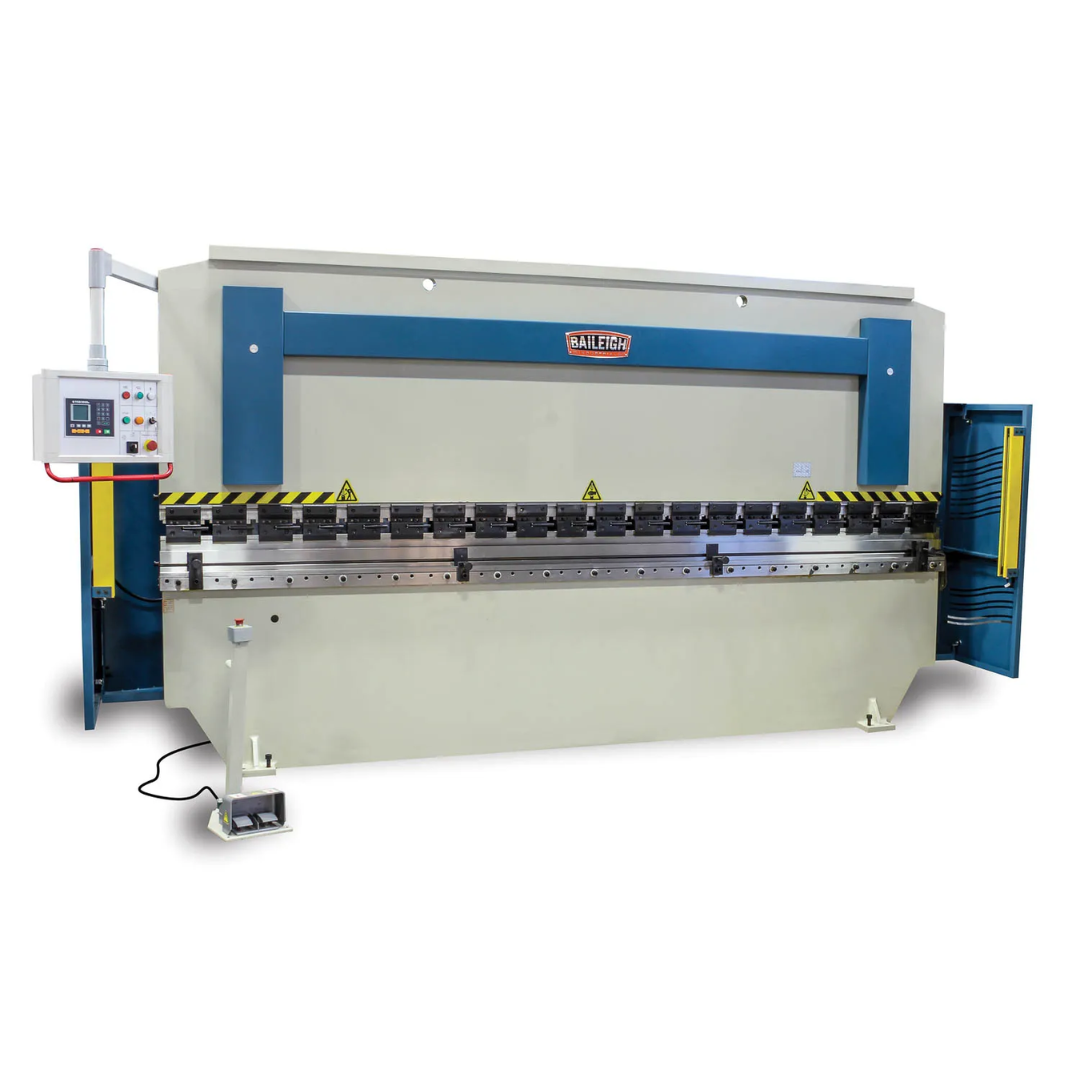

Baileigh 140-Ton Hydraulic Press Brake, 13' Bed Length (BP-14013CNC) 1000787 Applications
- Industrial sheet metal fabrication and manufacturing
- HVAC ductwork and ventilation system production
- Electrical enclosures and control cabinet fabrication
- Agricultural equipment and machinery manufacturing
- Architectural metal panel production
- Transportation, trailer, and vehicle component fabrication
- Large formed parts and long panel production
- Custom fabrication and prototype development
- Production bending operations requiring repeatable accuracy
Ideal for fabrication facilities that require long-bed bending capacity, CNC repeatability, and industrial-grade hydraulic performance for daily production workloads.
Baileigh 140-Ton Hydraulic Press Brake, 13' Bed Length (BP-14013CNC) 1000787 Specifications
| Model Number | BP-14013CNC |
|---|---|
| Product Number | 1000787 |
| Bending Capacity | 140 Tons |
| Bending Length | 157" (13') |
| Input Power | 220V, Three Phase |
| Controller | Estun CNC Control System |
| Back Gauge Length | 23.62" |
| Back Gauge Motor | 1/2 HP |
| Approach Speed | 2.0 in./sec. |
| Bending Speed | 0.6 in./sec. |
| Stroke Length | 4.7" |
| Distance Between Housings | 124" |
| Distance from Table to Ram | 15.3" |
| Throat Depth | 12.5" |
| Maximum Bend Angle | 135° |
| Hydraulic System | Rexroth Industrial Hydraulic Components |
| Hydraulic Seals | NOK Premium Japanese Seals |
| Included Tooling | Gooseneck Punch & Multi-V Die Set |
| Frame Construction | Fully Welded Stress-Relieved Steel Frame |
| Gross Weight | 28,400 lbs. |
| Net Weight | 28,400 lbs. |
| UPC | 731325394337 |
| Warranty | 1 Year Parts Warranty |
Baileigh 140-Ton Hydraulic Press Brake, 13' Bed Length (BP-14013CNC) 1000787 Performance & Construction
- 140 tons of bending force provides the power required for demanding sheet metal forming applications and heavy fabrication projects.
- 157-inch (13-foot) bed length accommodates oversized panels, long components, and production parts that exceed the capabilities of smaller press brakes.

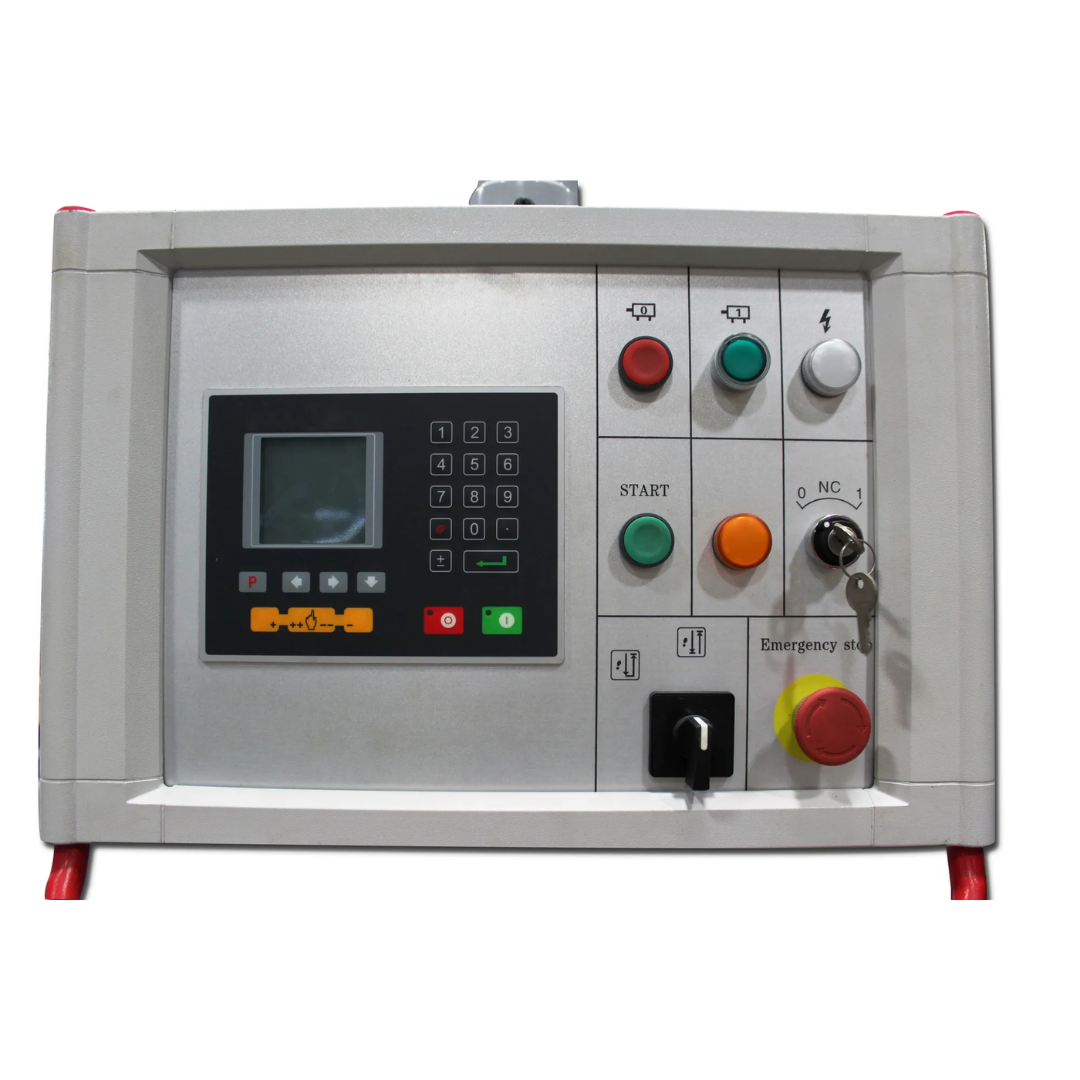

- Estun CNC control system allows operators to program and execute repeatable bend sequences with improved accuracy and reduced setup time.
- CNC-controlled back gauge provides precise material positioning to improve consistency across production runs.
- Premium Rexroth hydraulic system delivers smooth, balanced ram movement and dependable long-term hydraulic performance.
- NOK hydraulic seals from Japan are recognized throughout the industry for durability and reliability, helping maintain hydraulic efficiency and reducing maintenance requirements.
- 220V three-phase power configuration supports industrial shop environments and provides reliable machine performance under continuous workloads.
- Fully welded stress-relieved steel frame minimizes deflection and preserves machine alignment for long-term bending accuracy.
- 12.5-inch throat depth allows greater flexibility when forming larger workpieces and complex components.
- 4.7-inch stroke length supports a wide range of tooling configurations and forming applications.

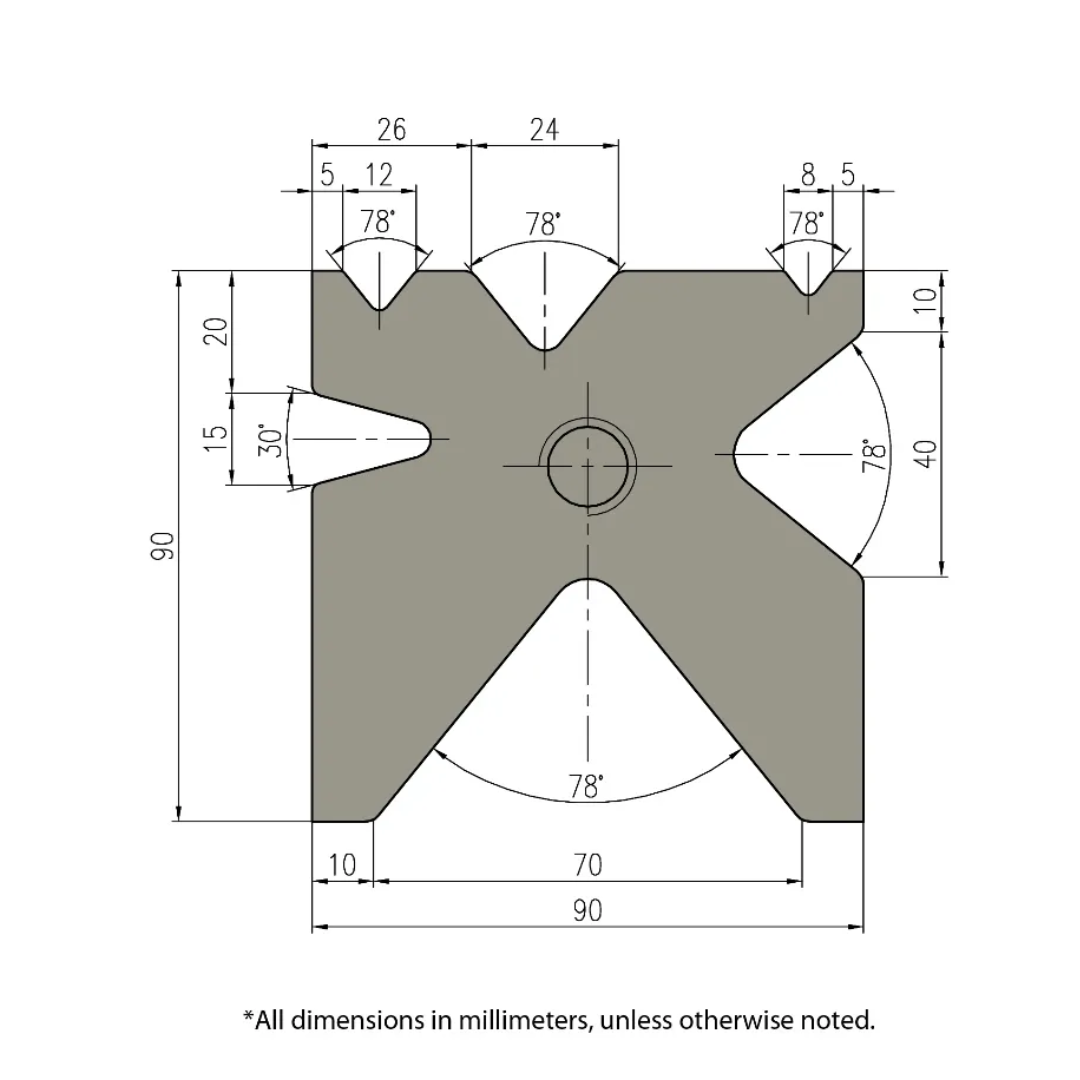

- Included gooseneck punch and multi-V die set provide versatility for creating numerous bend profiles and sheet metal configurations.
- Integrated safety equipment including light curtains, machine guards, and emergency stop controls enhances operator protection during operation.
- Heavy-duty 28,400-pound construction contributes to exceptional stability, vibration resistance, and durability in demanding industrial environments.
- Long-bed production capability improves efficiency when processing large panels and high-volume fabrication projects.
- Industrial-grade design supports continuous production while maintaining consistent bend quality and repeatability.
- Lifetime technical support from Baileigh provides long-term assistance and confidence throughout machine ownership.
Why Choose the Baileigh 140-Ton Hydraulic Press Brake, 13' Bed Length (BP-14013CNC) 1000787
- 140-ton bending capacity for heavy-duty sheet metal forming.
- 157-inch bed length handles oversized panels and long workpieces.
- Estun CNC control improves repeatability and production efficiency.
- Premium Rexroth hydraulic components ensure smooth, reliable operation.
- NOK Japanese hydraulic seals enhance durability and hydraulic performance.
- Heavy-duty welded frame maintains long-term accuracy and stability.
- Includes tooling, safety systems, warranty coverage, and lifetime technical support.
The Baileigh 140-Ton Hydraulic Press Brake, 13' Bed Length (BP-14013CNC) 1000787 combines industrial-grade hydraulic performance, CNC-controlled precision, and rugged long-bed construction to deliver dependable forming power for fabrication professionals who demand accuracy, productivity, and durability.
