Foot Pedal Cycle 4° Pocket Angle Laser Guide

Maksiwa PHM.30 Pocket Hole Machine for faster production pocket holes—clamp, route, and drill with a single foot pedal cycle.

The Maksiwa PHM.30 Pocket Hole Machine is engineered for pros who want speed, repeatability, and clean pockets. Step on the pedal and the machine clamps the stock, routes the pocket, and drills the pilot hole—smooth, consistent, and ready for production.

View Specifications Setup & Care Guide Watch Videos

Best For

Cabinet & Furniture Production

Pocket Angle

4°

Air Required

85 PSI

Power

1PH • 127V

Why Choose the Maksiwa PHM.30 Pocket Hole Machine?

Built for pros who need speed, repeatability, and clean pockets that assemble into strong joints.

Maksiwa PHM.30 Pocket Hole Machine for One-Step Production Speed

Tap the foot pedal and the cycle clamps, routes the pocket, and drills the pilot hole—fast and consistent for production work.

Maksiwa PHM.30 Pocket Hole Machine for Stronger Joints With a 4° Angle

The 4° pocket angle is designed to create strong, reliable joints across cabinetry, furniture, and frame builds.

Maksiwa PHM.30 Pocket Hole Machine for Cleaner, Repeatable Placement

Laser guidance, depth scale, and an adjustable fence help you hit the same pocket location again and again—without guesswork.

Maksiwa PHM.30 Pocket Hole Machine Performance for Professional Shops

Control pocket position, depth, and speed so you get clean results across softwoods, hardwoods, MDF, and plywood.

Maksiwa PHM.30 Pocket Hole Machine With Speed Control for Material Hardness

Adjust cycle speed to match wood type so pockets stay clean and consistent—especially when cutting deeper pockets or harder stock.

Speed control dial for faster/slower cycles
Helps reduce burning in dense materials
Improves finish quality and repeatability

Maksiwa PHM.30 Pocket Hole Machine With Depth Scale and Fence Control

Set how far from the edge the machine drills, then repeat pockets accurately across rails, stiles, frames, and panels.

Shop Tip

Use the laser guide for fast alignment—then rely on the fence/stop system to repeat pockets without measuring each part.

Maksiwa PHM.30 Pocket Hole Machine Use Cases for Daily Production

Designed for repeatable joints in real shop workflows.

Maksiwa PHM.30 Pocket Hole Machine for Cabinet Face Frames

Cut clean pockets quickly for strong face frame joints that align properly and assemble fast.

Maksiwa PHM.30 Pocket Hole Machine for Furniture Assembly

Perfect for rails, aprons, stretchers, and frames where repeatable pocket placement saves time.

Maksiwa PHM.30 Pocket Hole Machine for Production Runs

Foot pedal operation keeps your hands free and speeds up throughput when you’re batching parts.

Maksiwa PHM.30 Pocket Hole Machine Technical Specifications

Exact specs pulled from your provided technical data.

Model	PHM.30
Pocket Angle	4°
Power	1PH – 127V
Height	42.5"
Router	Bosch 2.25 HP • 16 Amp
Drill Router	Bosch 1.0 HP • 12 Amp
Router Bit	3/8” bit • 1/4” shank
Drill Bit	1/8” – 2 3/4”
Wood Thickness Limit	1/2” – 1-9/16”
Adjustable Fence	Yes
Dust Port	4”
Air Pressure	85 PSI

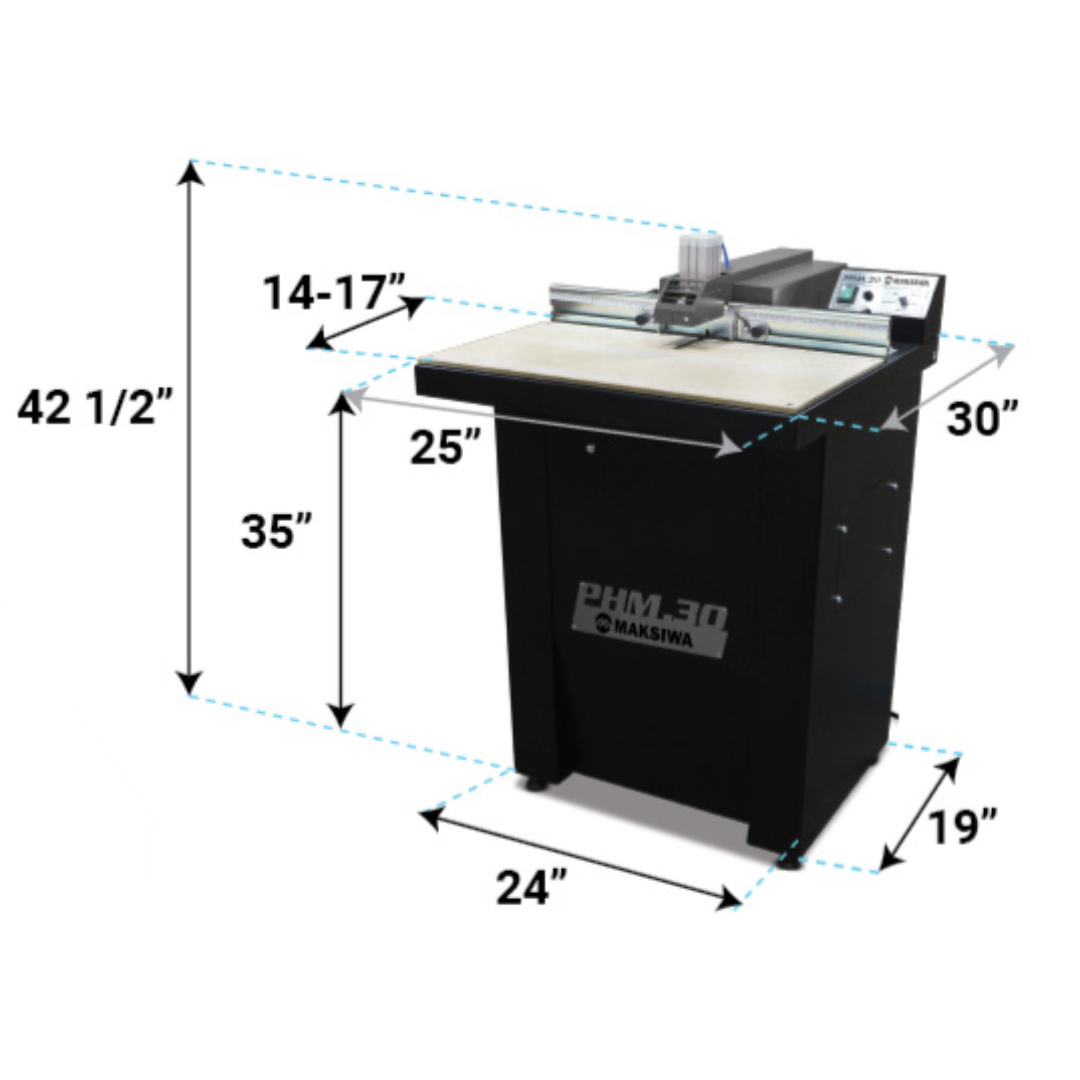

Footprint	25” x 30” x 42 1/2"
Laser Guide	Yes
Speed Control	Yes
Dual Sided Top	Yes – Smooth & Textured
Depth Gauge	Yes – MM & Inches
Weight	174 lbs
Warranty	2 Years

Dust Collection Requirement

This equipment requires a dust collection system with a minimum of 2 HP. A minimum of 600 CFM is recommended for best performance.

Maksiwa PHM.30 Pocket Hole Machine What's Included

A clean checklist customers want before buying.

Maksiwa PHM.30 Pocket Hole Machine Included Components

PHM.30 machine (frame/stand + table)
Foot pedal control (cycle activation)
Stopper system for pocket position/length
Adjustable fence and perpendicular guides
Laser alignment guide
Depth scale system (MM & Inches)
Dual-sided tabletop (smooth + textured)

Maksiwa PHM.30 Pocket Hole Machine Bits, Gauges & Tools

Router bit (3/8” with 1/4” shank)
Drill bit (HSS drill bit Ø3.5mm / approx. 1/8”) and spare drill bit (per included kit)
Bit gauges (router + drill) for correct bit projection
Collet wrenches / included install tools

Power Note

For best performance and motor life, use a dedicated 120V / 20A circuit (per manual guidance).

Maksiwa PHM.30 Pocket Hole Machine Build Features That Matter

The “why” behind faster cycles, cleaner pockets, and smoother shop workflow.

Maksiwa PHM.30 Pocket Hole Machine Powered by Bosch Motors

A 2.25HP Bosch router + 1HP Bosch drill router deliver the cutting power needed for real production work.

Maksiwa PHM.30 Pocket Hole Machine With Clean Dust Management

A 4” dust port supports strong extraction to keep pockets cleaner and help extend bit + motor life.

Maksiwa PHM.30 Pocket Hole Machine With Fast, Accurate Positioning

Laser guidance, adjustable fence, and guides help reduce layout time and improve consistency part-to-part.

Maksiwa PHM.30 Pocket Hole Machine Videos

Quick demos so customers can see the machine cycle and learn the workflow.

Maksiwa PHM.30 Pocket Hole Machine Setup & Care Guide

Simple steps to keep pockets consistent, reduce downtime, and extend bit life.

Maksiwa PHM.30 Pocket Hole Machine Setup Checklist

Place the machine on a level surface and stabilize the leveling feet. Connect to a dedicated circuit. Connect clean, dry air and set pressure to 85 PSI. Connect dust collection to the 4” port. Install bits using the included bit gauges so the cycle doesn’t collide with the table or tooling. Run a test cut on scrap of the same thickness as your real material.

Maksiwa PHM.30 Pocket Hole Machine Bit & Tooling Care

Keep bits sharp and clean. Dull or dirty bits can burn stock, stall motors, and reduce pocket quality. If you notice burning, rough pockets, or chatter, slow the cycle speed and/or replace tooling. Always install bits with the bit gauge for correct bit projection.

Maksiwa PHM.30 Pocket Hole Machine Cycle Speed Guidance

Match cycle speed to material hardness. Use slower speeds for hard woods and deeper pockets; use faster speeds for softer materials. If the router or drill stalls, turn the machine off and remove the workpiece—then reduce speed and check tooling sharpness.

Maksiwa PHM.30 Pocket Hole Machine Safety Basics

Keep hands away from the clamp and bits during the cycle. Always unplug and disconnect air before adjustments or bit changes. Use eye protection and keep guards in place. Do not cut pockets in material less than 1/2” thick.

Maksiwa PHM.30 Pocket Hole Machine Warranty

The Maksiwa PHM.30 Pocket Hole Machine is backed by a 2-year warranty. Warranty coverage typically excludes misuse, poor maintenance, unauthorized modifications, and non-original replacement parts. Use proper dust collection and follow routine maintenance steps for best long-term performance.
