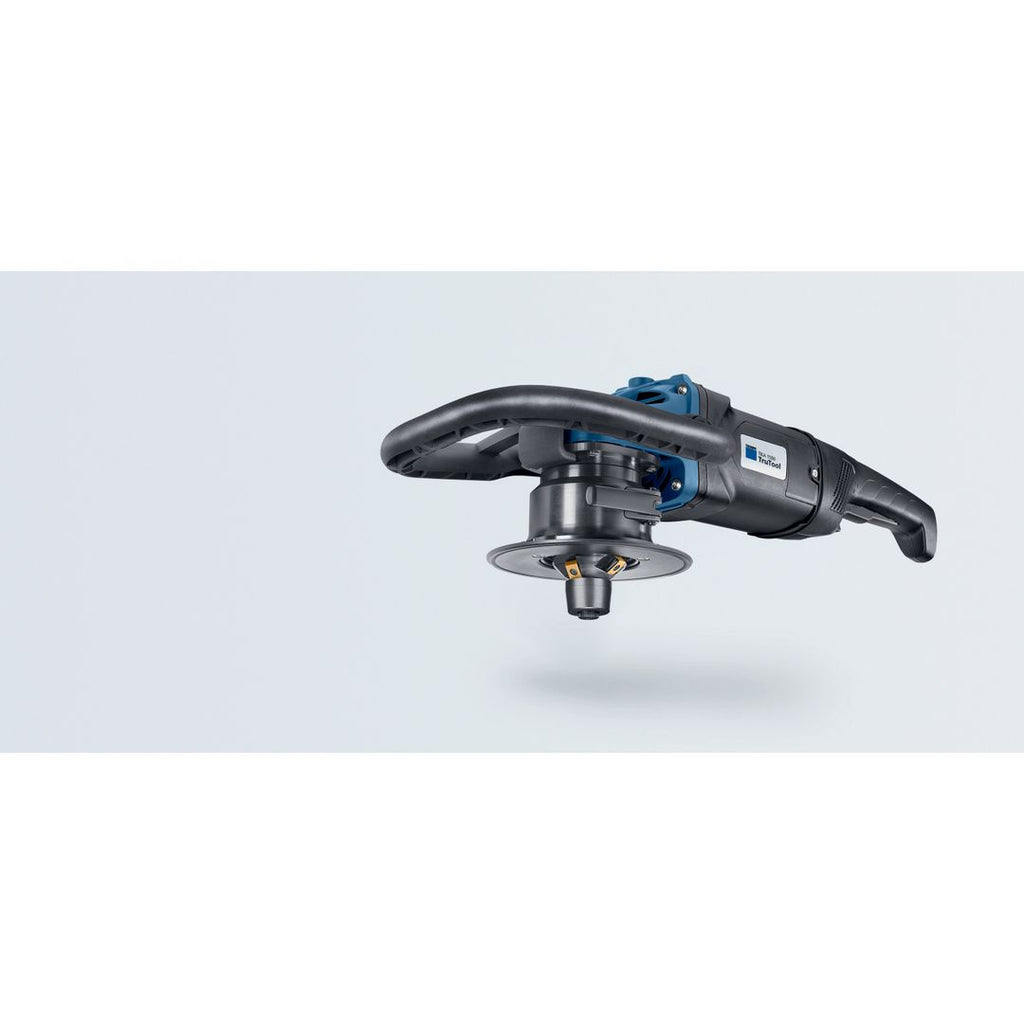

TKA 1500 Highlights
- Ergonomic operation: Handle shape, size and positioning support safe machine guidance and chamfer quality
- Tool-free adjustment: Chamfer lengths set with a max. ¾ manual turn and a clear dial-ring view
- Consistent edge quality: Burr- and oxide-free surfaces at a constant angle, without material change
- Versatile use: Straight edges, inner and outer contours, and holes from 80mm
- Stop prism: Doubles as chip protection, guiding chips to the floor in a controlled manner for workplace safety
- Ships with 45° tool: 30°, 37.5°, 60°, or radius multi-edge cutter mounts also available
TKA 1500 Specifications
| Brand | TRUMPF |
|---|---|
| Model | TruTool TKA 1500 |
| Max Chamfer Length, Steel 400 N/mm² | 15 mm |
| Max Chamfer Height, Steel 400 N/mm² | 10.6 mm |
| Max Chamfer Length, Steel 600 N/mm² | 12 mm |
| Max Chamfer Length, Steel 800 N/mm² | 10 mm |
| Max Chamfer Length, Aluminum 250 N/mm² | 15 mm |
| Smallest Inner Radius | 30 mm |
| Smallest Bore Hole (Ø) | 55 mm |
| Minimum Sheet Thickness | 3 mm + hs |
| Working Speed (max.) | 1.5 m/min |
| Nominal Power Consumption | 2600 W |
| Length | 679 mm |
| Height | 197 mm |
| Weight | 10 kg |
Standard Accessories Included with the TKA 1500
- 45° multi-edge cutter mount (standard)
- Operator's manual
Important Note: This SKU ships without tool; the 45° mount, or 30°/37.5°/60°/radius mounts, are selected by application. This is a professional edge-trimming tool shipped via commercial freight.
