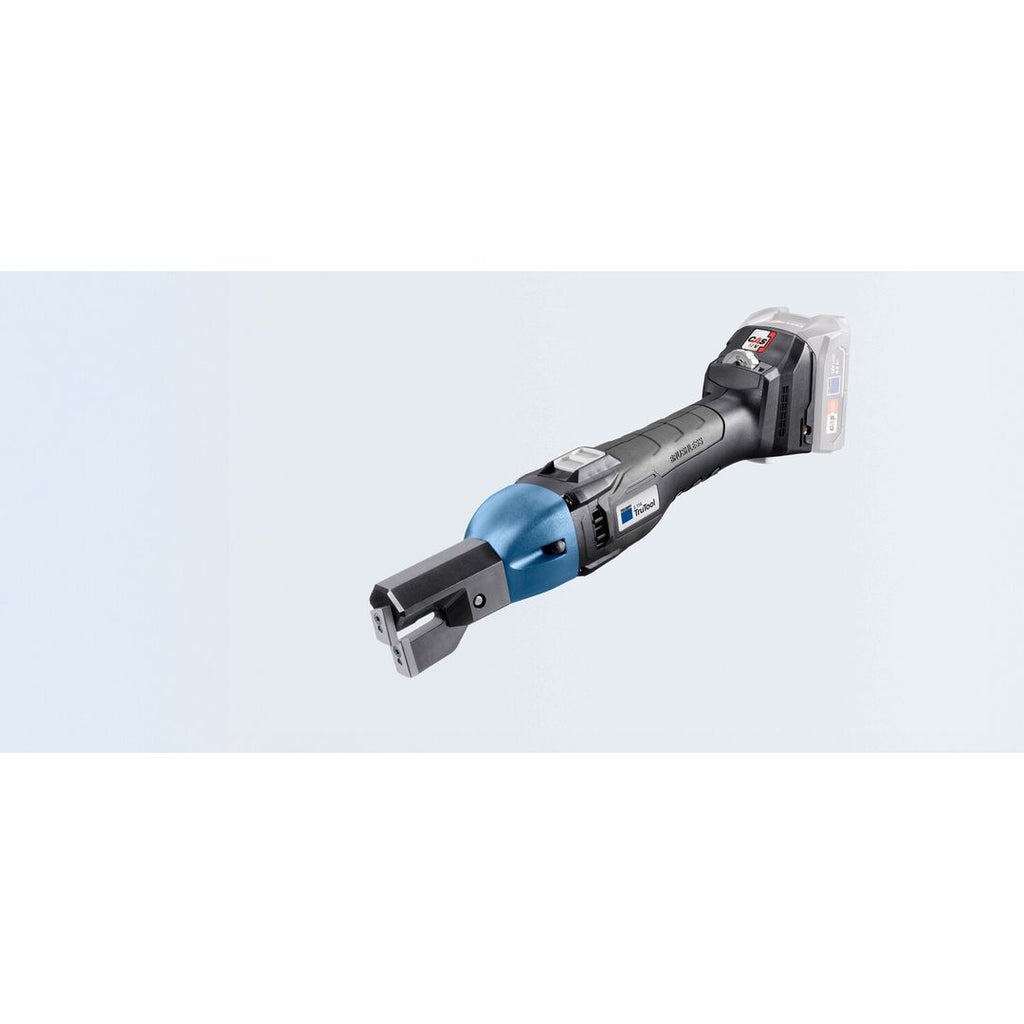

TruTool S 114 Highlights
- Compact 12V LiHD battery: Compatible across the 12V-36V Cordless Alliance System (CAS) recharger range.
- Brushless motor: Practically unlimited service life, virtually wear-free.
- Flush, short cutting: Minimal 30mm obstruction cuts ducts flush with walls and ceilings.
- Easily rotated: Outstanding cut quality, even on spiral ducts.
- Ideal for C-L-U profiles: Perfect for trimming and cutting C, L, and U profiles.
- 2-sided multi-edge cutter: Cutters interchange with each other, doubling service life.
TruTool S 114 Specifications
| Brand | TRUMPF |
|---|---|
| Model | TruTool S 114 |
| Max Sheet Thickness, Steel 400 N/mm² | 1.6 mm |
| Max Sheet Thickness, Steel 600 N/mm² | 1 mm |
| Max Sheet Thickness, Aluminum up to 250 N/mm² | 2 mm |
| Spiral Duct, Steel 400 N/mm² | 4 x 0.75 mm |
| Spiral Duct, Steel 600 N/mm² | 4 x 0.5 mm |
| Smallest Radius | 60 mm |
| Working Speed (max.) | 13 m/min |
| Voltage | 12 V |
| Minimum Tube Diameter | 50 mm |
| Throat Depth | 30 mm |
| Length | 380 mm |
| Height | 95 mm |
| Weight (incl. battery) | 1.8 kg |
Standard Accessories Included with the S 114
- 12V LiHD rechargeable battery and universal CAS charger
- Carrying case
