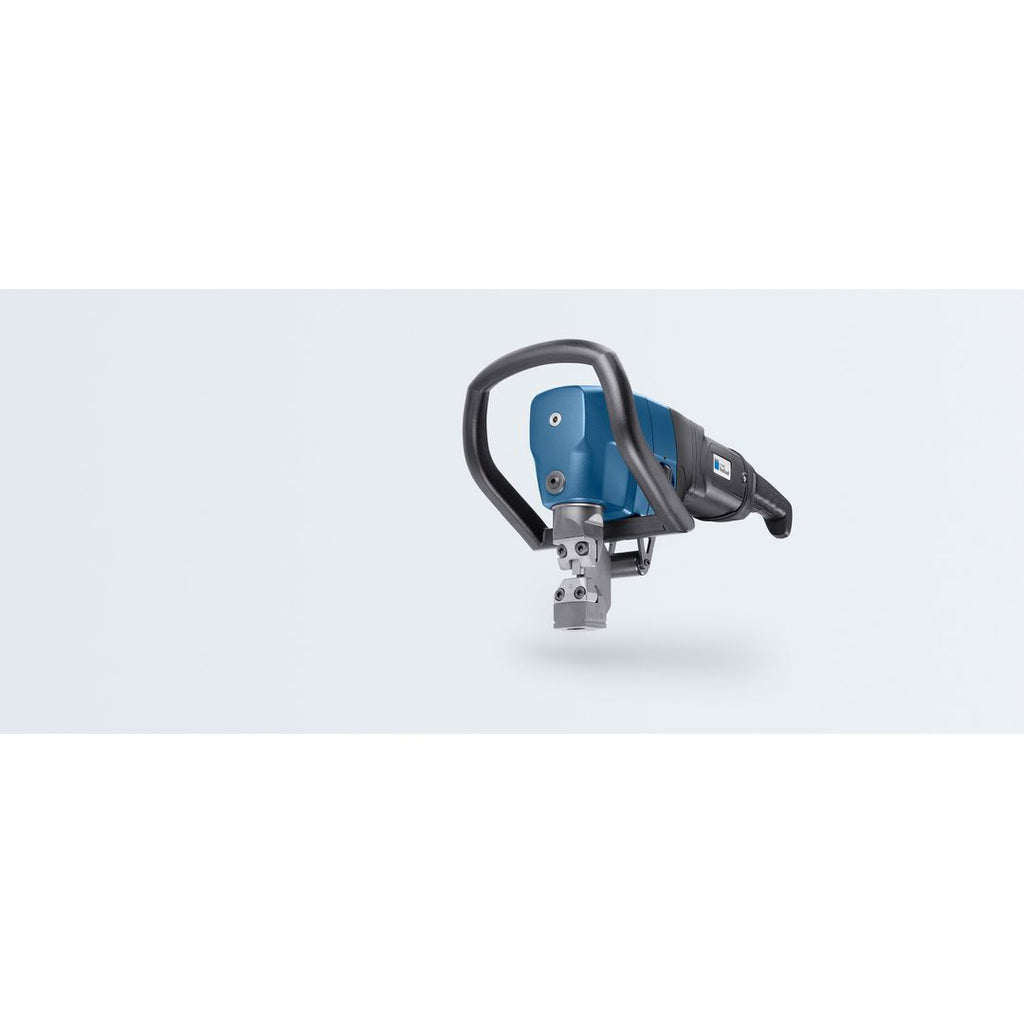

N 1000 Highlights
- 2-speed motor: Choose the right speed for material thickness, strength and workpiece type
- 4 cutting directions: Machine turns 360° in 4 steps of 90°
- Rectangular punch: Flexibility for profiles, hard-to-reach areas, cuts across edges and weld seams
- Powerful 2600W motor: Sophisticated gear technology for outstanding continuous-load handling
- Heavy-duty punch option: Available for continuous use in 0.4in sheet thickness
N 1000 Specifications
| Brand | TRUMPF |
|---|---|
| Model | TruTool N 1000 |
| Max Sheet Thickness, Steel 400 N/mm² (1st/2nd speed) | 10 mm / 8 mm |
| Max Sheet Thickness, Steel 600 N/mm² (1st/2nd speed) | 7 mm / 5 mm |
| Max Sheet Thickness, Steel 800 N/mm² (1st/2nd speed) | 5 mm / 4 mm |
| Max Sheet Thickness, Aluminum up to 250 N/mm² (1st/2nd speed) | 12 mm / 10 mm |
| Smallest Radius | 300 mm |
| Working Speed (max., 1st/2nd speed) | 1.1 / 1.6 m/min |
| Starting Hole Diameter | 75 mm |
| Nominal Power Consumption | 2600 W |
| Length | 645 mm |
| Height | 301 mm |
| Weight | 14.7 kg |
Standard Accessories Included with the N 1000
- Carrying case
- Operator's manual
