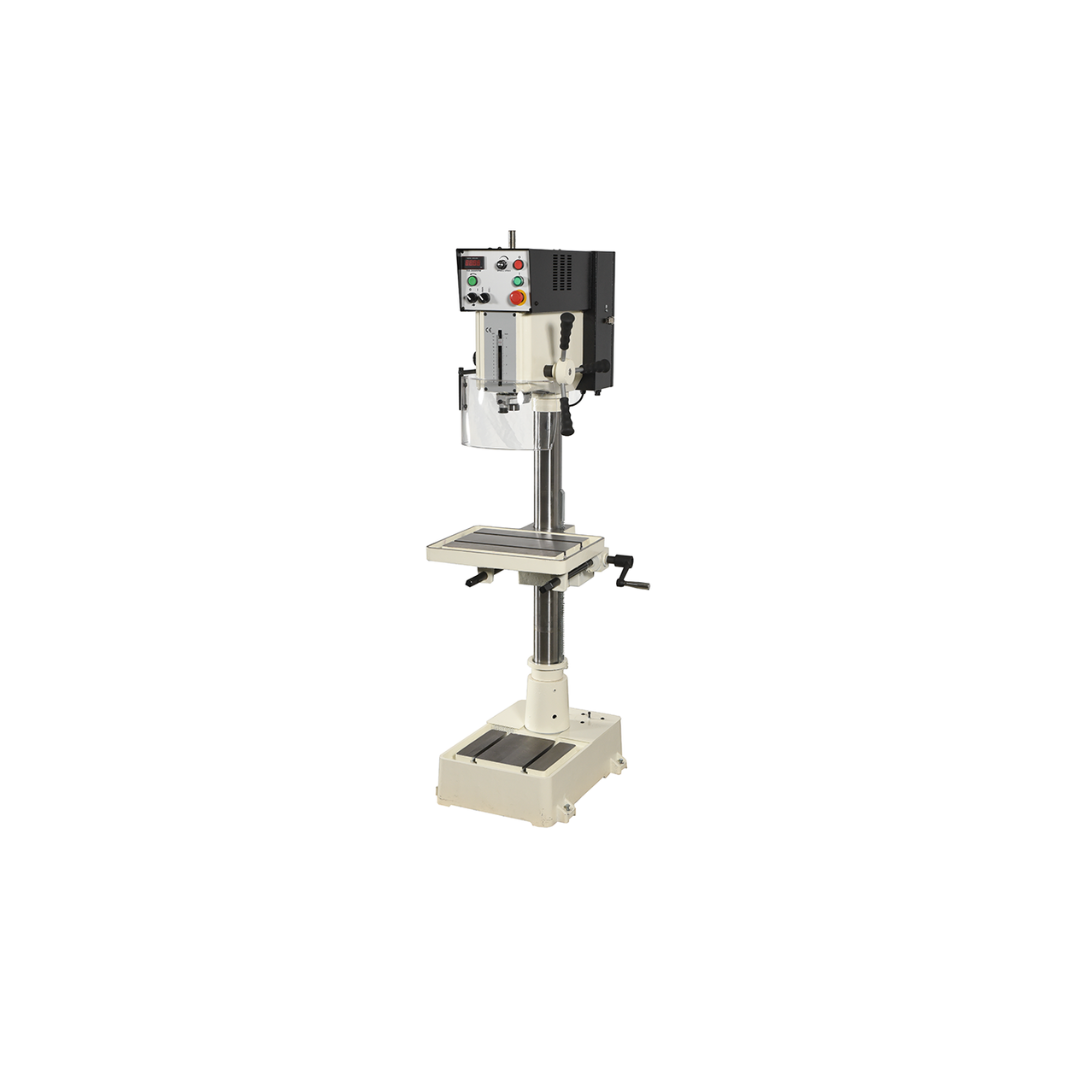

LeBlond Drill Presses LDP-25VS Applications
- Precision drilling in steel and other metals
- Tapping operations for threaded holes
- Sanding, honing, and polishing tasks
- Tool rooms and maintenance departments
- General fabrication and machining environments
Ideal for multi-purpose drilling and finishing operations requiring variable speed control and accuracy.
LeBlond Drill Presses LDP-25VS Specifications
| Machine Type | Floor Type Drill Press |
|---|---|
| Main Motor | 2 HP |
| Electrical Requirements | 230V / 60Hz / 3 Phase |
| Drilling Capacity (Steel) | 1" |
| Tapping Capacity | 5/8" |
| Swing | 16" |
| Spindle Taper | MT3 |
| Spindle Travel | 5.3" |
| Quill Diameter | 2-7/16" |
| Column Diameter | 3.6" |
| Spindle Nose to Table | 23.8" |
| Spindle Nose to Base | 45.3" |
| Table Size | 18.3" × 14.2" |
| Table Slot Size | 16 mm |
| Base Size | 23" × 15" |
| Spindle Speed Range | 15 – 3000 RPM |
| Coolant Pump | 1/8 HP |
LeBlond Drill Presses LDP-25VS Performance & Features
- Continuous variable speed transmission allows speed adjustments during operation for maximum efficiency.
- Digital tachometer display provides accurate real-time spindle speed monitoring.
- Integrated tapping system simplifies threading operations with precision control.
- Wide speed range (15–3000 RPM) supports a variety of materials and tooling requirements.
- Multi-function capability enables drilling, sanding, honing, and polishing in one machine.
- Heavy-duty construction ensures stability and long-term durability.
LeBlond Drill Presses LDP-25VS Safety & Operator Features
- Safety guard with micro switch shut-off enhances operator protection.
- Low voltage LED work light improves visibility at the work surface.
- Ergonomic controls for ease of operation and reduced fatigue.
- Stable base with integrated coolant system supports safe and efficient machining.
Why Choose the LeBlond Drill Presses LDP-25VS
- Wide variable speed range for versatile machining applications.
- Integrated tapping and multi-function capabilities.
- Precision control with digital speed monitoring.
- Durable construction for industrial environments.
- Enhanced safety features for operator confidence.
The LeBlond Drill Presses LDP-25VS is a reliable, high-performance drilling solution designed to deliver precision, flexibility, and efficiency across a wide range of machining and finishing operations.
