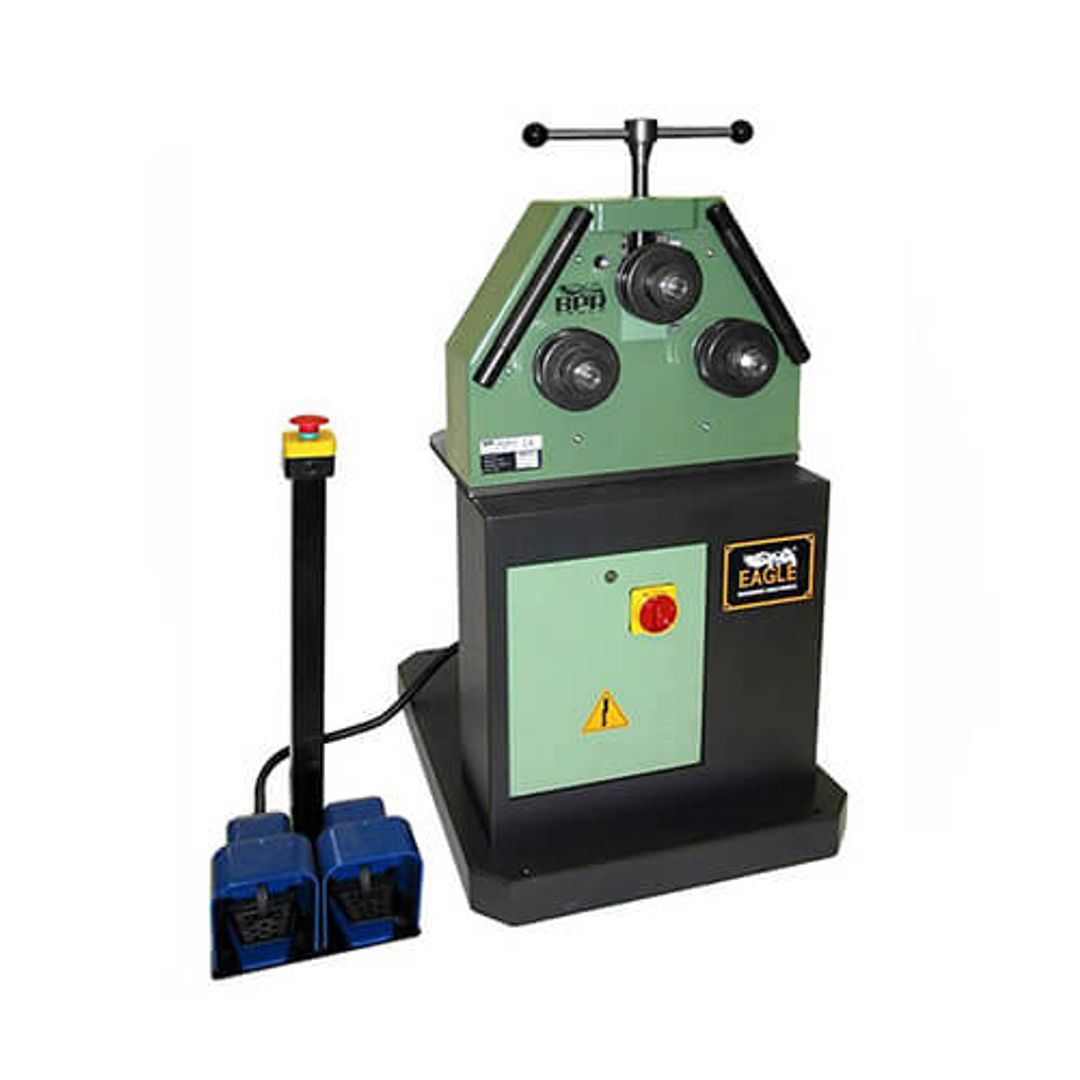

Eagle CP30-SM-110 Highlights
- 110V single-phase power: Runs from a standard 110V single-phase outlet.
- Manual scale repeatability: Linear scale lets the operator dial back to a known roll position for repeat bends.
- Heavy CP30 platform: 25%-heavier frame than Eagle's CP20, with 1-3/16" (30mm) hardened shafts and 5" nominal rolls.
- 24-piece universal tooling: Hardened universal roll set covers flat bar, round bar, square tube and Schedule 40 pipe.
- Knurled lower rolls: Positive-traction knurled lower rolls reduce slip on round stock.
- Dual safety stops: Thermal overload protection and emergency stops standard.
Eagle CP30-SM-110 Specifications
| Brand | Eagle Bending Machines |
|---|---|
| Model | CP30-SM-110 |
| Motor | 110V single-phase |
| Repeatability control | Manual linear scale |
| Shaft size | 1-3/16" (30mm) hardened |
| Roll diameter | 5" nominal |
| Weight | approx. 550 lbs |
| Capacity - flat bar | up to 3" x 5/8" |
| Capacity - round bar | to 1-1/8" |
| Capacity - square tube | to 2" x 1" |
| Capacity - pipe | Schedule 40 to 1-1/2" |
| Tooling | 24-piece hardened universal roll set |
Standard Features & Options for the Eagle CP30-SM-110
- Tube and pipe bending tooling
- Cap rail tooling
- Angle bending tooling
- Bar twisting and scrolling attachments
- Custom extrusion profile tooling
