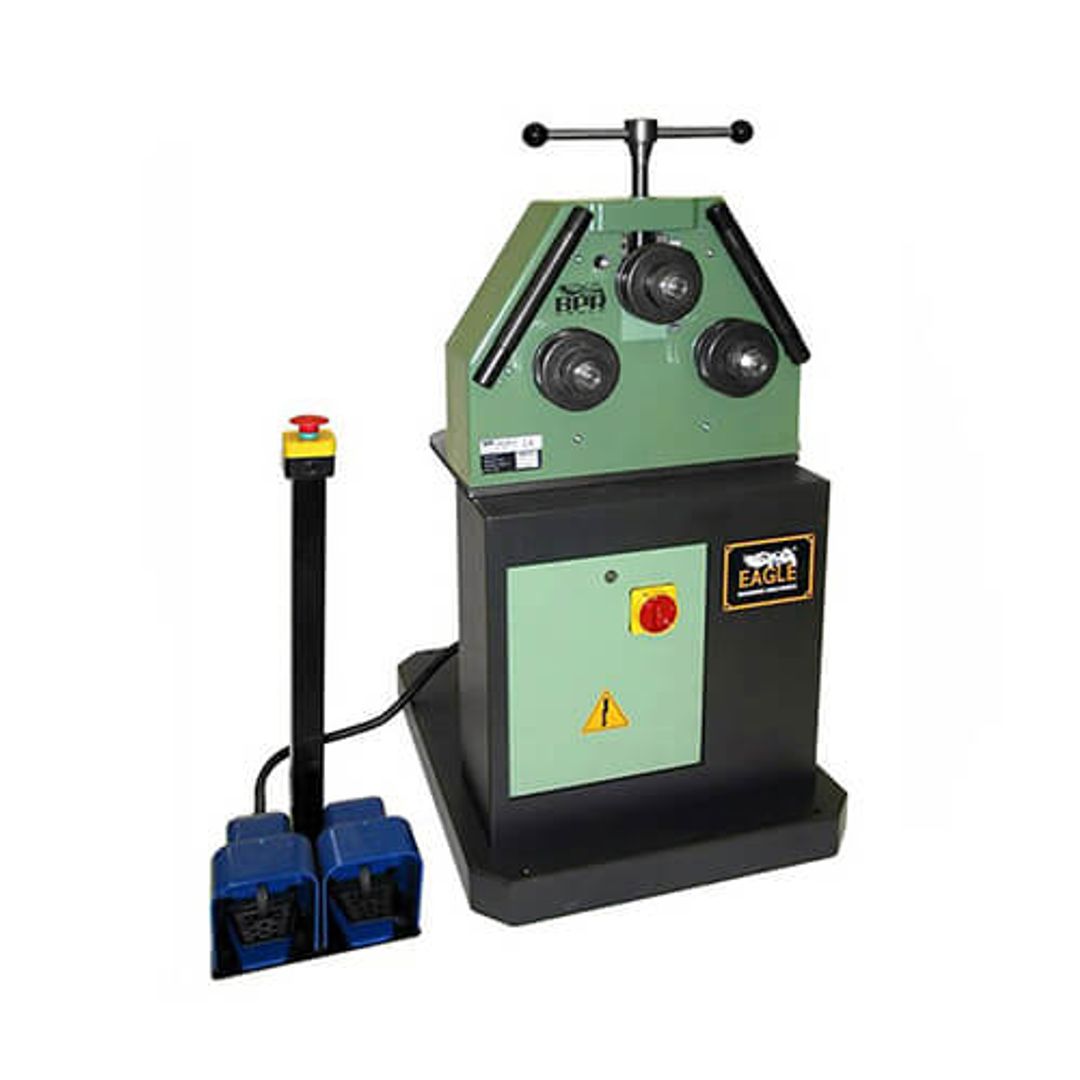

Eagle CP30-PR-2V Highlights
- 2 driven rolls: Lower-cost 2-driven-roll configuration versus the full 3-driven-roll CP30 pyramid versions.
- Variable control: Variable roll control for feed-rate adjustment.
- 24-piece universal tooling: Hardened universal roll set covers flat bar, round bar, square tube and Schedule 40 pipe.
- Knurled lower rolls: Positive-traction knurled lower rolls reduce slip on round stock.
- Dual safety stops: Thermal overload protection and emergency stops standard.
Eagle CP30-PR-2V Specifications
| Brand | Eagle Bending Machines |
|---|---|
| Model | CP30-PR-2V |
| Driven rolls | 2 (vs. 3 on full CP30 pyramid configurations) |
| Control | Variable |
| Shaft size | 1-3/16" (30mm) hardened |
| Roll diameter | 5" nominal |
| Weight | approx. 550 lbs |
| Capacity - flat bar | up to 3" x 5/8" |
| Capacity - round bar | to 1-1/8" |
| Capacity - square tube | to 2" x 1" |
| Capacity - pipe | Schedule 40 to 1-1/2" |
| Tooling | 24-piece hardened universal roll set |
Standard Features & Options for the Eagle CP30-PR-2V
- Tube and pipe bending tooling
- Cap rail tooling
- Angle bending tooling
- Bar twisting and scrolling attachments
- Custom extrusion profile tooling
