System Highlights
- Exact-Capacity Match: The 18K condenser is sized specifically for three 6K zones — no oversized compressor cycling on partial load.
- Balanced Symmetrical Zoning: Three matched 6K cassettes, each covering up to 200 sq. ft., for even comfort across three similarly sized rooms.
- Flush Ceiling Integration: Low-profile cassettes fit between 16" joists for a clean architectural finish — no ductwork, no wall penetrations.
- True DIY Installation: Patented pre-charged Quick Connect® line sets eliminate vacuuming, charging, and professional trade labor. Every line set in this kit includes the DIYPro® cable, so no electrical conduit is required.
- Elevation Filter Access: The panel lowers on demand so filters can be cleaned without dismantling the unit.
- Smart Control: Wireless remotes, the SmartHVAC app for iOS and Android, plus Amazon Alexa and Google Assistant support out of the box.
Built for three matched rooms with no expansion planned — a condenser sized to the job rather than to future zones.

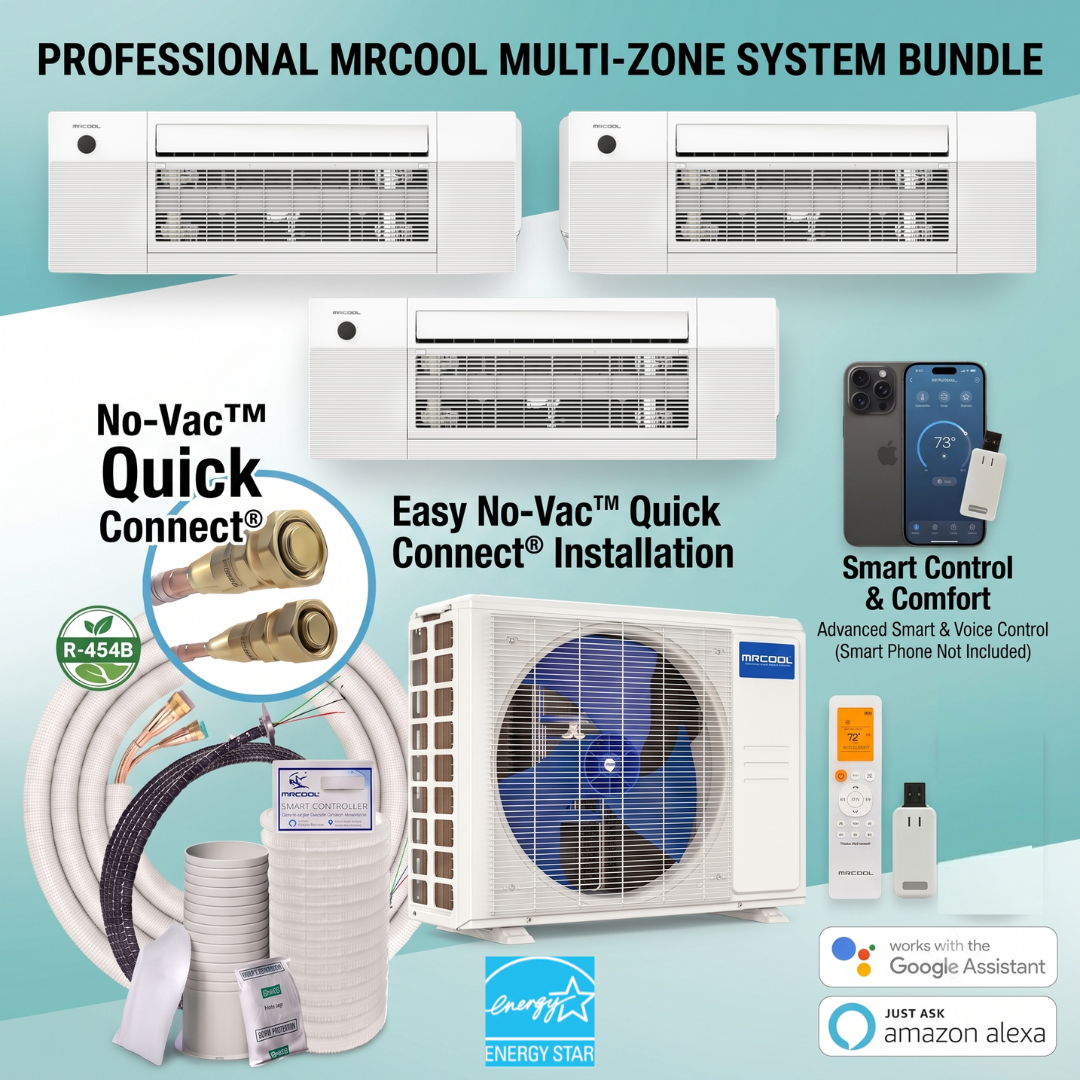

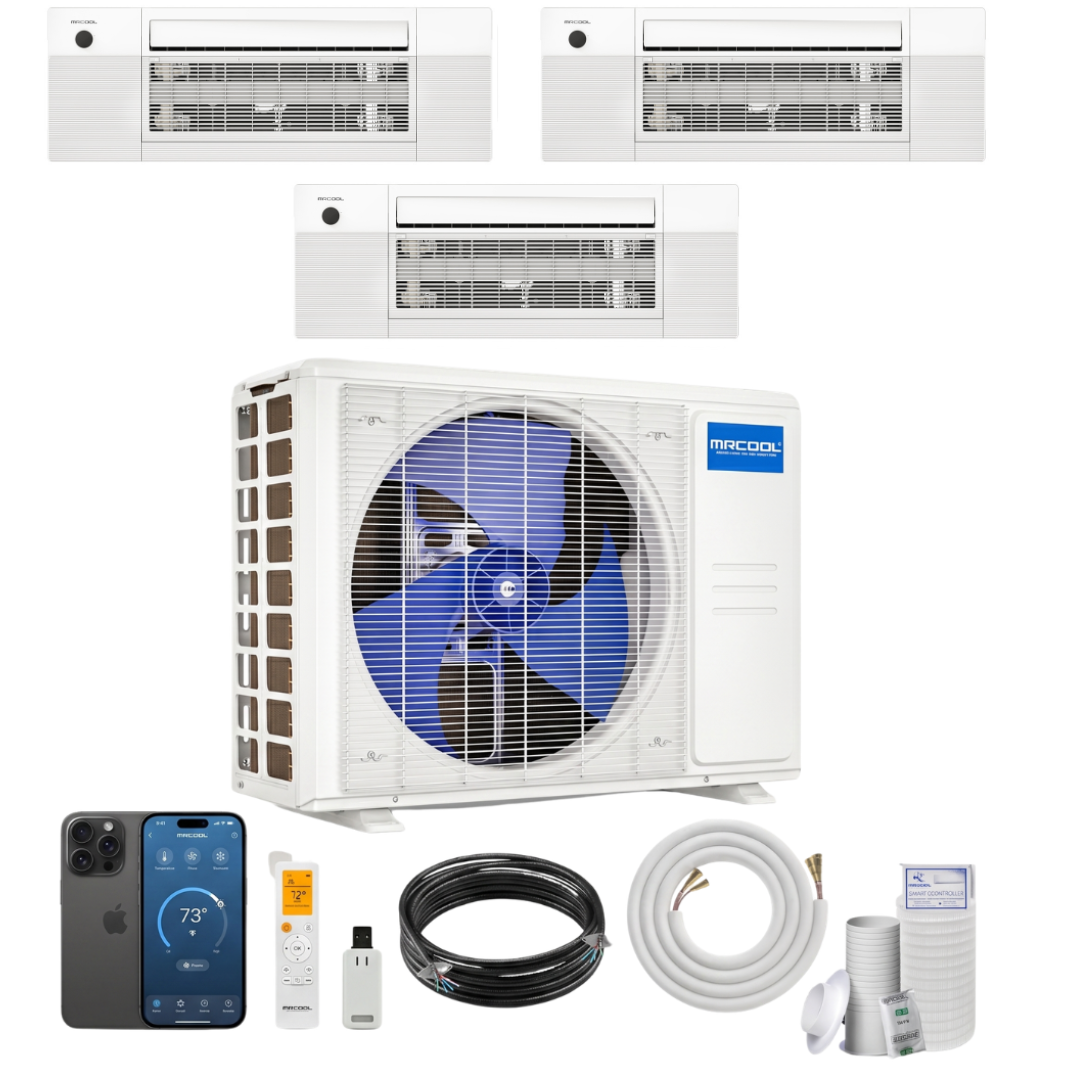

What’s Included
- 1 × DIY-MULTI3-18HP230D-O — 18K BTU Multi-Zone Condenser, 230V (3-zone capable)
- 3 × DIYCASSETTE06HP-230D25-O — 6K BTU OuttaSight® One-Way Ceiling Cassette, 230V
- 3 × Pre-charged 1/4" × 3/8" Quick Connect® line sets with DIYPro® cable — lengths selected above
- Wireless remotes, mounting hardware, and installation documentation
Condenser Specifications — DIY-MULTI3-18HP230D-O
| SEER2 / EER2 | 23.9 / 13 |
|---|---|
| HSPF2-4 / HSPF2-5 | 10 / 7.8 |
| Cooling / Heating Capacity | 18,000 BTU / 18,000 BTU |
| Tonnage | 1.5 |
| Zone Capacity | 3 (3 used in this kit) |
| Electrical | 208–230V, 1 Phase, 60 Hz |
| Max Fuse Breaker / MCA | 20A / 16A |
| Refrigerant | R-454B, 61.73 oz (pre-charged) |
| Compressor / Inverter | Rotary / DC |
| Sound Level | 60 dBA |
| Max Total Line Set Length | 172.2 ft |
| Net Dimensions (D×H×W) | 13.46" × 26.5" × 35.04" |
| Net Weight | 101.63 lbs |
Zone Configuration — DIYCASSETTE06HP-230D25-O (×3)
| Capacity / Coverage | 6,000 BTU — up to 200 sq. ft. per zone |
|---|---|
| Air Flow Direction | 1-Way |
| CFM | 341 / 294 / 259 / 235 / 235 |
| Sound Level | 35.5 dBA (23.5 low / 46.5 high) |
| Blower Motor RPM | 1024 / 944 / 784 |
| Rated Load | 0.8 |
| Line Set Sizes | 1/4" Liquid • 3/8" Suction |
| Electrical | 208–230V, 1 Phase, 60 Hz — 15A breaker, 3A MCA |
| Filter | Reusable, Elevation-function access |
| Net Dimensions (D×H×W) | 13.19" × 8.98" × 50.31" |
| Net Weight | 45 lbs each |
Line Set Options
All three zones use the 1/4" × 3/8" family. Every option is pre-charged with R-454B and includes the DIYPro® cable.
| Length | Model |
|---|---|
| 25 ft | DIY25-1438C-O |
| 35 ft | DIY35-1438C-O |
| 50 ft | DIY50-1438C-O |
Engineering & Warranty
- Gold Fin® Corrosion Protection: Protective coating shields the condenser coil against humidity and coastal salt exposure.
- DC Inverter Drive: The variable-speed rotary compressor scales output to match thermal load, avoiding hard current-draw spikes.
- R-454B Refrigerant: Next-generation refrigerant with improved efficiency and lower environmental impact than R-410A.
- Advanced Filtration: Reusable filters with Elevation-function access improve indoor air quality without complicating maintenance.
- Certifications: Intertek listed 5031495, UL Listed, ETL Listed, ENERGY STAR® certified, AHRI certified.
- Warranty: 5-year parts and 7-year compressor coverage, with eligibility for the MRCOOL® Care Program.
Shipping restrictions: Ceiling cassettes cannot be shipped to Guam, Puerto Rico, or the U.S. Virgin Islands.
