System Highlights
- Compact Zoning Precision: Condition a micro-sized office or nursery up to 200 sq. ft. with the whisper-quiet 6K handler, while concurrently managing a secondary bedroom or den up to 550 sq. ft. with the 12K unit.
- Optimized 18K Condenser Chassis: Designed specifically for high-efficiency, small-footprint dual-zone applications, minimizing energy waste while maximizing cooling precision.
- True DIY Installation Workflow: Patented pre-charged Quick Connect® line sets completely eliminate conventional line evacuation and nitrogen testing. Includes robust DIYPRO® cabling.
- Smart Ecosystem Control: Full out-of-the-box integration via Amazon Alexa, Google Assistant, and the SmartHVAC mobile app for detailed remote zone tuning.
- Gold Fin® Corrosion Protection: Advanced clear-coat protective barrier shields the exterior condenser coil against extreme humidity and harsh coastal climates.
Engineered for homeowners who require precise, compact tonnage across two residential zones, offering maximum installation ease from a streamlined 18K condenser framework.
Technical Specifications

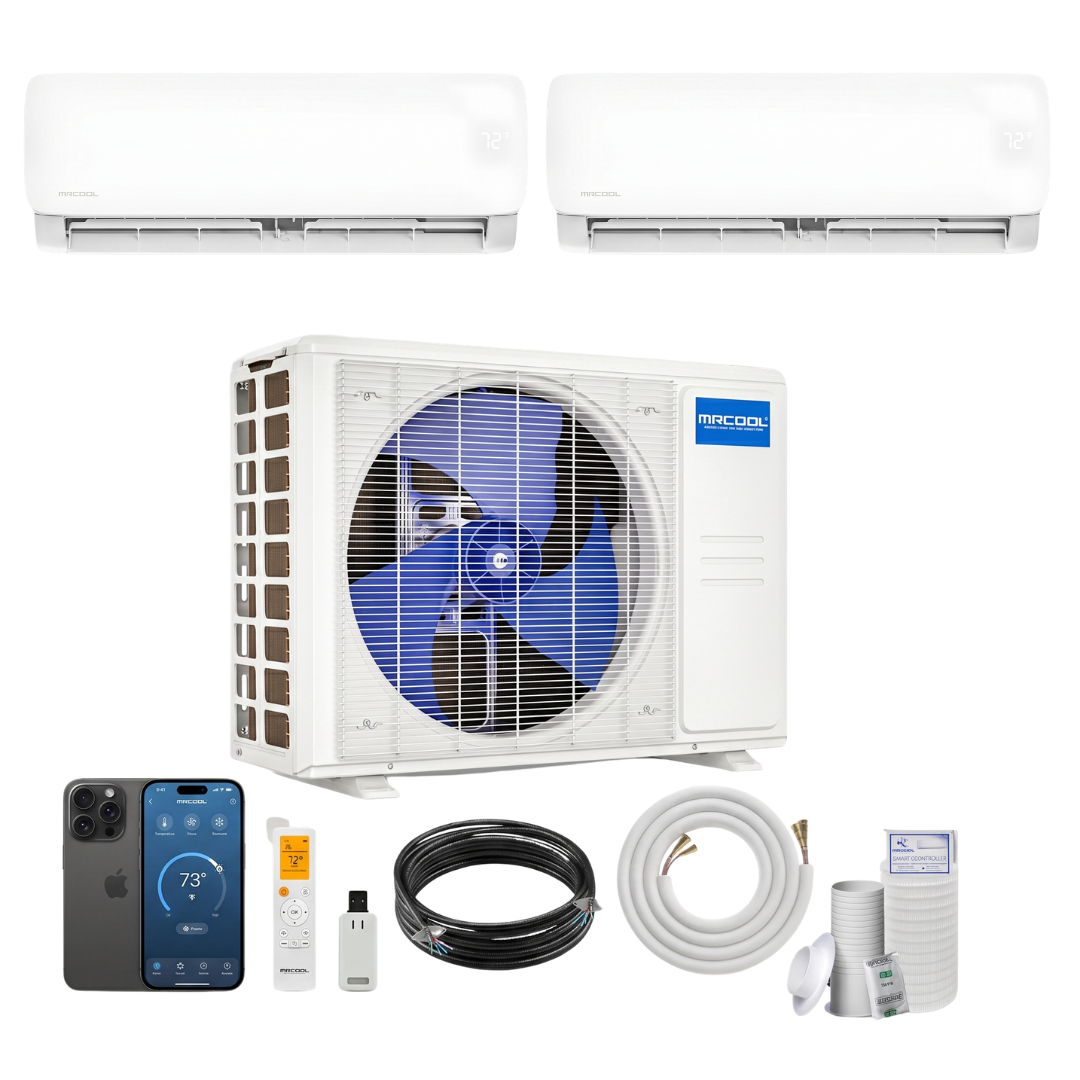

| Total Connected Capacity | 18,000 BTU (6K + 12K Wall-Mounted Handlers) |
|---|---|
| Condenser Model | DIY-MULTI3-18HP230D-O |
| Electrical Interface Requirements | 208–230V, 1 Phase, 60 Hz |
| Refrigerant Type | R-454B (Pre-Charged) |
| Industry Compliance Certifications | UL Listed, ETL Listed, ENERGY STAR, AHRI Certified |
Zone Configuration & Performance Metrics
| Specification / Feature | Zone 1: 6K Wall-Mount | Zone 2: 12K Wall-Mount |
|---|---|---|
| Cooling / Heating Output | 6,000 BTU | 12,000 BTU |
| Lineset Interconnect Size | 1/4" Liquid • 3/8" Suction | 1/4" Liquid • 3/8" Suction |
| Lineset Length Options | 16 ft, 25 ft, 35 ft, or 50 ft | 16 ft, 25 ft, 35 ft, or 50 ft |
Advanced Engineering & Warranty
- DC Inverter Drive Architecture: The continuous variable-speed rotary inverter compressor scales its operating frequency down precisely to match ambient thermal loads, completely avoiding costly current draw spikes.
- Follow Me® Climate Sensing: Syncs with the handheld remote to track the ambient temperature exactly where you are sitting, signaling the wall unit to refine its louver movement for maximum comfort.
- 7-Year Compressor Warranty: Commercial-grade structural factory backing ensuring the heart of your outdoor condenser system remains protected against manufacturing defects.
- 5-Year Parts Protection Framework: Comprehensive hardware replacement coverage across internal circuit boards and critical operational components.
