Mrcool Advantage 5th Gen 9k BTU 230V Air Handler A-09-HP-WMAH-230D-O wall-mounted mini split indoor unit front view in white finish

Mrcool Advantage 5th Gen 9k BTU 230V Air Handler A-09-HP-WMAH-230D-O compact ductless air handler sleek wall installation perspective

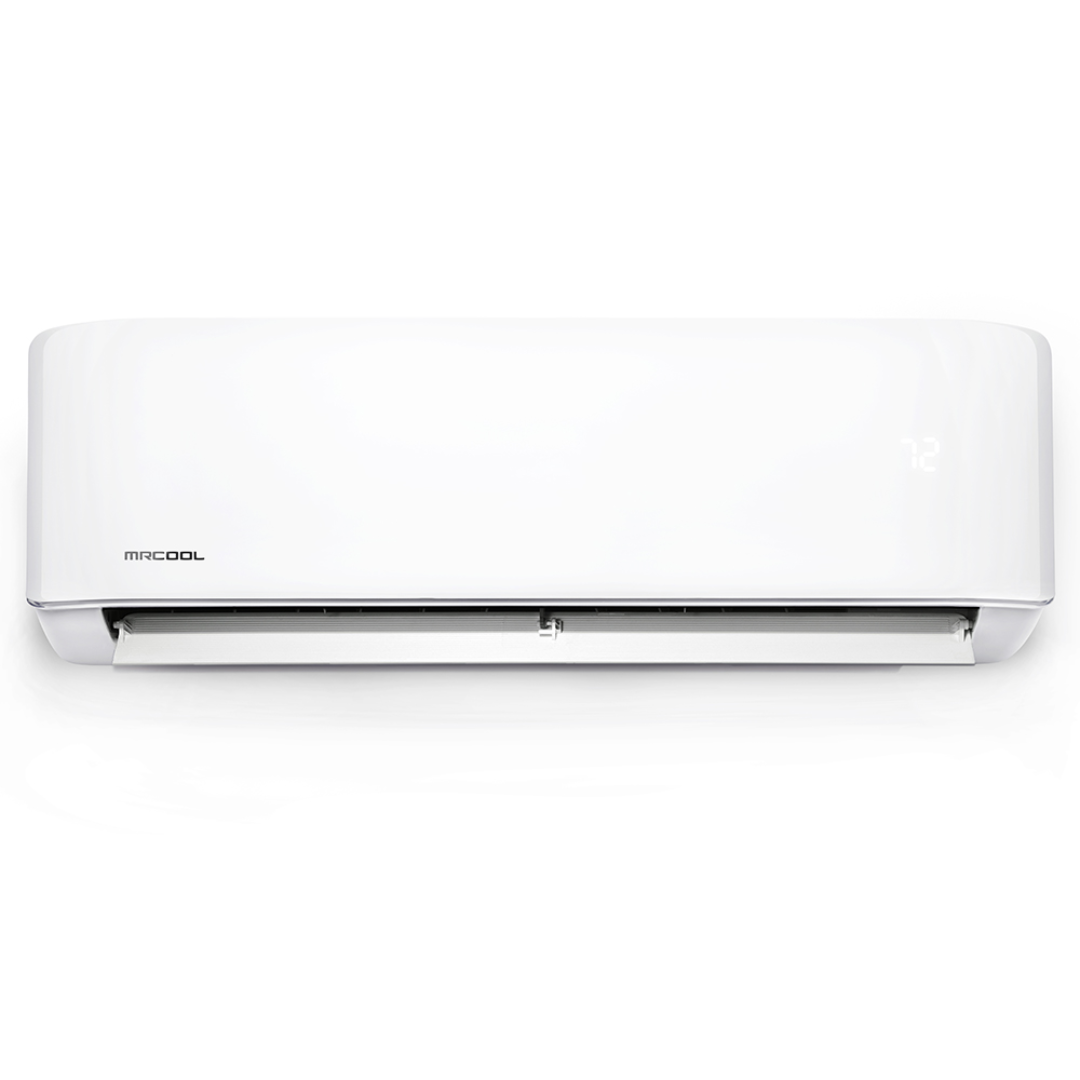

Mrcool Advantage 5th Gen 9k BTU 230V Air Handler A-09-HP-WMAH-230D-O indoor unit showing airflow vent and modern design

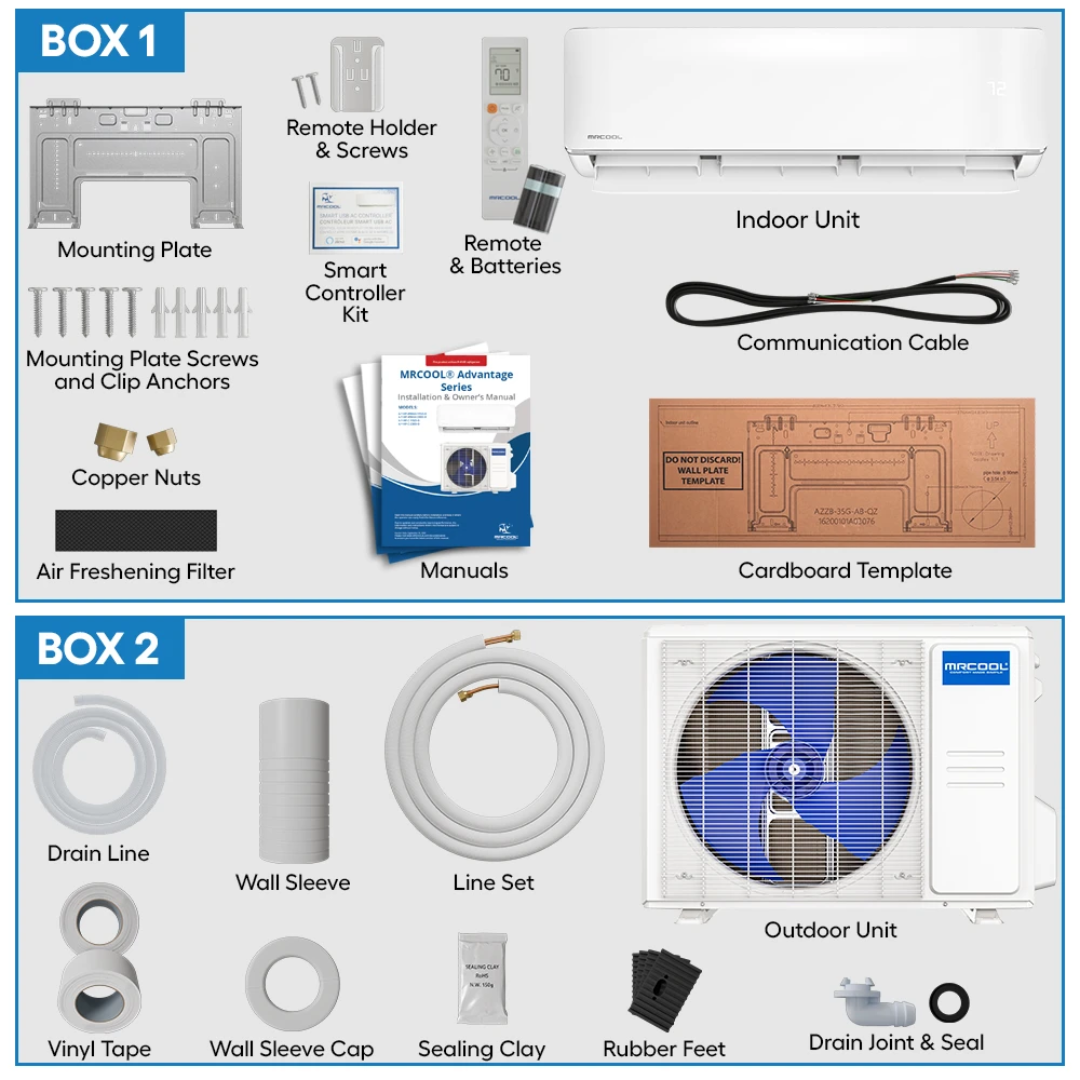

Mrcool Advantage 5th Gen 9k BTU 230V Air Handler A-09-HP-WMAH-230D-O system components diagram with accessories and installation overview

Roll over image to zoom in Click on image to zoom

Mrcool Advantage 5th Gen 9k BTU 230V Air Handler A-09-HP-WMAH-230D-O

Name: Mrcool Advantage 5th Gen 9k BTU 230V Air Handler A-09-HP-WMAH-230D-O
Brand: MRCOOL
SKU: Advantage A-09-HP-WMAH-230D-O
Price: 249.00 USD
Availability: InStock

★★★★★

Iron Line Verified

Authorized Dealer: MRCOOL

Official Partner

IN STOCK & RECEIVE IN 2-7 DAYS

SKU: Advantage A-09-HP-WMAH-230D-O

Price:

$249.00

Quantity:

Financing as low as ~$4 / month (60 mo. terms) Estimate your payment

We pay your sales tax! (IL excluded) 📦 Order before 7 PM CST for same-day shipping.

Share this product

Section 179
Tax Savings

Save up to $52.29 on this equipment Estimate Your Tax Deduction

Calculate Savings →

Commercial Buyer?

Unlock volume pricing and dedicated facility support with Trade Accounts
(Requires minimum of 2+ items)

9K BTU wall-mount air handler, MRCOOL's budget-friendly Advantage line
Runs on 230V power
Multiple fan speeds, built-in thermostat
Pairs with the matching Advantage 9K condenser
Good fit for straightforward single-room heating and cooling

Order Placed

Ships Out

Delivered

*Please Note: This timeline is an estimate. Certain products may require an additional 1 week for manufacturing. Please speak with your sales rep, Matthew, for official details and confirmation before placing your order.

CALL US FOR THE MOST ACCURATE AND COMPETITIVE LTL SHIPPING RATE, (888) 308-5580

Get Questions Answered Fast

Experience: 20+ Years B2B • Origin: US-Based Support

EXPRESS SHIPPING

Most orders process in 1-3 days. Yes, even if it weights 400lb

Hassle-Free Returns

No restocking fees. Ever.

Manufacturer Warranty

Fully backed by the brands you trust.

Dedicated Rep Mathew

Speak to a US-Based Equipment Specialist: (888) 308-5580

Flexible Financing

Get Upto 60 Months Financing

Energy Efficient • Smart Control • Ultra-Quiet Comfort

Mrcool Advantage 5th Gen 9k BTU 230V Air Handler A-09-HP-WMAH-230D-O

The Mrcool Advantage 5th Gen 9k BTU 230V Air Handler A-09-HP-WMAH-230D-O is a high-efficiency ductless mini-split indoor unit designed to provide dependable heating and cooling with minimal energy consumption. Featuring next-generation R-454B refrigerant, this system reduces environmental impact while improving performance. Its sleek wall-mounted design eliminates the need for ductwork, making it an ideal solution for residential rooms, additions, and retrofit installations. With built-in Wi-Fi and smart home compatibility, this air handler offers convenient remote access and precise temperature control for year-round comfort.

Mrcool Advantage 5th Gen 9k BTU 230V Air Handler A-09-HP-WMAH-230D-O Applications

Bedrooms, offices, and living spaces requiring efficient climate control
Home additions, garages, and basements without existing ductwork
Energy-efficient HVAC upgrades and retrofit projects
Single-zone ductless heating and cooling systems

Ideal for homeowners looking for a quiet, efficient, and smart-controlled climate solution without the complexity of ductwork.

Mrcool Advantage 5th Gen 9k BTU 230V Air Handler A-09-HP-WMAH-230D-O Specifications

Brand	MRCOOL
Series	Advantage 5th Gen
Model	A-09-HP-WMAH-230D-O
Unit Type	Mini-Split Air Handler
Tonnage	0.75 Ton
Cooling Capacity	9,000 BTU
Voltage	208–230V
Phase	1
Frequency	60 Hz
CFM (5 Speeds)	312.0 / 264.9 / 194.2 / 153.0 / 105.9
Sound Level (dBA)	18.5 (Low) – 40.5 (High)
Mount Type	Wall Mounted
Color	White
Max Fuse Breaker	15 A
Min Circuit Ampacity	3 A
Liquid Line Size	1/4"
Suction Line Size	3/8"
Max Line Set Length	82 ft
Filter Type	Reusable
Dimensions (W × H × D)	28.43" × 11.42" × 7.36"
Net Weight	16.98 lbs
Certifications	UL, CSA, ETL, AHRI, NEEP, CEE Tier 1

Mrcool Advantage 5th Gen 9k BTU 230V Air Handler A-09-HP-WMAH-230D-O Performance & Features

Eco-Friendly R-454B Refrigerant reduces global warming potential while improving system efficiency.
Ultra-Quiet Operation with sound levels as low as 18.5 dBA for peaceful indoor environments.
Smart HVAC Controller® Integration compatible with Amazon Alexa and Google Assistant.
Built-In Wi-Fi allows remote system control from iOS and Android devices.
Follow Me® Function adjusts temperature based on the remote’s location for personalized comfort.
Gold Fin® Coating enhances corrosion resistance and long-term durability.
Advanced Safety Features including refrigerant leakage detection and overload protection.
Multiple Fan Speeds provide precise airflow control across five performance levels.
Reusable Filter simplifies maintenance and reduces operating costs.

Why Choose the Mrcool Advantage 5th Gen 9k BTU 230V Air Handler A-09-HP-WMAH-230D-O

Energy-efficient heating and cooling with environmentally friendly refrigerant
Flexible ductless installation for a wide range of residential applications
Smart home integration and remote access for modern convenience
Quiet, reliable performance for everyday comfort
Backed by MRCOOL® warranty and optional lifetime coverage program

The Mrcool Advantage 5th Gen 9k BTU 230V Air Handler A-09-HP-WMAH-230D-O delivers efficient, quiet, and intelligent climate control, making it an excellent choice for homeowners seeking dependable year-round comfort.
