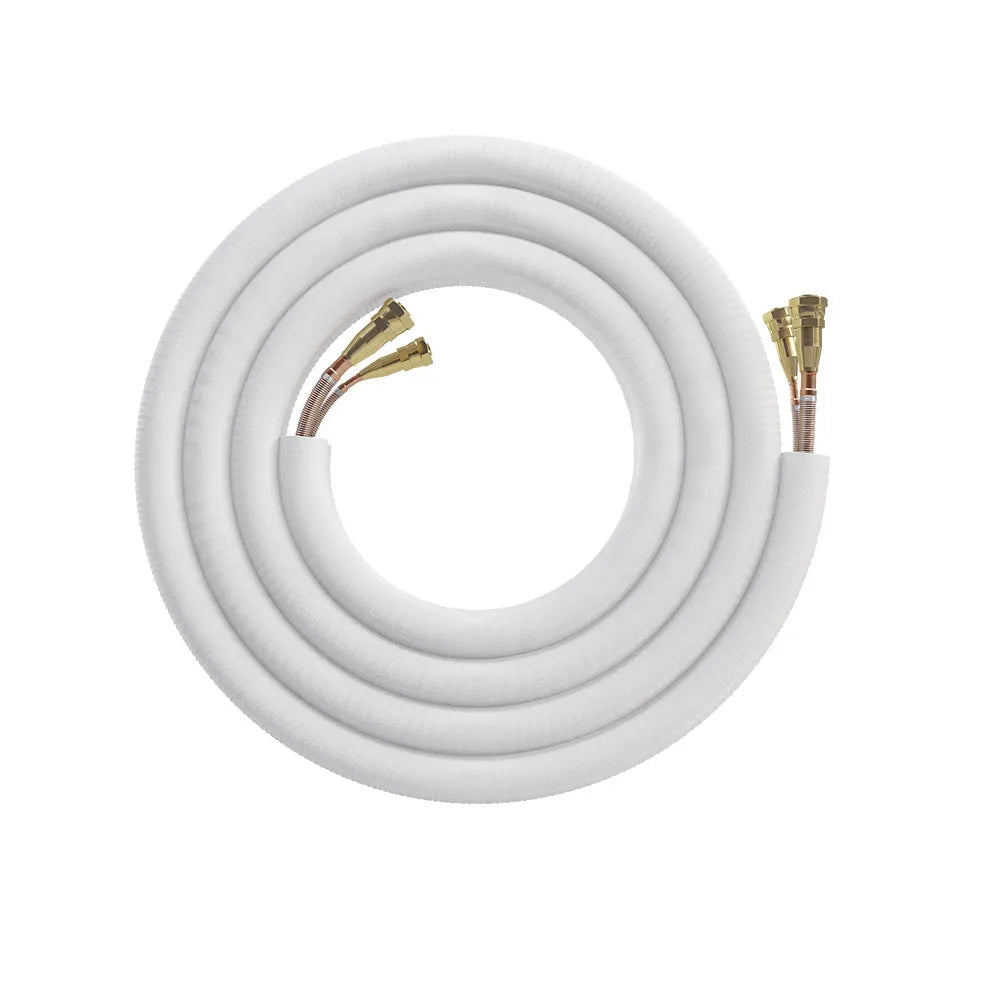

MRCOOL 5th Gen DIY 16ft 3/8 x 5/8 Lineset for DIY 24K & 36K Indoor - R454B, DIY16-3858-O

Roll over image to zoom in Click on image to zoom

MRCOOL 5th Gen DIY 16ft 3/8 x 5/8 Lineset for DIY 24K & 36K Indoor - R454B, DIY16-3858-O

Name: MRCOOL 5th Gen DIY 16ft 3/8 x 5/8 Lineset for DIY 24K & 36K Indoor - R454B, DIY16-3858-O
Brand: MRCOOL
SKU: DIY16-3858-O
Price: 227.00 USD
Availability: InStock

★★★★★

Iron Line Verified

Authorized Dealer: MRCOOL

Official Partner

IN STOCK & RECEIVE IN 2-7 DAYS

SKU: DIY16-3858-O

Price:

$227.00

Quantity:

Financing as low as ~$3 / month (60 mo. terms) Estimate your payment

We pay your sales tax! (IL excluded) 📦 Order before 7 PM CST for same-day shipping.

Share this product

Section 179
Tax Savings

Save up to $47.67 on this equipment Estimate Your Tax Deduction

Calculate Savings →

Commercial Buyer?

Unlock volume pricing and dedicated facility support with Trade Accounts
(Requires minimum of 2+ items)

16 ft pre-charged lineset for 5th Gen DIY 24K and 36K systems
3/8" liquid line, 5/8" suction line
Snap-together Quick Connect fittings — no brazing, flaring, or vacuum pump needed
Pre-charged with eco-friendly R-454B refrigerant
UV-resistant insulation for outdoor durability

Order Placed

Ships Out

Delivered

*Please Note: This timeline is an estimate. Certain products may require an additional 1 week for manufacturing. Please speak with your sales rep, Matthew, for official details and confirmation before placing your order.

CALL US FOR THE MOST ACCURATE AND COMPETITIVE LTL SHIPPING RATE, (888) 308-5580

Get Questions Answered Fast

Experience: 20+ Years B2B • Origin: US-Based Support

EXPRESS SHIPPING

Most orders process in 1-3 days. Yes, even if it weights 400lb

Hassle-Free Returns

No restocking fees. Ever.

Manufacturer Warranty

Fully backed by the brands you trust.

Dedicated Rep Mathew

Speak to a US-Based Equipment Specialist: (888) 308-5580

Flexible Financing

Get Upto 60 Months Financing

Pre-Charged R454B • 100% DIY Installation • 16-Foot Reach

MRCOOL 5th Gen DIY 16ft 3/8" x 5/8" Lineset for DIY 24K & 36K Indoor Units

Streamline your short-run HVAC installation with the MRCOOL 5th Gen 16ft Pre-Charged Lineset (DIY16-3858-O). Specifically engineered for 24,000 and 36,000 BTU 5th Generation DIY mini-split systems, this 16-foot lineset is the perfect length for direct, back-to-back installations where the indoor air handler and outdoor condenser share the same wall. Factory-sealed and pre-charged with the latest low-GWP R454B refrigerant, this lineset completely eliminates the costly and time-consuming process of vacuuming, flaring, and charging. Utilizing MRCOOL's patented Quick Connect fittings, you can lock in a secure, leak-proof seal using nothing more than standard hand tools.

MRCOOL 5th Gen DIY 16ft 3/8" x 5/8" Lineset Applications

Back-to-back residential installations where the indoor and outdoor units are separated by a single wall.
Short-run system expansions for high-capacity 24K or 36K BTU units on ground-level floors.
Installations requiring a seamless, tool-free connection without the expense of hiring a licensed HVAC technician.
Eco-conscious upgrades requiring full compliance with the latest R454B refrigerant standards.

Engineered to provide the exact 3/8" liquid and 5/8" suction diameters required for optimal high-BTU refrigerant volume and efficient climate control in tight spaces.

MRCOOL 5th Gen DIY 16ft 3/8" x 5/8" Lineset Specifications

SKU	DIY16-3858-O
Length	16 Feet
Liquid Line Size	3/8 Inch
Suction Line Size	5/8 Inch
Compatibility	5th Gen DIY 24K & 36K BTU Indoor Handlers
Refrigerant Type	Pre-Charged with R454B
Connection Type	Quick Connect Patented Fittings

Why Choose the MRCOOL 5th Gen 16ft DIY Lineset

Zero Specialized Tools Required: The Quick Connect fittings create an airtight, leak-proof seal instantly.
Eco-Friendly & Future-Proof: Factory-charged with R454B, an environmentally conscious refrigerant that meets updated efficiency and environmental regulations.
Heavy-Duty Insulation: Robust outer insulation protects against condensation, energy loss, and harsh outdoor elements to ensure long-term reliability.
Massive Savings: Empowers you to completely bypass expensive professional vacuuming, flaring, and charging fees.

The MRCOOL 5th Gen 16ft DIY Lineset (DIY16-3858-O) provides the exact length and robust construction you need to securely connect your high-BTU system in close quarters, ensuring maximum efficiency and a true do-it-yourself installation experience.
