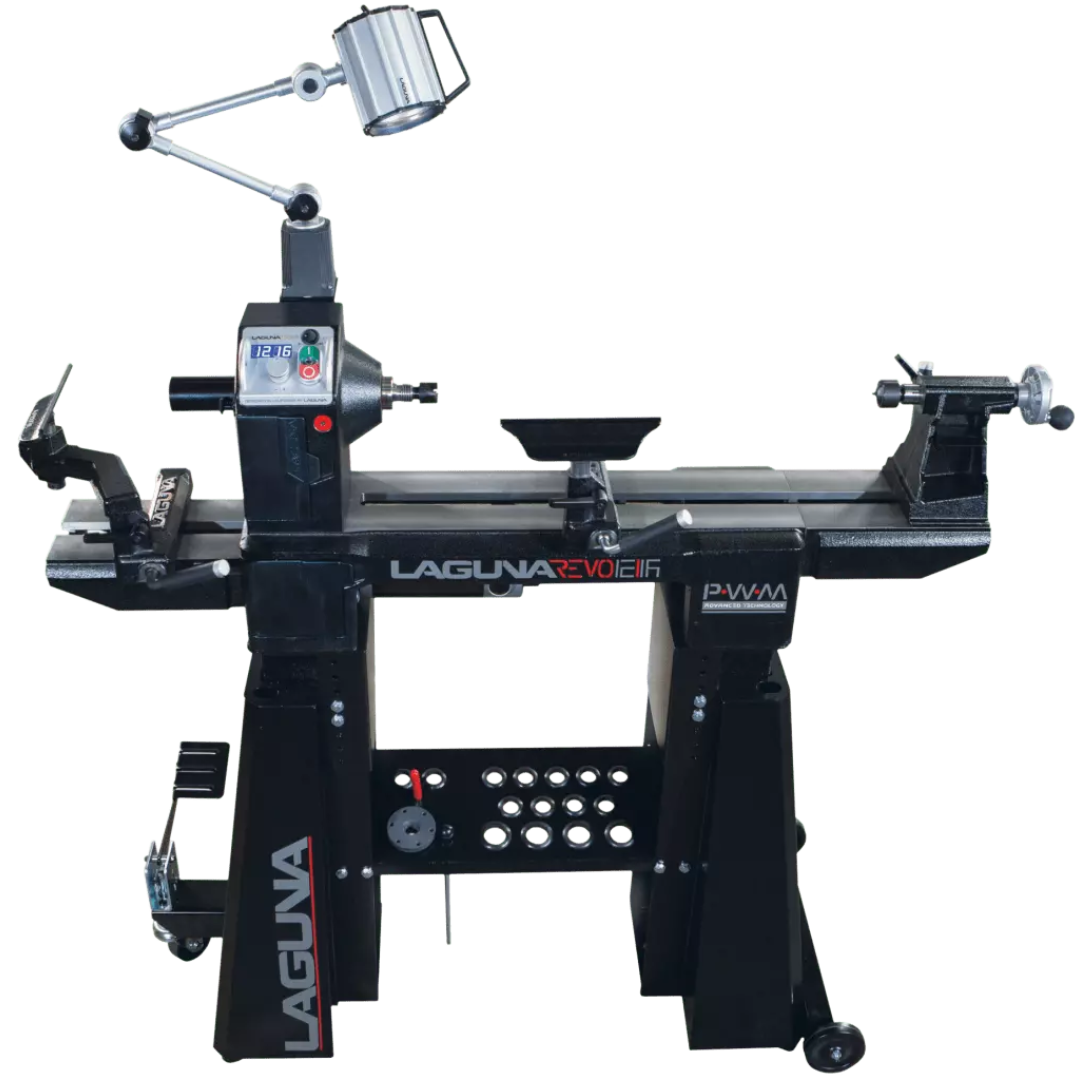

Laguna Revo 12|16 Lathe MLAREVO1216EVS Applications
- Bowl turning up to 16" with optional outboard setup
- Spindle work including handles, pens, and furniture components
- Detail woodturning requiring low-speed torque and precision
- Professional workshops, hobbyists, and educational environments
Designed for users who demand high torque at low speeds and smooth control across all turning applications.
Laguna Revo 12|16 Lathe MLAREVO1216EVS Specifications
| Model | MLAREVO1216EVS |
|---|---|
| Motor | 1 HP DC Permanent Magnet Motor |
| Power | 110V, 1 Phase, 60Hz |
| Speed Ranges | Low: 50 – 525 RPM | Mid: 325 – 1750 RPM | High: 650 – 3500 RPM |
| Distance Between Centers | 15-1/2" |
| Swing Over Bed | 12-1/2" |
| Swing Over Banjo | 9-1/2" |
| Max Outboard Swing | 16" |
| Spindle Thread | 1" x 8 TPI (Both Ends) |
| Spindle Bore | 3/8" |
| Taper | MT #2 |

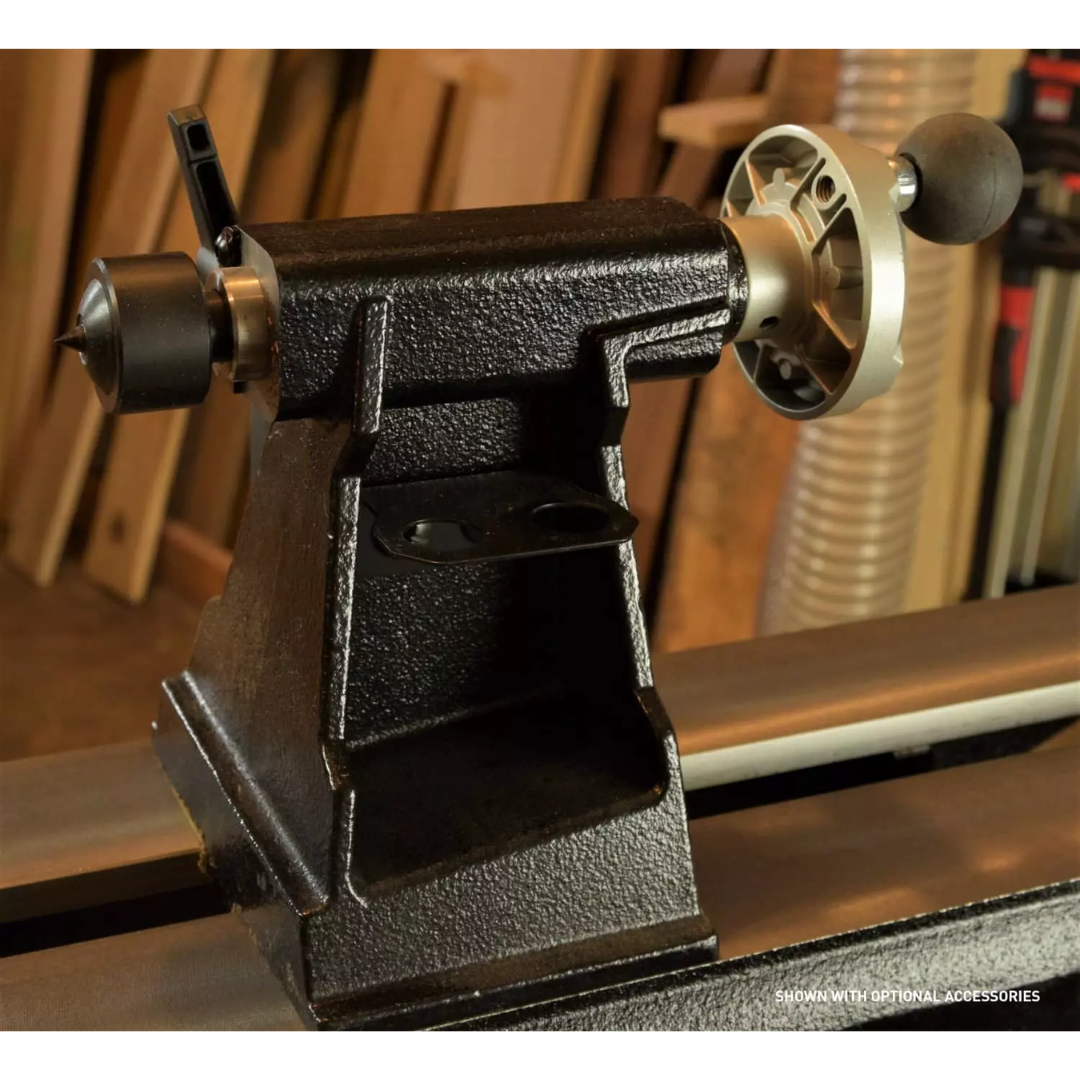

| Tailstock Quill Travel | 2-1/2" |
| Indexing | 24 Positions with Lock |
| Drive Belt | Poly-V Belt (6 Groove) |
| Tool Rest | 8" Length | 1" Post Diameter |
| Faceplate | 3" |
| Bed Length | 29.4" |
| Overall Dimensions | 35.8" x 14.6" x 20.5" |
| Net Weight | 118 lbs |
| Shipping Weight | 125 lbs |
| Certification | CSA C/US 256540 |
| Plug Type | NEMA 5-15P |
Laguna Revo 12|16 Lathe MLAREVO1216EVS Performance & Construction
- Pulse Width Modulation (PWM) control delivers full torque at all speeds, eliminating common low-speed power loss found in standard DC lathes.
- 1HP DC permanent magnet motor provides reliable power for both roughing and fine detail work.
- Ultra-low speed capability (down to 50 RPM) ideal for large, unbalanced blanks and precision finishing.
- One-step cam-action belt change with magnetic door for fast and convenient speed adjustments.

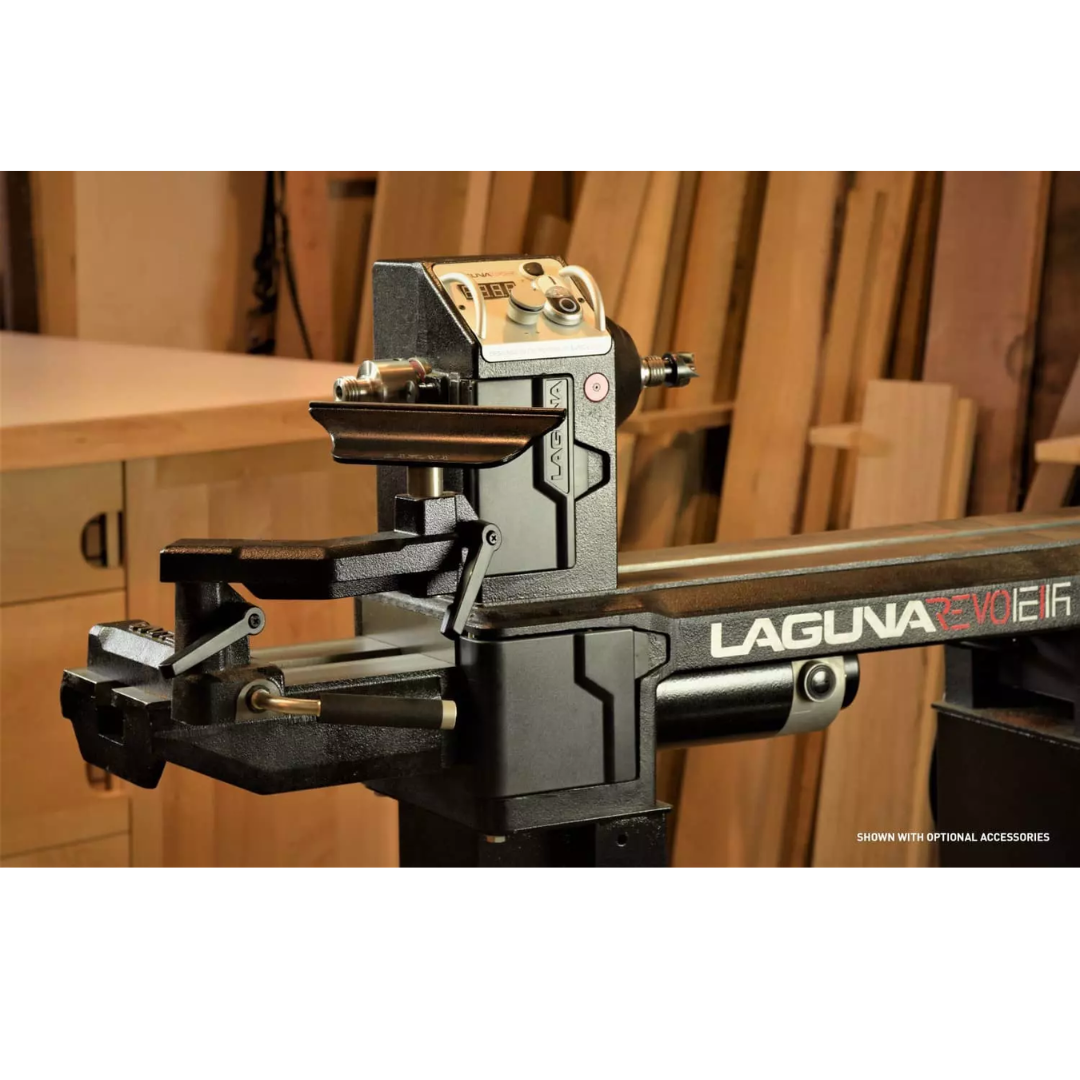

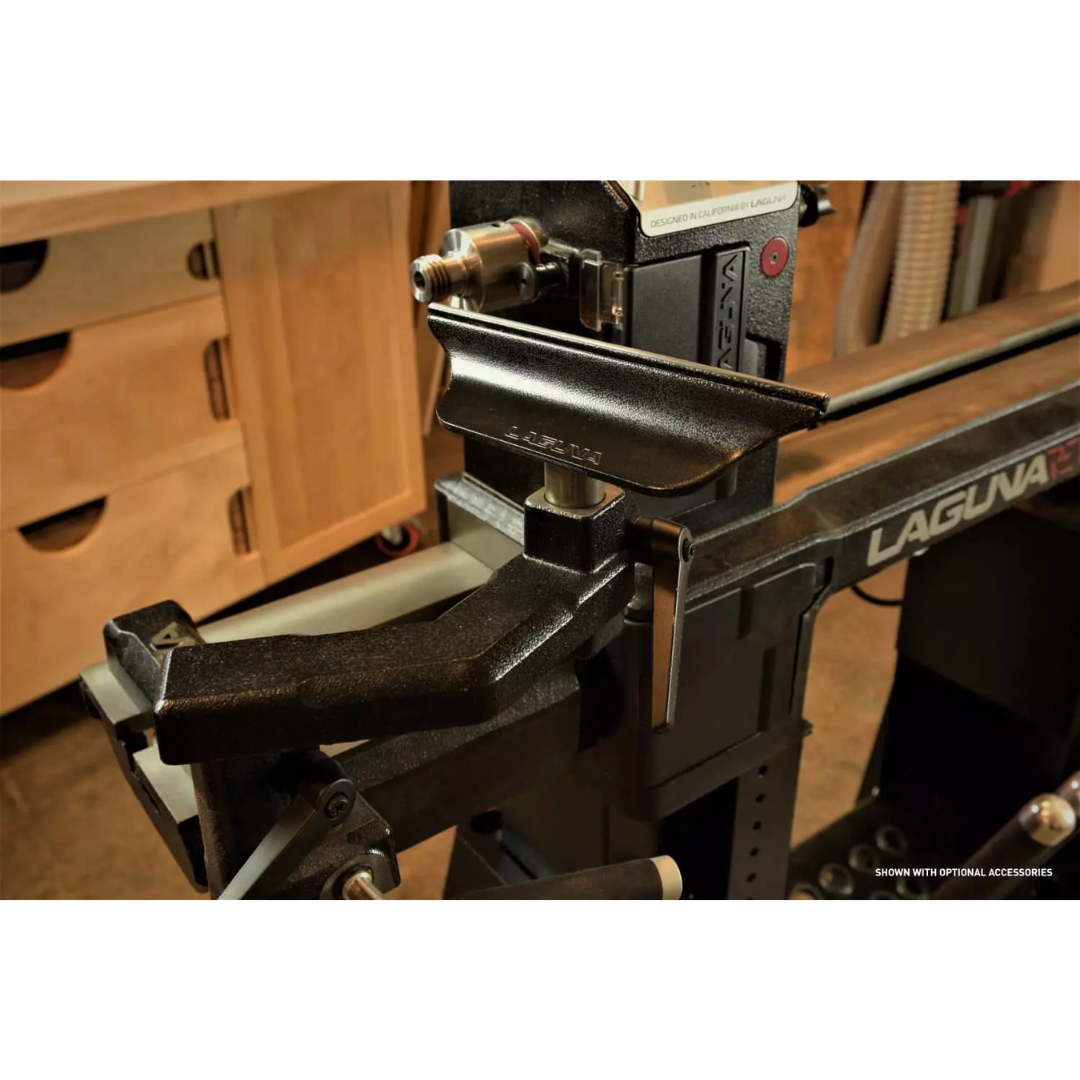

- Luxury banjo with 45° chamfered edge ensures smooth tool movement and operator comfort.
- Spring-loaded spindle lock allows quick and secure accessory changes.
- 24-position indexing system supports detailed, repeatable work.
- Heavy-duty construction with precision bearings enhances stability, reduces vibration, and extends machine life.
- Poly-V belt drive system ensures efficient power transmission and reduced slippage.
Why Choose the Laguna Revo 12|16 Lathe MLAREVO1216EVS
- True full-torque performance across the entire RPM range.
- Wide speed range from 50 to 3500 RPM for maximum versatility.
- Capability to handle both small precision work and larger outboard turning.
- Premium build quality and engineering from Laguna Tools.
- Designed as the ultimate midi lathe for serious woodturners.
The Laguna Revo 12|16 Lathe MLAREVO1216EVS stands out as a high-performance midi lathe that delivers exceptional torque, precision, and versatility—making it a top choice for woodworkers who refuse to compromise.
