Laguna KX|24 KX2401 CNC Router Applications
- Woodworking including cabinetry, furniture, and custom millwork
- Plastic fabrication and signage production
- Machining non-ferrous metals such as aluminum and brass
- Foam modeling, prototyping, and mold creation
- 2D and 3D carving, engraving, and shaping projects
Ideal for shops needing precision CNC capability in a compact, efficient footprint.
Laguna KX|24 KX2401 CNC Router Specifications
| Model | KX|24 KX2401 |
|---|---|
| X Axis Travel | 24" (610mm) |
| Y Axis Travel | 48" (1210mm) |
| Z Axis Travel | 5.5" (140mm) |
| Table Work Area | 24" x 48" (610mm x 1219mm) |
| Spindle | 1 HP (800W) Electro Air-Cooled |
| Spindle Speed | 0 – 24,000 RPM |
| Collet Type | ER-11 (1/4” & 1/8”) |
| Max Recommended Feed Rate | 200–250 IPM |
| Max Rapid Feed Rate | 300 IPM |
| Drive System | Precision Ball Screw X/Y/Z Axis |
| Guide Rails | Precision Linear Guide Rails X/Y/Z Axis |
| Stepper Motors | 24V High Torque, Dual Drive Y-Axis |
| Power Requirements | 110V, 60Hz, 15A, Single Phase |
| Controller | 15.1” Touchscreen iCNC Controller |
| Table Type | MDF Locking Table with T-Slots |
| Machine Frame | Steel & Aluminum Construction |

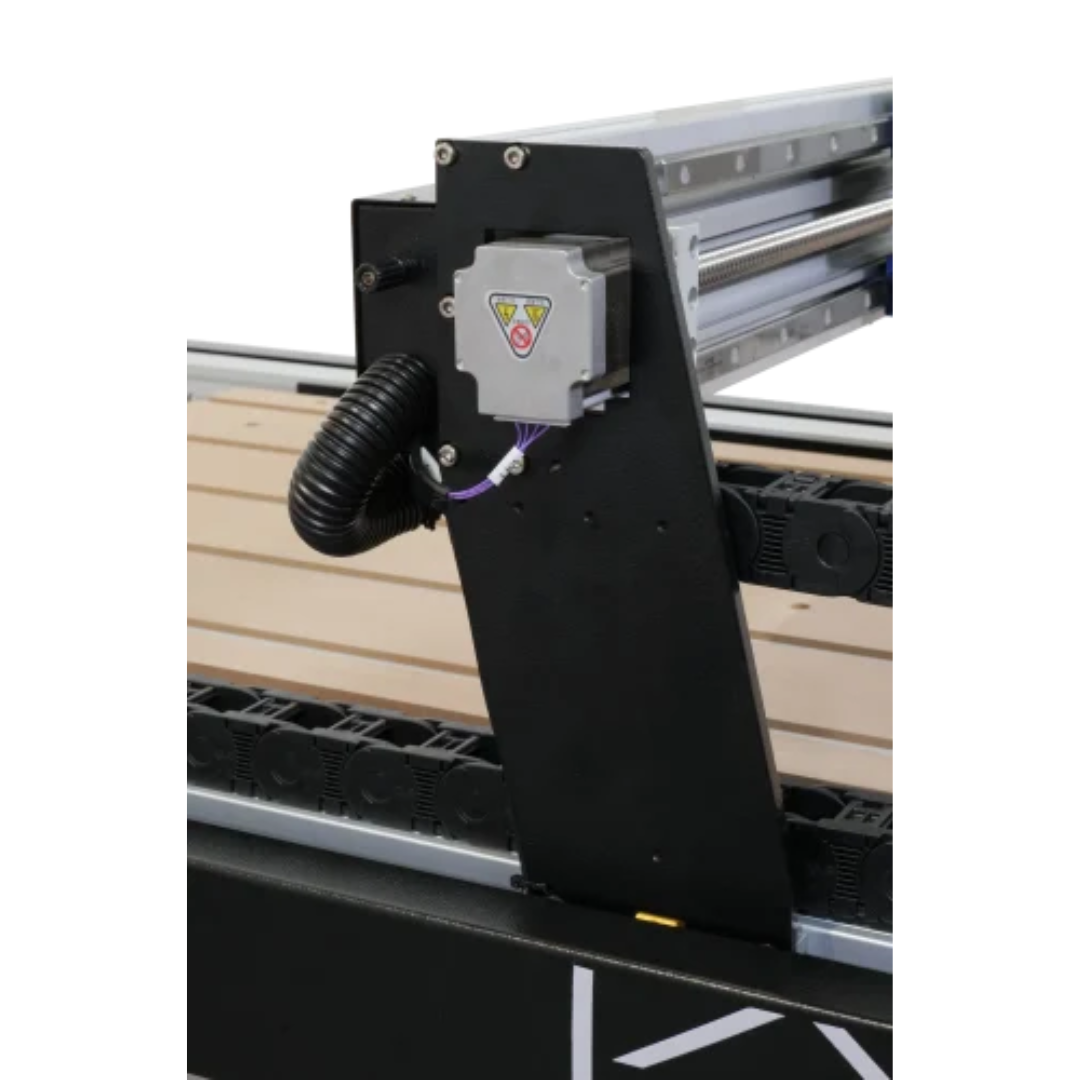

| Gantry | High-Rigidity Aluminum Extrusion |
| Gantry Clearance | 6.5" (165mm) |
| Machine Dimensions | 61.25” x 40” x 24.8” |
| Machine Dimensions w/ Stand | 61.25” x 40” x 55.5” |
| Shipping Dimensions | 65” x 43” x 20” |
| Machine Weight | Net: 179.3 lbs | Gross: 232.6 lbs |
Laguna KX|24 KX2401 CNC Router Features & Performance

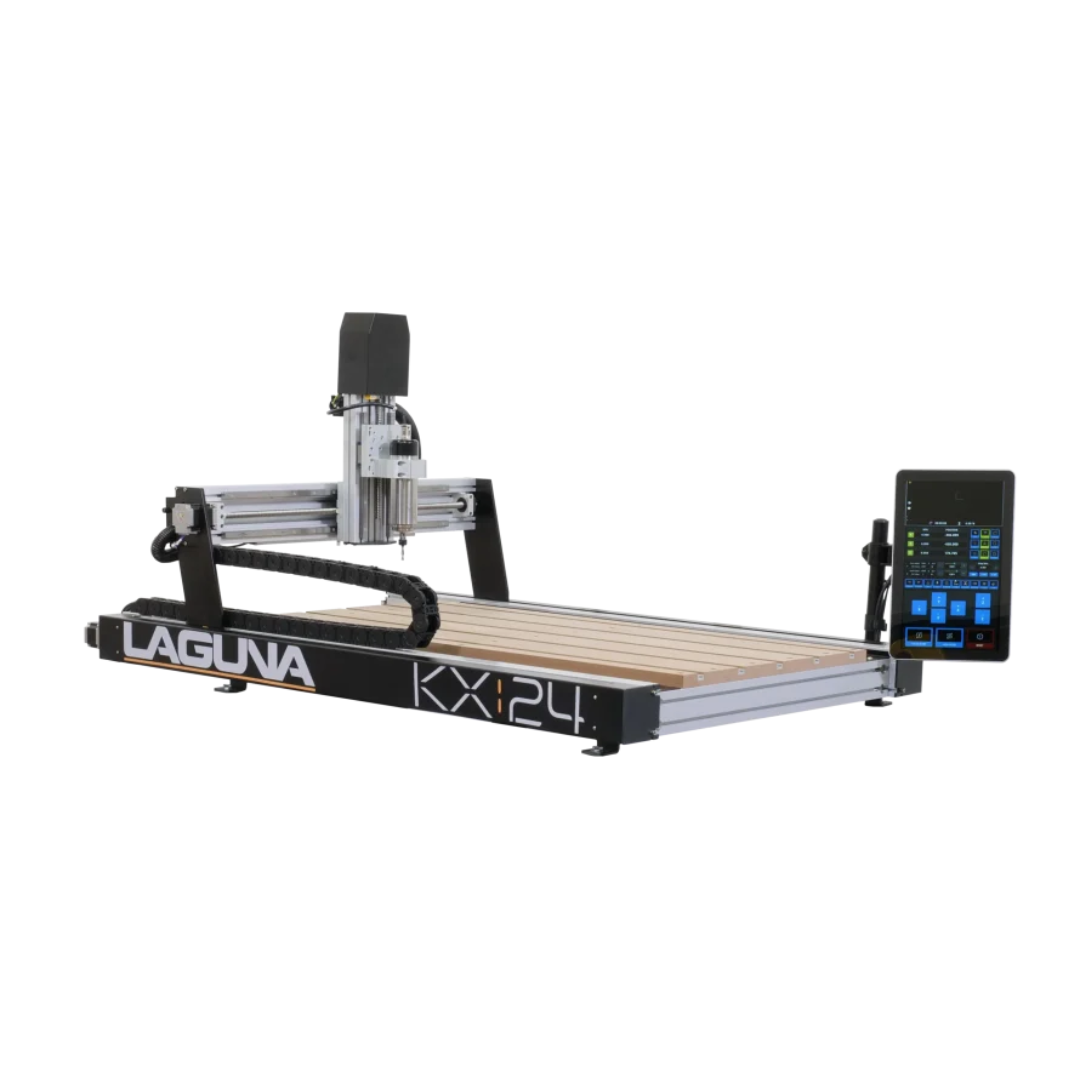

- Large 24” x 48” work area supports a wide variety of project sizes while maintaining a compact machine footprint.

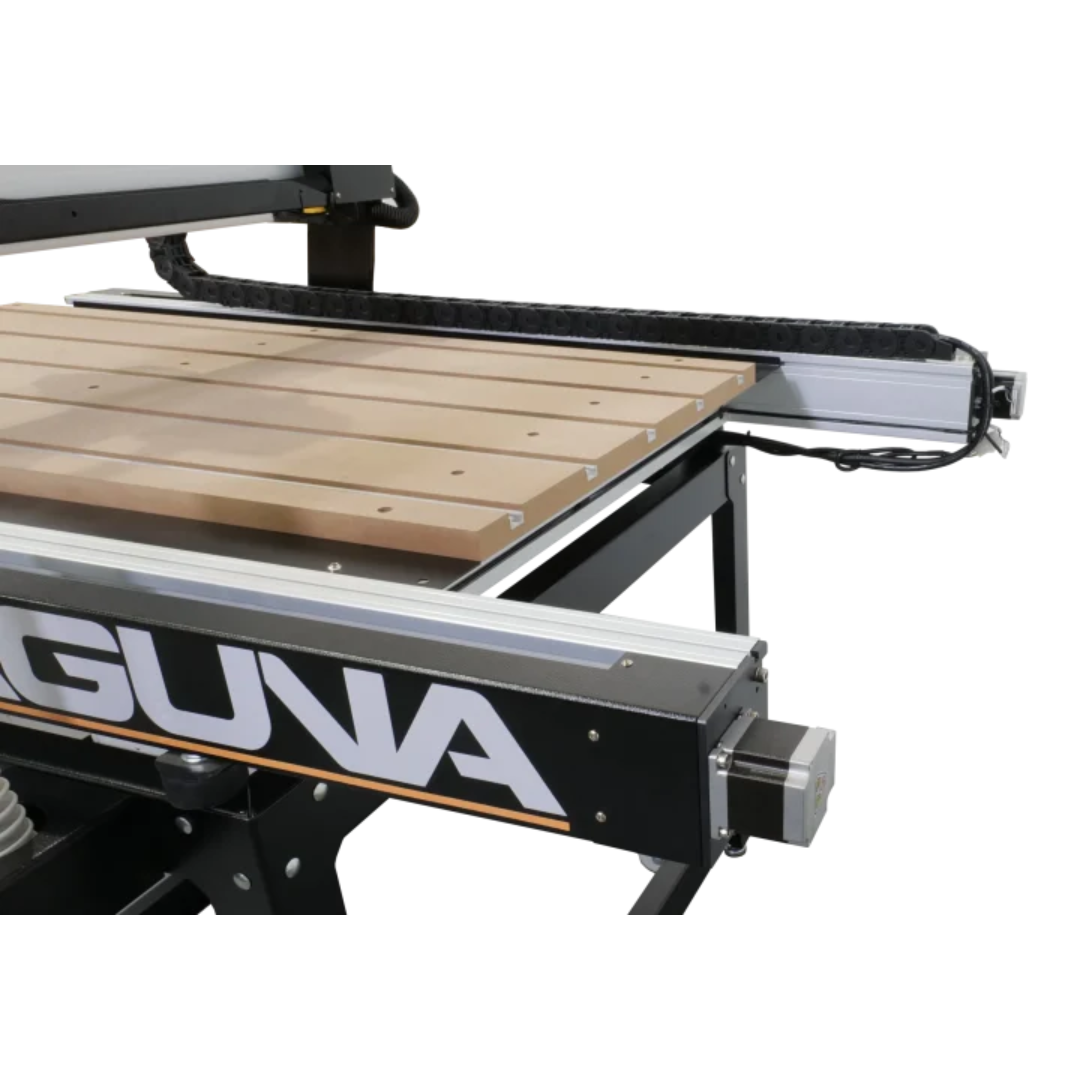

- MDF spoilboard with replaceable inserts allows resurfacing and long-term usability.
- Embedded T-slot clamping system enables secure material hold-down anywhere on the table.

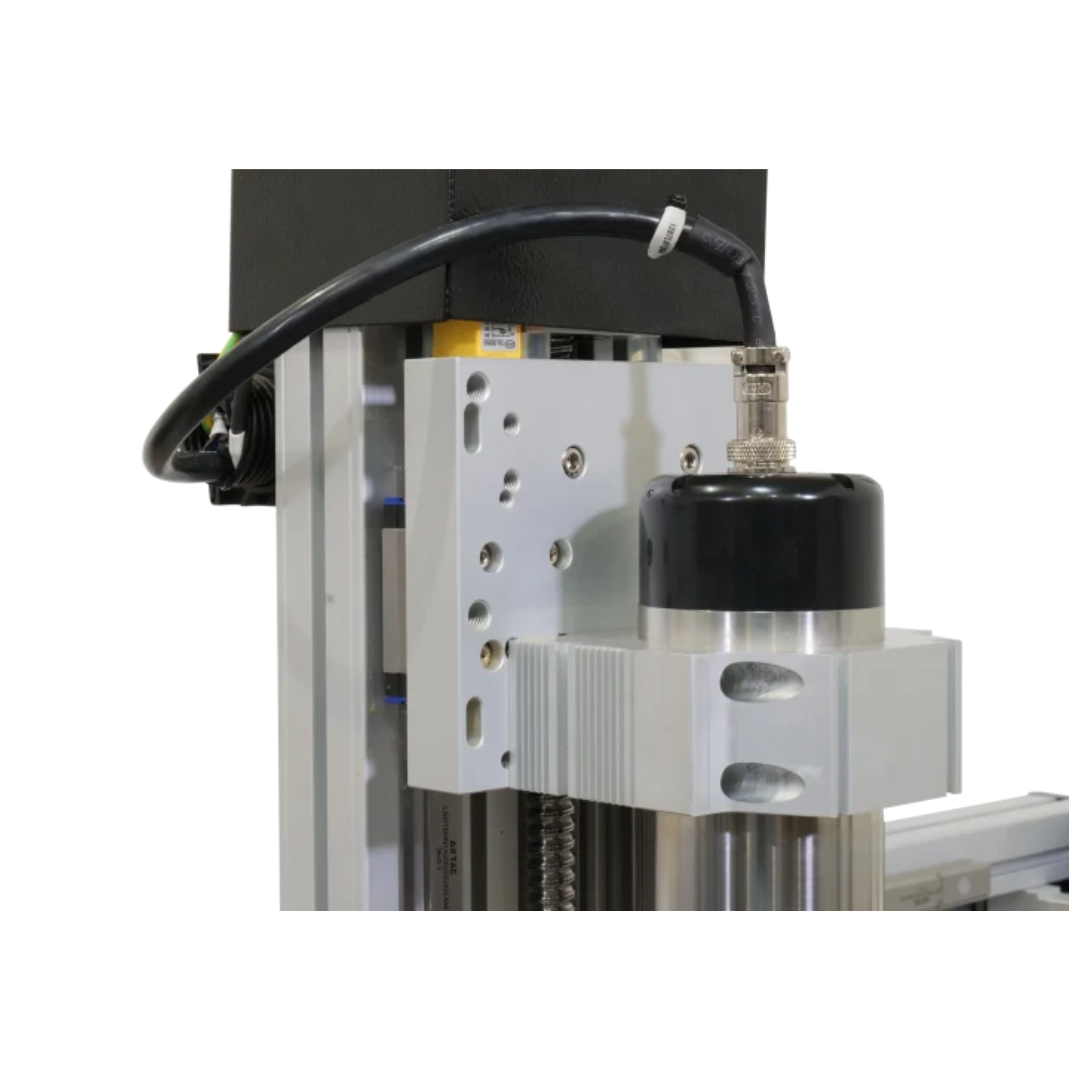

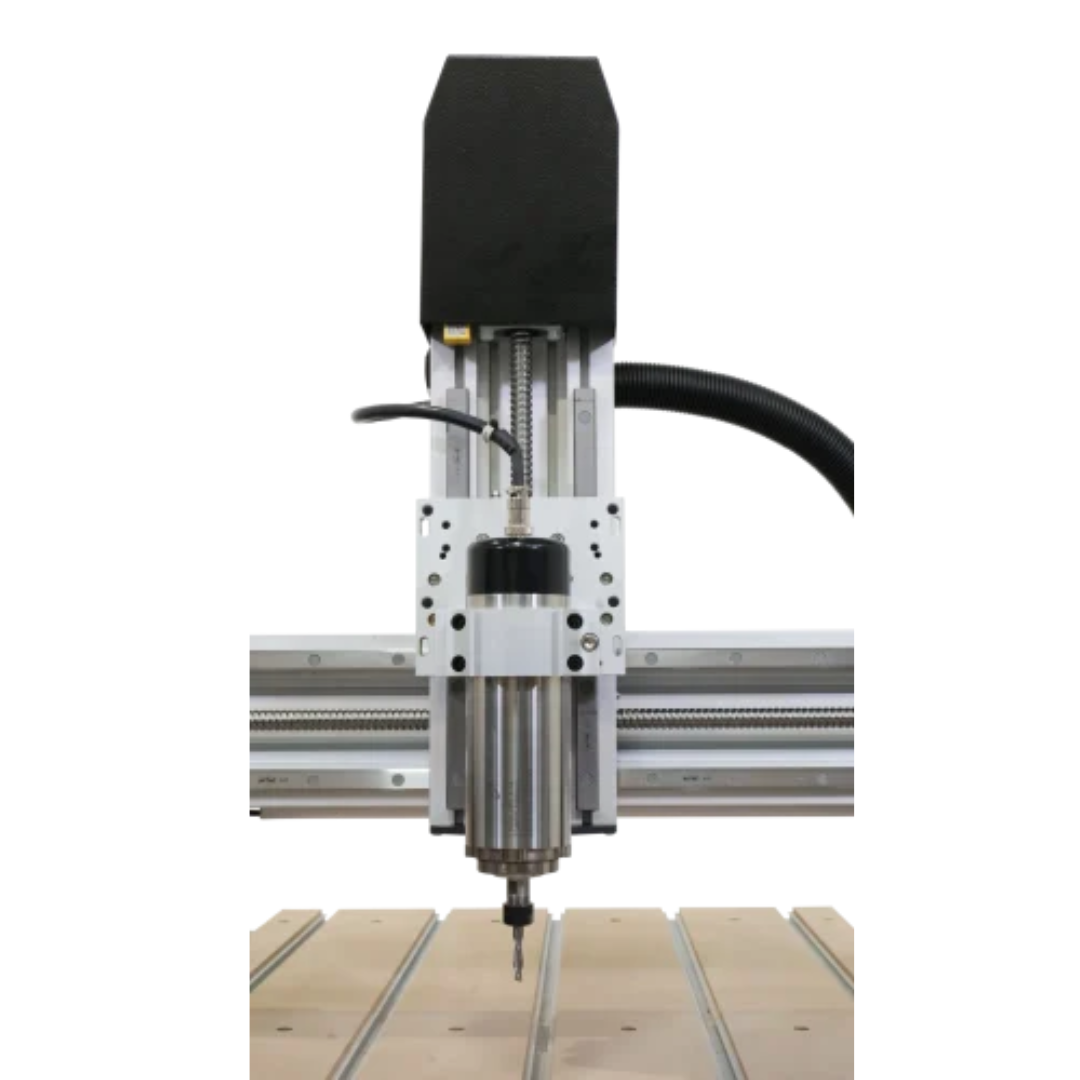

- Ultra-quiet 1 HP spindle with variable speed up to 24,000 RPM delivers clean, precise cuts across materials.

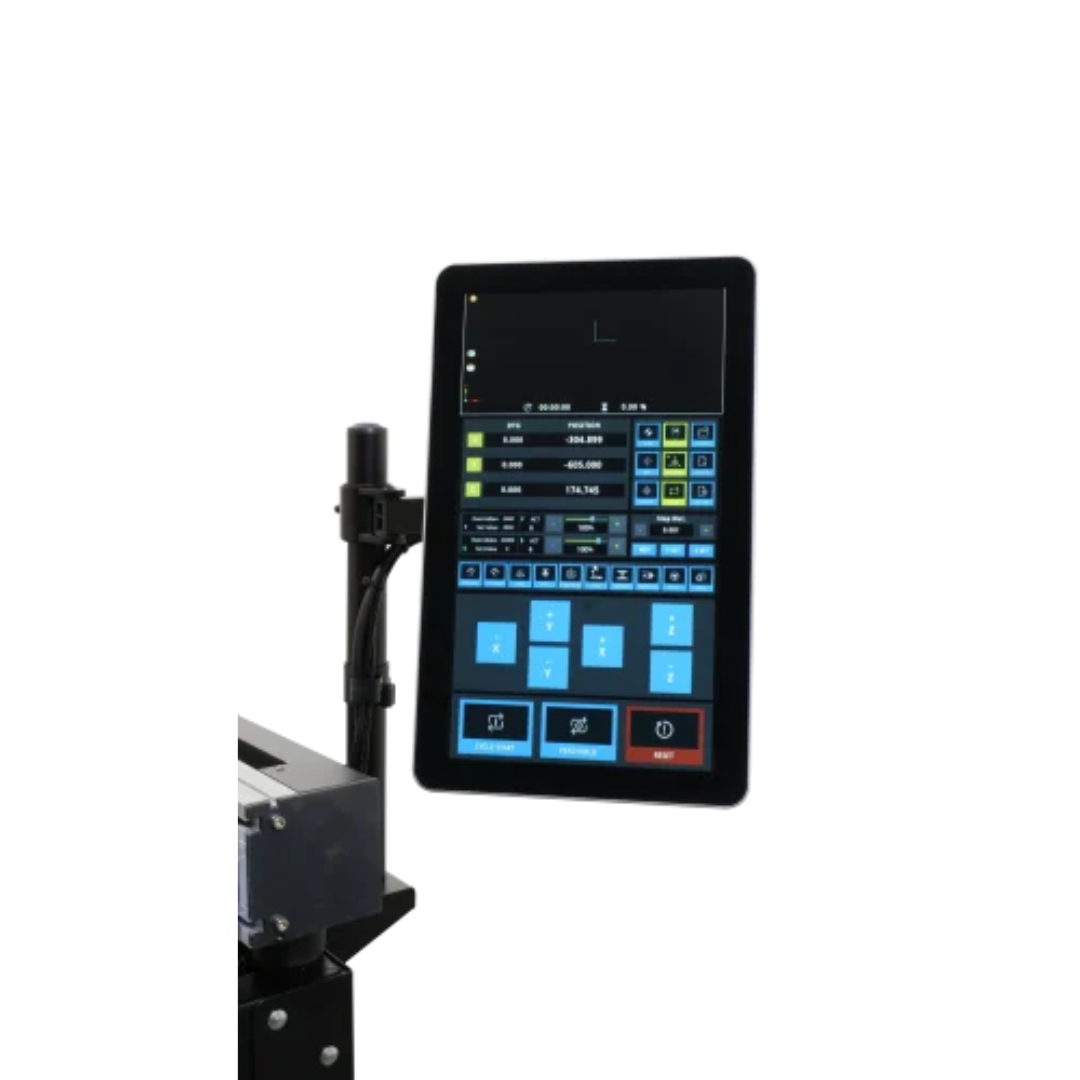

- 15.1” touchscreen control system with graphical interface simplifies operation and machine monitoring.
- Automatic tool touch-off system ensures accurate bit setup and repeatable results.
- Integrated air-cooling system maintains spindle performance during extended operation.

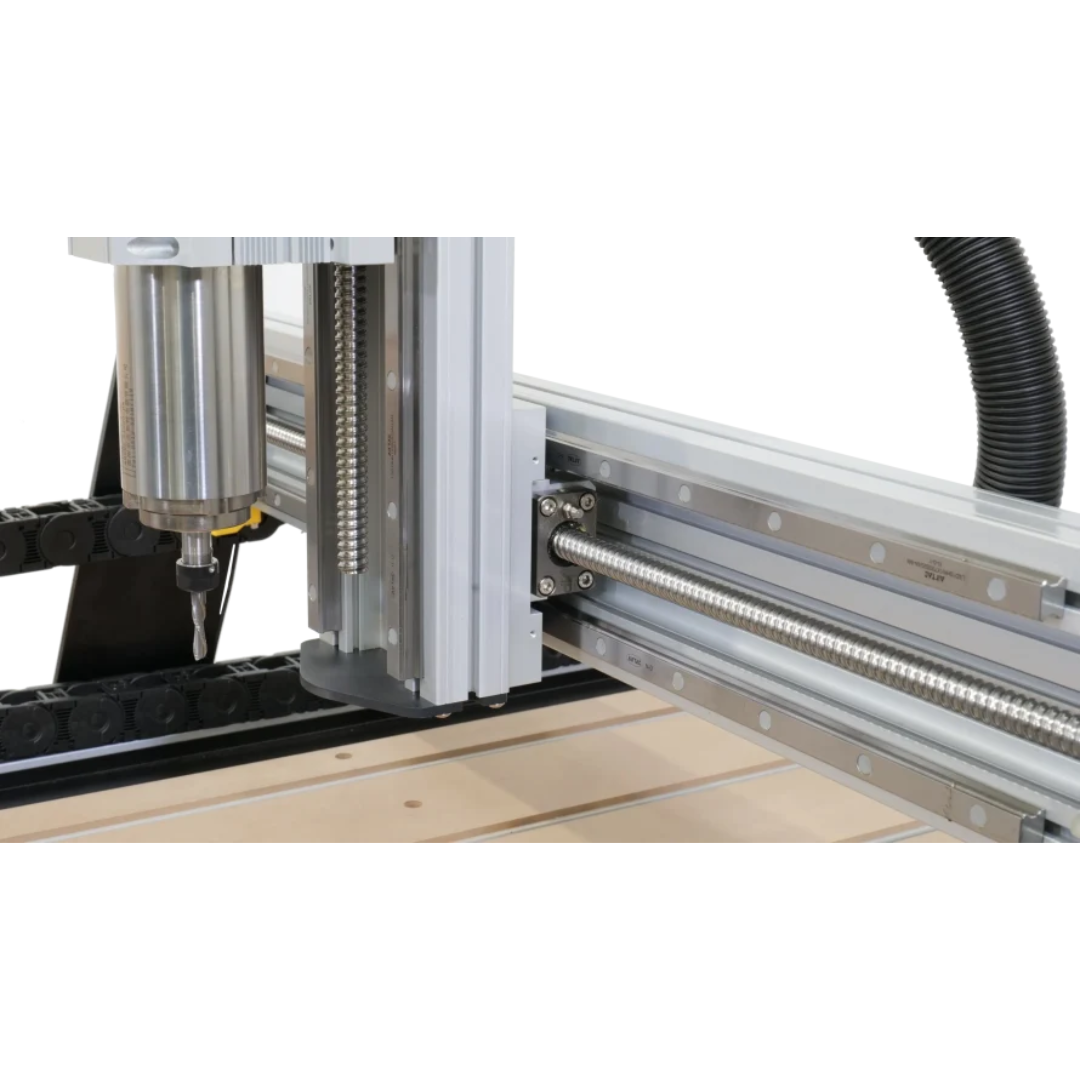

- Precision motion system using ball screws and linear guide rails for smooth, accurate movement.
Laguna KX|24 KX2401 CNC Router Optional Accessories
- Machine stand with integrated storage drawers
- Overhead dust collection system with flexible hose and arm
- Brushed dust shoe for improved dust extraction at the spindle
- Hold-down clamp set for secure material positioning
- LED lamp kit with touchscreen control integration
- Laser engraving accessory kit for expanded capabilities
Why Choose the Laguna KX|24 KX2401 CNC Router
- Versatile material compatibility including wood, plastics, metals, and foam
- High-speed precision machining for both 2D and 3D applications
- User-friendly touchscreen control for efficient operation
- Compact yet powerful design ideal for small to mid-size shops
- Expandable functionality with a range of optional accessories
The Laguna KX|24 KX2401 CNC Router combines professional-grade performance, precision engineering, and user-friendly technology, making it an excellent choice for anyone looking to elevate their CNC capabilities.
