Laguna B|Flux MDCBF1110C1M Applications
- Dust collection for table saws, bandsaws, jointers, and planers
- Small to mid-sized woodworking shops requiring efficient air filtration
- Workshops needing compact, mobile dust collection solutions
- General-purpose dust extraction for wood and composite materials
Ideal for users seeking a compact yet powerful dust collection system with professional-grade filtration and low noise output.
Laguna B|Flux MDCBF1110C1M Specifications
| Model | MDCBF1110C1M |
|---|---|
| Motor | 1 HP, 110V, 1 Phase, 60 Hz |
| Amperage | 7 – 8.4 Amps |
| Recommended Breaker | 15 Amps |
| RPM | 3450 |
| Airflow (CFM) | 550 (Shop) / 650 (Inlet) |
| Max Static Pressure | 4.86" (Inches of Water) |
| Impeller | 9" Steel Radial Fin (ISO 1940 Balanced) |
| Inlet Size | 4" Port |
| Filtration | 1 Micron Canister Filter |
| Filtration Efficiency | 99.97% @ 0.2 – 2 Microns |
| MERV Rating | 12 |
| Filter Surface Area | 17.2 ft² (1.6 m²) |
| Canister Size | 14.2" Diameter × 11.8" Length |
| Collection Bag | Plastic (350 × 980 mm) |
| Noise Level | 76 dB (at 9.8 ft) |

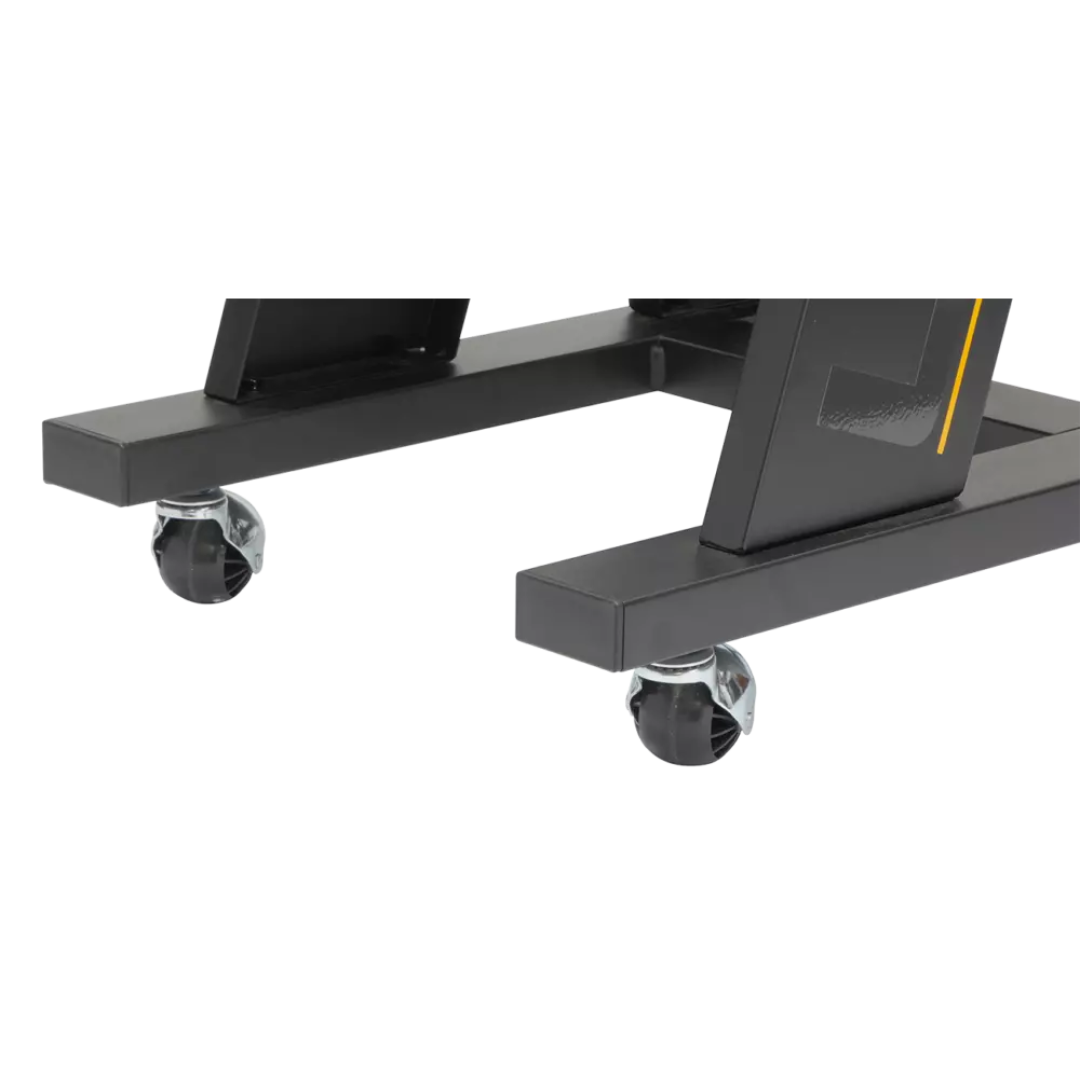

| Mobility | 2" Ball Casters |
| Dimensions | 29" × 14.8" × 50.4" |
| Weight | 71 lbs (Net) / 77 lbs (Shipping) |
| Plug | NEMA 5-15P, 6 ft Cord |
| Certification | CSA Approved |
Laguna B|Flux MDCBF1110C1M Performance & Features

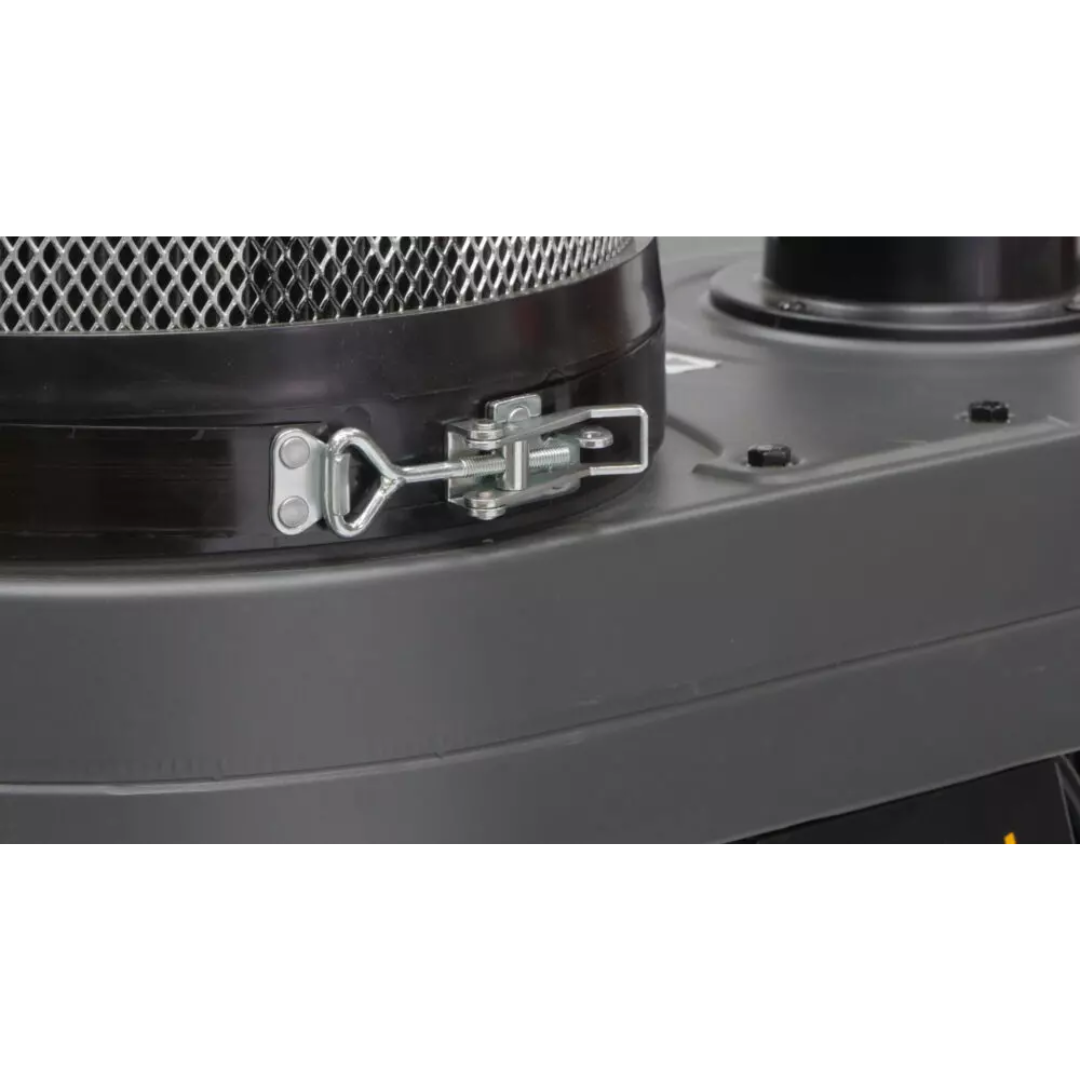

- Patented Snap-Band System allows fast, hassle-free bag changes without traditional steel bands.
- High-Efficiency 1 Micron Filtration captures 99.97% of fine dust particles for cleaner air.
- Horizontal Dust Chute optimizes airflow and can swivel 180° for flexible positioning.

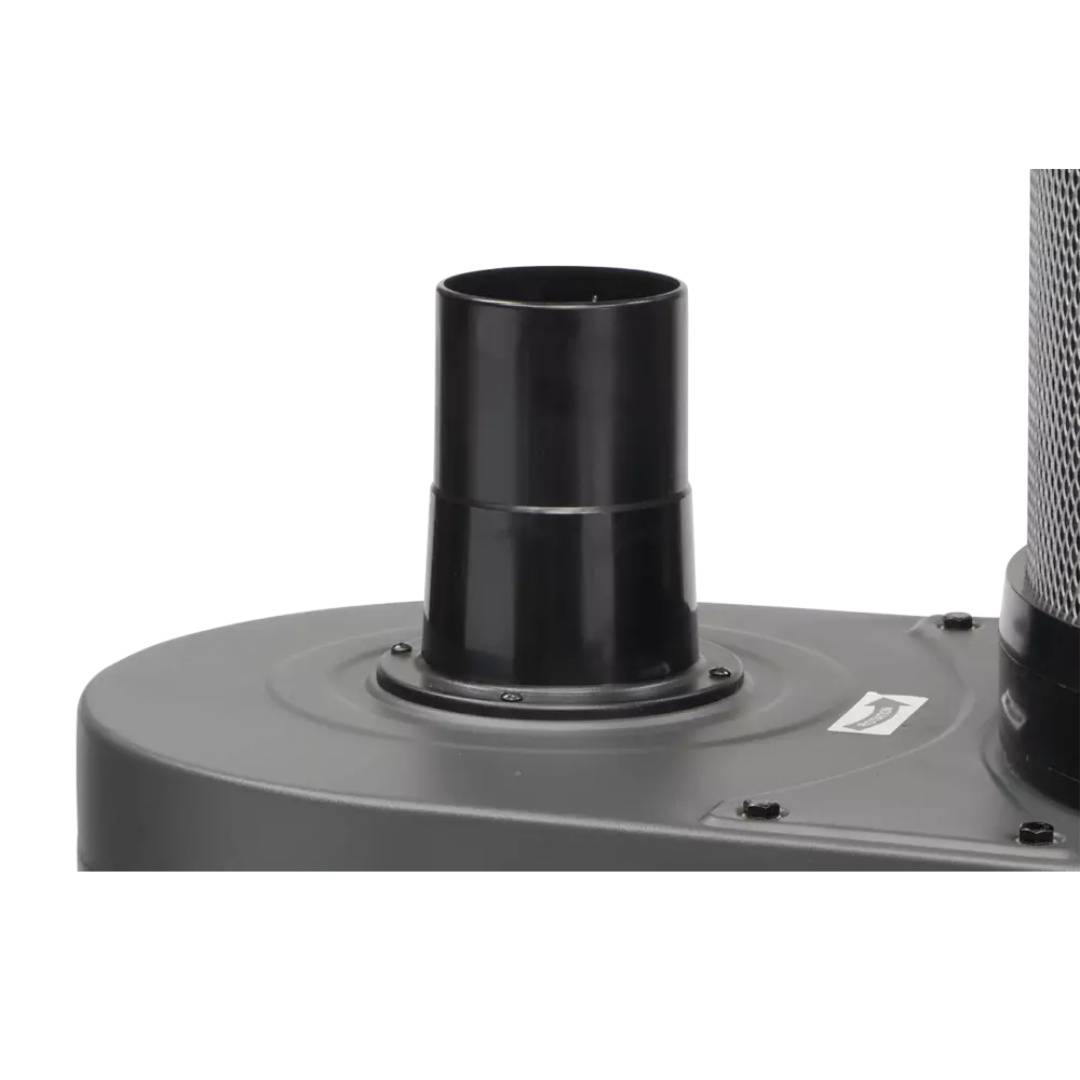

- Adjustable Inlet Orientation allows the inlet port to face up or down for versatile setup.
- Low Noise Operation operates at approximately 76 dB for a quieter shop environment.

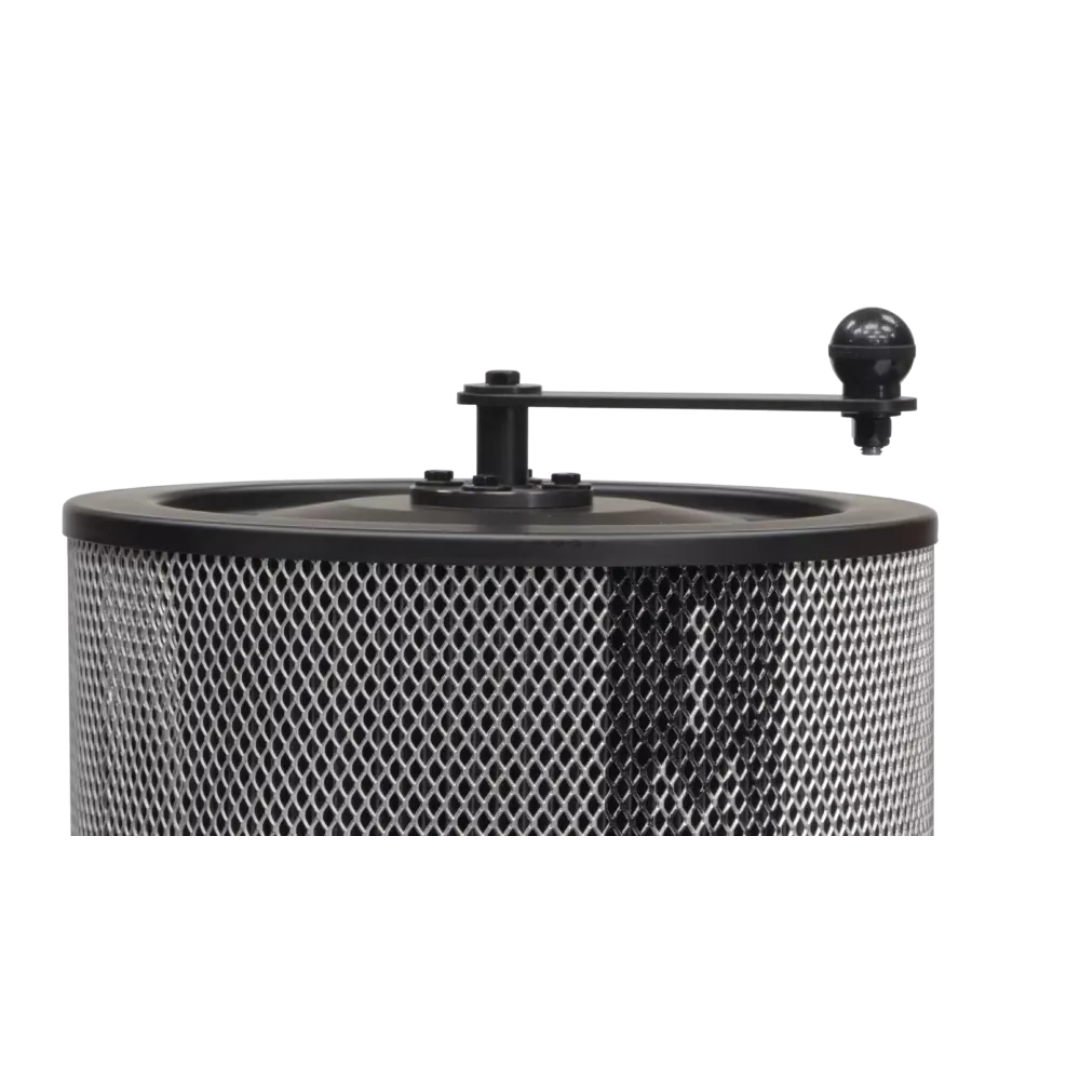

- Manual Crank Filter Cleaning prevents clogging and maintains optimal airflow.
- Compact, Mobile Design with integrated casters for easy movement around the shop.
- Steel Radial Fin Impeller ensures efficient air movement and long-term durability.
- Solid Construction provides stability and performance beyond typical 1 HP units.
Why Choose the Laguna B|Flux MDCBF1110C1M
- Combines powerful airflow with advanced fine dust filtration.
- Compact footprint ideal for space-conscious workshops.
- User-friendly design with quick bag changes and easy maintenance.
- Quiet operation compared to many dust collectors in its class.
- Engineered for performance, durability, and modern shop aesthetics.
The Laguna B|Flux MDCBF1110C1M delivers a perfect balance of power, convenience, and efficiency—making it one of the most advanced compact dust collectors available today.
