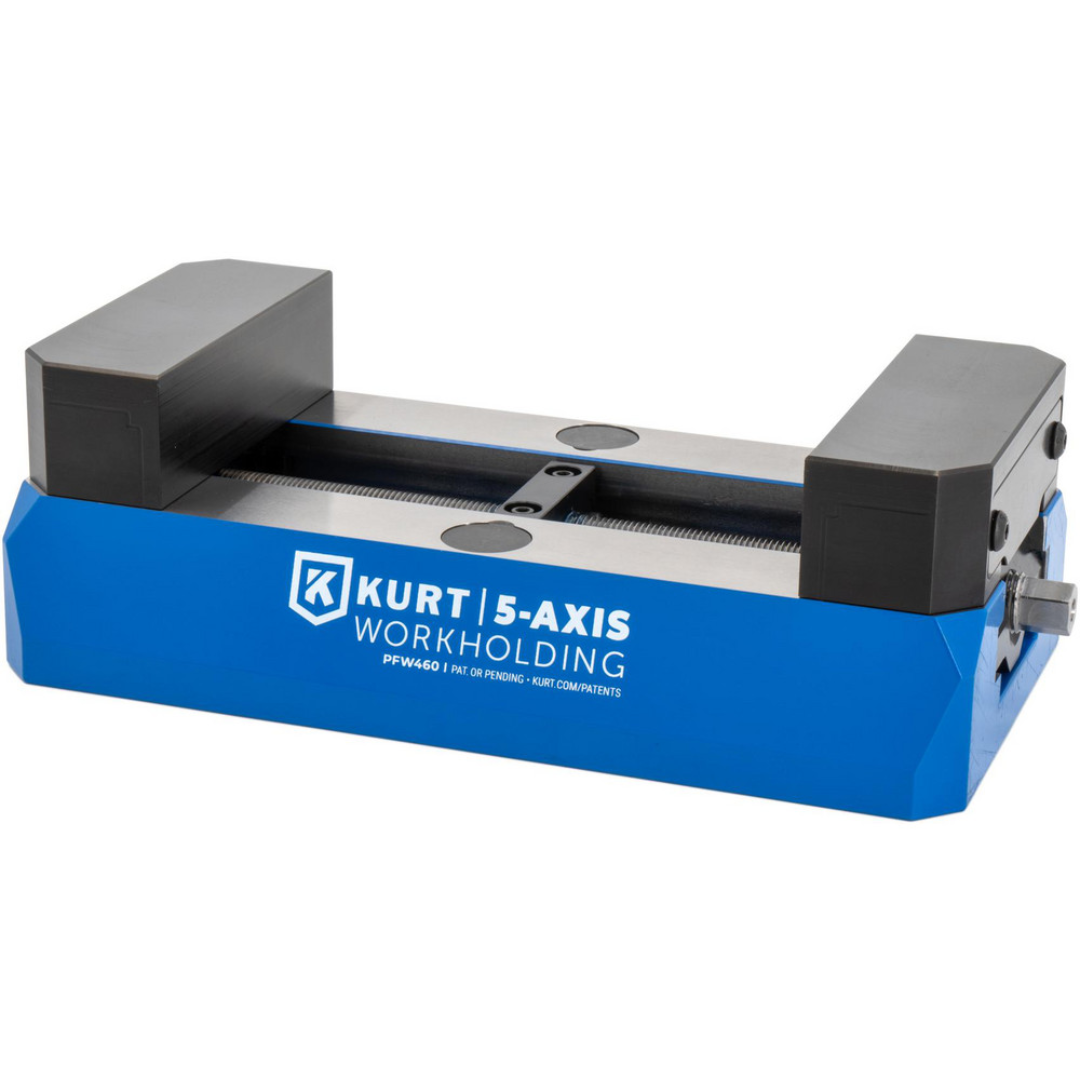

Kurt Self-Centering Vise: PFW, 6.6060" Max Jaw Opening 55542104 Applications
- Precision CNC milling and machining operations requiring accurate workpiece centering.
- Production machining of larger components requiring extended jaw opening capacity.
- Multi-axis machining centers performing close-tolerance manufacturing.
- Automated machining cells utilizing robotic loading and unloading systems.
- Fixture-based and palletized manufacturing environments incorporating zero-point workholding systems.
- Prototype development, toolroom machining, and production manufacturing.
- Machining steel, stainless steel, aluminum, brass, plastics, composites, and engineered materials.
- Applications requiring repeatable setups and consistent workpiece alignment.
Designed for manufacturers seeking maximum workpiece capacity, exceptional centering accuracy, and reliable clamping performance in advanced machining environments.
Kurt Self-Centering Vise: PFW, 6.6060" Max Jaw Opening 55542104 Specifications
| Series | PFW |
|---|---|
| Operation Type | Manual |
| Material | Steel |
| Jaw Width | 4.00" |
| Maximum Jaw Opening Capacity | 6.6060" |
| Throat Depth | 1.2800" |
| Maximum Clamping Force | 3,375 lbf |

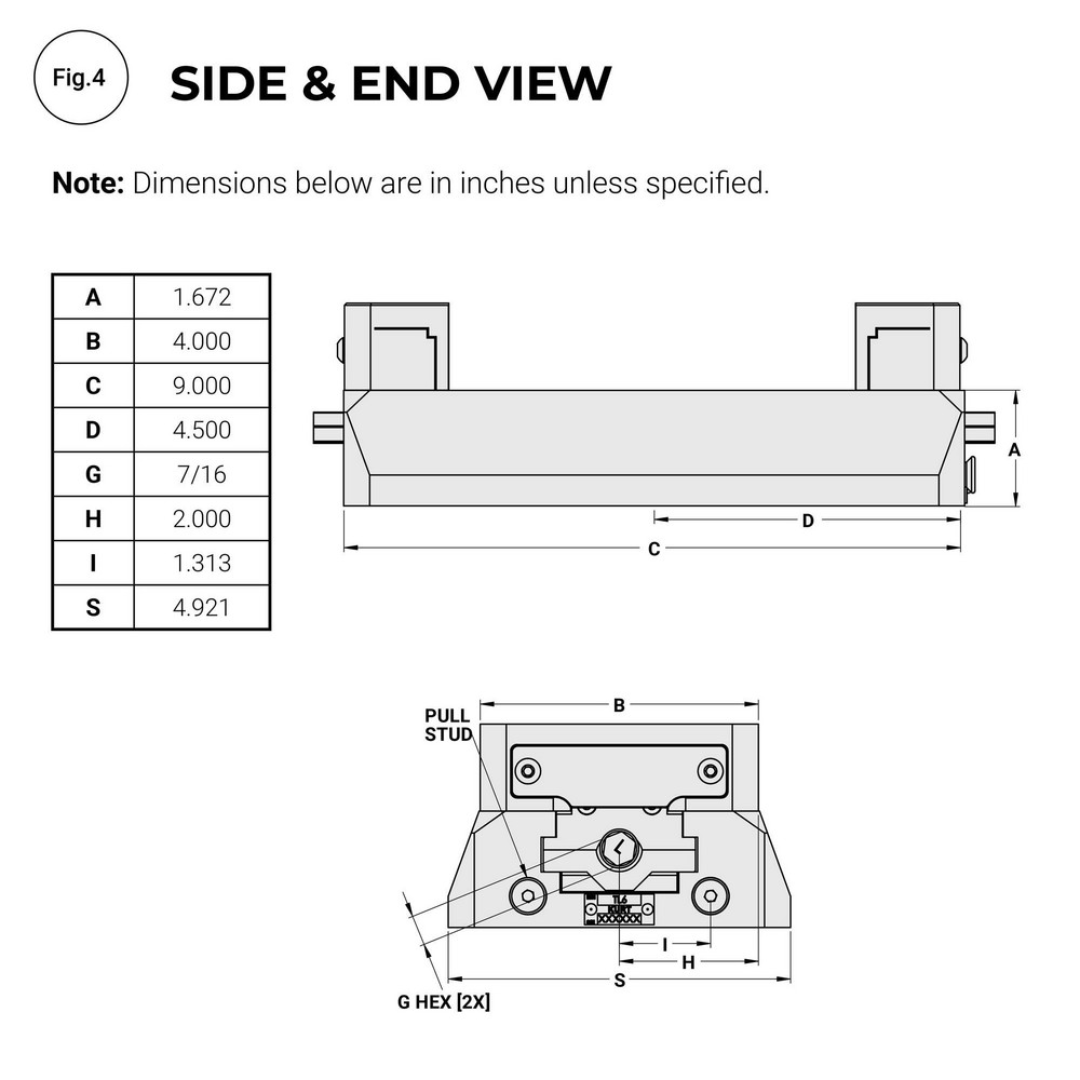

| Overall Length | 9.5000" |
| Overall Width | 4.9210" |
| Overall Height | 2.9220" |
| Maximum Torque | 45 ft-lb |
| Country of Origin | United States |
| UNSPSC Code | 23271713 |
Kurt Self-Centering Vise: PFW, 6.6060" Max Jaw Opening 55542104 Features & Benefits

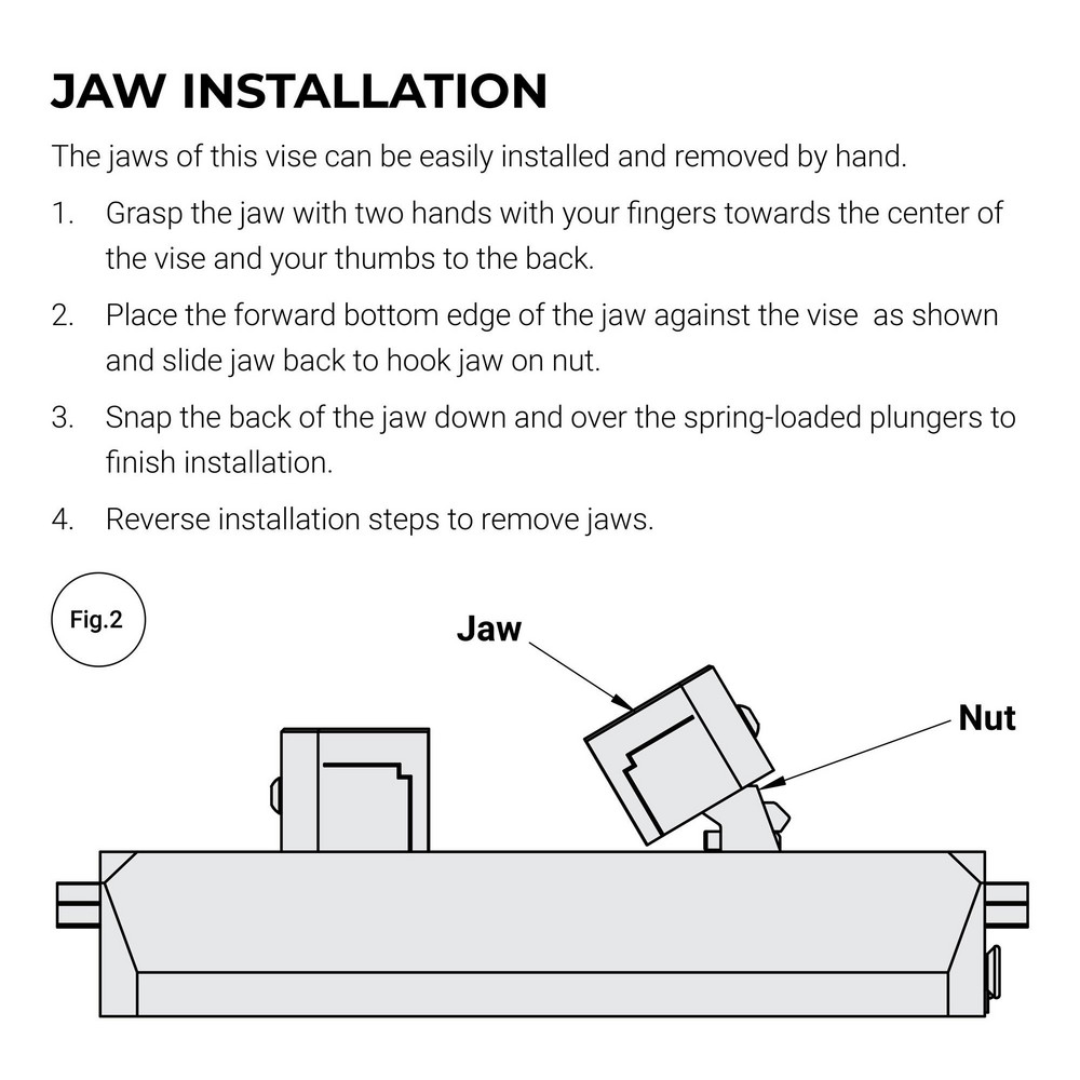

- Quick-Change Jaw System allows jaws to snap on and off quickly, minimizing setup time and maximizing productivity.
- AngLock® Design minimizes jaw lift during clamping, improving workpiece stability and machining accuracy.
- High Clamping Force provides up to 3,375 lbf of holding power for demanding machining applications.
- Spring-Loaded Gibs maintain jaw squareness and alignment for enhanced precision and repeatability.
- Easy Center-Line Adjustment simplifies setup procedures and promotes accurate workpiece positioning.
- Quick Lash Adjustment enables easy maintenance and consistent operating performance.

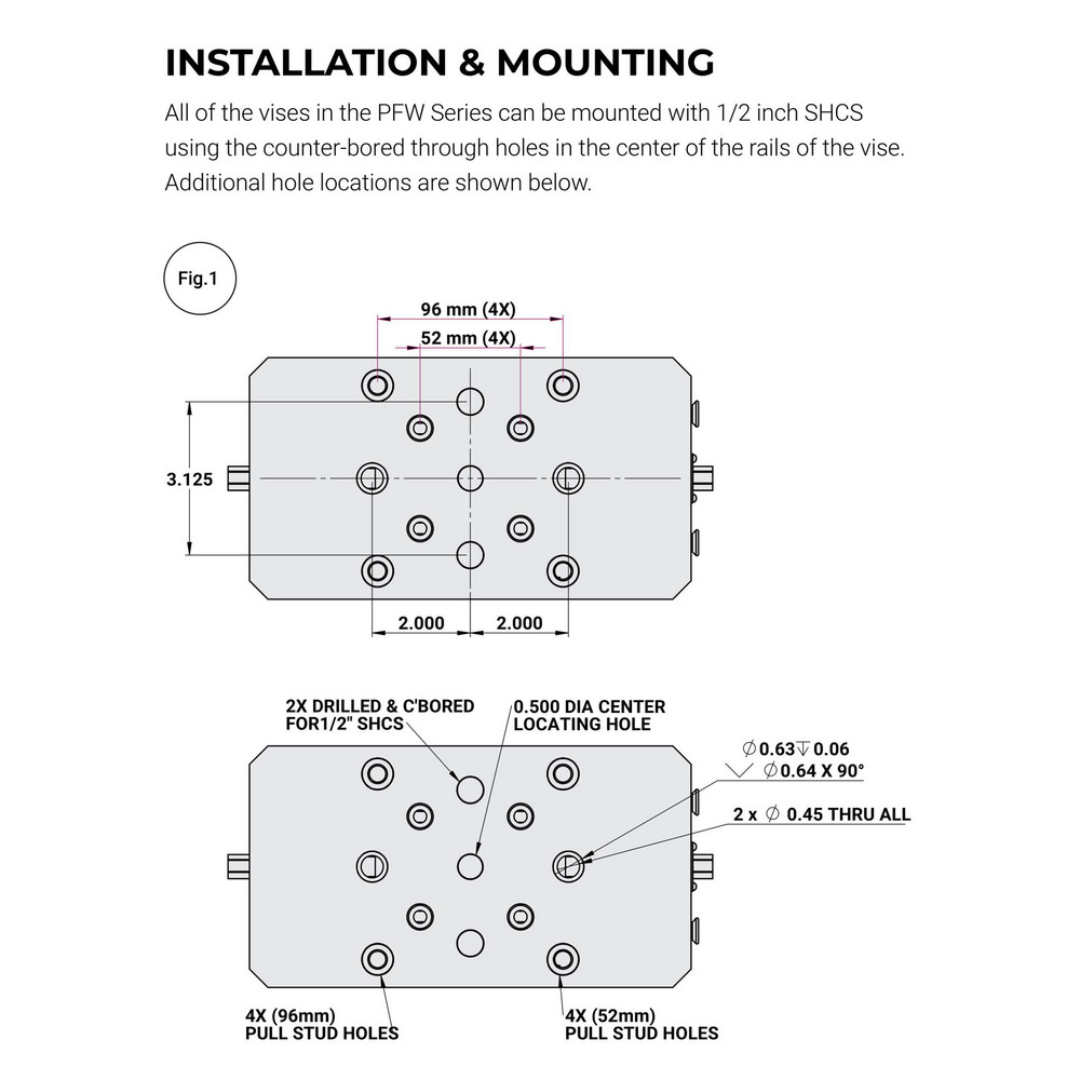

- 96 mm Pull-Stud Mounting Compatibility integrates with zero-point pallet systems for rapid fixture changes.
- Automation-Ready Design supports end-effector integration for robotic and automated manufacturing systems.

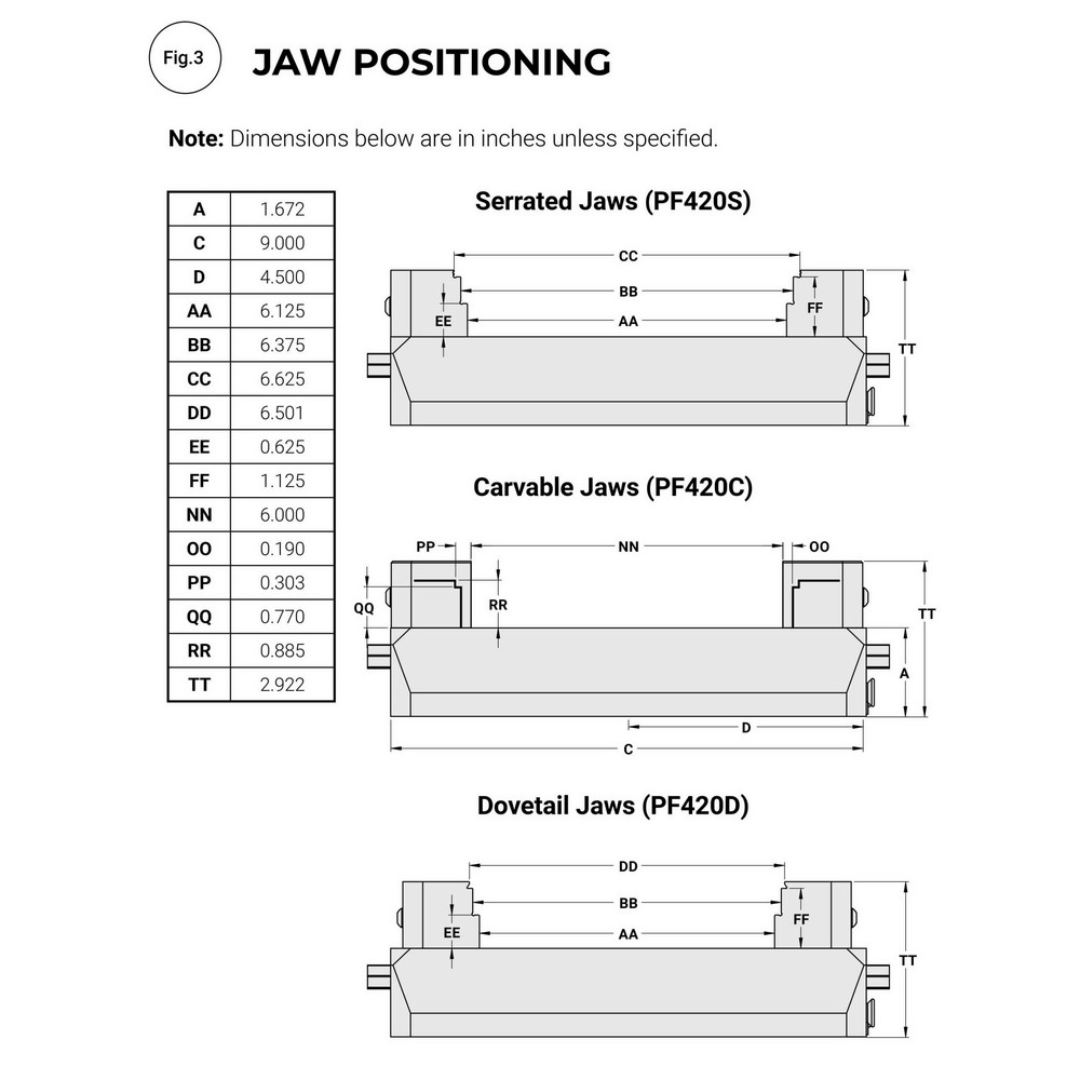

- Three Jaw Options Available including machinable, dovetail, and serrated jaws to accommodate diverse workholding requirements.
- 45 ft-lb Maximum Torque Rating delivers reliable and repeatable clamping performance.
- Extended Jaw Opening Capacity allows secure holding of larger components while maintaining self-centering accuracy.
- Heavy-Duty Steel Construction ensures durability and long-term reliability in industrial machining environments.
Kurt Self-Centering Vise: PFW, 6.6060" Max Jaw Opening 55542104 Performance & Construction
- Precision self-centering mechanism positions workpieces consistently on centerline for improved machining repeatability.
- Robust steel construction withstands continuous production use and repeated clamping cycles.
- Extended 6.6060-inch jaw opening increases versatility for larger parts and complex workholding applications.
- Compact overall width and height maximize machine table utilization while providing substantial clamping capacity.
- Designed to reduce setup time and improve throughput in production manufacturing environments.
- Compatible with automation systems and zero-point workholding platforms for streamlined workflows.
- Provides secure workpiece retention during aggressive machining operations while maintaining dimensional accuracy.
Why Choose the Kurt Self-Centering Vise: PFW, 6.6060" Max Jaw Opening 55542104
- Large 6.6060-inch jaw opening accommodates oversized workpieces and expanded machining capabilities.
- Precision self-centering operation improves part consistency and machining accuracy.
- 3,375 lbf clamping force provides dependable workholding security.
- Quick-change jaws reduce downtime and increase production efficiency.
- AngLock® technology minimizes jaw lift for superior workpiece stability.
- Automation-ready design supports modern CNC manufacturing environments.
- Compatible with zero-point pallet systems for faster setup and fixture changes.
- Manufactured in the USA using durable steel construction for long-term performance.
The Kurt Self-Centering Vise: PFW, 6.6060" Max Jaw Opening 55542104 combines maximum workpiece capacity, precision self-centering technology, powerful clamping force, and automation-ready functionality to deliver exceptional workholding performance for advanced CNC machining and production manufacturing operations.
