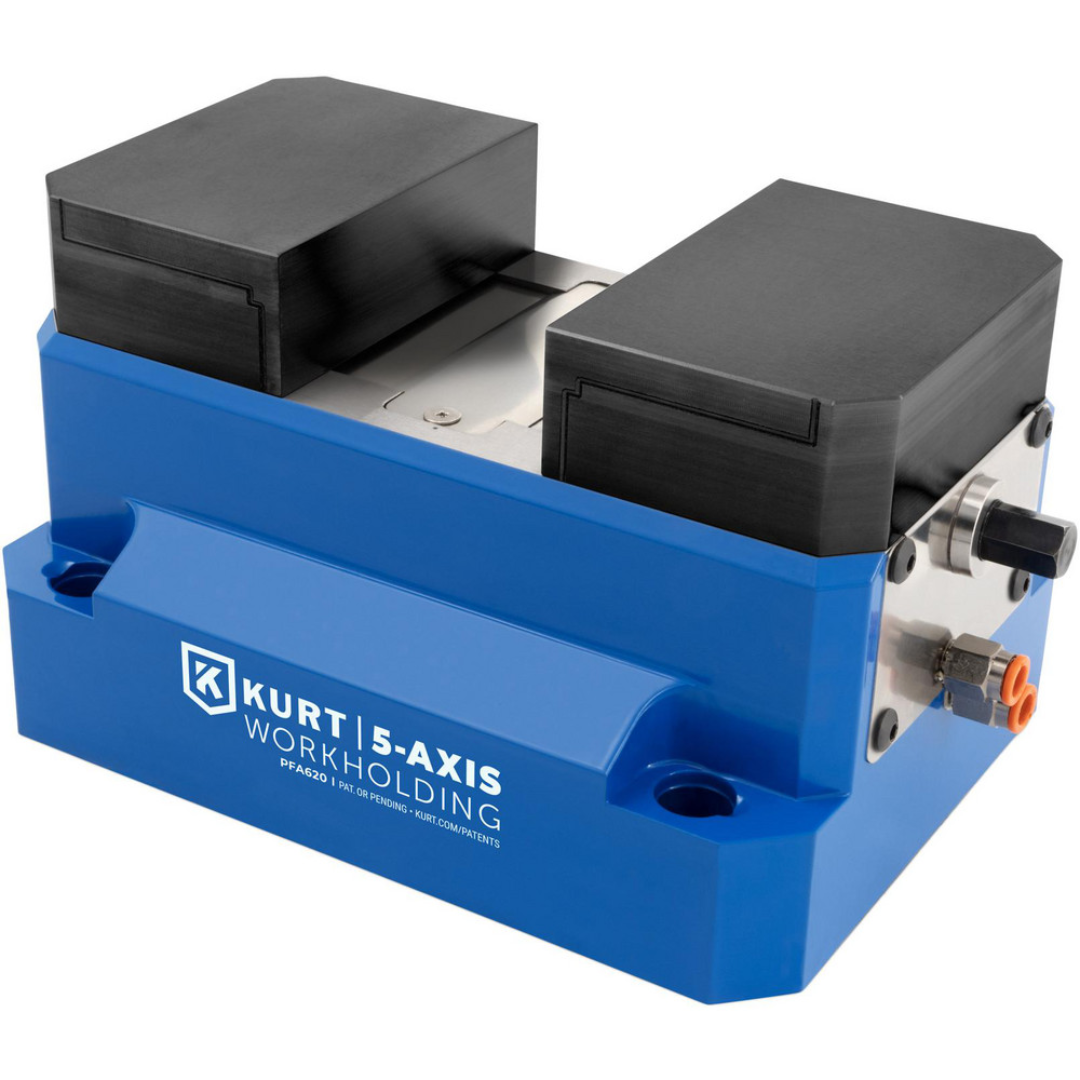

Kurt Self-Centering Vise: PF, 2.4300" Max Jaw Opening 79566253 Applications
- 5-axis CNC machining centers requiring enhanced part accessibility.
- Precision manufacturing operations utilizing self-centering workholding.
- Automated machining cells with pneumatic clamping systems.
- Aerospace, medical, defense, and high-precision component production.
- Prototype machining and short-run production environments.
- Multi-sided machining applications requiring accurate part centering.
- Fixture systems where fast changeovers and repeatable positioning are critical.
The elevated self-centering design allows improved access to multiple workpiece surfaces, making this vise particularly effective for 5-axis machining operations.

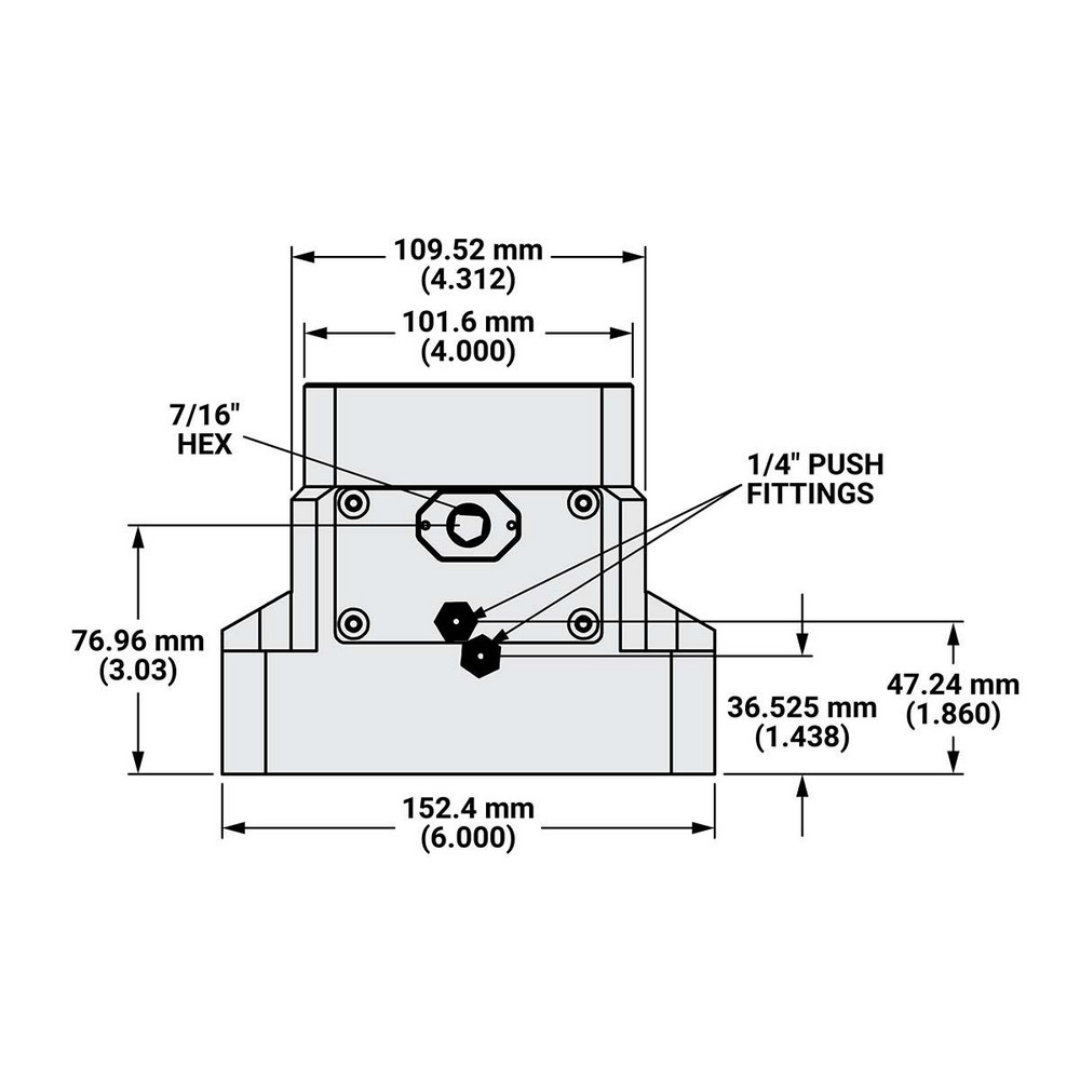

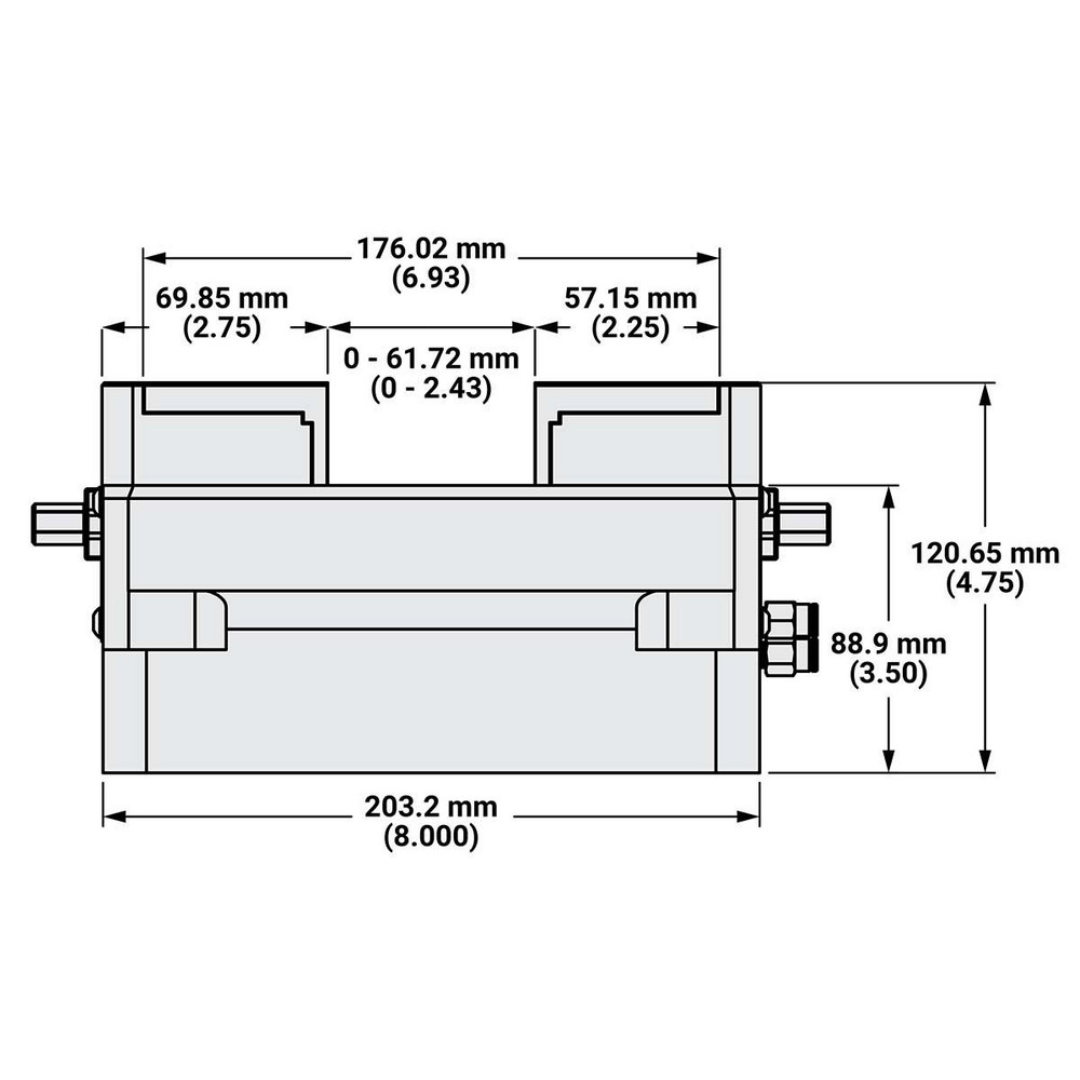

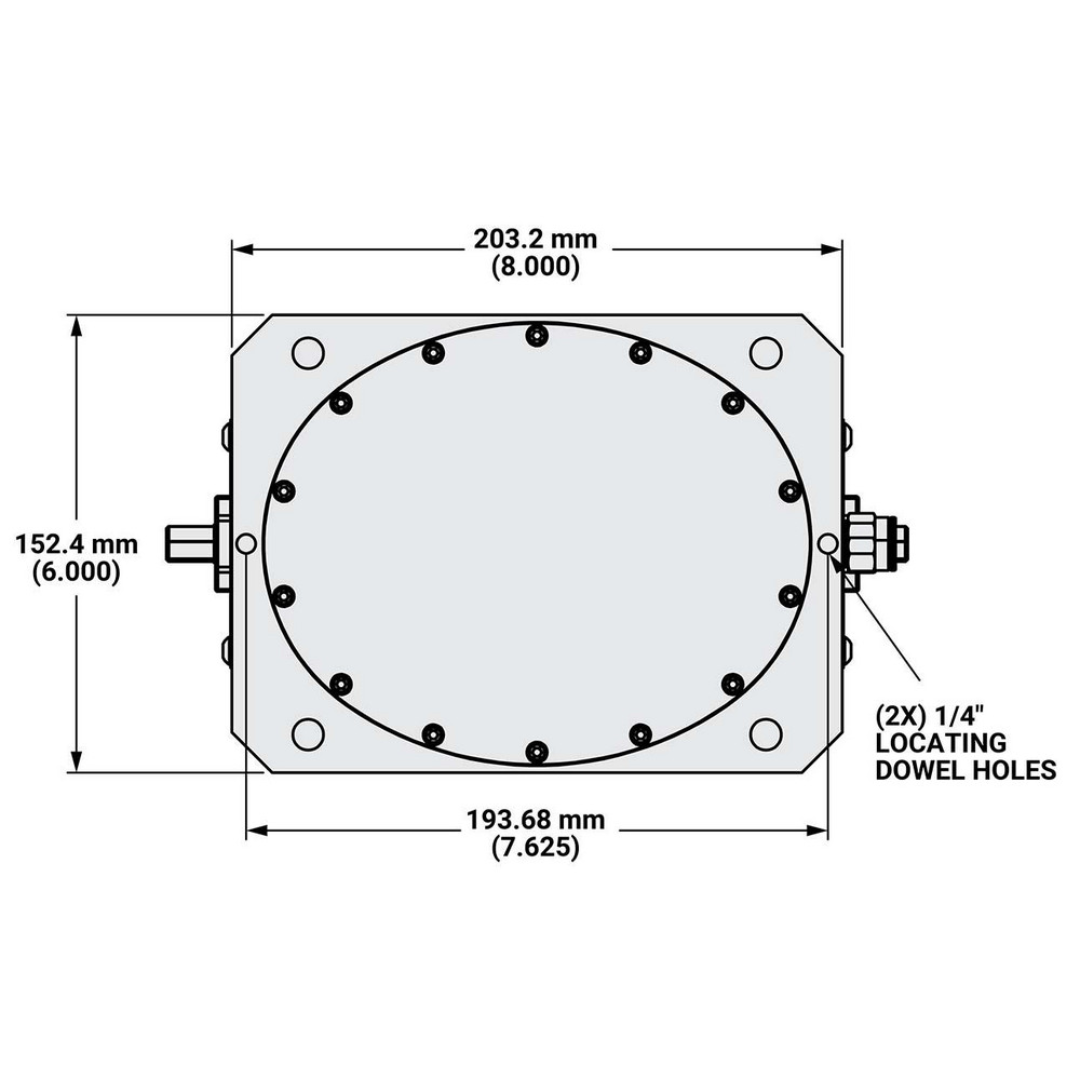

Kurt Self-Centering Vise: PF, 2.4300" Max Jaw Opening 79566253 Specifications
| Product Type | Self-Centering Vise |
|---|---|
| Series | PF |
| Operation Type | Air (Pneumatic) |
| Jaw Width | 4.00" |
| Maximum Jaw Opening Capacity | 2.4300" |
| Throat Depth | 1.2800" |
| Maximum Clamping Force | 2,000 lbf |
| Material | Steel |

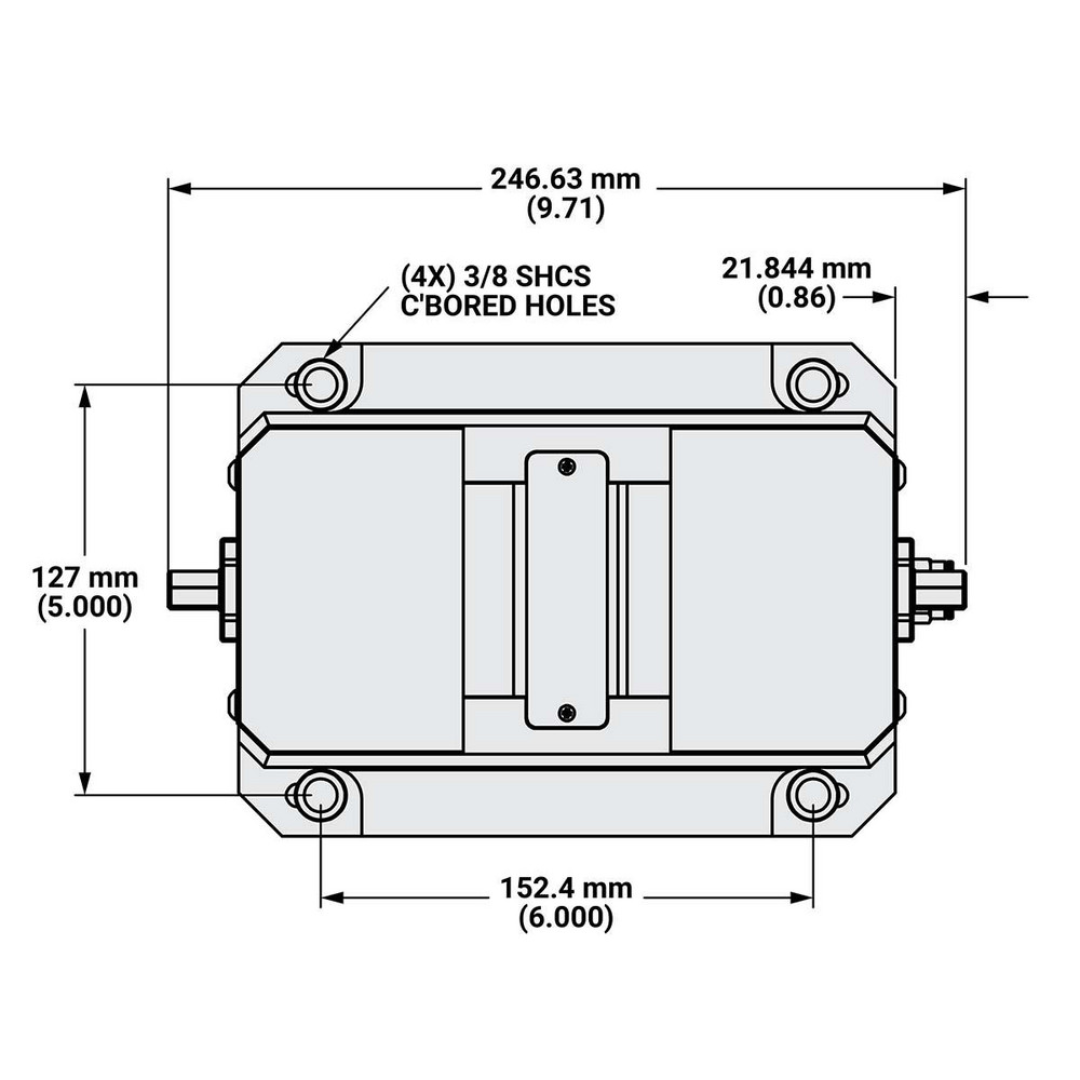

| Overall Length | 9.7100" (246.63 mm) |
| Overall Width | 6.0000" (152.40 mm) |
| Overall Height | 4.7500" (120.65 mm) |
| Country of Origin | United States |
| UNSPSC Code | 23271713 |
Kurt Self-Centering Vise: PF, 2.4300" Max Jaw Opening 79566253 Features & Benefits
- Self-centering jaw mechanism automatically positions workpieces on center for improved machining accuracy and repeatability.
- Fast pneumatic actuation reduces cycle times and improves productivity in high-output machining environments.

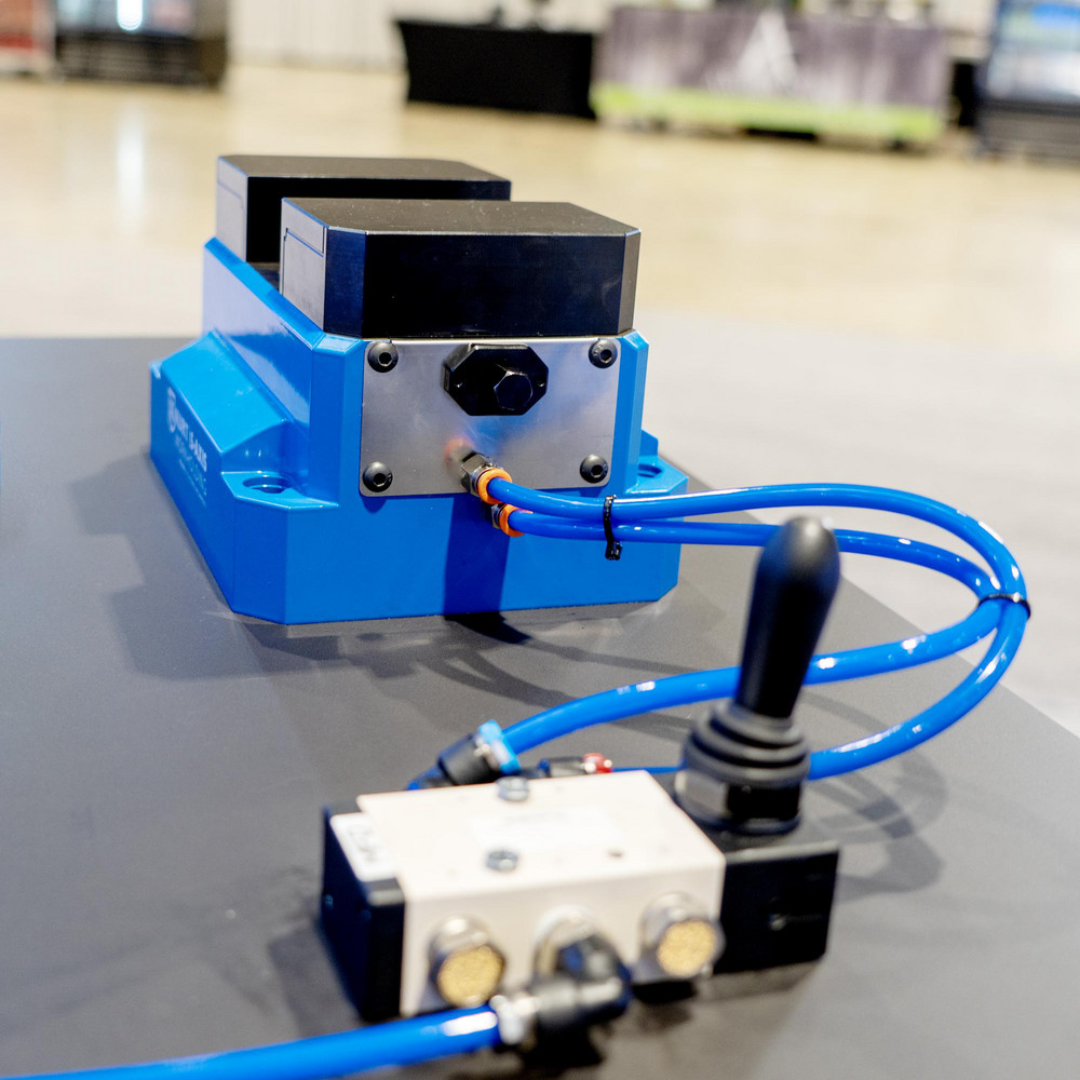

- Remote vise actuation capability works with a Kurt FLR system and a hand or foot switch (sold separately) for convenient operation.

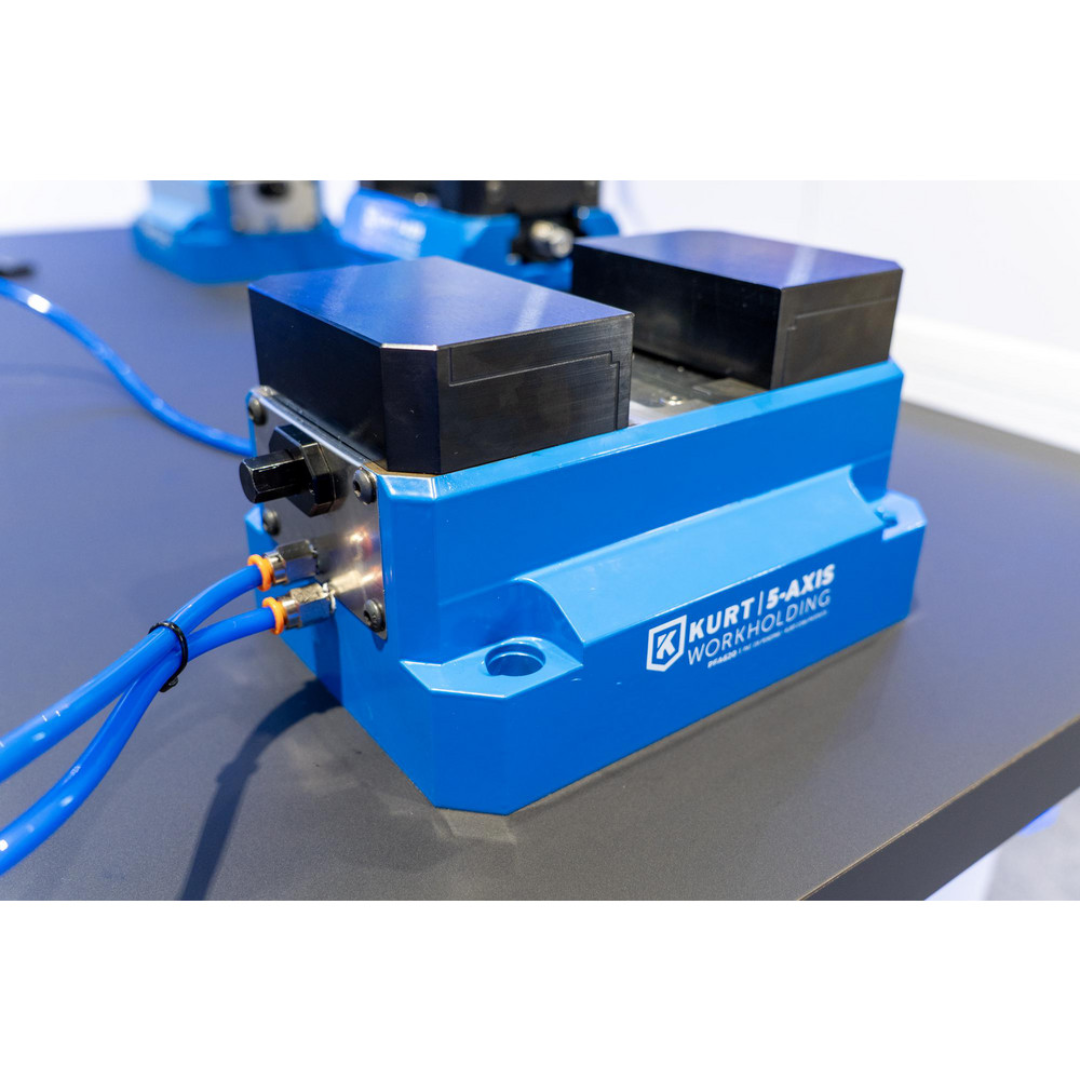

- Connects directly to shop air for easy integration into existing pneumatic systems.
- 2,000 lbf clamping force provides secure and reliable workpiece retention during machining operations.
- 0.25-inch pneumatic stroke enables fast and efficient clamping action.
- 3.5-inch rise design allows easier access to five sides of the workpiece, supporting advanced machining strategies.

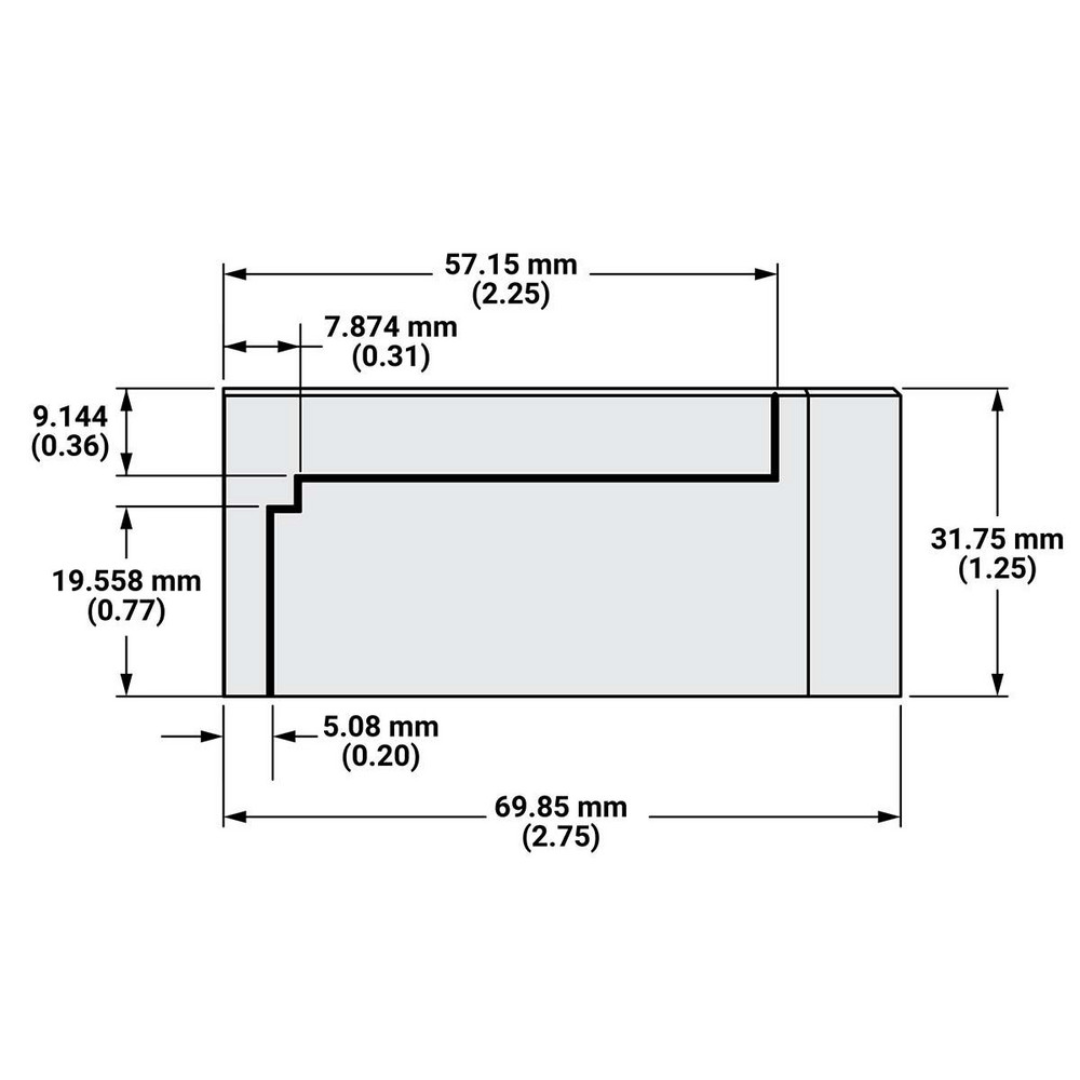

- Quick-change carvable jaws snap on and off without tools, simplifying setup changes and customization.
- Customizable soft jaw capability allows users to machine jaw profiles for specialized workholding requirements.
- Optional serrated and dovetail jaws are available for expanded application flexibility.
- Compact footprint maximizes machine table space while maintaining excellent workholding performance.
Kurt Self-Centering Vise: PF, 2.4300" Max Jaw Opening 79566253 Performance & Construction
- Precision-engineered self-centering mechanism improves setup consistency and part location accuracy.
- Steel construction provides durability and long-term performance in demanding manufacturing environments.
- Pneumatic operation minimizes manual intervention and supports automated production workflows.
- Elevated vise design improves spindle access for multi-sided machining operations.
- Compact dimensions make the vise ideal for densely populated fixture plates and automation systems.
- Quick-change jaw technology reduces downtime during job changeovers.
- Designed for repeatable performance in precision CNC machining applications.
Why Choose the Kurt Self-Centering Vise: PF, 2.4300" Max Jaw Opening 79566253
- Self-centering operation improves machining accuracy and repeatability.
- Fast pneumatic actuation supports efficient production workflows.
- 2,000 lbf clamping force provides secure workpiece retention.
- 3.5-inch rise enhances five-sided machining access.
- Tool-free quick-change jaws reduce setup and changeover times.
- Designed for advanced CNC, automation, and precision manufacturing environments.
The Kurt Self-Centering Vise: PF, 2.4300" Max Jaw Opening 79566253 combines pneumatic efficiency, self-centering accuracy, quick-change jaw technology, and enhanced workpiece accessibility to deliver a highly productive workholding solution for modern CNC machining operations.
