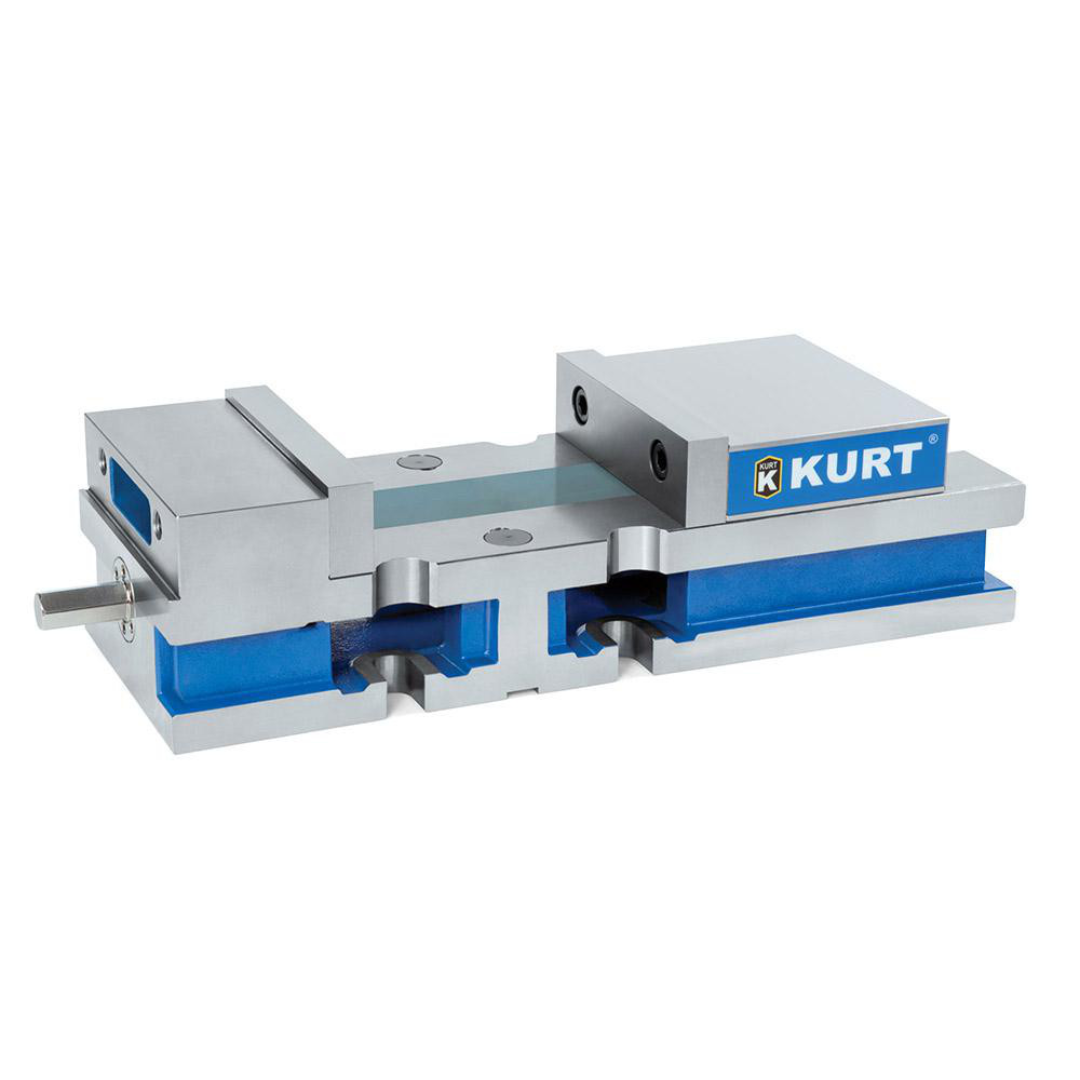

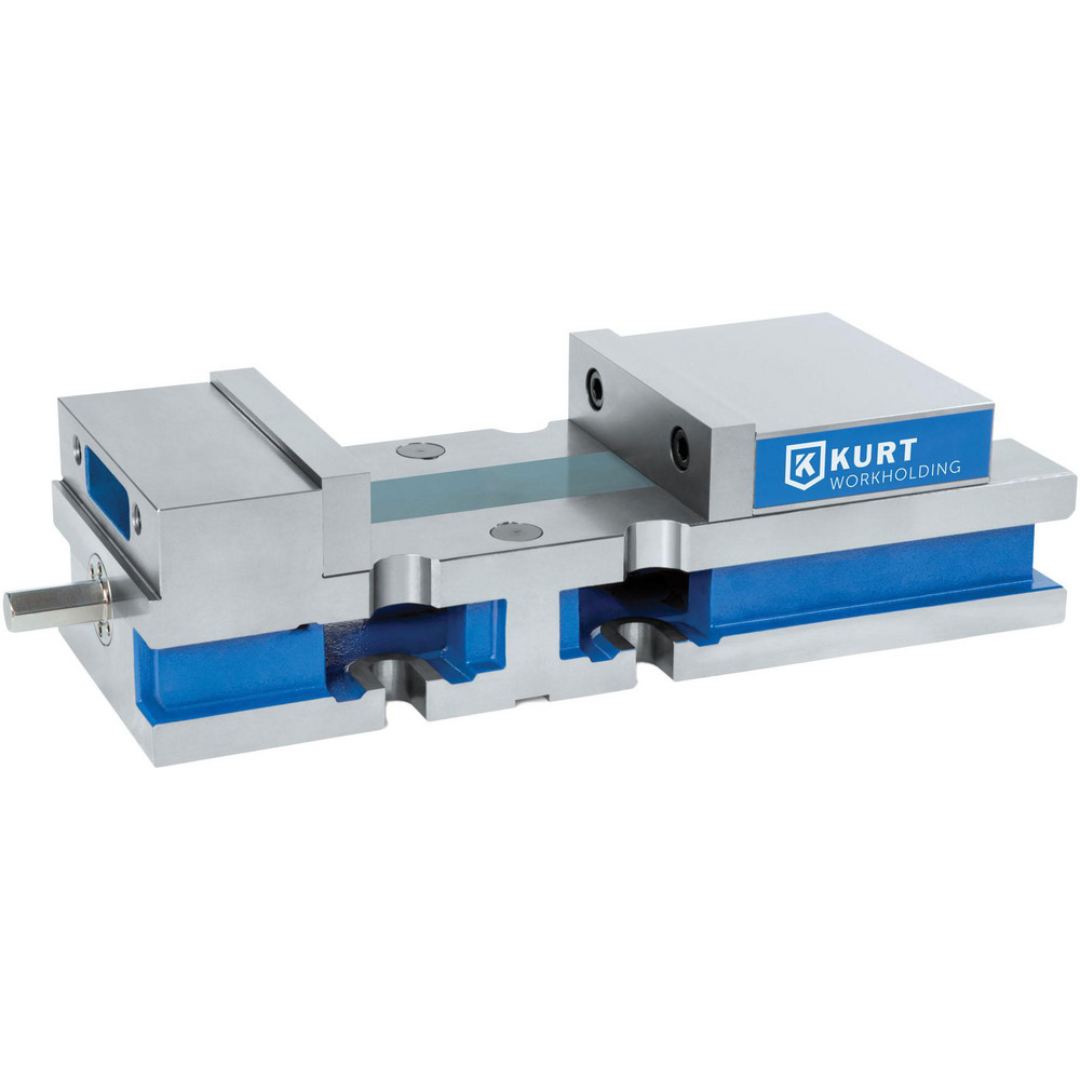

Kurt Machine Vise: Single-Station, 8.0000" Jaw Width, 10-1/4" Jaw Opening, Stationary Base, Precision 3810V Applications
- CNC machining centers and milling machines.
- Precision machining of steel, aluminum, stainless steel, and specialty alloys.
- Automotive, aerospace, toolmaking, and general manufacturing operations.
- Production machining requiring repeatable positioning and consistent results.
- Drilling, milling, tapping, boring, contouring, and finishing applications.
- Fixture-based machining setups utilizing fixture key compatibility.
- High-accuracy workholding environments where rigidity and precision are critical.
Designed to provide dependable workholding performance for precision manufacturing environments requiring accuracy, stability, and repeatability.
Kurt Machine Vise: Single-Station, 8.0000" Jaw Width, 10-1/4" Jaw Opening, Stationary Base, Precision 3810V Specifications
| Model | 3810V |
|---|---|
| Number of Stations | 1 |
| Jaw Width | 8.0000" |
| Jaw Height | 6.0000" (152.40 mm) |
| Maximum Jaw Opening Capacity | 10-1/4" |
| Throat Depth | 1.0000" |
| Orientation | Horizontal |
| Operation Type | Reverse Manual |
| Base Motion Type | Stationary |
| Base Length | 24.0000" (609.60 mm) |
| Base Width | 8.0000" (203.20 mm) |
| Base Height | 6.0000" (152.40 mm) |
| Overall Length | 24.0000" (609.60 mm) |
| Overall Width | 8.0000" |
| Overall Height | 6.0000" |
| Load Capacity | 6,356 lb |
| Maximum Clamping Force | 6,550 Ft/Lb |
| Jaw Material | Steel |
| Vise Material | Ductile Iron |
| Features | Versatile Lock; Fixture Key Compatible; Matched Stationary Jaw; Ultra-Precise Function |
| Precision | Yes |
| UNSPSC Code | 27112100 |
Kurt Machine Vise: Single-Station, 8.0000" Jaw Width, 10-1/4" Jaw Opening, Stationary Base, Precision 3810V Features & Benefits
- Reverse manual operation provides precise control and dependable clamping performance.
- 8.0000" jaw width delivers a large gripping surface for enhanced workpiece stability.
- 10-1/4" jaw opening capacity accommodates a wide variety of workpiece dimensions.
- 6.0000" jaw height provides excellent support and secure holding for larger components.
- 24.0000" base length creates a rigid foundation that enhances machining accuracy and stability.
- Horizontal orientation provides secure and accurate positioning of the workpiece during machining operations.
- Stationary base construction minimizes movement and supports consistent machining results.
- Versatile Lock system enhances clamping flexibility and secure workpiece retention.
- Fixture key compatibility simplifies machine setup and repeatable positioning.
- Matched stationary jaw design improves alignment and promotes consistent holding accuracy.
- Ultra-Precise Function supports tight tolerances and repeatable machining performance.
- 6,550 Ft/Lb clamping force delivers powerful holding capability for demanding applications.
- Ductile iron construction provides superior durability, strength, and vibration dampening.
- Steel jaws offer long service life and dependable wear resistance.
- 6,356 lb load capacity supports heavy-duty machining and production requirements.
Horizontal vises provide secure and accurate positioning of the workpiece during machining operations. Stationary vises are used for machining straight surfaces and can be fastened to the machine at either a parallel or at a right angle, providing flexible setup options for a wide range of manufacturing applications.
Why Choose the Kurt Machine Vise: Single-Station, 8.0000" Jaw Width, 10-1/4" Jaw Opening, Stationary Base, Precision 3810V
- Precision-engineered design for accurate and repeatable machining results.
- Heavy-duty ductile iron construction for long-term durability.
- Large jaw capacity accommodates diverse workpiece sizes.
- Advanced workholding features improve setup efficiency and accuracy.
- High clamping force and load capacity support demanding machining operations.
- Ideal for CNC machining, production manufacturing, and precision workholding applications.
The Kurt Machine Vise: Single-Station, 8.0000" Jaw Width, 10-1/4" Jaw Opening, Stationary Base, Precision 3810V combines rugged construction, precision performance, and versatile workholding features to help manufacturers achieve consistent, high-quality machining results.
