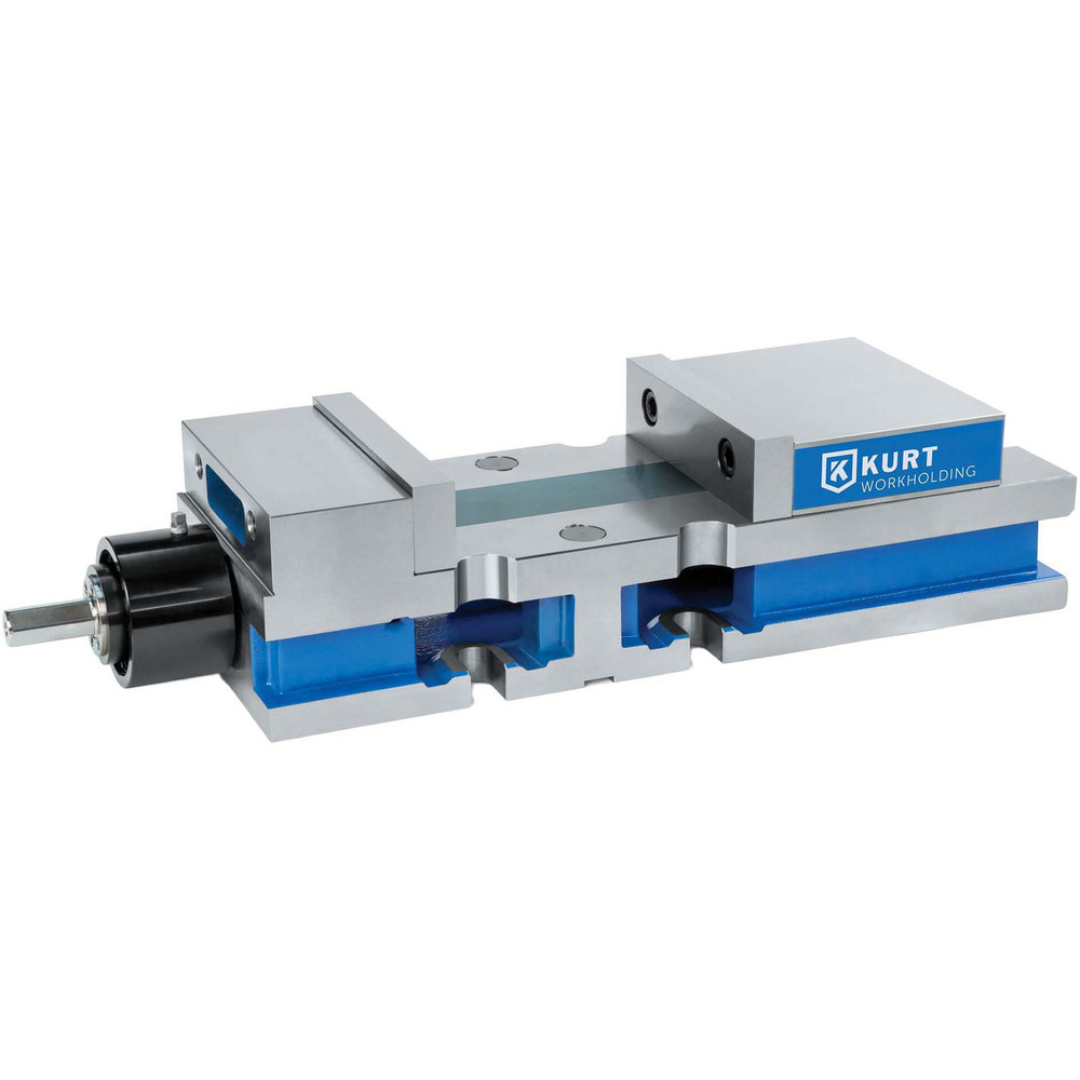

Kurt Machine Vise: Single-Station, 8.0000" Jaw Width, 10-1/4" Jaw Opening, Stationary Base, Precision 3810H Applications
- CNC milling and machining center operations.
- Precision machining of steel, aluminum, stainless steel, and specialty alloys.
- Automotive, aerospace, toolmaking, and industrial manufacturing environments.
- High-accuracy drilling, milling, boring, tapping, and finishing operations.
- Production machining requiring repeatable positioning and secure workholding.
- Fixture-based machining applications utilizing hydraulic clamping systems.
- Operations demanding reliable holding force and consistent part quality.
Designed for precision machining environments where accurate positioning, repeatability, and dependable hydraulic workholding are essential.
Kurt Machine Vise: Single-Station, 8.0000" Jaw Width, 10-1/4" Jaw Opening, Stationary Base, Precision 3810H Specifications
| Model | 3810H |
|---|---|
| Number of Stations | 1 |
| Jaw Width | 8.0000" |
| Jaw Height | 6.0000" (152.40 mm) |
| Maximum Jaw Opening Capacity | 10-1/4" |
| Throat Depth | 1.0000" |
| Orientation | Horizontal |
| Operation Type | Reverse Hydraulic |
| Base Motion Type | Stationary |
| Base Length | 27.0000" (685.80 mm) |
| Base Width | 8.0000" (203.20 mm) |
| Base Height | 6.0000" (152.40 mm) |
| Overall Length | 27.0000" (685.80 mm) |
| Overall Width | 8.0000" |
| Overall Height | 6.0000" |
| Maximum Clamping Force | 3,200 Ft/Lb |
| Maximum Hydraulic Pressure | 11,000 PSI |
| Jaw Material | Steel |
| Vise Material | Ductile Iron |
| Precision | Yes |
| UNSPSC Code | 27112100 |
Kurt Machine Vise: Single-Station, 8.0000" Jaw Width, 10-1/4" Jaw Opening, Stationary Base, Precision 3810H Features & Benefits
- Reverse hydraulic operation provides powerful and consistent clamping performance for demanding machining applications.
- 8.0000" jaw width delivers a large contact area for improved workpiece stability and holding strength.
- 10-1/4" jaw opening capacity accommodates a broad range of workpiece sizes and machining requirements.
- 6.0000" jaw height provides substantial gripping support for larger components and heavy-duty machining operations.
- 27.0000" base length creates a stable platform that enhances rigidity and machining accuracy.
- Horizontal orientation provides secure and accurate positioning of the workpiece during machining operations.
- Stationary base design maximizes stability and repeatability while reducing movement during cutting operations.
- Maximum clamping force of 3,200 Ft/Lb helps maintain secure workpiece retention during aggressive machining cycles.
- 11,000 PSI hydraulic capability delivers dependable hydraulic performance in demanding industrial environments.
- Steel jaws provide excellent wear resistance and long-term durability.
- Ductile iron construction offers exceptional strength, vibration dampening, and extended service life.
- Precision-engineered design supports consistent machining accuracy and repeatable production results.
Horizontal vises provide secure and accurate positioning of the workpiece during machining operations. Stationary vises are commonly used for machining straight surfaces and can be mounted parallel to the cutting path or at a right angle, offering flexible setup options for a wide variety of machining applications.
Why Choose the Kurt Machine Vise: Single-Station, 8.0000" Jaw Width, 10-1/4" Jaw Opening, Stationary Base, Precision 3810H
- Reverse hydraulic operation provides reliable and consistent clamping performance.
- Heavy-duty ductile iron construction ensures long-term durability.
- Large jaw capacity accommodates a wide range of workpiece sizes.
- Precision design supports accurate, repeatable machining results.
- Horizontal stationary configuration delivers excellent workpiece stability.
- Ideal for CNC machining, production manufacturing, and precision workholding applications.
The Kurt Machine Vise: Single-Station, 8.0000" Jaw Width, 10-1/4" Jaw Opening, Stationary Base, Precision 3810H combines hydraulic efficiency, rigid construction, and precision workholding performance to help manufacturers achieve consistent, high-quality machining results.
