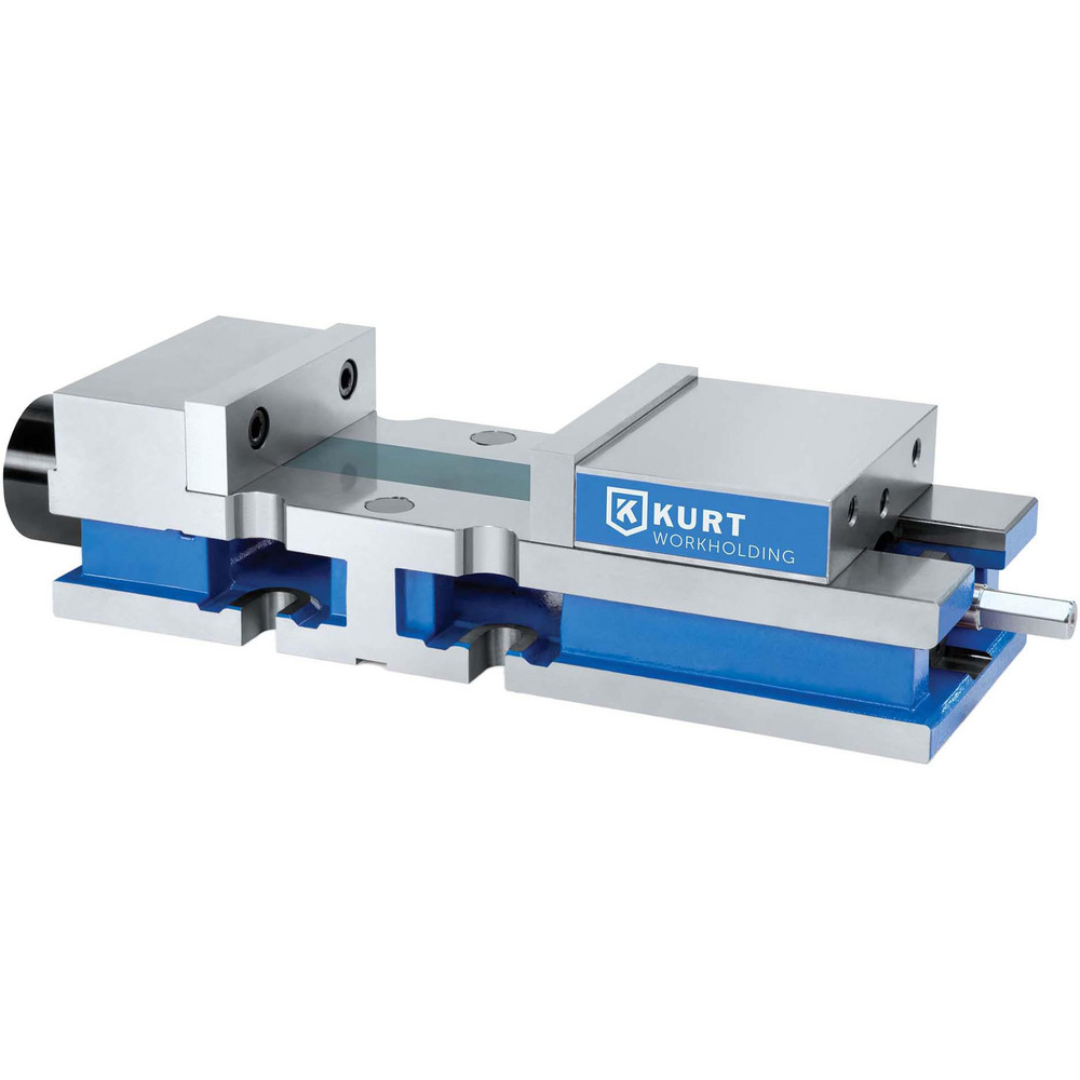

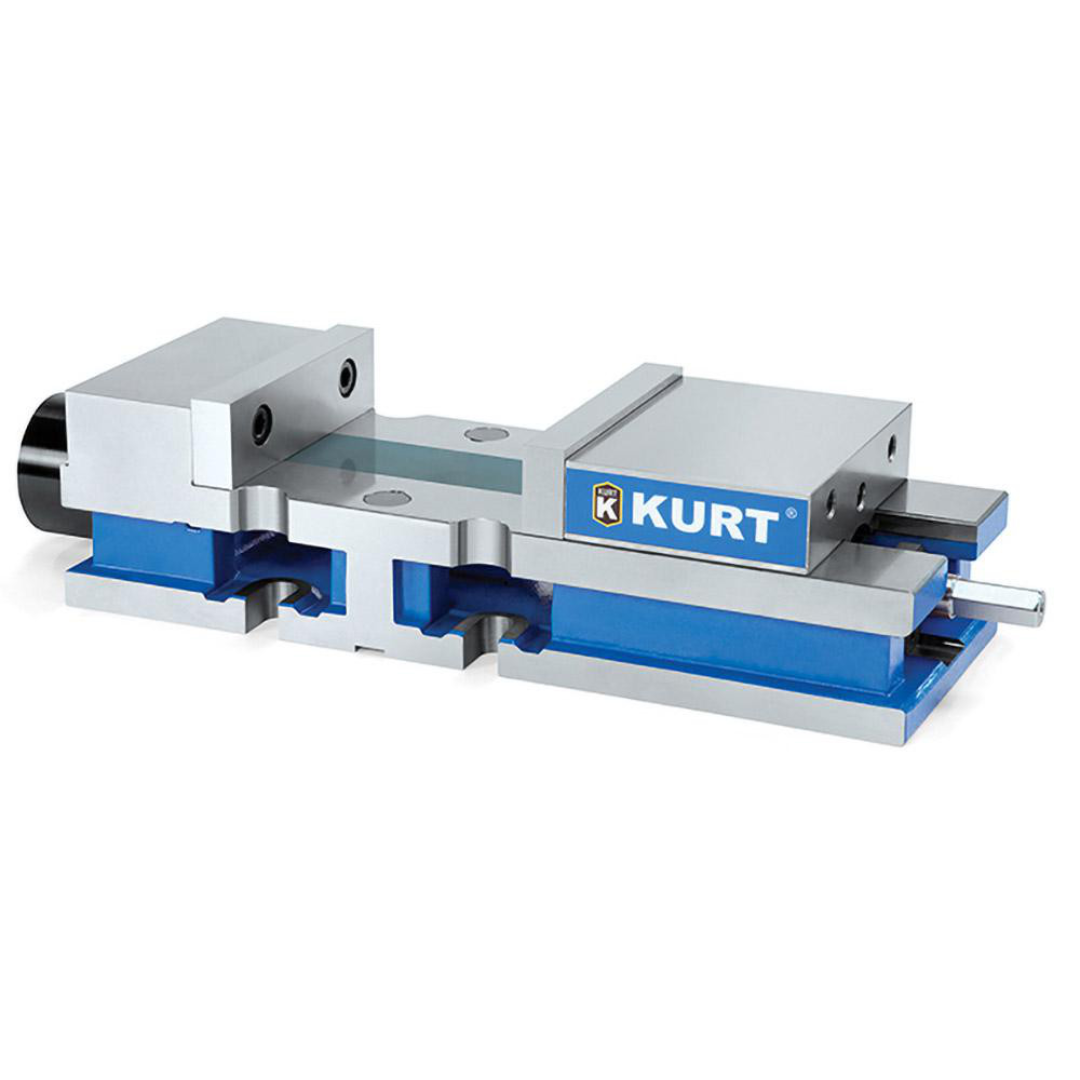

Kurt Machine Vise: Single-Station, 8.0000" Jaw Width, 10-1/4" Jaw Opening, Stationary Base, Precision 3800H Applications
- CNC milling and machining center operations.
- Precision machining of steel, aluminum, stainless steel, titanium, and specialty alloys.
- Production manufacturing requiring consistent and repeatable workholding.
- Toolrooms, mold shops, aerospace, automotive, and general manufacturing environments.
- High-accuracy drilling, milling, boring, tapping, and finishing applications.
- Fixture-based machining setups utilizing fixture key compatibility.
- Operations requiring hydraulic clamping efficiency and reduced operator effort.
Ideal for precision machining environments where secure clamping, repeatable positioning, and maximum productivity are essential.
Kurt Machine Vise: Single-Station, 8.0000" Jaw Width, 10-1/4" Jaw Opening, Stationary Base, Precision 3800H Specifications
| Model | 3800H |
|---|---|
| Number of Stations | 1 |
| Jaw Width | 8.0000" |
| Jaw Height | 6.0000" (152.40 mm) |
| Maximum Jaw Opening Capacity | 10-1/4" |
| Throat Depth | 1.0000" |
| Orientation | Horizontal |
| Operation Type | Hydraulic |
| Base Motion Type | Stationary |
| Base Length | 27.0000" (685.80 mm) |
| Base Width | 8.0000" (203.20 mm) |
| Base Height | 6.0000" (152.40 mm) |
| Overall Length | 27.0000" (685.80 mm) |
| Overall Width | 8.0000" |
| Overall Height | 6.0000" |
| Maximum Clamping Force | 3,200 Ft/Lb |
| Maximum Hydraulic Pressure | 11,000 PSI |
| Jaw Material | Steel |
| Vise Material | Ductile Iron |
| Precision | Yes |
| UNSPSC Code | 27112100 |
Kurt Machine Vise: Single-Station, 8.0000" Jaw Width, 10-1/4" Jaw Opening, Stationary Base, Precision 3800H Features & Benefits
- Hydraulic operation delivers fast, consistent, and repeatable clamping performance while reducing operator effort.
- 8.0000" jaw width provides a large and stable clamping surface for demanding machining applications.
- 10-1/4" jaw opening capacity accommodates a wide range of workpiece sizes.
- 6.0000" jaw height offers substantial support and gripping strength for larger components.
- 27.0000" base length provides a rigid platform that enhances stability and machining accuracy.
- Horizontal orientation ensures secure and accurate positioning of the workpiece during machining operations.
- AngLock® design helps reduce jaw lift while pulling the workpiece downward for improved holding accuracy.
- Ultra-Precise Function supports repeatable results and consistent workpiece alignment.
- Fixture key compatibility simplifies installation and allows rapid machine table positioning.
- Matched stationary jaw design enhances alignment and clamping consistency.
- 1/4" vise stroke enables precise adjustment and efficient clamping control.
- Heavy-duty ductile iron construction provides excellent strength, durability, and vibration dampening.
- 11,000 PSI hydraulic capability delivers powerful and reliable clamping performance for demanding applications.
Horizontal vises provide secure and accurate positioning of the workpiece during machining operations. Stationary vises are commonly used for machining straight surfaces and can be mounted parallel to the cutting path or at a right angle, providing flexible setup options for a wide range of manufacturing applications.
Why Choose the Kurt Machine Vise: Single-Station, 8.0000" Jaw Width, 10-1/4" Jaw Opening, Stationary Base, Precision 3800H
- Hydraulic clamping system delivers consistent and repeatable holding force.
- Advanced AngLock® technology improves workpiece retention and machining accuracy.
- Heavy-duty ductile iron construction ensures long-term durability.
- Large 8-inch jaw width and 10-1/4-inch opening provide excellent versatility.
- Horizontal design supports accurate positioning during machining operations.
- Built for demanding CNC, production, aerospace, automotive, and industrial manufacturing environments.
The Kurt Machine Vise: Single-Station, 8.0000" Jaw Width, 10-1/4" Jaw Opening, Stationary Base, Precision 3800H combines hydraulic efficiency, precision workholding, and rugged industrial construction to deliver exceptional performance in high-accuracy machining applications.
