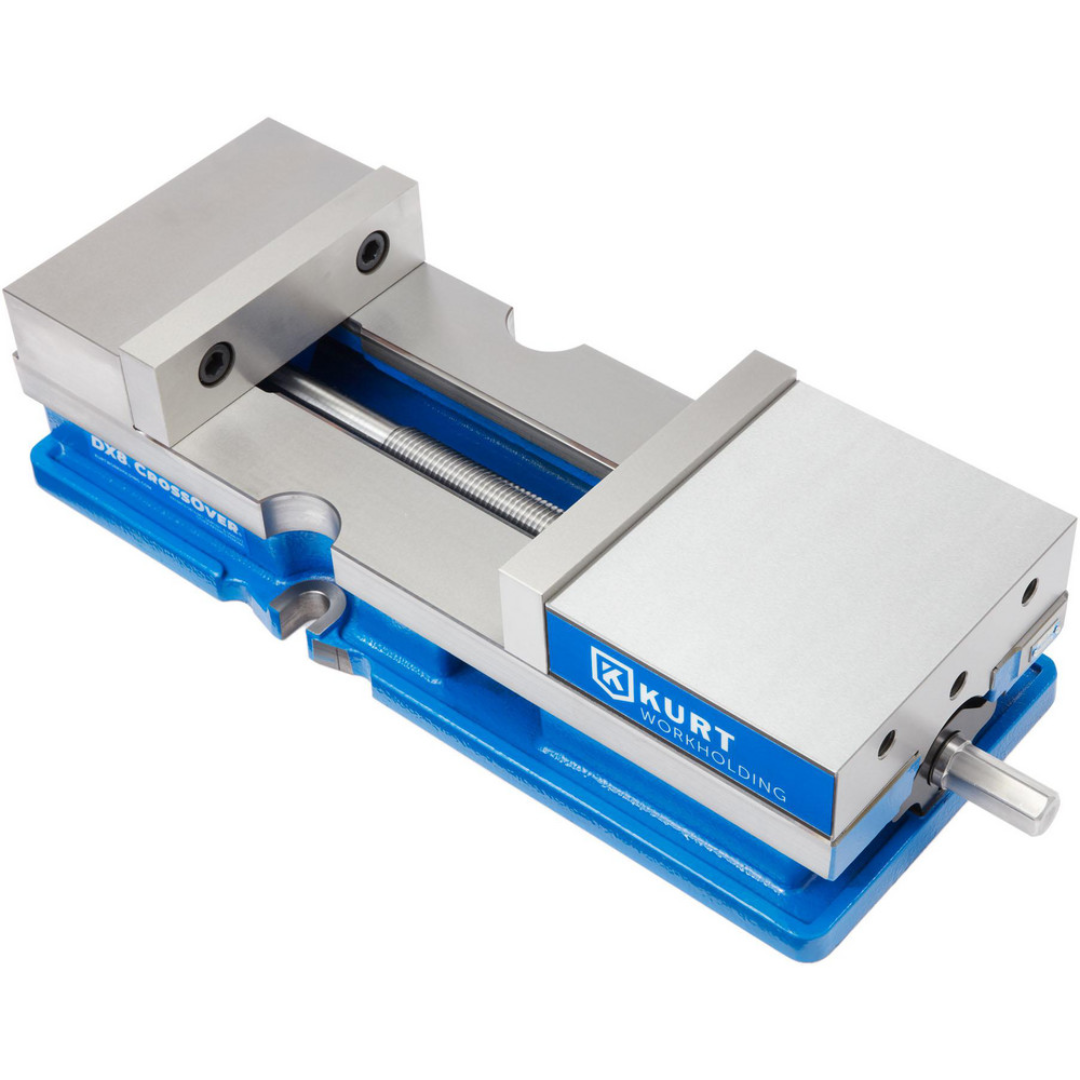

Kurt Machine Vise: Single-Station, 8.00" Jaw Width, 10" Jaw Opening, Stationary Base, Precision 18723726 Applications
- Large-part milling and machining operations.
- Production manufacturing environments requiring high clamping force.
- Heavy-duty drilling, boring, and finishing applications.
- Toolroom and maintenance machining operations.
- Precision workholding for steel, aluminum, cast iron, and engineered materials.
- General machine shop applications requiring stable and repeatable setups.
The horizontal vise configuration provides secure and accurate workpiece positioning, helping machinists maintain precision and consistency throughout demanding machining operations.
Kurt Machine Vise: Single-Station, 8.00" Jaw Width, 10" Jaw Opening, Stationary Base, Precision 18723726 Specifications
| Product Type | Precision Machine Vise |
|---|---|
| Number of Stations | 1 |
| Jaw Width | 8.00 in |
| Maximum Jaw Opening | 10.00 in |
| Jaw Material | Steel |
| Orientation | Horizontal |
| Operation Type | Manual |
| Base Motion Type | Stationary |
| Base Length | 24.0160 in |
| Base Width | 8.99 in |
| Overall Length | 24.0160 in |
| Overall Width | 8.99 in |
| Overall Height | 5.2750 in |
| Vise Material | Ductile Iron |
| Maximum Clamping Force | 6,550 ft-lb |
| Maximum Clamping Pressure | 78,600 psi |
| Precision Ground | Yes |
| UNSPSC Code | 27112100 |
Kurt Machine Vise: Single-Station, 8.00" Jaw Width, 10" Jaw Opening, Stationary Base, Precision 18723726 Features & Performance
- Large 8-inch jaw width provides extensive workpiece contact and secure clamping support.
- 10-inch jaw opening capacity accommodates larger components and oversized workpieces.
- 24.0160-inch base length delivers exceptional rigidity and stability during heavy machining operations.
- Horizontal workholding configuration promotes accurate positioning and repeatable machining results.
- Stationary base design minimizes movement and maximizes workholding reliability.
- Steel jaws provide durable gripping performance and long service life.
- Ductile iron vise body offers superior strength, vibration resistance, and durability.
- 6,550 ft-lb clamping force ensures dependable holding power for demanding applications.
- Precision-ground construction supports high-accuracy machining and setup repeatability.
- Manual operation provides precise control over workpiece clamping and positioning.
Why Choose the Kurt Machine Vise: Single-Station, 8.00" Jaw Width, 10" Jaw Opening, Stationary Base, Precision 18723726
- Designed for large workpieces and demanding machining environments.
- Rigid 24.0160-inch stationary base enhances stability and accuracy.
- Generous 10-inch jaw opening supports a wide range of part sizes.
- Heavy-duty ductile iron construction withstands intensive shop use.
- Precision-ground design promotes repeatable and accurate machining results.
- Ideal for production machining, toolrooms, maintenance facilities, and manufacturing operations.
The Kurt Machine Vise: Single-Station, 8.00" Jaw Width, 10" Jaw Opening, Stationary Base, Precision 18723726 combines large-capacity workholding, exceptional rigidity, and proven Kurt precision to deliver reliable performance for demanding machining applications.
