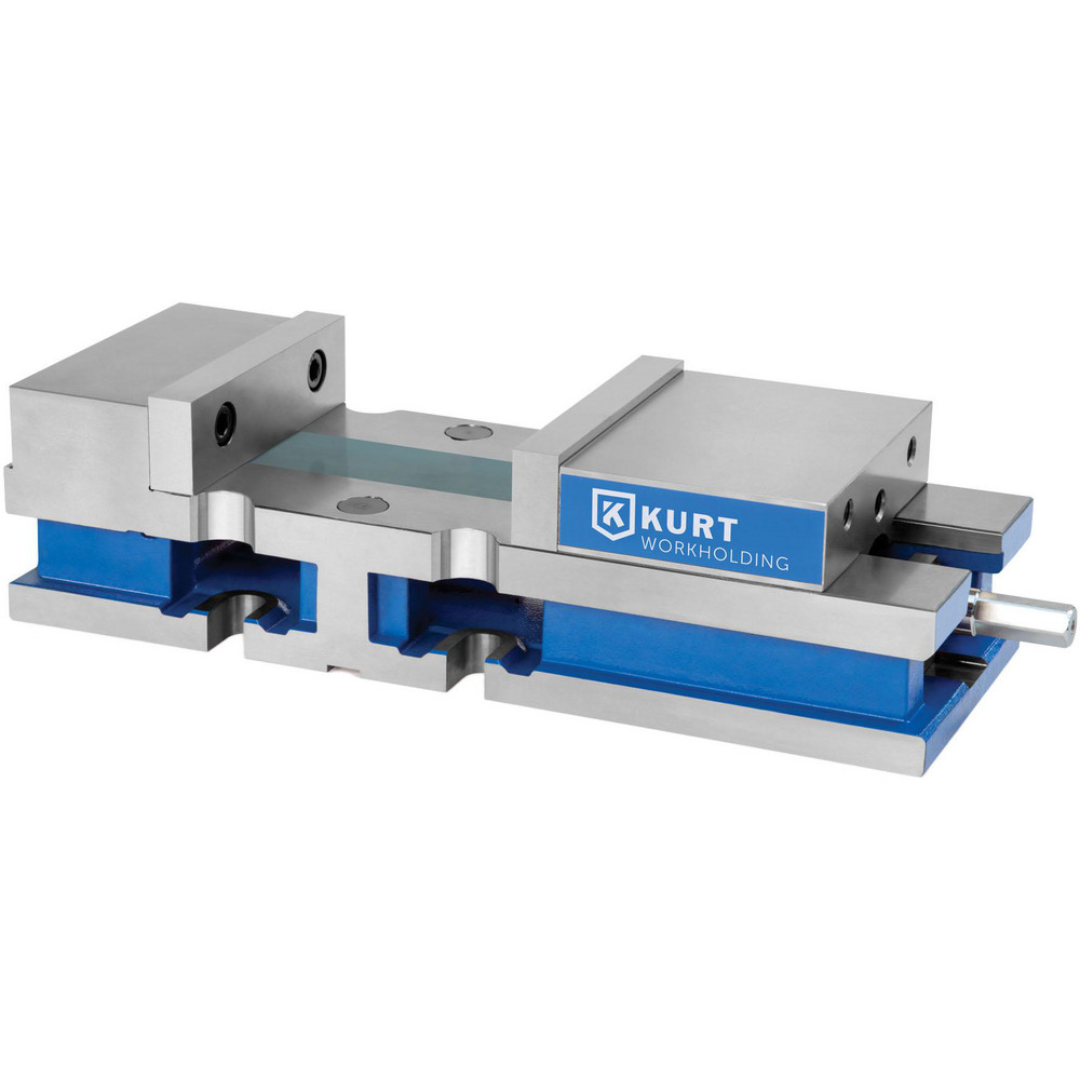

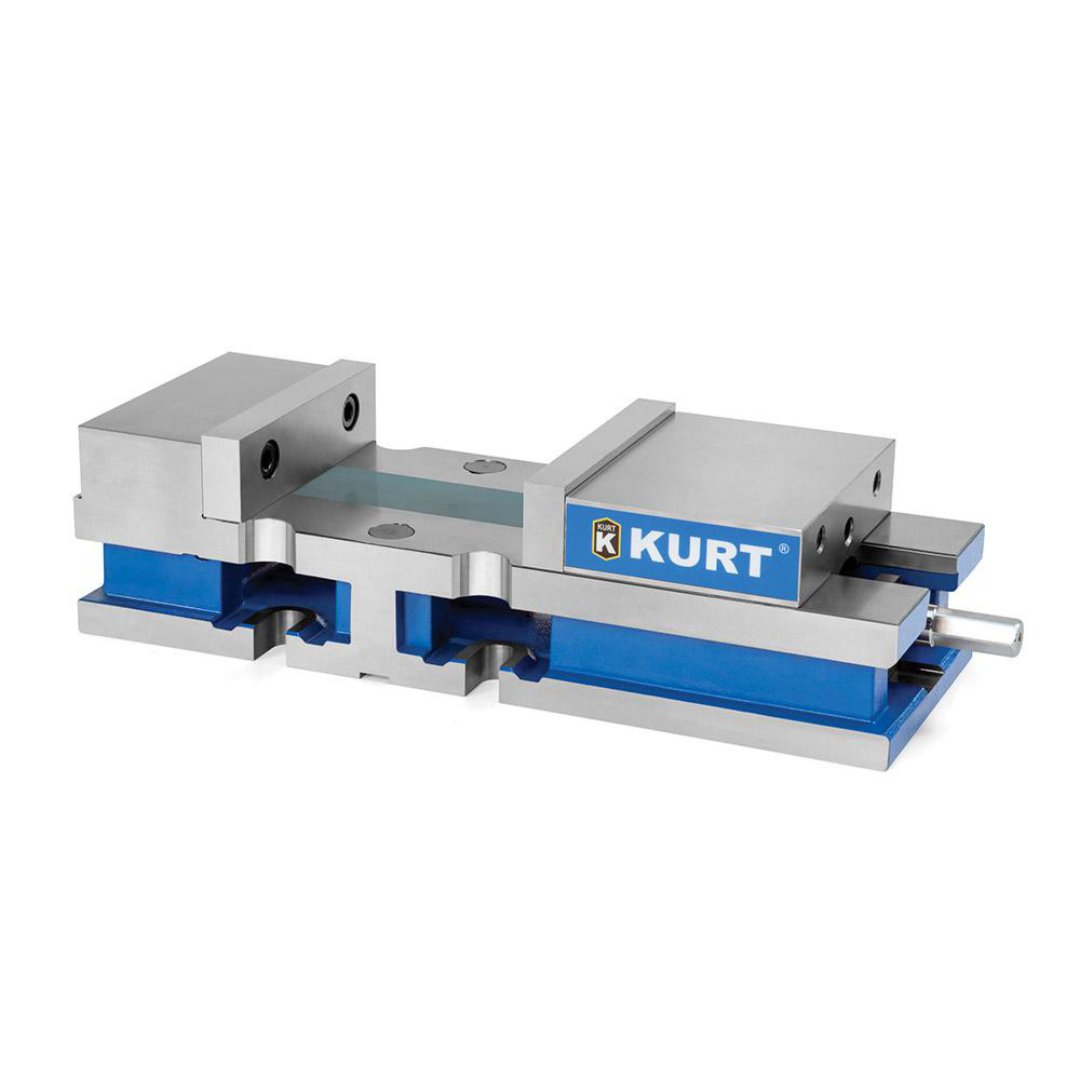

Kurt Machine Vise: Single-Station, 8.00" Jaw Width, 10-1/4" Jaw Opening, Stationary Base, Precision 44613685 Applications
- CNC milling and machining center operations.
- Heavy-duty machining and metalworking applications.
- Production manufacturing environments requiring repeatable workholding.
- Toolroom and maintenance machining operations.
- Fixture-based machining setups utilizing fixture keys.
- Precision machining of large workpieces and components.
- General fabrication and industrial manufacturing applications.
- Machining straight surfaces with rigid stationary workholding.
Horizontal vises provide secure and accurate positioning of the workpiece during machining operations. Stationary vises are used for machining straight surfaces and can be fastened to the machine table either parallel or at a right angle depending on the machining setup requirements.
Kurt Machine Vise: Single-Station, 8.00" Jaw Width, 10-1/4" Jaw Opening, Stationary Base, Precision 44613685 Specifications
| Jaw Width | 8.00" |
|---|---|
| Jaw Height | 6.0000" |
| Maximum Jaw Opening | 10-1/4" |
| Throat Depth | 1.0000" |
| Jaw Material | Steel |
| Operation Type | Manual |
| Orientation | Horizontal |
| Number of Stations | 1 |
| Base Motion Type | Stationary |
| Base Length | 24.0000" |
| Base Width | 8.00" |
| Base Height | 6.0000" |
| Overall Length | 24.0000" |
| Overall Width | 8.00" |
| Overall Height | 6.0000" |
| Vise Material | Ductile Iron |
| Load Capacity | 6,356 lb |
| Maximum Clamping Force | 6,550 lb |
| Precision Rated | Yes |
| For Use With | Machine |
| UNSPSC Code | 27112100 |
Kurt Machine Vise: Single-Station, 8.00" Jaw Width, 10-1/4" Jaw Opening, Stationary Base, Precision 44613685 Performance & Construction
- AngLock® Design helps eliminate jaw lift and pulls the workpiece downward for improved machining accuracy.
- Ultra-Precise Function supports consistent positioning and repeatable machining performance.
- Ductile Iron Construction provides exceptional rigidity, durability, and vibration resistance under heavy loads.
- 8-Inch Wide Steel Jaws provide maximum gripping surface for large workpieces and demanding machining operations.
- 10-1/4" Jaw Opening Capacity accommodates a broad range of part sizes and fixture setups.
- Matched Stationary Jaw Design improves alignment and promotes consistent clamping pressure.
- Fixture Key Compatibility enables accurate vise positioning and repeatable machine table setups.
- 6,550 lb Clamping Force delivers dependable workholding power during milling, drilling, and machining operations.
- Rigid Stationary Base minimizes movement and enhances machining stability.
- Heavy-Duty Industrial Construction built for long service life in demanding manufacturing environments.
Why Choose the Kurt Machine Vise: Single-Station, 8.00" Jaw Width, 10-1/4" Jaw Opening, Stationary Base, Precision 44613685
- Large 8-inch jaw width supports oversized workpieces.
- AngLock® technology improves part retention and machining accuracy.
- Precision-rated construction delivers repeatable results.
- Heavy-duty ductile iron body withstands demanding production environments.
- Fixture key compatibility improves setup consistency.
- Strong clamping force ensures secure workholding.
- Ideal for CNC machining, fabrication, and industrial manufacturing operations.
The Kurt Machine Vise: Single-Station, 8.00" Jaw Width, 10-1/4" Jaw Opening, Stationary Base, Precision 44613685 combines large-capacity workholding, precision engineering, and rugged industrial construction to deliver dependable performance in demanding machining environments. Its AngLock® design, precision-rated accuracy, and heavy-duty clamping capability make it an excellent choice for manufacturers seeking reliable and repeatable workholding solutions.
