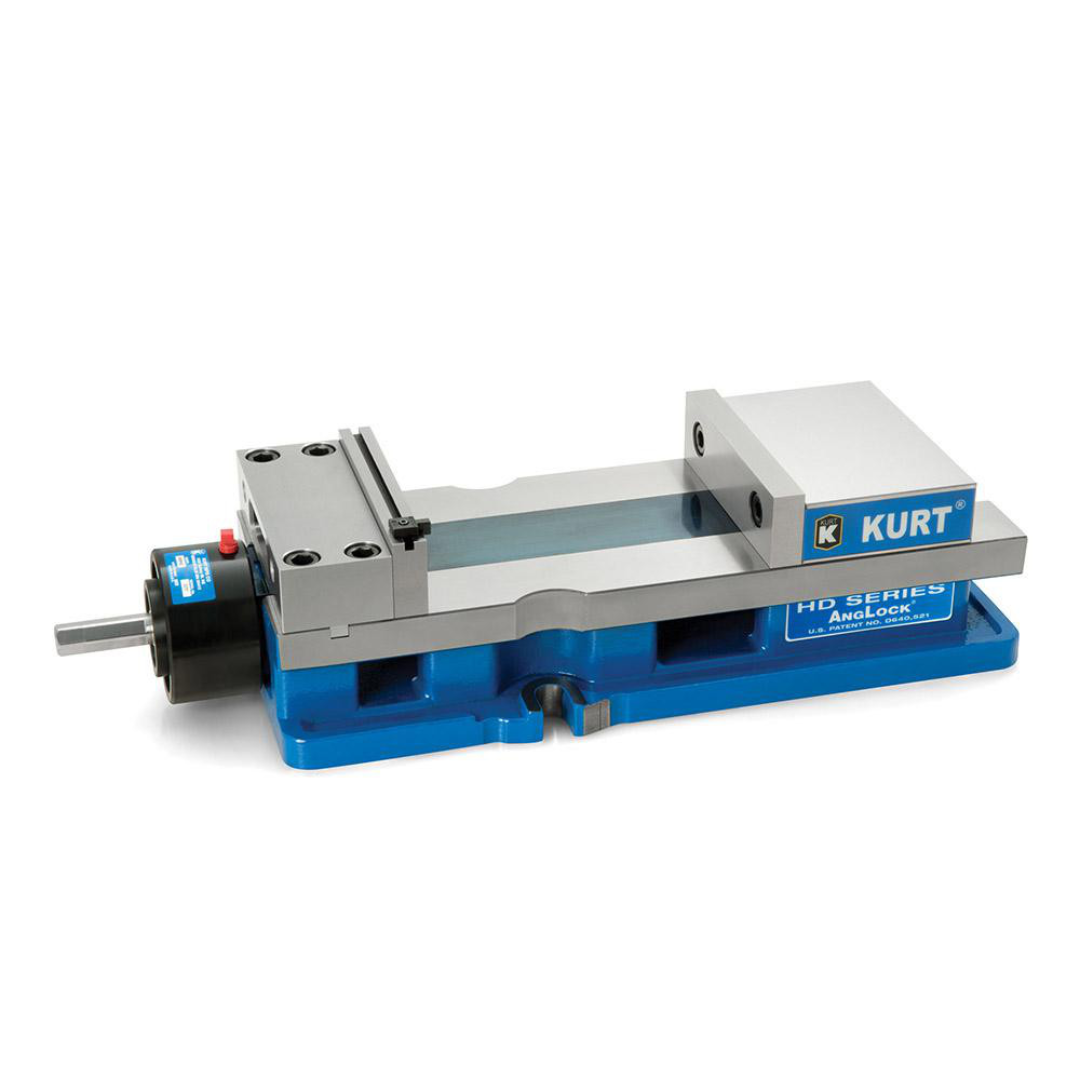

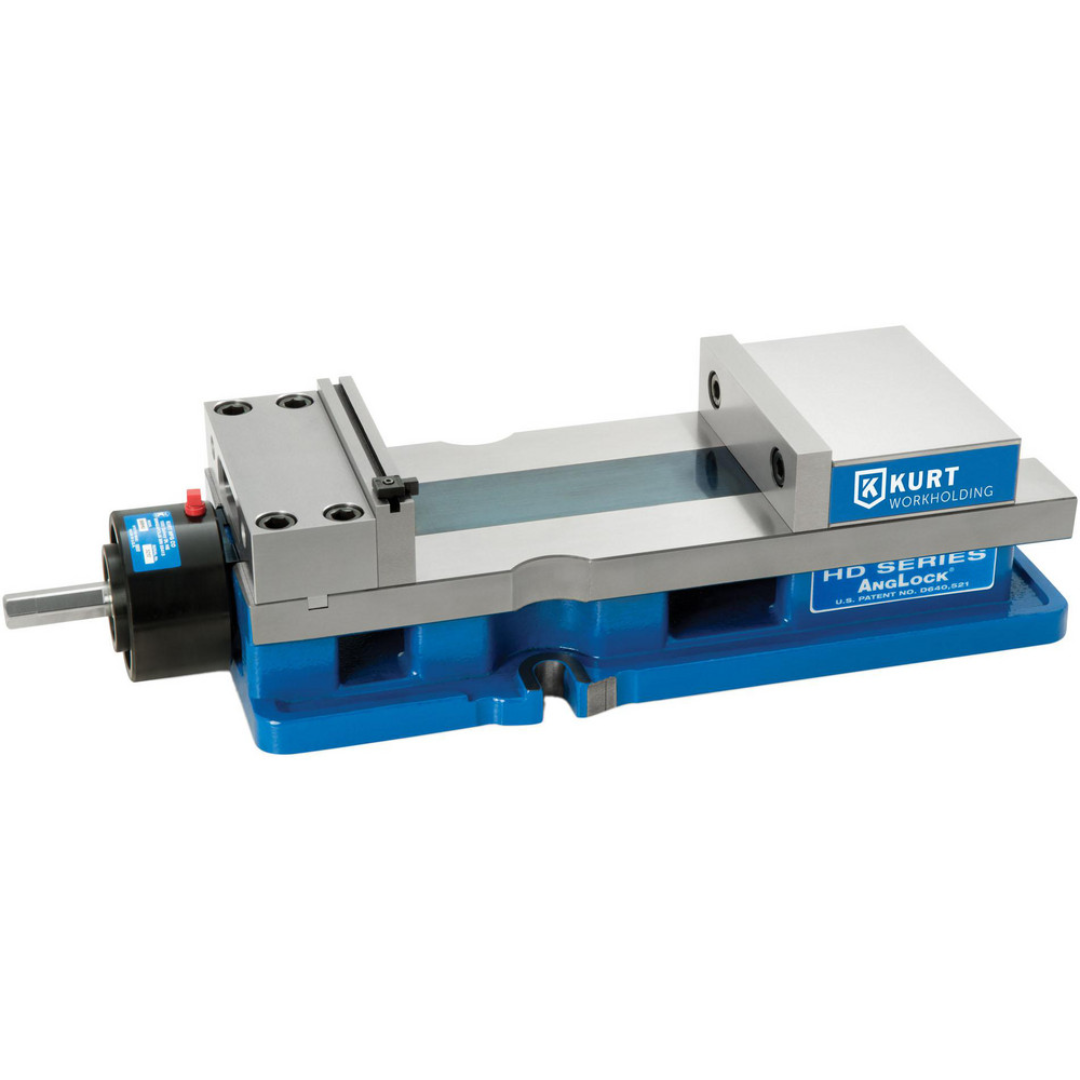

Kurt Machine Vise: Single-Station, 6.0000" Jaw Width, 9" Jaw Opening, Stationary Base, Precision 61764213 Applications
- CNC milling and machining operations requiring accurate workholding.
- Production manufacturing environments demanding repeatable clamping performance.
- Toolroom, maintenance, and prototype machining applications.
- Machining of straight surfaces and precision part fabrication.
- Horizontal machining setups requiring stable workpiece positioning.
- General-purpose metalworking and industrial manufacturing operations.
Horizontal vises provide secure and accurate positioning of the workpiece during machining operations, helping improve machining consistency, accuracy, and productivity.
Kurt Machine Vise: Single-Station, 6.0000" Jaw Width, 9" Jaw Opening, Stationary Base, Precision 61764213 Specifications
| Product Type | Machine Vise |
|---|---|
| Configuration | Single-Station |
| Orientation | Horizontal |
| Operation Type | Reverse Hydraulic |
| Jaw Width | 6.0000" |
| Jaw Height | 1.7350" |
| Maximum Jaw Opening | 9" |
| Throat Depth | 1-47/64" |
| Maximum Clamping Force | 5,250 lb |
| Base Motion Type | Stationary |
| Base Width | 6.00" |
| Overall Length | 20.5530" |
| Overall Height | 4.8600" |
| Vise Material | Ductile Iron |
| For Use With | Machine |
| Includes | Groove Lock Workstop |
| Precision | Yes |
| UNSPSC Code | 27112100 |
Kurt Machine Vise: Single-Station, 6.0000" Jaw Width, 9" Jaw Opening, Stationary Base, Precision 61764213 Features & Benefits
- Horizontal vise configuration provides secure and accurate workpiece positioning during machining operations.
- Stationary base design delivers maximum rigidity for machining straight surfaces and precision work.
- Reverse hydraulic operation helps generate consistent clamping pressure and dependable holding performance.
- High 5,250 lb clamping force securely retains workpieces during demanding machining processes.
- Heavy-duty ductile iron construction offers excellent strength, vibration damping, and long service life.
- 6.0000" jaw width and 1.7350" jaw height provide stable support across a wide range of workpiece sizes.
- 9" jaw opening capacity accommodates larger components and diverse machining setups.
- Less deflection design helps maintain machining accuracy and part consistency.
- Stable stationary jaw improves workholding repeatability and positioning accuracy.
- Taller body construction enhances support and overall vise rigidity.
- Quick-change movable jaw system allows efficient setup adjustments and maintenance.
- Standard jaw plate compatibility supports common workholding requirements.
- Narrower body design provides improved machine accessibility and tool clearance.
- Sine key feature assists with accurate vise alignment and positioning.
- Groove Lock Workstop included supports repeatable part loading and production efficiency.
Stationary vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel orientation or at a right angle, providing flexibility while maintaining exceptional rigidity and accuracy.
Why Choose the Kurt Machine Vise: Single-Station, 6.0000" Jaw Width, 9" Jaw Opening, Stationary Base, Precision 61764213
- Precision-engineered for CNC and manual machining applications.
- Powerful 5,250 lb clamping force for secure workholding.
- Heavy-duty ductile iron construction ensures long-term durability.
- Stationary base design maximizes rigidity and machining accuracy.
- Quick-change jaw system and included workstop improve setup efficiency.
- Large 9" jaw opening accommodates a wide range of workpiece sizes.
The Kurt Machine Vise: Single-Station, 6.0000" Jaw Width, 9" Jaw Opening, Stationary Base, Precision 61764213 combines rugged construction, high clamping force, and proven precision workholding performance to meet the demands of modern machining and manufacturing environments.
