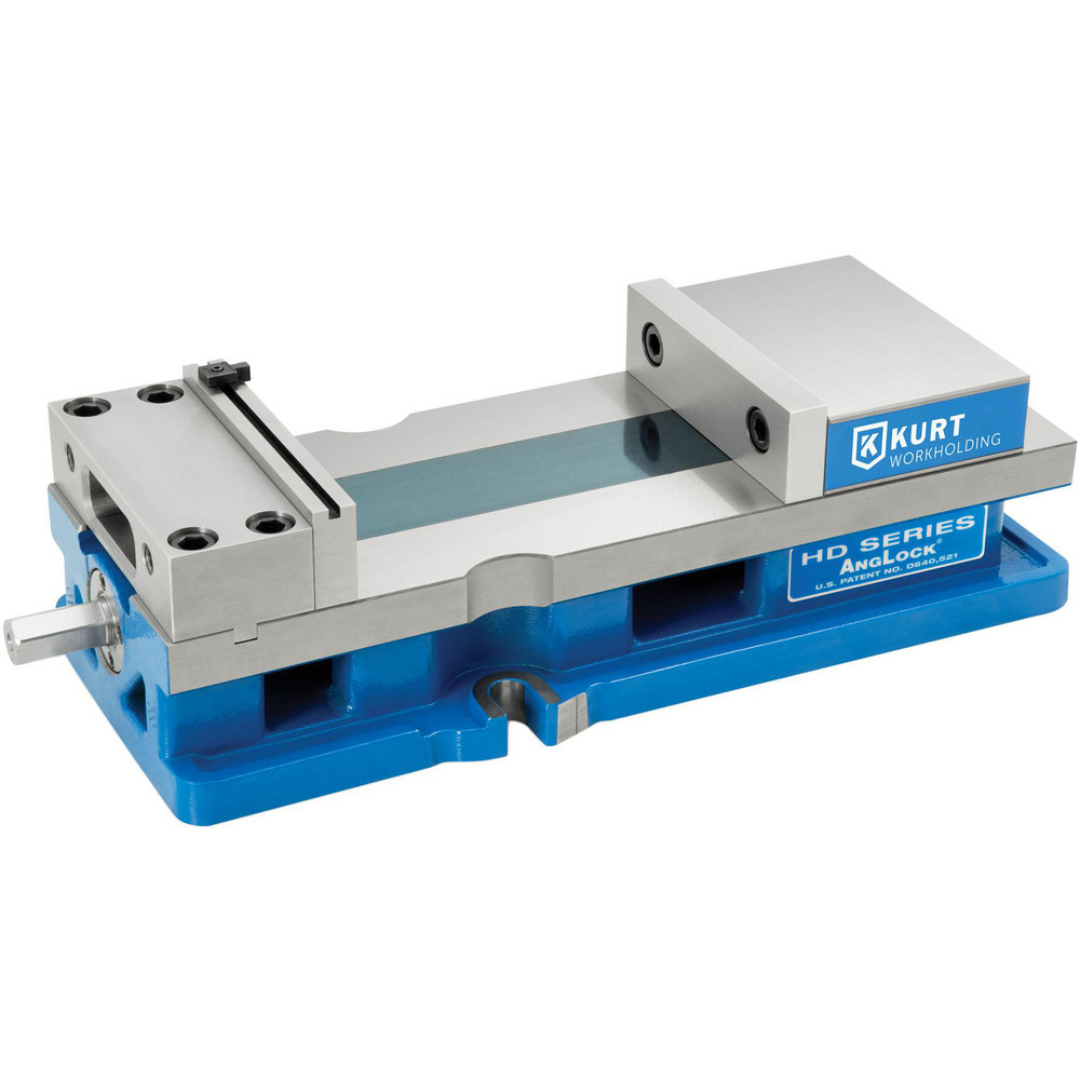

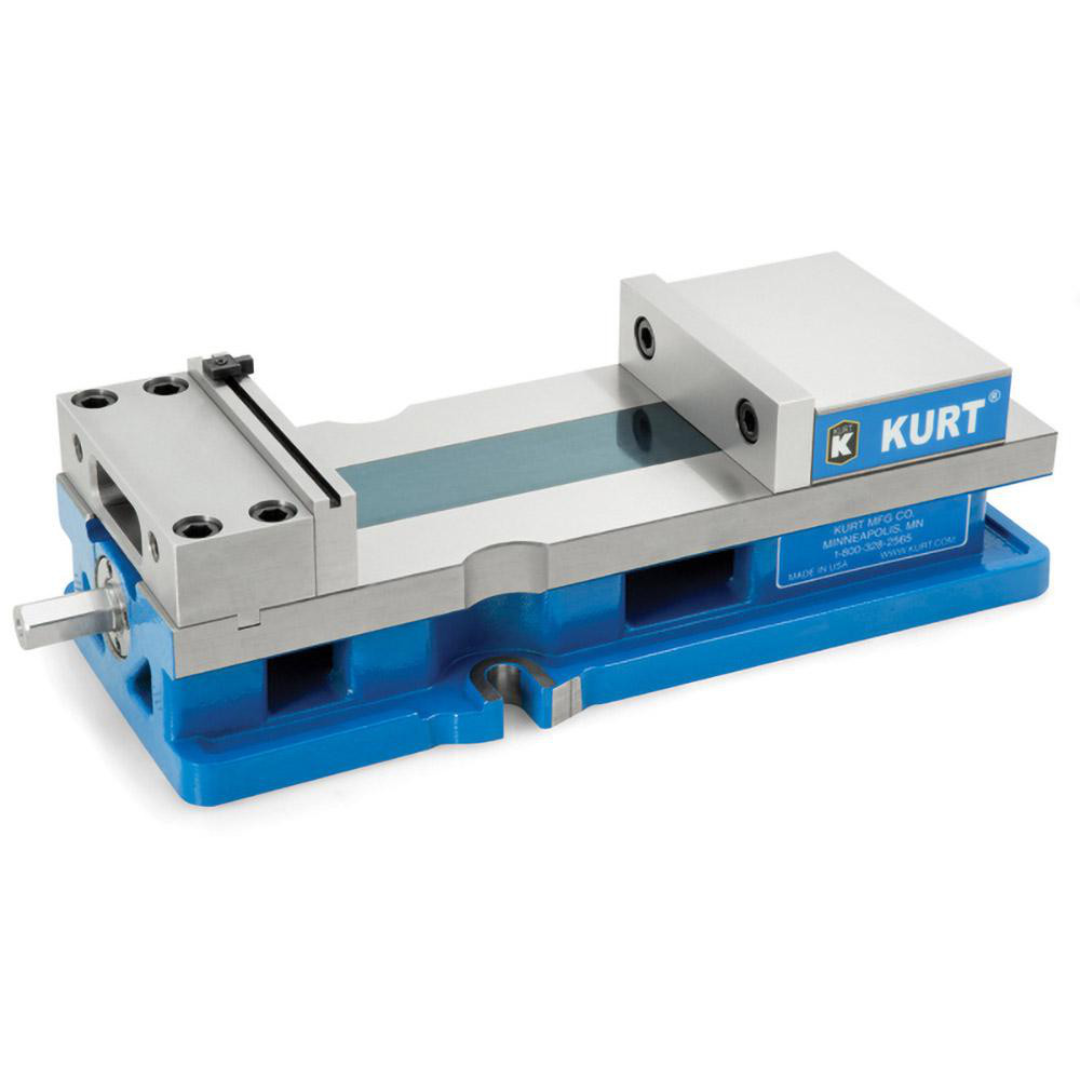

Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 9" Jaw Opening, Stationary Base, Precision 61945077 Applications
- CNC milling and machining center operations.
- Precision machining of steel, aluminum, and engineered materials.
- Production manufacturing requiring repeatable workholding accuracy.
- Toolroom and maintenance machining environments.
- Heavy-duty roughing and finishing operations.
- Fixture-based machining setups utilizing sine key alignment.
- General metalworking and fabrication applications.
- Machining straight surfaces requiring rigid stationary workholding.
Horizontal vises provide secure and accurate positioning of the workpiece during machining operations. Stationary vises are used for machining straight surfaces and can be fastened to the machine table either parallel or at a right angle depending on machining requirements.
Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 9" Jaw Opening, Stationary Base, Precision 61945077 Specifications
| Jaw Width | 6.00" |
|---|---|
| Jaw Height | 1.7350" |
| Maximum Jaw Opening | 9" |
| Throat Depth | 1-47/64" |
| Operation Type | Reverse Manual |
| Orientation | Horizontal |
| Number of Stations | 1 |
| Base Motion Type | Stationary |
| Base Width | 6.00" |
| Overall Length | 18.3850" |
| Overall Height | 4.8600" |
| Vise Material | Ductile Iron |
| Maximum Clamping Force | 12,600 lb |
| Precision | Yes |
| Included Accessory | Groove Lock Workstop |
| UNSPSC Code | 27112100 |
Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 9" Jaw Opening, Stationary Base, Precision 61945077 Performance & Construction
- Ductile Iron Construction provides exceptional rigidity, durability, and resistance to deformation under heavy machining loads.
- 12,600 lb Maximum Clamping Force delivers outstanding workpiece holding power for demanding cutting operations.
- Reverse Manual Design offers reliable and controlled clamping performance for precision machining applications.
- Less Deflection Construction helps maintain machining accuracy by reducing movement during operation.
- Stable Stationary Jaw enhances repeatability and workpiece positioning consistency.
- Taller Body Design increases overall structural strength and machining stability.
- Quick Change Movable Jaw simplifies setup changes and improves production efficiency.
- Standard Jaw Plate Compatibility provides versatility across multiple machining applications.
- Narrower Body Configuration maximizes machine table space and setup flexibility.
- Sine Key Feature supports precise alignment and repeatable installation on machine tables.
Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 9" Jaw Opening, Stationary Base, Precision 61945077 Benefits
- Provides high-precision workholding for critical machining operations.
- Delivers exceptional clamping force for aggressive cutting applications.
- Reduces setup time with quick-change jaw functionality.
- Improves repeatability and machining consistency.
- Offers long service life through rugged ductile iron construction.
- Includes a Groove Lock Workstop for efficient production setups.
- Ideal for CNC machining, fabrication, and industrial manufacturing facilities.
The Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 9" Jaw Opening, Stationary Base, Precision 61945077 combines powerful clamping force, precision-rated performance, and advanced workholding features to provide dependable results in demanding machining environments. Its rigid stationary design and durable construction make it an excellent choice for manufacturers seeking accuracy, repeatability, and long-term reliability.
