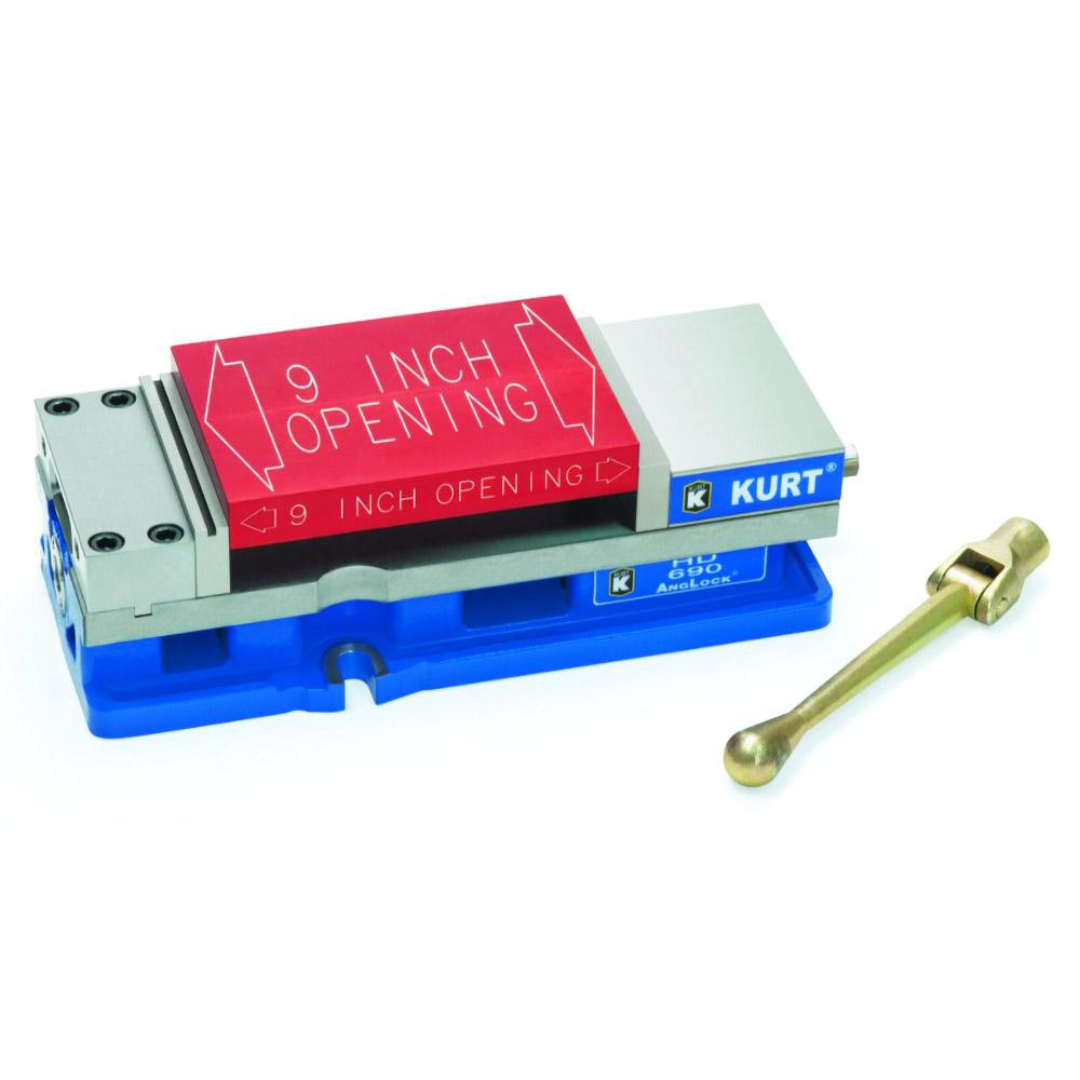

Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 9-1/16" Jaw Opening, Stationary Base, Precision 73411712 Applications
- Precision milling machine operations requiring secure workpiece retention.
- Machining straight surfaces with consistent clamping force and positioning accuracy.
- Toolroom, production, maintenance, and manufacturing environments.
- Drilling, boring, facing, and finishing operations.
- Prototype development and short-run production machining.
- General metalworking applications involving steel, aluminum, and engineered materials.
Stationary vises are commonly used for machining straight surfaces and can be mounted parallel or at a right angle to the machine table, providing flexibility for a variety of machining setups.
Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 9-1/16" Jaw Opening, Stationary Base, Precision 73411712 Specifications
| Model Number | HD690 |
|---|---|
| Product Type | Precision Machine Vise |
| Number of Stations | 1 |
| Jaw Width | 6.00 in |
| Jaw Height | 1.7350 in |
| Maximum Jaw Opening | 9-1/16 in |
| Throat Depth | 1-31/64 in |
| Orientation | Horizontal |
| Operation Type | Manual |
| Base Motion Type | Stationary |
| Base Length | 16.8100 in |
| Base Width | 7.33 in |
| Overall Length | 18.3200 in |
| Overall Width | 7.33 in |
| Overall Height | 4.8600 in |
| Maximum Clamping Force | 5,250 ft-lb |
| Load Capacity | 5,250 lb |
| Included | Groove Lock® Workstop and Jaw |
| Precision Ground | Yes |
| Country of Origin | United States |
| UNSPSC Code | 27112100 |
Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 9-1/16" Jaw Opening, Stationary Base, Precision 73411712 Features & Performance
- Horizontal vise configuration provides secure and accurate workpiece positioning for precision machining operations.
- Rigid stationary base design maximizes stability and minimizes movement during heavy cutting applications.
- 6-inch jaw width offers excellent gripping capability for a broad range of workpiece sizes.
- 1.7350-inch jaw height provides enhanced support and increased workpiece contact area.
- 9-1/16-inch jaw opening capacity accommodates larger components while maintaining secure clamping.
- Less deflection construction helps improve machining accuracy and repeatability.
- Narrower body width design improves machine table accessibility and setup flexibility.
- Stable stationary jaw configuration enhances clamping consistency throughout machining operations.
- Quick-change movable jaw system simplifies setup changes and reduces downtime.
- Groove Lock® Workstop supports repeatable positioning and improved production efficiency.
- Sine keys included for precise alignment and accurate machine table installation.
Why Choose the Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 9-1/16" Jaw Opening, Stationary Base, Precision 73411712
- Horizontal configuration delivers dependable workpiece positioning and machining accuracy.
- 16.8100-inch base length provides a stable platform for demanding machining operations.
- Large jaw opening accommodates a wide variety of workpiece sizes.
- Quick-change jaw system improves productivity and setup efficiency.
- Precision-ground construction supports repeatable machining results.
- Manufactured in the USA and engineered for professional machine shop environments.
The Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 9-1/16" Jaw Opening, Stationary Base, Precision 73411712 combines precision workholding, durable construction, and proven Kurt engineering to deliver reliable performance for demanding machining, toolroom, and production applications.
